Analia Claros Architecture Portfolio 2024-2026

Page 1


PORTFOLIO

ARCHITECTURE

UNDERGRADUATE

Northeastern University

Selected Works

Boston, MA 2025

Roxbury,MA 2025 Collaborative

2024-2025 Graphite Medium

05. THE WATCHTOWER MODEL PHOTOS

[24-27]

[28-29]

Delft,NL 1968 Precedent Analysis 2025 Collabortative [4-9] [10-17] [18-23]

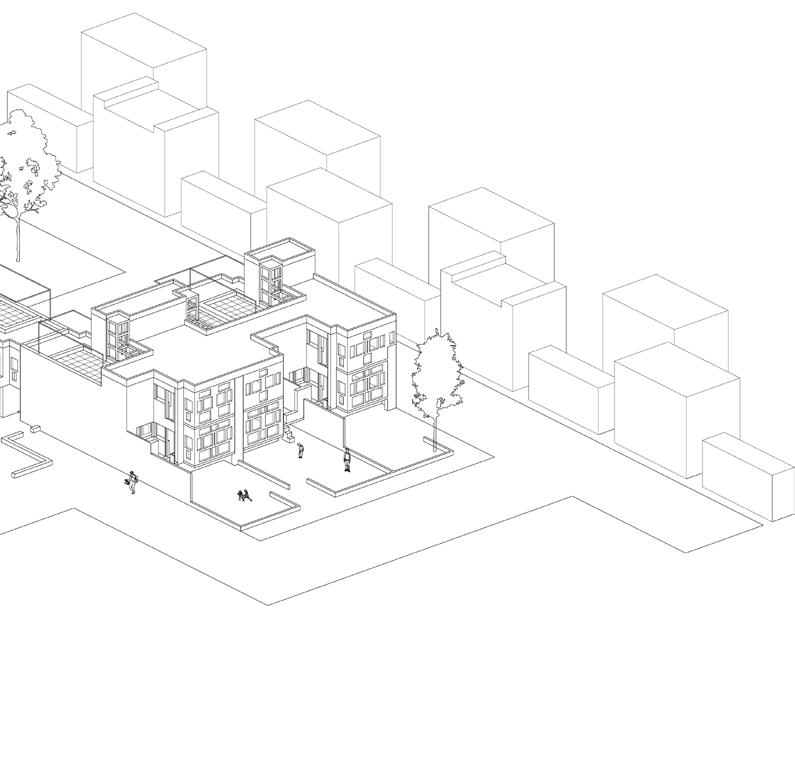

01. THE BUTTERFLY LIVING

Boston, MA

The Butterfly aims to be the choice of housing for the the studetns of Boston, as it not only provides variety in unit types, but the low rise density of 9 interconnected buildings creates an open welcoming environment that provokes social interaction, hence, the Butterfly Effect . Honing on the concept coined by Herman Hertzbeger, the design resembles an “Incomplete Skeleton”, that the establishment isn’t complete without its occupants. The design emobies that not only the buildings but corridors and sidewalks should act as a catlayst for human behvaior.

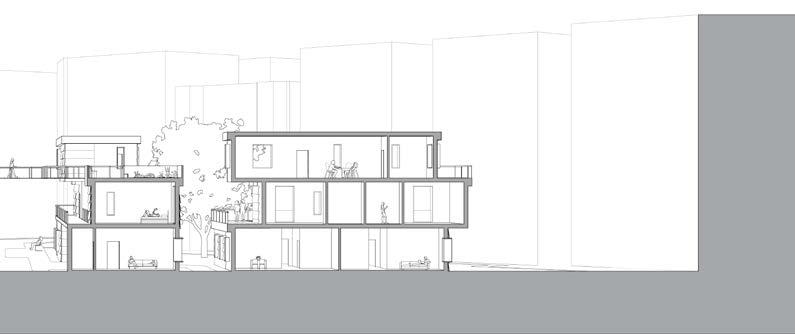

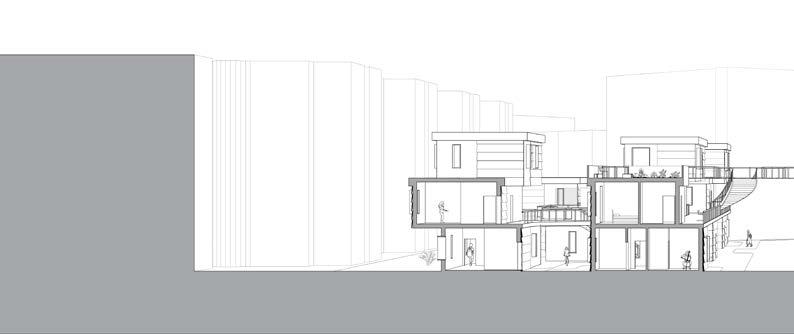

Sectional Perspective

UNIT TYPOLOGY

STANDARD 2 BEDROOM

STUDIO

2-STORY 2 BEDROOM

STANDARD 3 BEDROOM

Unit Typology Diagram

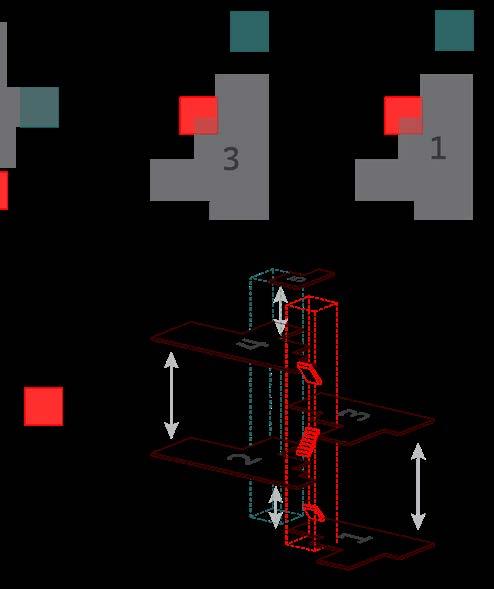

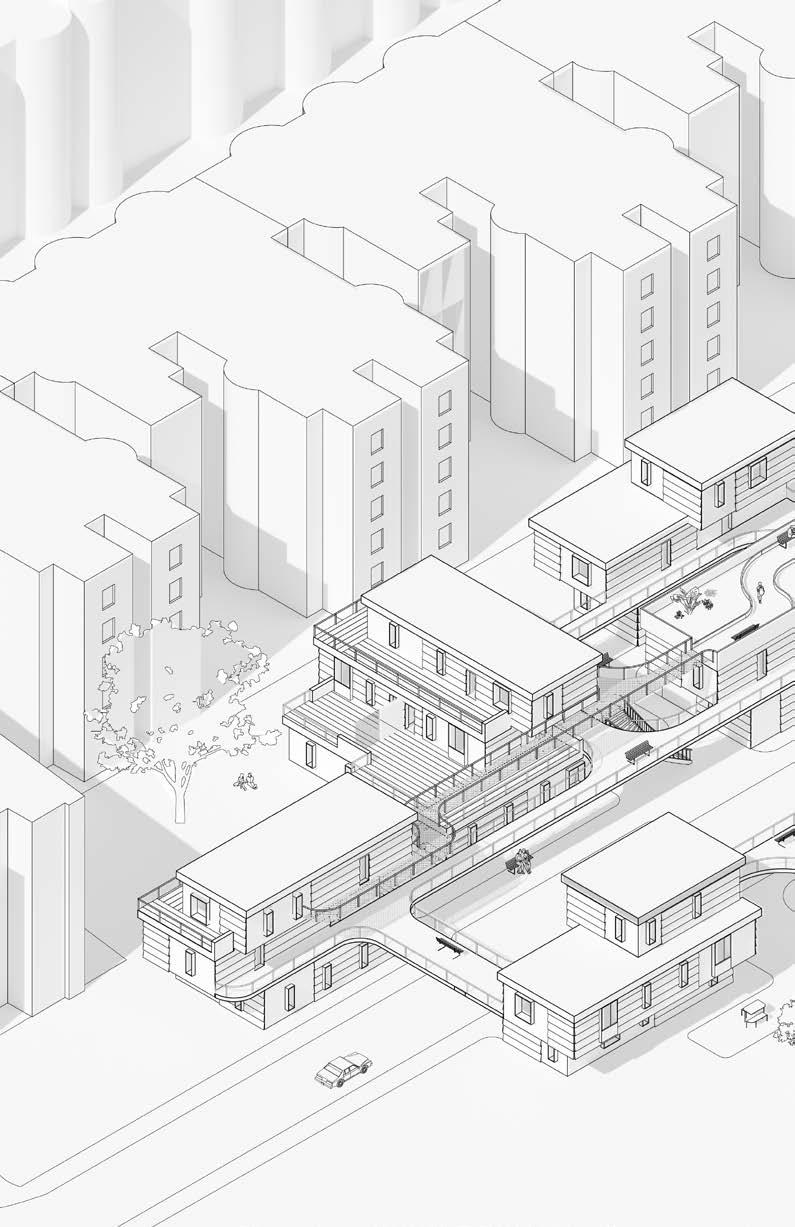

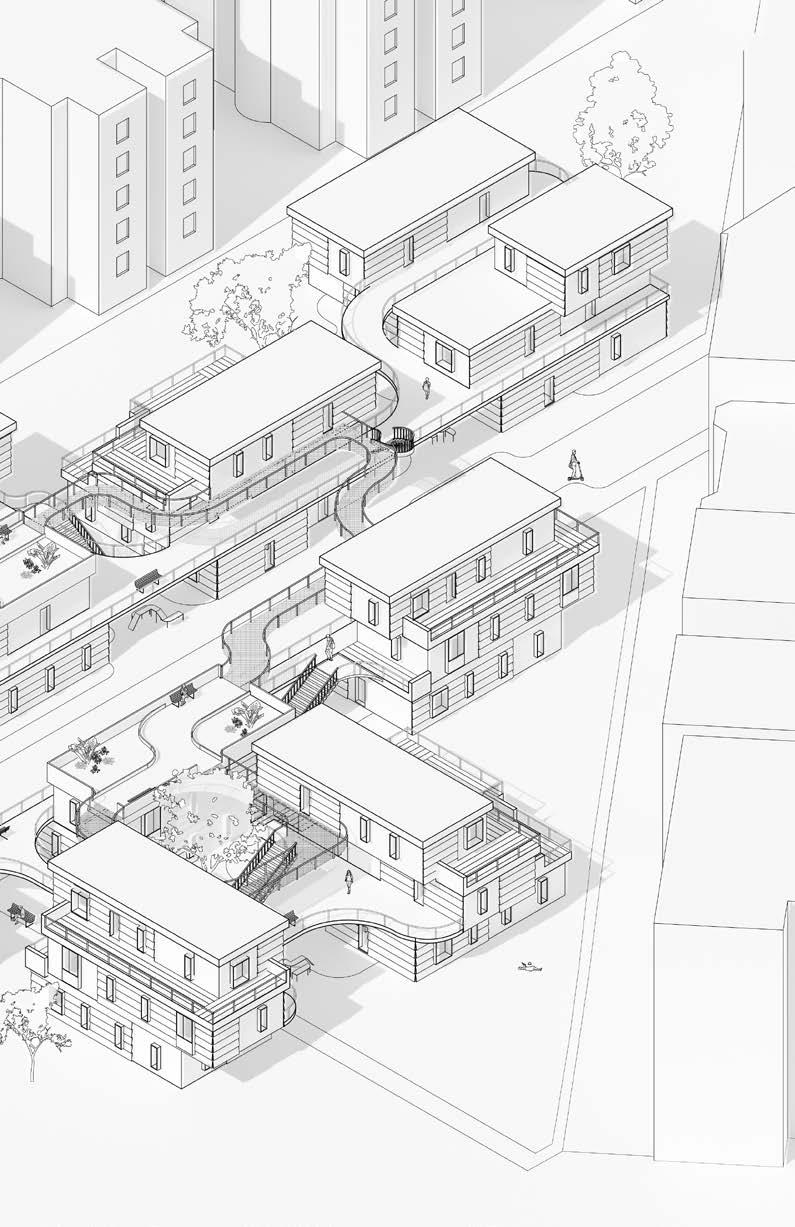

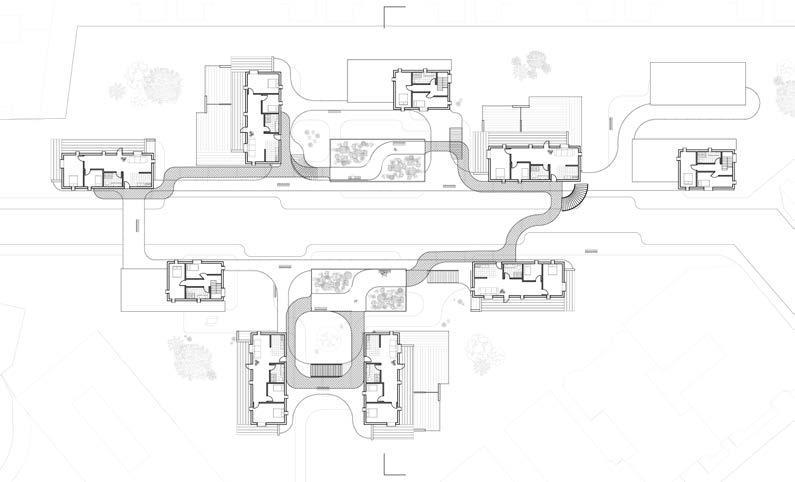

Massed Circulation Diagram

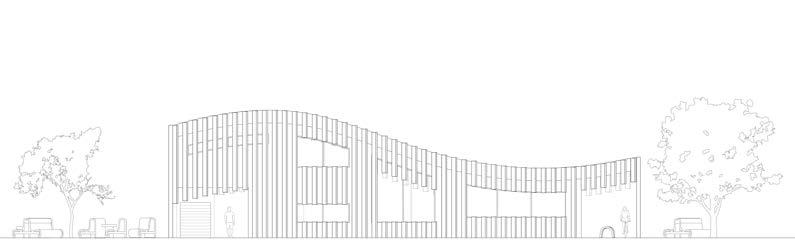

02. EGLESTON PUBLIC LIBRARY

Roxbury, MA 2025

IN COLLABORATION WITH OLIVIA DARRAH

To redesign the Egleston Square Branch of the Boston Public Library, my teammate and I researched different ways the programme and amenities could play a bigger role in serving the community of Roxbury. From the exterior, the abundant seating immersed in nature along the organic form of the building and wooden panes provokes a calming essence. The angle of the panes allows for sunlight to peer through the large windows, but not intensly. The space experienced is everchanging due to its free plan programming while the roof is supported with the exposed wood rafters that span along the slope of the aluminum roof.

COLUMBUS AVE.
Right
Left

Providing access and resources to a “Bike Library”, collaborative tech zones, immersive and exciting kid-friendly areas, while surrounded by large windowsand wooden rafters, the citizen is encourgaed to progress to the future. Further exemplified by the free and open nature of the plan, making it adjustable to changes in response to the needs of the community.

With a balcony overlooking the shelves and collaborative zones below, this space aims to serve as a quieter and private environment, while not entirely disconnected. Libraries are meant to serve the community beyond its tangible resources, but to act as a space where learning, collaboration, and congregation is always welcome. As shown, the floor is divided between circulation that doubles as collabortative programming, and individual rooms intended for learning for all ages.

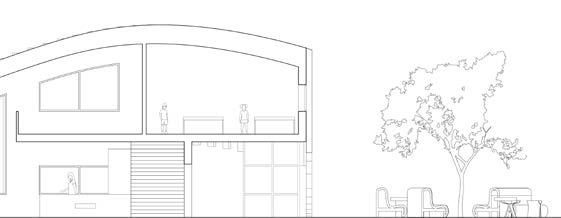

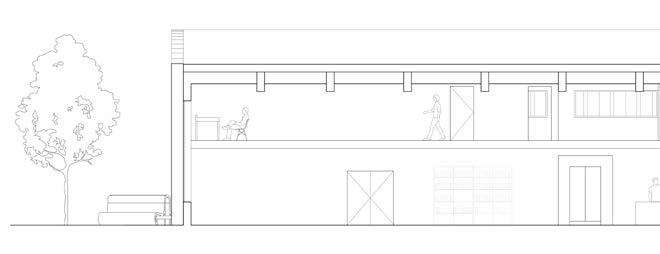

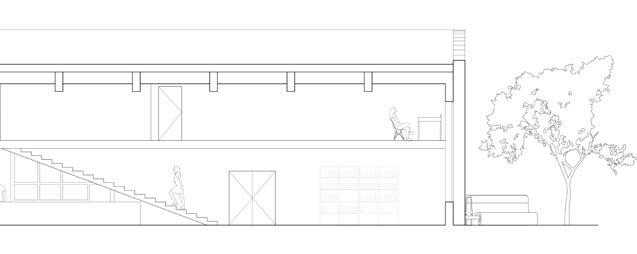

BB Section with Persepective Site Lines

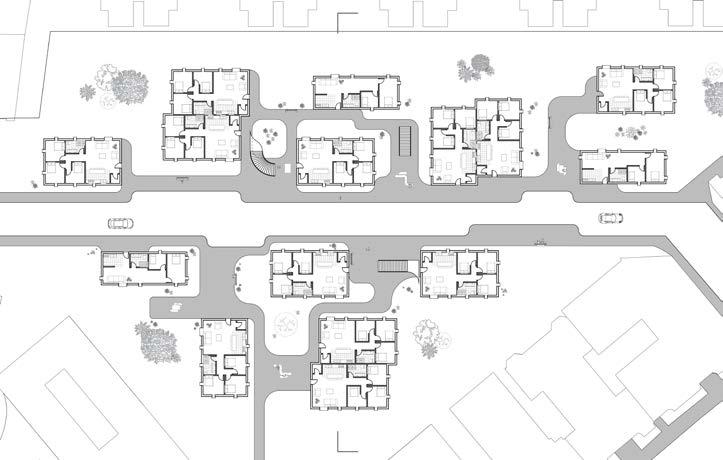

03. THE DIAGOON DWELLINGS - PRECEDENT

Delft, The Netherlands

PRECEDENT ANALYSIS

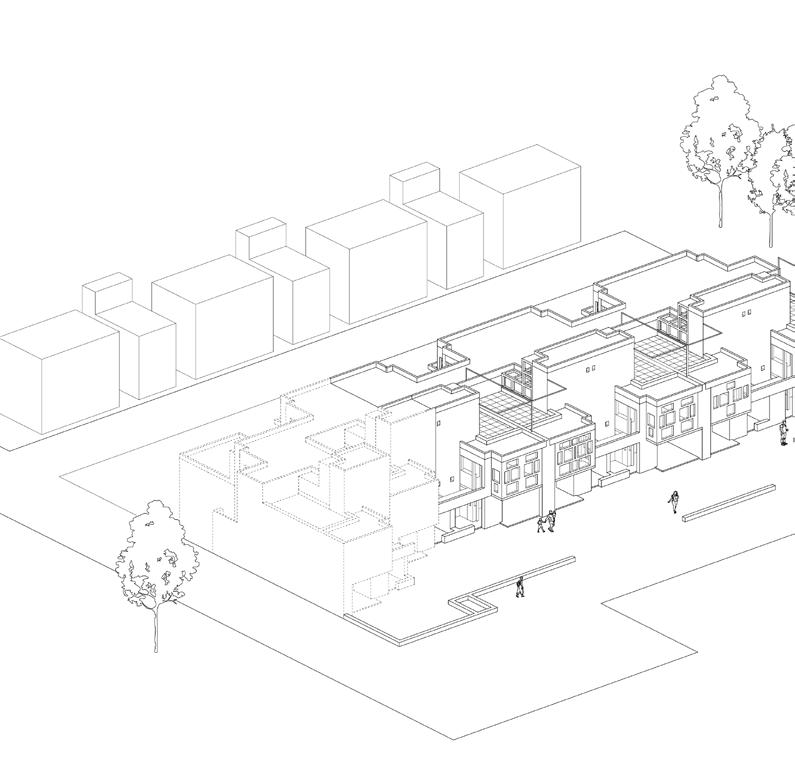

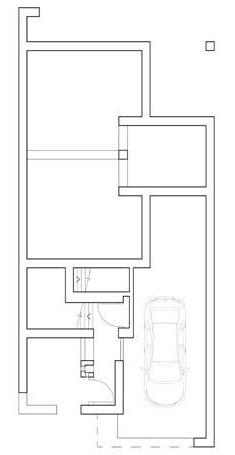

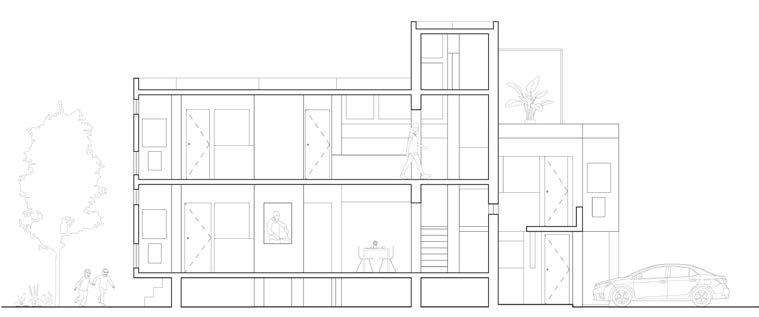

The Diagoon Dwellings, located in Delft, Netherlands, about an hour outside of Amsterdam, serve as Herman Hertzberger’s interpretation of ideal housing for an average family, challenging the cookie-cutter Dutch apartment buildings in the city. He believed that a sense of polyvalence and incompletion is necessary when designing homes, and that the space should be interpreted and occupied by the family as they see fit. By employing natural lighting and the Raum Plan tactic, Hertzberger devised a master plan of dwellings that would not only house families but also build communities.

B
B

2024-2026

THE SENSES (2024)

Photorealism focus on facial features portrayering hearing, sight, and scent

BOSTON PUBLIC LIBRARY (2025)

Free-hand 2-point persepective drawn from the corner of Boylston and Dartmouth St.

NIKE OF SAMOTHRACE (2025)

Observational drawing from the Stairway of Victory inside the Lourve in Paris, France

METRO, BOULOT, DODO (2024)

1-point perspecitve of the Metro Chemin Vert Station in Paris, France

SCENA

Observational drawing of a statue from the Centrale Montemartini in Rome, Italy

PASTROLE (2024)

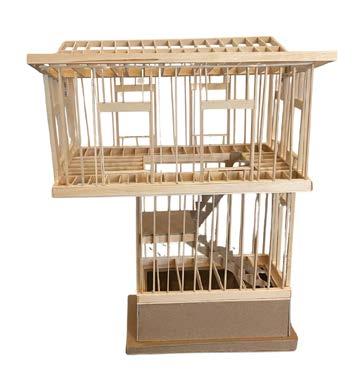

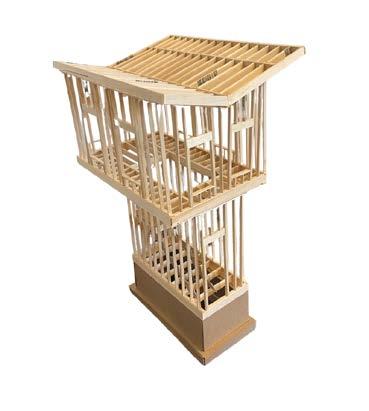

05. WATCHTOWER MODEL PHOTOS

2025 PROFESSOR KILLION MOKWETE IN COLLABORATION WITH OLIVIA DARRAH

Side of Access Left Side
Southwest Oblique
