CHAMELEON ® PERIMETER SYSTEM

FOR ROUND POSTS

FOR SQUARE POSTS

Product on Cover and Left

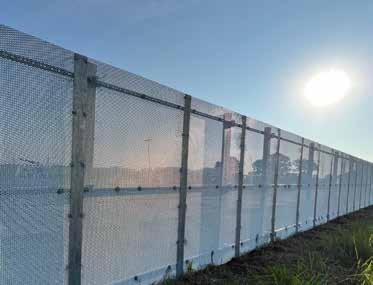

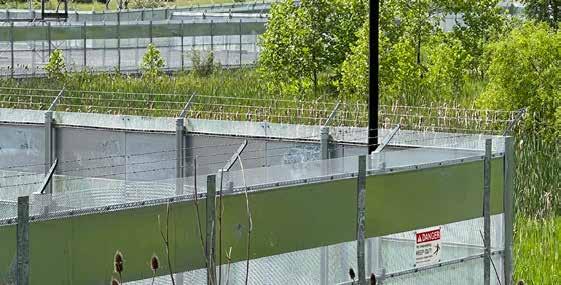

CHAMELEON 2® 7100, CHAMELEON ® WITH AMIGUARD 6100 ® MESH

BYPASS RAIL FRAMEWORK

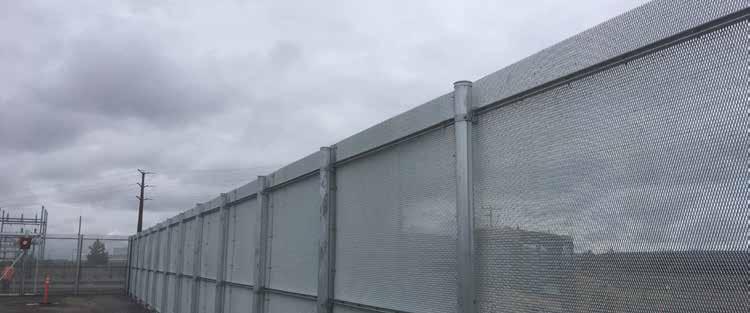

CHAMELEON ® PERIMETER SYSTEM

The patented Chameleon® System, patents: see www.amicoglobal.com/patents, allows you to upgrade an existing chain link fence to the AMIGUARD® Perimeter System utilizing existing fence posts. This allows you to upgrade to a Perimeter System with anti-cut and anti-climb capability. The Chameleon® System is available with round posts or square posts, named Chameleon, or Chameleon2 respectively. Chameleon® uses a bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing.

FOR ROUND POSTS

• Allows you to utilize existing fence posts already set in place

• Saves time (up to 40% over other solutions) and materials

• Allows you to utilize existing grounding systems

• Can increase the security level of an existing chain link fence

• Unlimited security mesh options

• Available with round or square posts

• Choice of finishes

Product

AMIGUARD ® 6100

FINISHES

AMICO Security offers three highly corrosion resistant finishing options:

• Hot-Dip Galvanizing

• AMICOAT™ Powder coating over E-Coating or primer

• AMICOAT™ Duplex Coating, Powder coating over Hot-Dip Galvanizing

AMIGUARD AMICLAMP®

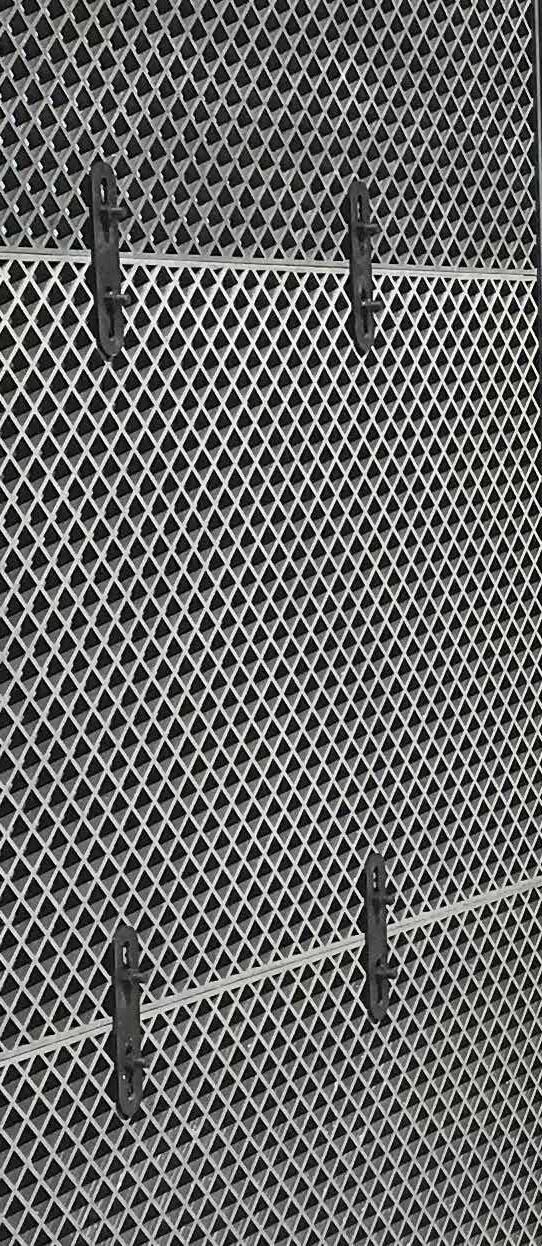

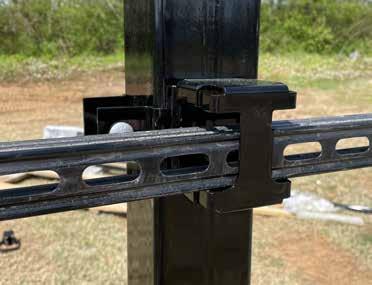

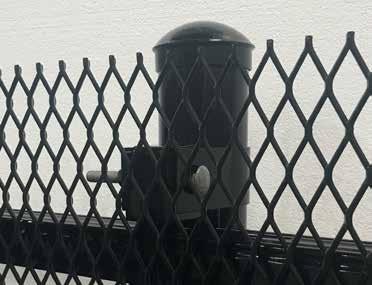

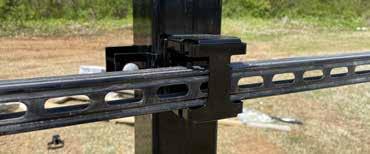

The patented Chameleon® System, patents: see www.amicoglobal. com/patents, allows you to upgrade an existing chain link fence to the AMIGUARD® Perimeter System. The patented AMICLAMP® design, patents: see www.amicoglobal.com/patents, allows easy attachment to an existing post to accommodate the AMIGUARD Infini-Rail®. The Chameleon system works with various round post sizes including 2-3/8”, 2-7/8”, 4”, and 6-5/8”. The Chameleon2® system includes square posts ranging from 3”x3”, 4”x4”, 6”x6” to 8”x8.”Security mesh can then be attached by utilizing AMIGUARD Diamond Fasteners.®

Our unique approach incorporates innovative solutions to solve common concerns including: security, aesthetics, seamless design, ease of installation, incorporation of impact and fiber optic cables and anti-cut / anti-climb mesh options.

MESH STYLES

The Chameleon® Retrofit system works with any Mesh Style offered under the AMIGUARD® product lines. Chameleon® is compatible with the AMIGUARD® 5000 series wire meshes, it works with our 6000 and 7000 series expanded metal meshes, and it works with our APEX series, the Architectural Expanded Metal product line.

ANC® CHAMELEON® HYBRID SYSTEM

New ANC® Chameleon® Hybrid System is a combination of ANC Non Conductive components on the outside and Chameleon Retrofit components on the inside.

• 100% non metallic, non conductive from the outside

• M5 security rating in compliance with the ASTM standards

• Allows you to utilize existing fence posts

• Saves time (up to 40% over other fence systems) and materials

• Allows you to utilize existing grounding systems in place

CHAMELEON ® PERIMETER SYSTEM

TYPICAL DETAILS OF AVAILABLE MESH:

Our Engineering Department is here to assist you with all aspects of the design process for your project. Simple drawings to Engineered Stamped drawings are just a few things they can help with. They are always ready to collaborate with your Engineering Team to ensure your AMICO Security System is installed correctly. FOR ROUND POSTS

TOPPERS AVAILABLE:

BARBED WIRE, RAZOR WIRE & SHARK TOOTH TOPPER

TOPPERS AVAILABLE:

BARBED WIRE, RAZOR WIRE, & SHARK TOOTH TOPPER

NOTE: WIND LOAD REQUIREMENTS WILL DETERMINE POST SIZE AND SPACING

Note: Wind load requirements will determine post size and spacing.

DETAILS

CHAMELEON 2® SQUARE POST SYSTEM

FOR SQUARE POSTS

The Chameleon2 system offers the same great benefits of our Chameleon bypass rail system for round posts. Chameleon2 includes square posts ranging from 3”x3”, 4”x4”, 6”x6” to 8”x8”.

Our Engineering Department is here to assist you with all aspects of the design process for your project. Simple drawings to Engineered Stamped drawings are just a few things they can help with. They are always ready to collaborate with your Engineering Team to ensure your AMICO Security System is installed correctly.

DETAILS

TOPPERS AVAILABLE: BARBED WIRE, RAZOR WIRE & SHARK TOOTH TOPPER

SIZES AVAILABLE: 3"X3", 4"X4", 6"X6", & 8"X8"

NOTE: WIND LOAD REQUIREMENTS WILL DETERMINE POST SIZE AND SPACING

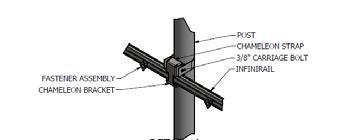

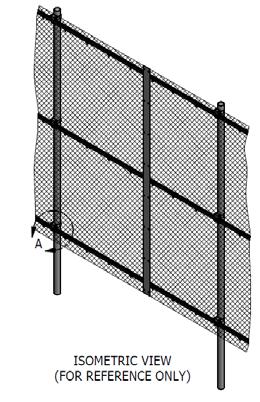

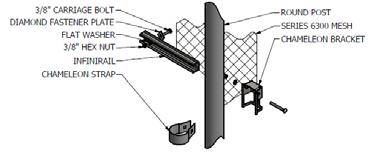

ISOMETRIC VIEW (FOR REFERENCE ONLY

A (MESH AND COVER PLATE REMOVED FOR CLARITY)

DETAIL A (MESH AND COVER PLATE REMOVED FOR CLARITY)

Note: Wind load requirements will determine post size and spacing.

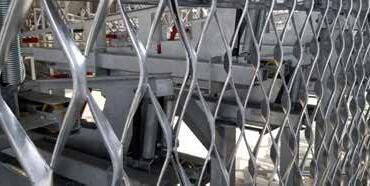

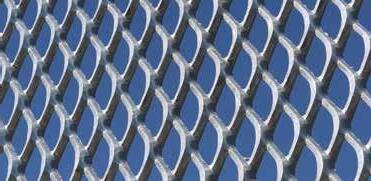

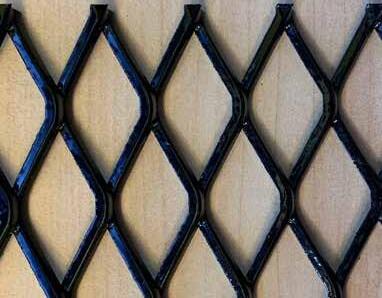

AMIGUARD ® 6000 & 7000 MESHES

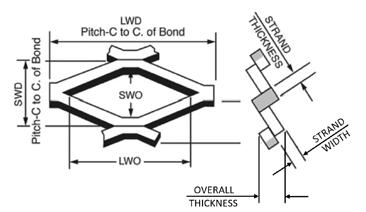

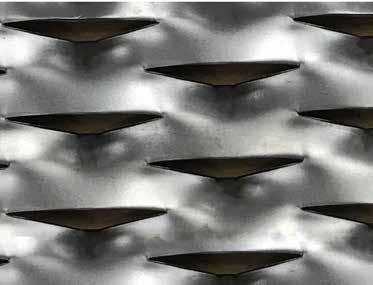

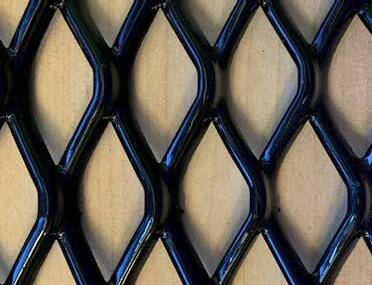

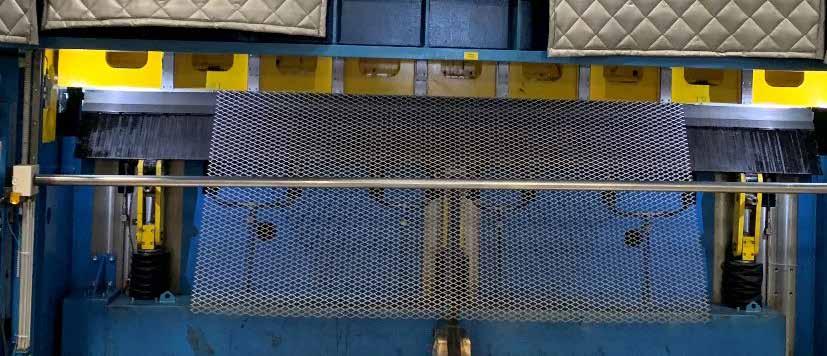

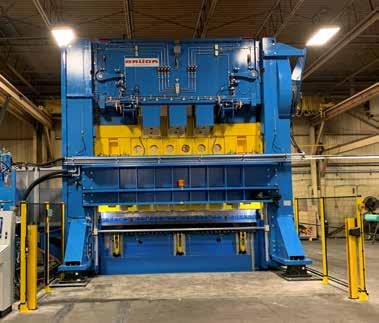

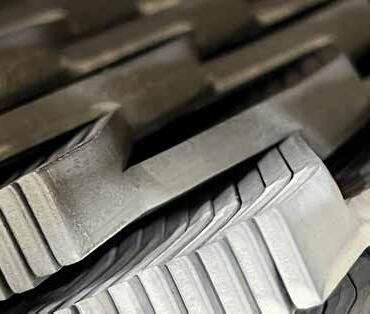

Each AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Mesh panel goes through a process of slitting and stretching metal sheet to form the desired style. The Security Panel has strands and intersecting strands called bonds forming a sharp angle to the original plane of the solid sheet. This process creates the unique pattern and allows a single sheet of metal to be processed into several sheets of Security Mesh Panels.

AMICO Security offers a wide range of AMIGUARD®6000 Security Mesh and AMIGUARD® 7000 High Security Meshes. Meshes differentiate by weight and the size of the diamond openings. All meshes are available in Hot Dipped Galvanized or Black Powder coating over zinc primer/ zinc e-coating.

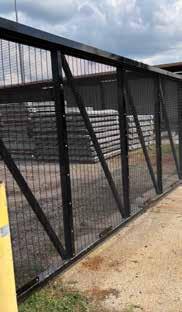

AMIGUARD® 8000 SERIES GATES

Every AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Mesh panel is fully compatible with our AMIGUARD® 8000 Series Gates. AMIGUARD® 8000 Series Gates from AMICO Security provide safe, security and access control for industrial, commercial and residential sites. Gates range from Pedestrian Gates, Swing Gates measuring from 3 ft. to 90 ft. and up to Cantilever Gates for openings ranging from 10 ft. to 180 ft.

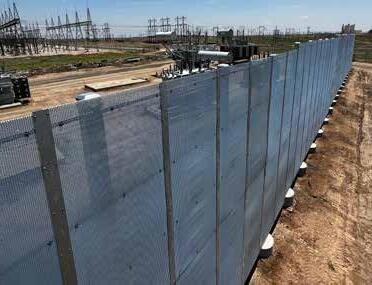

CHAMELEON® PERIMETER SYSTEM

The Chameleon® System is available with round posts or square posts, named Chameleon, or Chameleon2 respectively. Chameleon bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing. Our unique approach incorporates innovative solutions to solve common concerns including: security, aesthetics, seamless design, ease of installation, incorporation of impact and fiber optic cables and anti-cut / anti-climb mesh options.

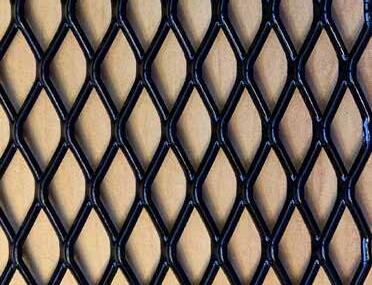

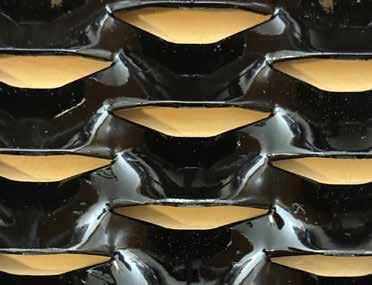

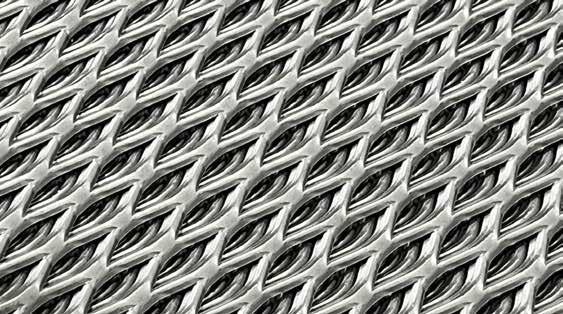

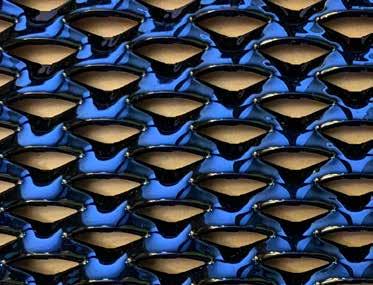

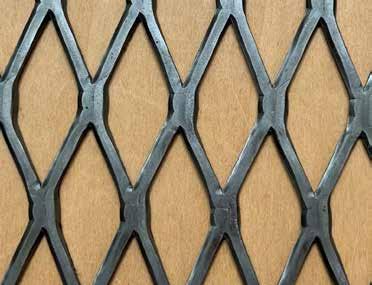

AMIGUARD ® 6000 SERIES

SECURITY MESHES

Top to Bottom, Left to Right, Samples shown in 1:1 scale

AMIGUARD ® 6030 SECURITY MESH,

AMIGUARD ® 6050 SECURITY MESH,

AMIGUARD ® 6100 SECURITY MESH,

AMIGUARD ® 6200 SECURITY MESH

AMIGUARD ® 6100 SECURITY MESH,

AMIGUARD ® 6300 SECURITY MESH,

AMIGUARD ® 6800 SECURITY MESH,

AMIGUARD ® 6300 SECURITY MESH

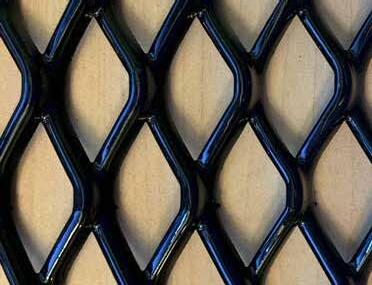

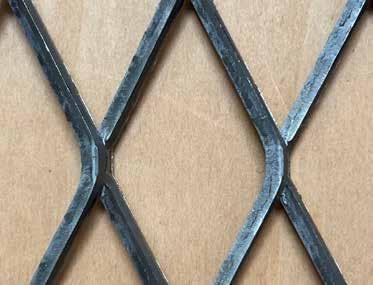

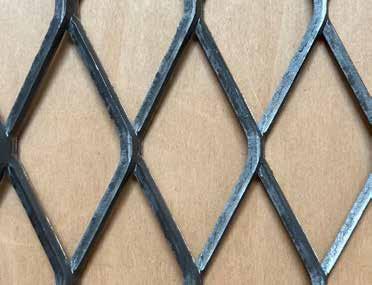

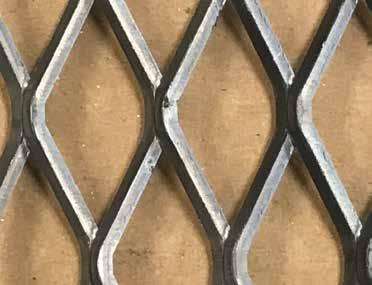

AMIGUARD ® 7000 SERIES

HIGH SECURITY MESHES

Top to Bottom, Left to Right, Samples shown in 1:1 scale

AMIGUARD ® 7100 HIGH SECURITY MESH,

AMIGUARD ® 7100 HIGH SECURITY MESH,

AMIGUARD ® 7300 HIGH SECURITY MESH,

AMIGUARD ® 7500 HIGH SECURITY MESH

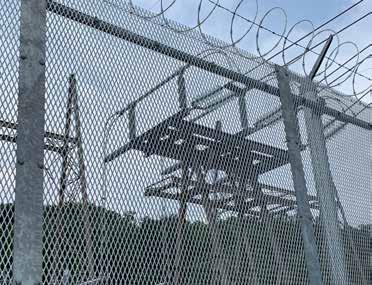

CHAMELEON ® AND ANC ® TOPPERS

FOR ROUND POSTS

FOR SQUARE POSTS

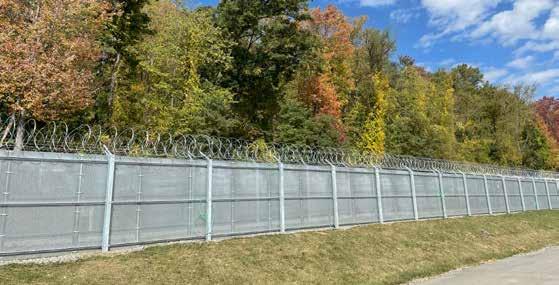

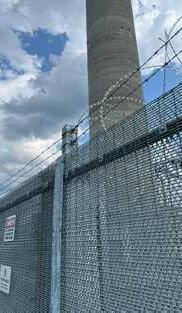

The Chameleon® Perimeter Systems offers a wide range of topper options ranging from Sharktooth, barbed and razor wire, capsheet and AMIGUARD® 4740 Palisade Pales.

Top to Bottom, Left to Right

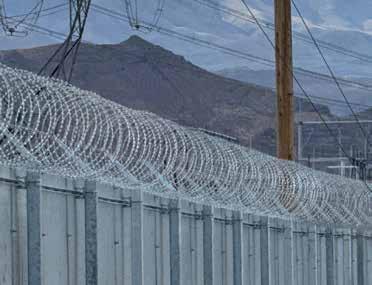

CHAMELEON ® 6200 WITH RAZOR WIRE,

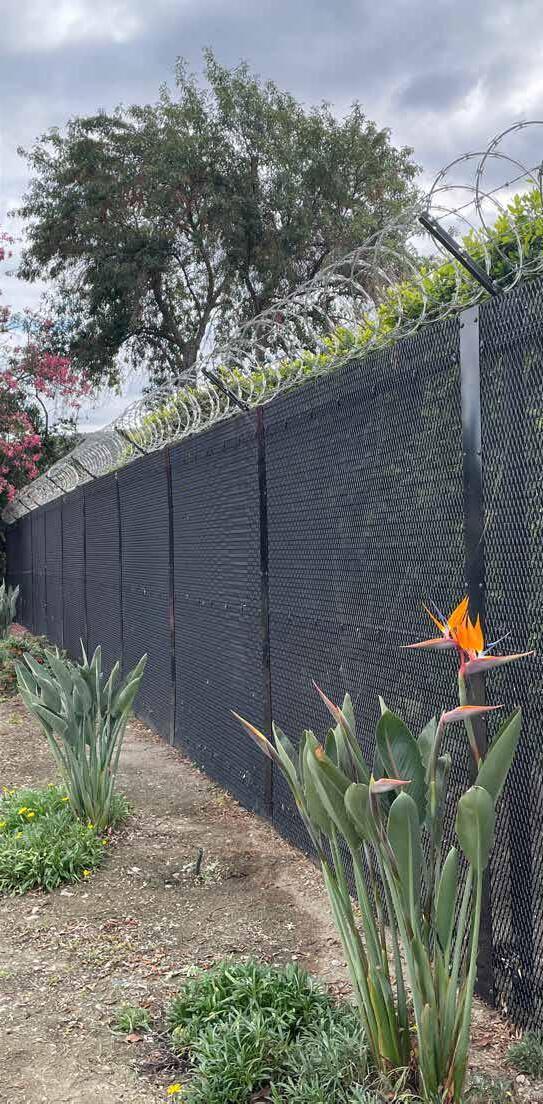

CHAMELEON 2® 7100 WITH RAZOR WIRE, AMIGUARD ® 6300 WITH SHARKTOOTH

Top to Bottom, Left to Right

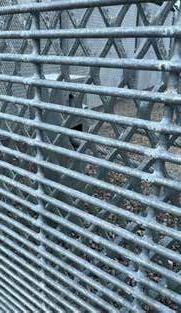

AMIGUARD ® 5700 WELDED WIRE WITH SHARKTOOTH,

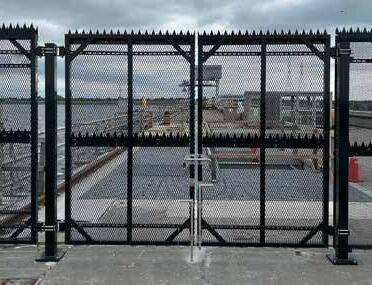

AMIGUARD ® 6300 DOUBLE SWING GATE WITH SHARKTOOTH,

AMIGUARD ® 7100 WITH AMIGUARD ® 4740 PALISADE TOPPER,

AMIGUARD ANIMAL

SHIELD ® 6100 WITH BARBED WIRE

AMIGUARD ® ACCESSORIES

The Chameleon® Perimeter System works with the full range of AMIGUARD® Infills and works with AMIGUARD DualGuard® dual layer infills for added security. Chameleon® comes with the complete set of AMIGUARD® Accessories such as AMIGUARD® 8000 Series Gates and AMIGUARD® 9000 Series Vehicle Barriers.

Top to Bottom, Left to Right

AMIGUARD ANIMAL SHIELD ® 6100, AMIGUARD DUALGUARD ® MESH 5700/7700 (2), AMIGUARD® 8500 CANTILEVER GATE WITH AMIGUARD® 5700 WELDED WIRE INFILL

DIAMOND TOUGH PERIMETER PROTECTION

Top to Bottom, Left to Right

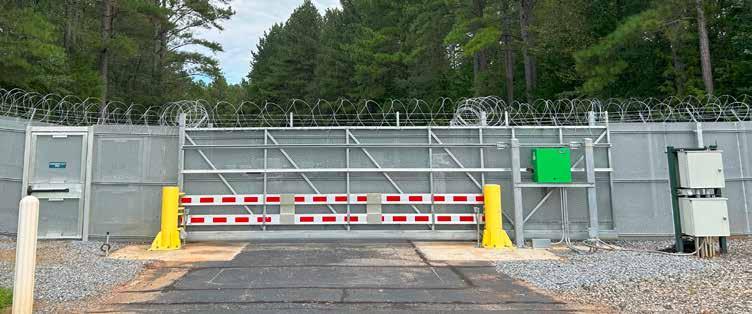

AMIGUARD® 9700 M50 CANTILEVER CRASH GATE,

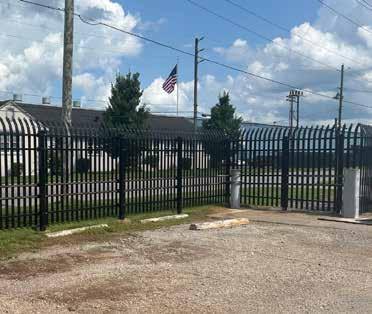

AMIGUARD ® 4700 PALISADE FENCE WITH INTEGRATED CRASH CABLE,

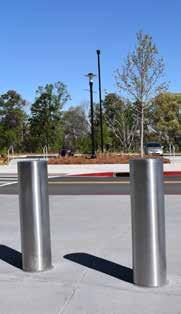

AMIGUARD ® 9300 SERIES BOLLARDS

AMICOAT™ FINISHES

POWDER COATING OVER E-COATING

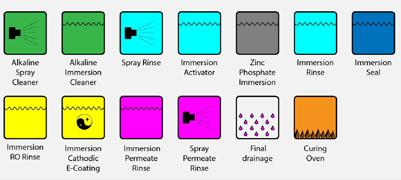

PREPARATION

AMICO Security offers three highly corrosion resistant finishing options:

• Hot-Dip Galvanizing

• AMICOAT™ Powder coating over E-Coating or primer

• AMICOAT™ Duplex Coating, Powder coating over Hot-Dip Galvanizing

All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. While a traditional paint layer aims to prevent water from touching the steel, a zinc layer provides a superior cathodic protection replacing the steel anode with a zinc anode resulting in zinc oxide which forms a protective layer instead of rust.

DUPLEX COATING

Duplex Coating provides a more sophisticated manner of corrosion protection known as the synergistic effect. The hot-dip galvanized steel is powder coated providing two layers of protection. Used independently, both paint/powder coatings and galvanizing provide corrosion protection to steel; however, when utilized together, the two coatings work in synergy. The exterior layer of paint or powder coating slows down the rate at which the zinc is consumed, greatly extending the life of the galvanized steel. In return, once the exterior layer has been weathered down or damaged, the zinc beneath is still available to provide cathodic and barrier protection.

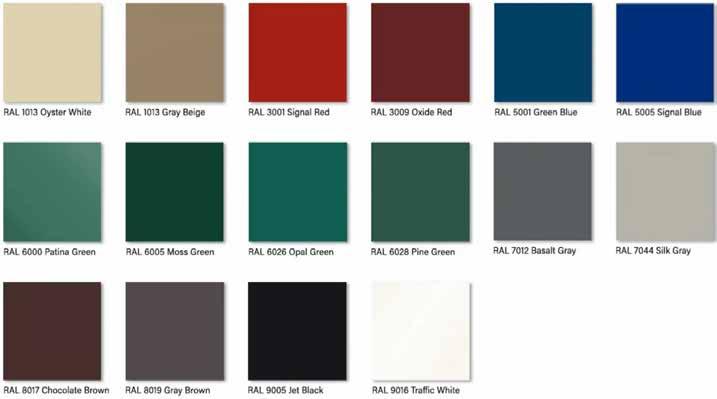

STANDARD COLORS

AMICOAT™ STANDARD COLORS FOR AMIGUARD® 6000 & 7000 SECURITY MESHES

AMICOAT™ STANDARD COLORS FOR AMIGUARD® 5000 WIRE MESHES
