AMICO Security ANC® Non-Conductive Fencing

ANC ® PERIMETER SYSTEM

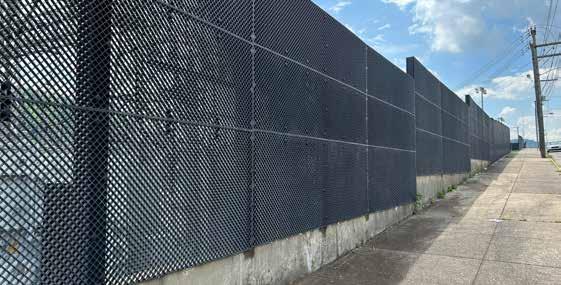

AMICO Security developed the ANC® Non Conductive fence system as a total perimeter solution to offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional fencing. ANC® is growing rapidly in popularity and has many applications and advantages.

• Savings: Can be less expensive than the overall installed cost of grounded chain link fence

• Can be installed to meet any layout or grade changes

• Tested to be non-conductive

• 100% non-metallic and corrosion resistant

• Up to 20 ft high

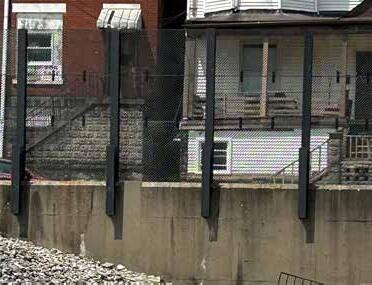

• Can be retrofitted to existing metallic posts

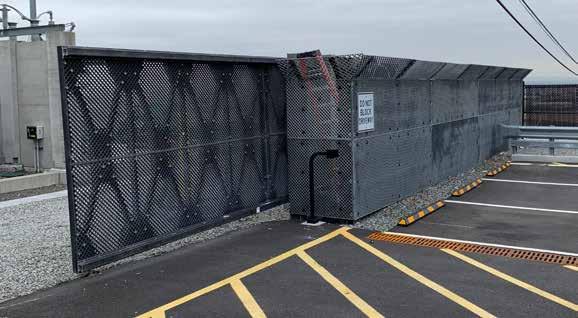

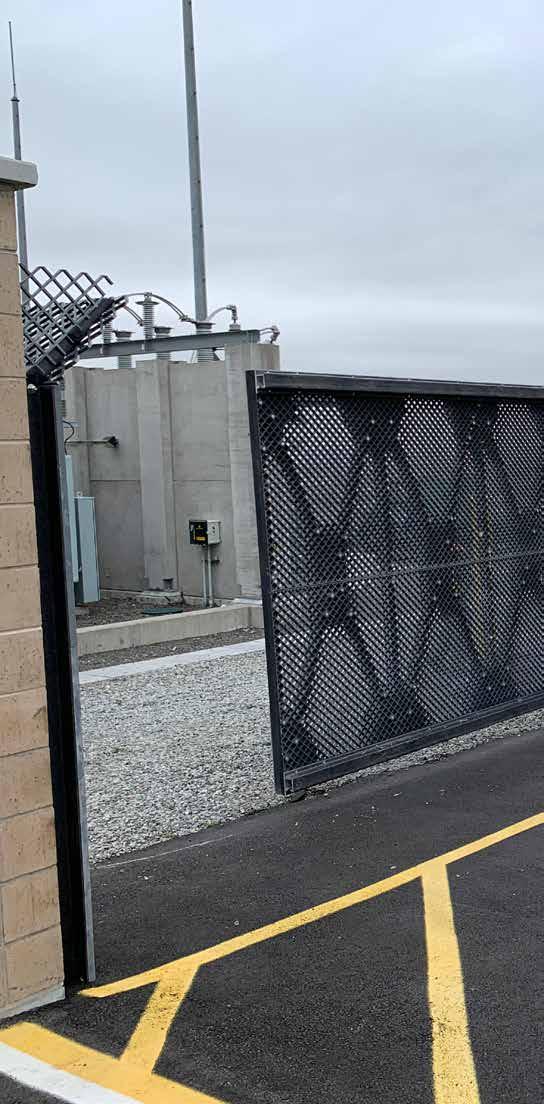

• Pedestrian and vehicle swing and slide gates

• Cap sheets are available to deter climbing

• Panels are light enough for a 2-man crew

BEST-IN-CLASS QUALITY

With our 40 years of proven performance, choosing one of our corrosion resistant, fire retardant, non-conductive solutions is a safe choice for a “Best-in-Class” quality product. Based on 3rd party test reports, we can state our composite products are Heavy Metal free proving our commitment to the environment.

Scan/click for more info

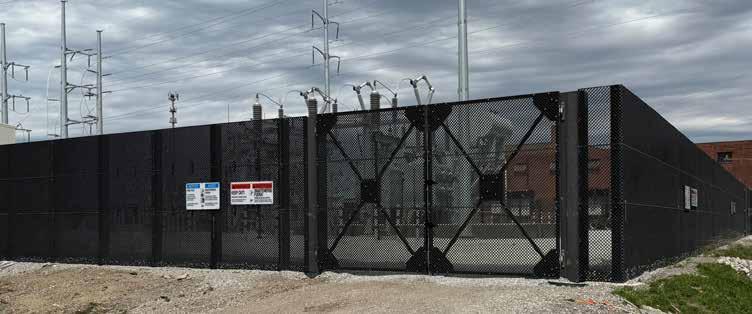

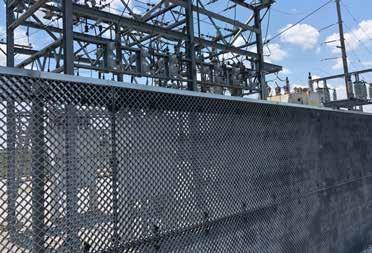

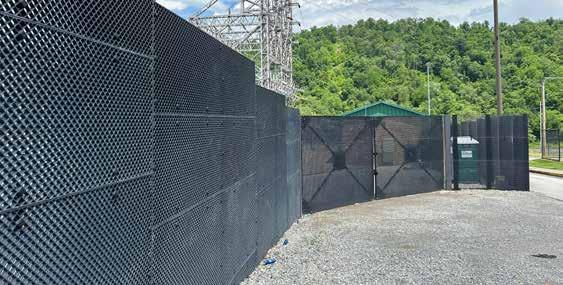

POWER & ENERGY SECTOR

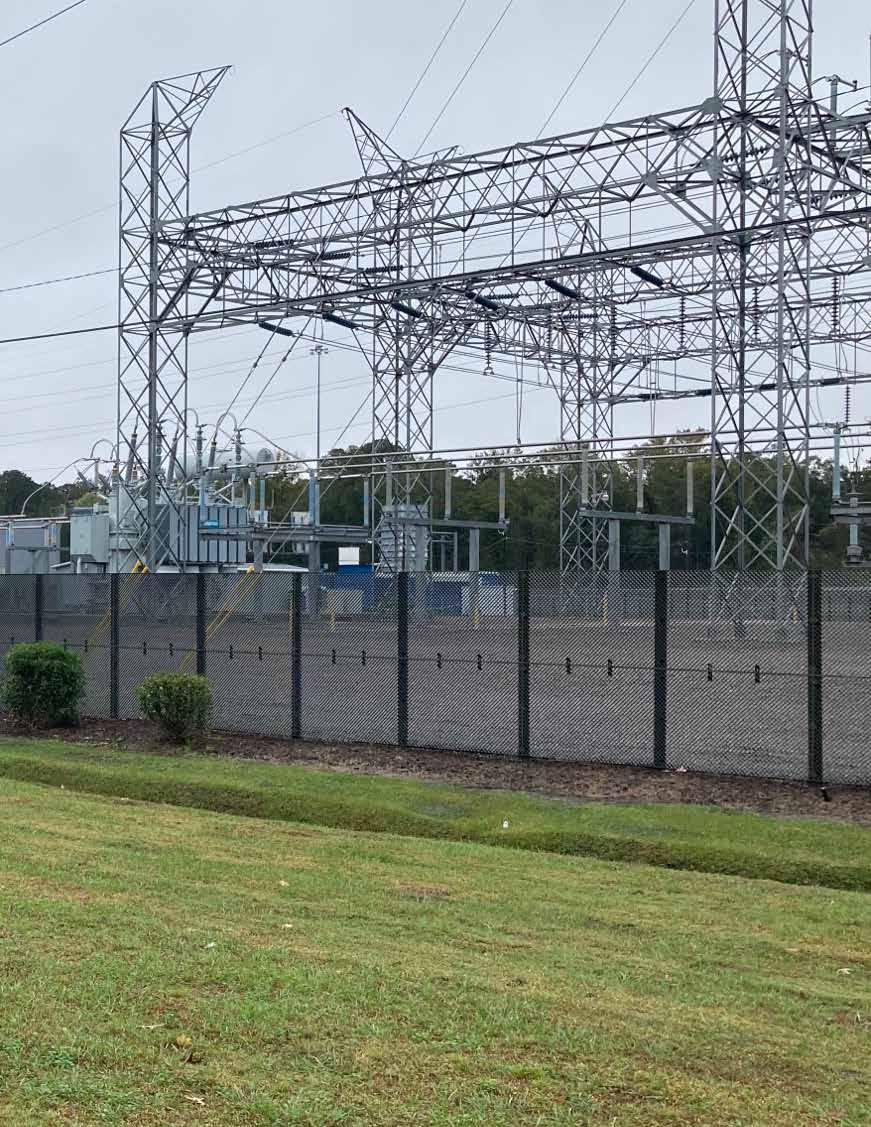

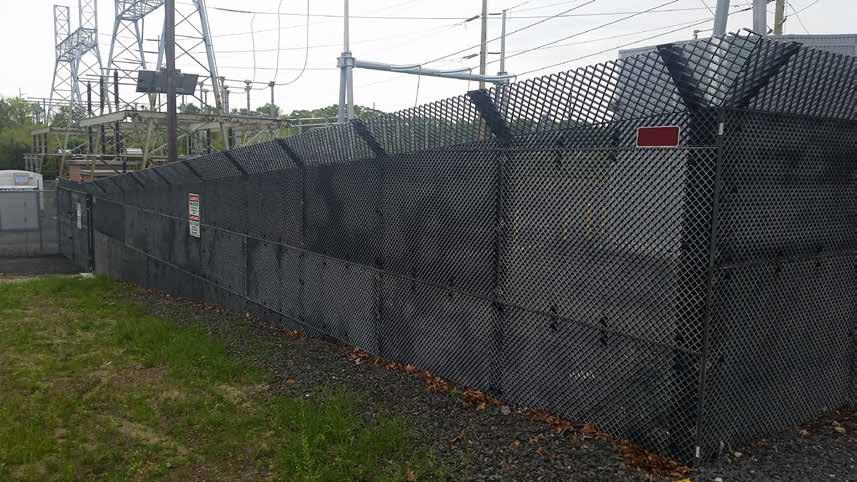

Secure substations, power facilities and energy companies throughout the world are becoming increasingly aware that ANC® is the best solution to eliminate unforeseen occurrences related to touch and step potential. ANC® can help to ensure that the general population living around and that power employees who work around substations are safer. Dielectric tests have been conducted by a certified laboratory in which leakage current and flashover voltage tests revealed no electrical conductivity. As population centers evolve, the need for added safety and security is required.

ANC® COMPOSITE SECURITY FENCE SYSTEM

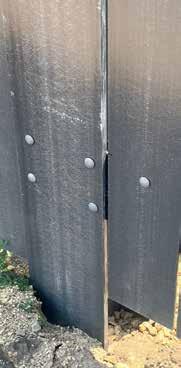

The ANC® Composite Fence System combines non-conductivity and security into an easy to install solution for the energy, water, air, and transportation industries. The system can be installed as new or retrofit construction and steel posts can be used depending upon the recommendation from your grounding engineer. Metal posts and fittings are available. Threaded fasteners bolt through the panels and tighten up securely using AMICO® panel plugs. All fence components are available non-metallic and non-conductive.

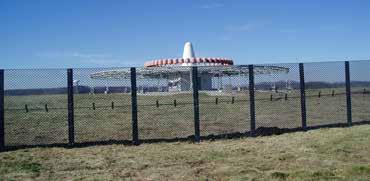

AIRPORTS AND AVIATION SECTOR

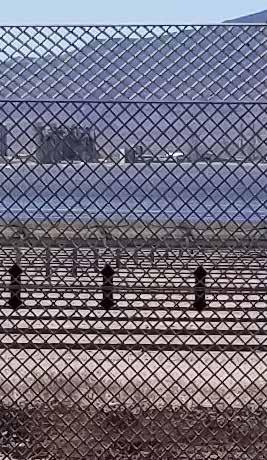

As the need for airport security increases, AMICO has the answer. Airports throughout the globe are searching for Perimeter Systems that won’t interfere with radar signals. While traditional high security metal fencing systems reflect radar, creating false images, ANC® fencing doesn’t show this interference. In addition to being safe and secure, ANC® provides a clean aesthetically pleasing look that blends into the landscape.

ENVIRONMENTAL DURABILITY

ANC® was primarily designed to survive wet, hot and humid conditions in the Gulf Coast and offshore. The material is fiberglass composite with UV inhibitors throughout, designed for extreme sun exposure and the highly corrosive environment.

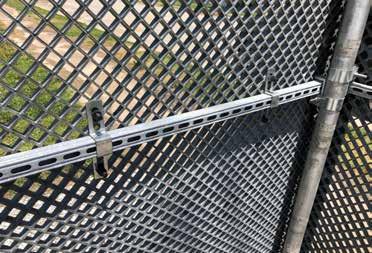

ANC ® CHAMELEON ® HYBRID SYSTEM

ANC® Chameleon® Hybrid System is a combination of ANC Non Conductive components on the outside and Chameleon Retrofit components on the inside.

• 100% non metallic, non-conductive from the outside

• Allows you to utilize existing fence posts

• Saves time (up to 40% over other fence systems) and materials

• Allows you to utilize existing grounding systems in place

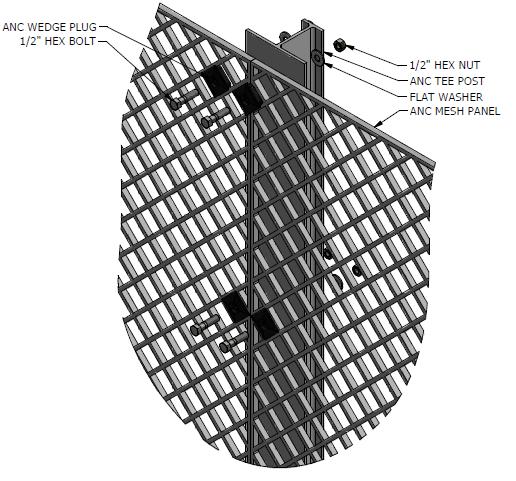

INSTALLATION OF ANC® CHAMELEON® HYBRID SYSTEM WITH ANC SAFEGUARD™ 2100 MESH

HEX BOLT HEX NUT FLAT WASHER BACK STRAP/SPLICE PLATE

BOLT HEX NUT FLAT WASHER BACK STRAP/SPLICE PLATE

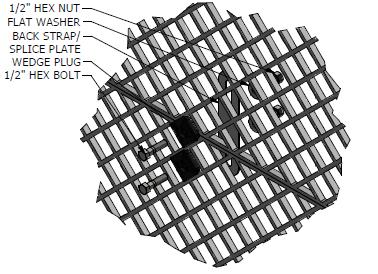

EXPLODED VIEW #1 (SPLICE PLATE/BACK STRAP CONNECTION)

EXPLODED VIEW #1 (RAIL PLATE/BACK STRAP CONNECTION)

EXPLODED VIEW #1 (SPLICE PLATE/BACK STRAP CONNECTION) EXPLODED VIEW #2 (RAIL BRACKET SPLICE CONNECTION)

THICK ANC

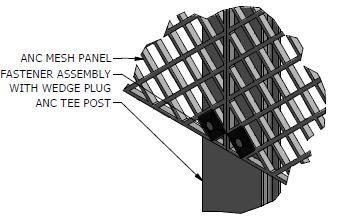

EXPLODED VIEW #2 (RAIL BRACKET SPLICE CONNECTION)

ANC SAFEGUARD ™ MESH

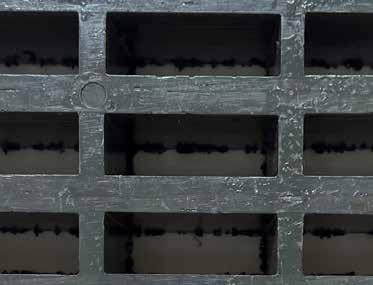

AMICO Security offers a wide range of ANC SAFEGUARD™ Meshes. Mesh patterns range from our traditional diamond pattern to anti-climb and anti-breach square or rectangular patterns. All meshes offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional security fencing.

INSTALLATION OF ANC SAFEGUARD™ 1050 & 2100 MESHES

ANC SAFEGUARD™ MESH

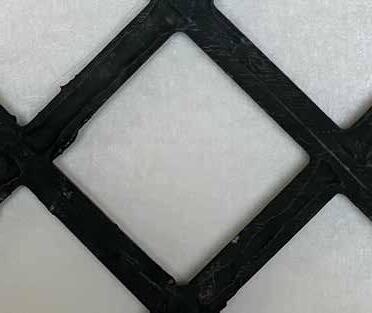

Top to Bottom, Left to Right, Samples shown in 1:1 scale ANC SAFEGUARD™ 1050 MESH, ANC SAFEGUARD™ 2100 MESH, ANC SAFEGUARD™ 3100 MESH (INSERT BACKSIDE)

Top to Bottom, Left to Right ANC SAFEGUARD™ 4200 MESH, ANC SAFEGUARD™ 4212 MESH (INSERT BACKSIDE), ANC SWING GATE WITH ANC SAFEGUARD™ 1050, ANC SAFEGUARD™2100 MESH, ANC SAFEGUARD™ 3100 MESH

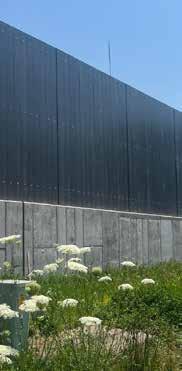

ANC ® SLATTED PRIVACY FENCE

ANC® SLATTED PRIVACY FENCE

The ANC® Slatted Privacy Fence offers the same look as a wooden slatted fence without the required maintenance. In addition, the ANC® Slatted Privacy Fence is much stronger compared to a wooden fence with significantly enhanced breach times. The ANC® Slatted Privacy Fence features the standard ANC® I - Beam posts with ANC® C - Channels rails. The ANC® Slatted Privacy Fence can be customized and offers a wide range of options.

Standard Features and Options

• ANC® I - Beam posts with ANC® C - Channels rails

• Up to 10 ft high

• Can be installed to meet any layout or grade changes

• Tested to be non-conductive

• 100% non-metallic and corrosion resistant

• Fiberglass gray finish standard

• Fiberglass dark brown finish optional

• Polyurethane coating optional

• Dog Ears on top of slats optional

ANC ® SPECIAL PROJECTS

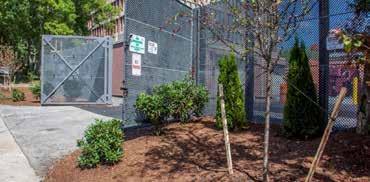

Top to Bottom, Left to Right ANC ® SPECIAL FENCE AT CHILDREN’S MUSEUM, ANC ® BASE PLATTED POSTS, ANC ® SIDE MOUNTED POSTS (2)

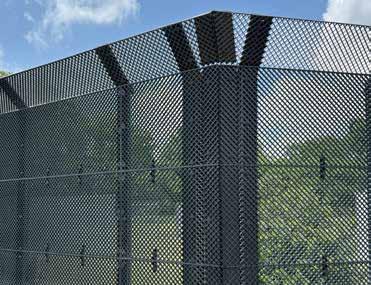

ANC ® TOPPERS

Both the Chameleon® and ANC® Perimeter Systems offers a wide range of topper options ranging from Sharktooth, barbed and razor wire, capsheet and AMIGUARD® 4740 Palisade Pales.
