Amiguard® 8000 Series Gates

AMIGUARD ® 8000 SERIES GATES

Top to Bottom

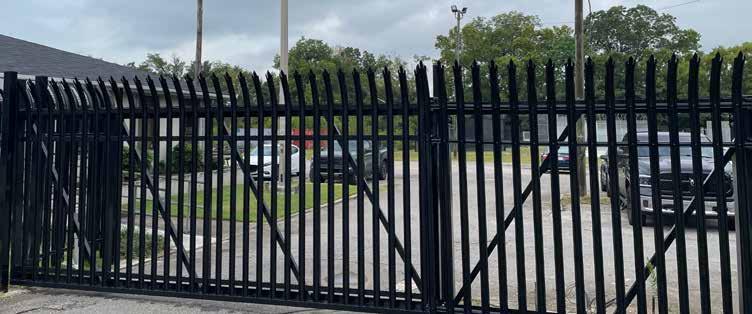

AMIGUARD ® 8500

CANTILEVER GATE

WITH AMIGUARD ® 4700 PALISADE INFILL,

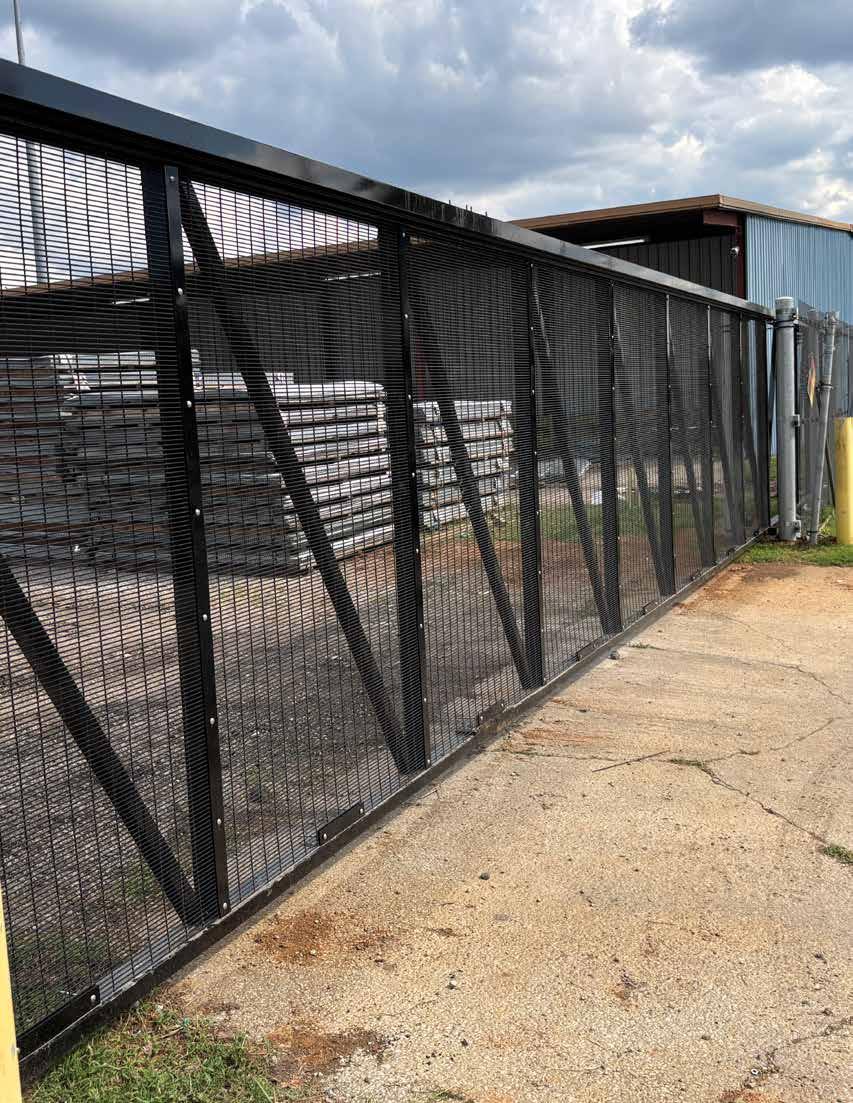

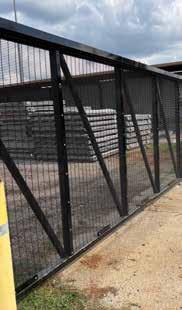

CANTILEVER GATE WITH AMIGUARD ® 7700 HIGH SECURITY MESH

DIAMOND TOUGH PERIMETER PROTECTION

Top to Bottom, Left to Right

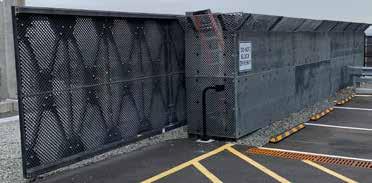

CANTILEVER GATE WITH AMIGUARD ® 6100 INFILL, AMIGUARD ® 8500 BALLISTIC CANTILEVER GATE, AMIGUARD ® 8500 CANTILEVER GATE WITH AMIGUARD ® 5700 WELDED WIRE INFILL

AMIGUARD ® 8000 SERIES GATES

AMICO Security is now a leading single-source provider of integrated access control solutions and expert technical support for industrial, commercial, and residential applications. The AMIGUARD® 8000 Series Gates are fully integrated with our Security fence product lines and AMIGUARD® meshes.

Since 1990 we have partnered with contractors, installers, architects, and engineers to deliver high-quality designs, products, and services for complete access control. Our knowledge and experience is specialized across multiple security platforms ranging from residential lifestyle and community entry, to industrial and commercial access, to the most stringent high security protection demands.

AMIGUARD® 8000 Series Gates from AMICO Security provide security and access control for industrial, commercial and residential sites. Specify the gate alone, or request a complete, integrated solution with the gate operator and access control system that meets your project requirements. AMICO Security also offers gate customization services.

AMIGUARD® 8300 SWING GATES

High-Performance Features

Scan/click for more info

• Durable aluminum construction to endure stresses, prevent rusting and extend the life of the gate operator

• The look of steel with the lighter-weight, corrosion-resistant, high-cycle operation

• All welded construction for greater frame strength and rigidity

• Precision-machined, permanently lubricated hinges for long-term performance

• Manual or automatic operation

Specifications

• For openings measuring from 3 ft. to 20 ft. (standard)

• Standard or micro-box frame

• Three-year limited warranty

ANC NON CONDUCTIVE SWING & SLIDE GATES

AMICO Security developed the ANC non conductive fence system as a total perimeter solution to offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional fencing. The ANC Non Conductive Swing & Slide Gates are part of this non-conductive product family. ANC is growing rapidly in popularity and has many applications and advantages.

All ANC panels and the frame of the ANC Non Conductive Swing & Slide Gates are non-metallic and non conductive. Threaded fasteners bolt through the panels and tighten up securely using AMICO tamper-proof wedge plugs. Only a few hardware pieces such as hinges, the inside of the tracks and locks are actually metallic.

Secure substations, power facilities and energy companies throughout the world are becoming increasingly aware that ANC is the best solution to eliminate unforeseen occurrences related to touch and step potential.

ANC can help to ensure that power employees who work around and the general population living around substations are safer. Dielectric tests have been conducted by a certified laboratory in which leakage current and flashover voltage tests revealed NO electrical conductivity.

As the need for airport security increases, AMICO has the answer. Airports throughout the globe are searching for Perimeter Systems that won’t interfere with radar signals. While traditional high security metal fencing system reflect radar, creating false images, ANC fencing doesn’t show this interference. In addition to being safe and secure, ANC provides a clean aesthetically pleasing look that blends into the landscape.

AMIGUARD® 8500 CANTILEVER SLIDE GATES

High-Performance Features

• Durable construction to endure stresses and extend the life of the gate and gate operator

• The look of steel with the lighter-weight, corrosion-resistant, high-cycle, high-speed operation

• Robust movement mechanism for long-term performance

• Industry’s heaviest and most robust enclosed track for safety, reducing liability risks

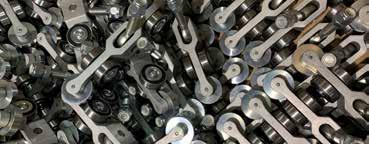

• Truck assembly with 2-inch, permanently sealed bearings for maintenance-free operation

• For openings measuring from 10 ft. to 48 ft. (standard)

• Manual or automatic operation

• Single-track, twin-track, micro-box frame or macro-box frame system type

• Three-year limited warranty

Special Engineering Available

• Crash Rated slide gates up to 30 ft.

• Telescopic slide gates up to 250 ft.

• Rolling gates up to 600 ft.

Specifications SINGLE-TRACK SINGLE-TRACK

AMIGUARD ® 8000 SERIES GATES

AMIGUARD® 8500 V-TRACK SLIDE GATES

While AMIGUARD® 8500 Cantilever Slide Gates are the preferred solution in most applications, AMICO Perimeter Security also offers AMIGUARD® 8500 V-Track Slide Gates. Those gates are identical in design to our Cantilever gates but contain two wheels on the bottom of the frame riding in a V-track. Those gates are most suitable in warmer climates with limited ice and snow.

AMIGUARD ANIMAL SHIELD® GATES

The AMIGUARD Animal Shield® systems protect substations from small animals. The presence of herpetofauna (snakes, turtles, lizards, frogs, salamanders, etc.) in an electrical substation can cause a variety of system problems. This may include momentary disturbances of electrical systems, long-term system outages and severe damage to electrical equipment, leading to both a loss of revenue and a decline in customer satisfaction. All our AMIGUARD® 8000 gates with Animal Shield® Infill feature sturdy nylon brushes to cover any opening and exceed IEEE 1264-22 Standard Guide for Animal Deterrents for Electric Power Supply Substations.

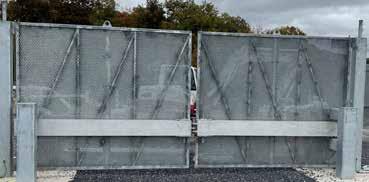

AMIGUARD ® 8300 STEEL DOUBLE SWING GATE WITH ANIMAL SHIELD ® 6100 INFILL,

AMIGUARD ® 8500 STEEL SLIDE GATE WITH ANIMAL SHIELD ® 6100 INFILL,

AMIGUARD ® 8300 STEEL DOUBLE SWING GATE WITH ANIMAL SHIELD ® 6100 INFILL,

AMIGUARD ® 8500 STEEL SLIDE GATE WITH ANIMAL SHIELD ® 6100 INFILL 6" SQ. POSTS

DKS #1201-010 TANDEM V-WHEEL (SEE DETAIL "A")

SIDE VIEW

DKS #1201-010 TANDEM V-WHEEL

AMIGUARD® 8000 STEEL GATES

The AMIGUARD® 8300 Pedestrian and Swing Gates, and the AMIGUARD® 8500 Slide are available with full steel framework. AMIGUARD® 8000 Series Steel Gates are available with the full range of steel infills including AMIGUARD® 4000 Palisade fence, AMIGUARD® 5000 Series Welded Wire, AMIGUARD® 6000 Security and AMIGUARD® 7000 High Security Expanded Metal, and AMIGUARD Ballistic Panels™.

AMIGUARD® 9000 SERIES CRASH GATES

AMIGUARD® 9000 Series Crash Gates are rated of stopping a 15,000 pound vehicle at 30 mph (M30/K4) up to stopping a 15,000 pound vehicle at 50 mph (M50/K12). AMICO Security offers the widest selection of fencing infills in the perimeter security industry and our AMIGUARD® 9000 Series Crash Gates are available with the full range including AMIGUARD® 4000 Palisade fence, AMIGUARD® 5000 Series Welded Wire, AMIGUARD® 6000 Security and AMIGUARD® 7000 High Security Expanded Metal, AMIGUARD Ballistic Panels™ and ANC® Non Conductive fencing.

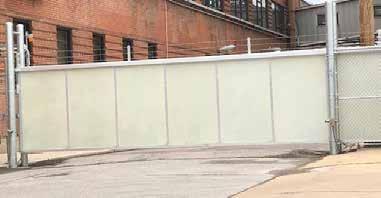

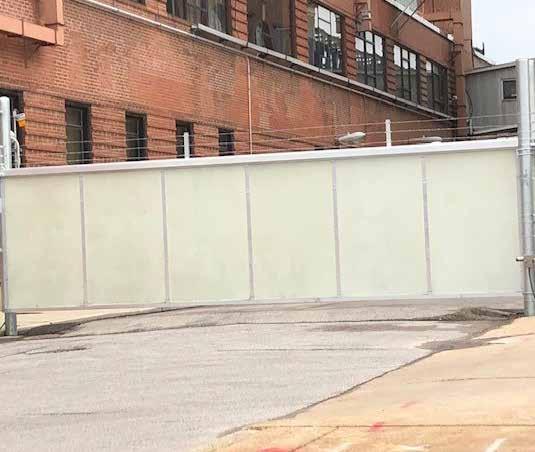

AMIGUARD BALLISTIC GATES

AMIGUARD® Ballistic Panels for ballistic fence, wall and gate systems are being manufactured by a world leading manufacturer of bullet resistant fiberglass. The composite laminate consists of fiberglass reinforced thermoset resin designed to defeat a projectile through a process of energy absorption through controlled delamination and energy dissipation. All of our AMIGUARD® 8000 gates are fully compatible with our AMIGUARD® Ballistic Panels.

AMIGUARD ® 8000 SERIES GATES

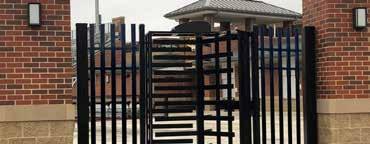

The AMIGUARD® 8700 full height galvanized steel turnstile series provides superior access control through solid construction and safe design. These units are rated for outdoor use and come with hot dip galvanized powder coat finish. The mechanism components are aluminum and stainless steel.

This unit was developed with the installer in mind and can be assembled in a fraction of the time it takes to install comparable industry models. Should requirements change after installation, a user can easily change these units (that come electrically pre-configured) from fail-safe to fail-secure.

To prevent shock and vibration from transferring through the turnstile frame, all areas where mechanical impact occurs during normal operation (ratchets and mechanism mounts) are insulated with shock absorbing materials. This unique design assures a quiet and smooth operation of the turnstile and adds to the life of all mechanical parts.

Included with every turnstile are the following safety features: Heel protection, Home Position centering of spindle, Relocking timer and Anti-Passback preventing simultaneous passing of 2 people.

GATE OPERATORS & ACCESS CONTROLS

Selecting from the highest-quality solutions available, we specify, provide and support only the best products for your application. We also ensure that all our solutions comply with the UL 325 safety standard.

AMICO Security delivers safe and efficient Gate Operators for reliable operation. Gate Operators include Slide Gate Operators, Swing Gate Operators, Hydraulic Gate Operators and Parking and Barrier Gate Operators. Available Access Control systems include Telephone & Digital Entry, Card Reader Systems, Vehicle ID Systems, Custom Camera Systems and Pad Locks.

AMICO Security delivers safe and efficient solutions with industry leading products for reliable operation and access control.

• All-O-Matic

• AutoGate

• BAi – Barcode Automation

• BD Loops

• BFT

• Byan Systems

• Cartell

• Click2Enter

• DITEK

• DKS - DoorKing

• Diablo Controls

• EMX Industries

• FAAC International

• HID Global

• HySecurity/NICE

• LOCINOX

• Lockey USA

• MMTC

• Magnetic

• MillerEdge

• National Loop Co.

• Nortek Linear (OSCO)

• Northstar Controls

• OPTICOM

• Pedestal PRO

• Pro Access Systems

• RAE – Reno A&E

• RAI Products

• Ruscoe Highway Products

• SOS – Siren Operated Systems

• Seco-Larm

• SecuraKey

• Securitron

• Security Brands Inc.

• Select Engineered Systems

• USAutomatic

• Viking Access

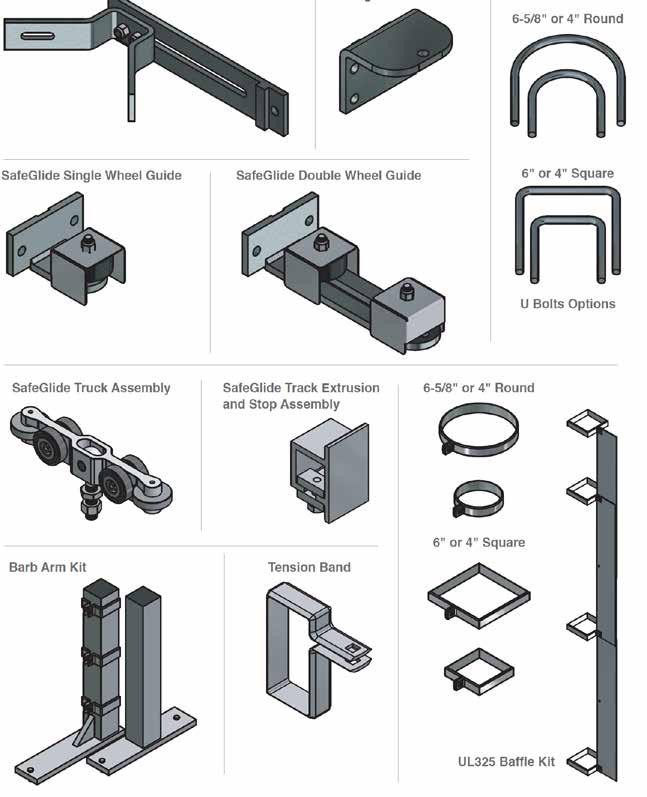

The AMIGUARD® 8000 Series Hardware Kit contains all of the necessary hardware in compliance with ASTM 2200 and UL 325 standards.

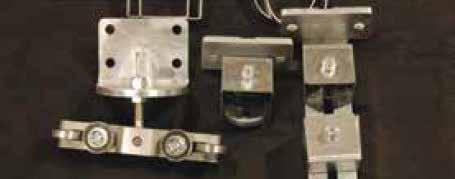

GATE HARDWARE KIT

ADJUSTABLE CATCH

SINGLE WHEEL

TRUCK ASSEMBLY

6-5/8” OR 4” ROUND

6” OR 4” SQUARE

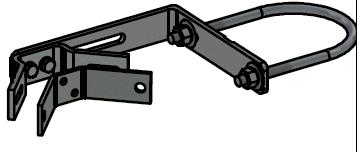

TRUCK HANGER BRACKET U BOLTS OPTIONS

TRACK EXTRUSION AND STOP ASSEMBLY

6-5/8” OR 4” ROUND

AMIGUARD ® & ANC ® INFILLS

The AMIGUARD® 8000 Series Gates are fully integrated with our Security fence product lines and work with any of our AMIGUARD® or ANC Safeguard™ Infills.

Left to Right

AMIGUARD ® 5700 WELDED WIRE, AMIGUARD ® 4700 BENT TRI-POINT PALES, ANC SAFEGUARD™ 2100

AMIGUARD ANIMAL SHIELD ® 6100, AMIGUARD ® 6100 MESH, AMIGUARD ® APEX 01 & 03 MESH
