AMIGUARD ® 6000 & 7000 MESHES

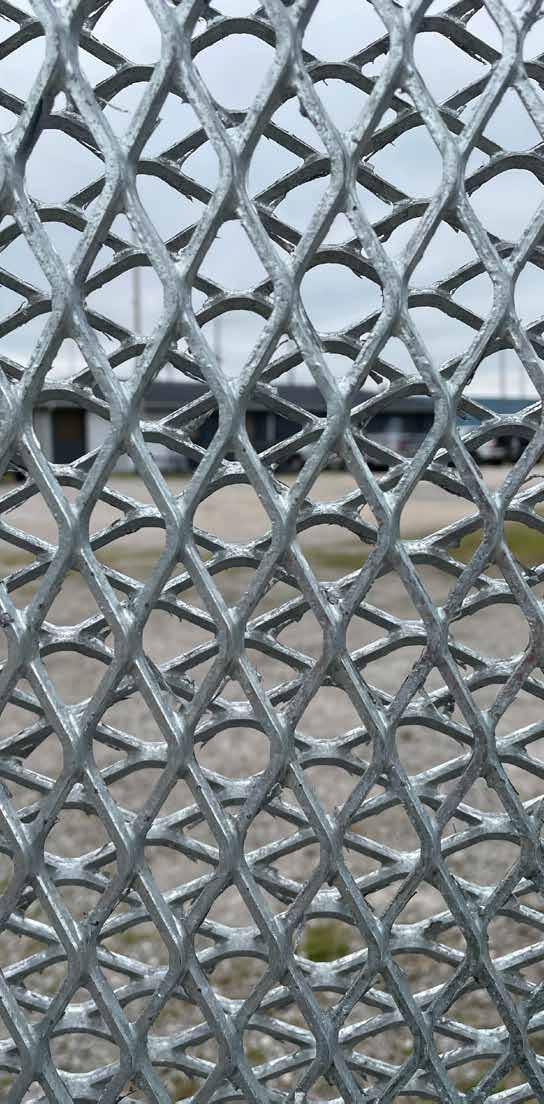

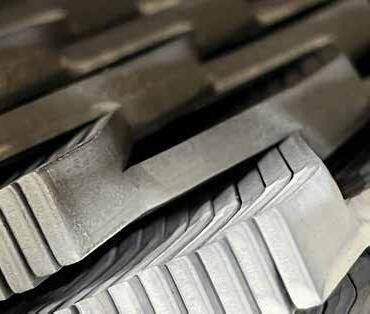

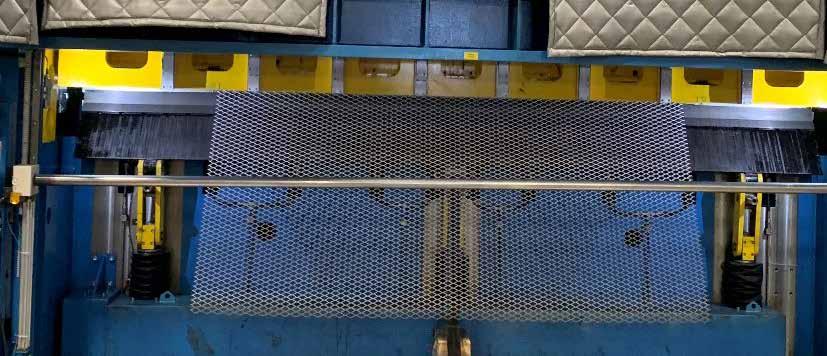

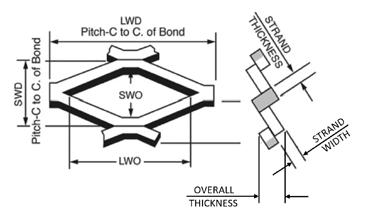

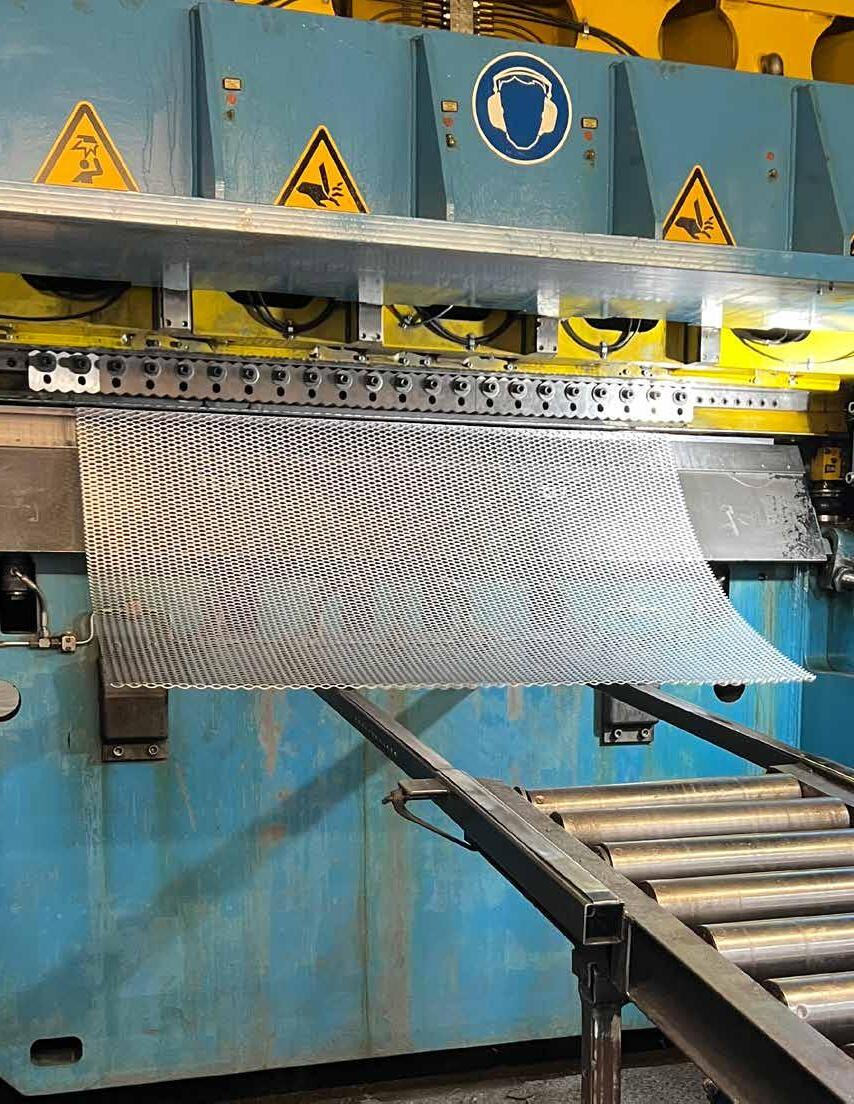

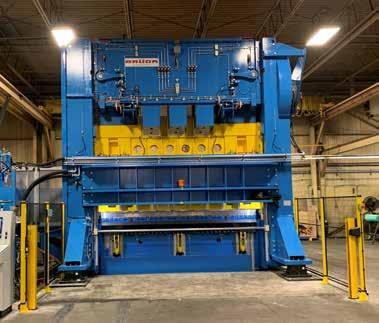

Each AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Mesh panel goes through a process of slitting and stretching metal sheet to form the desired style. The Security Panel has strands and intersecting strands called bonds forming a sharp angle to the original plane of the solid sheet. This process creates the unique pattern and allows a single sheet of metal to be processed into several sheets of Security Mesh Panels.
AMICO Security offers a wide range of AMIGUARD®6000 Security Mesh and AMIGUARD® 7000 High Security Meshes. Meshes differentiate by weight and the size of the diamond openings. All meshes are available in Hot Dipped Galvanized or Black Powder coating over zinc primer/ zinc e-coating.
AMIGUARD® 8000 SERIES GATES
Every AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Mesh panel is fully compatible with our AMIGUARD® 8000 Series Gates. AMIGUARD® 8000 Series Gates from AMICO Security provide safe, security and access control for industrial, commercial and residential sites. Gates range from Pedestrian Gates, Swing Gates measuring from 3 ft. to 90 ft. and up to Cantilever Gates for openings ranging from 10 ft. to 180 ft.

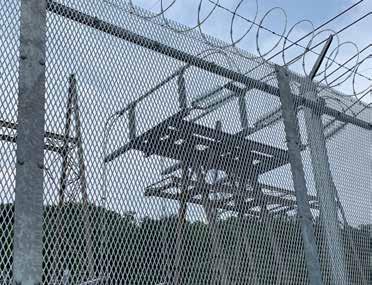

CHAMELEON® PERIMETER SYSTEM

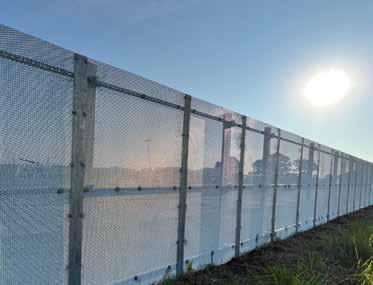

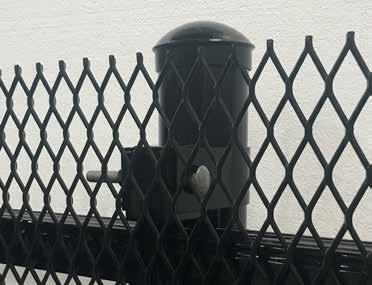

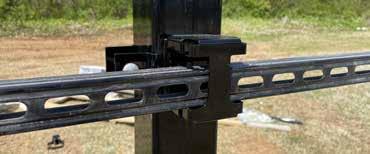

The Chameleon® System is available with round posts or square posts, named Chameleon, or Chameleon2 respectively. Chameleon bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing. Our unique approach incorporates innovative solutions to solve common concerns including: security, aesthetics, seamless design, ease of installation, incorporation of impact and fiber optic cables and anti-cut / anti-climb mesh options.

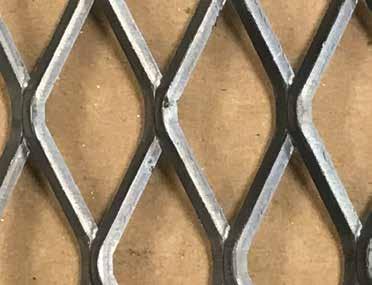

AMIGUARD ® 6000 SERIES
SECURITY MESHES

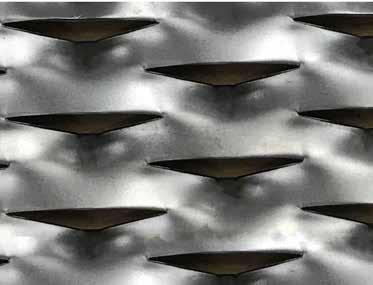

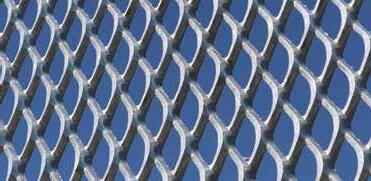

Top to Bottom, Left to Right, Samples shown in 1:1 scale
AMIGUARD ® 6030 SECURITY MESH,
AMIGUARD ® 6050 SECURITY MESH,
AMIGUARD ® 6100 SECURITY MESH,
AMIGUARD ® 6200 SECURITY MESH

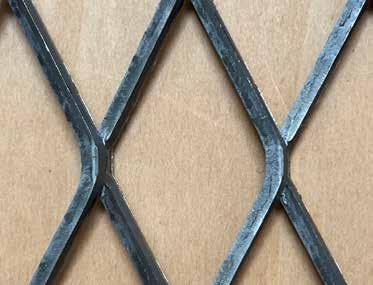

Top to Bottom, Left to Right
AMIGUARD ® 6100 SECURITY MESH,
AMIGUARD ® 6300 SECURITY MESH,
AMIGUARD ® 6800 SECURITY MESH,
AMIGUARD ® 6300 SECURITY MESH

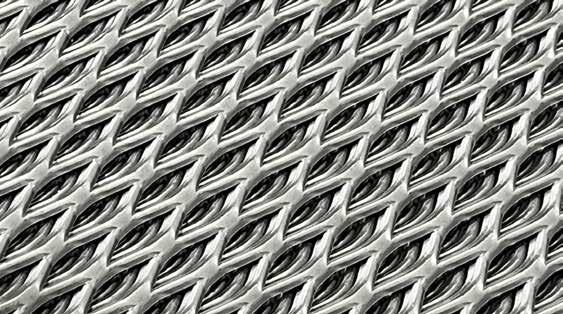

AMIGUARD ® 7000 SERIES
HIGH SECURITY MESHES

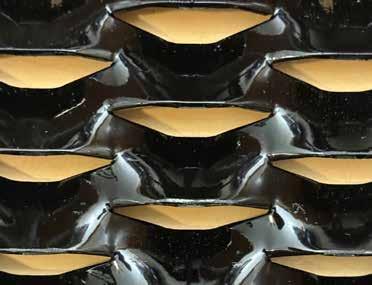

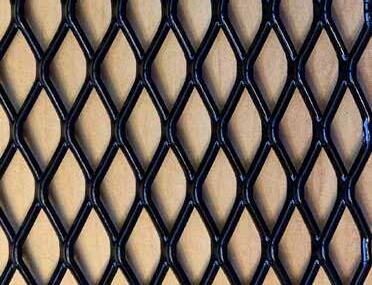

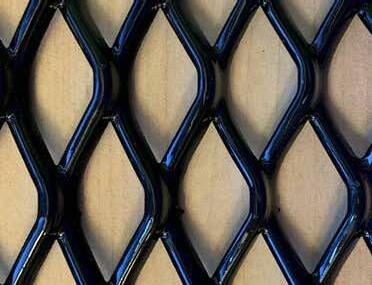

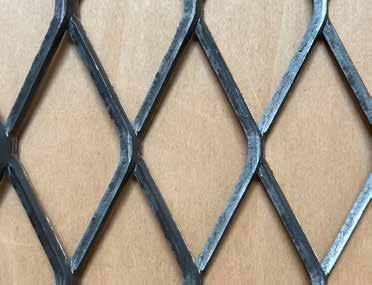

Top to Bottom, Left to Right, Samples shown in 1:1 scale
AMIGUARD ® 7100 HIGH SECURITY MESH,
AMIGUARD ® 7100 HIGH SECURITY MESH,
AMIGUARD ® 7300 HIGH SECURITY MESH,
AMIGUARD ® 7500 HIGH SECURITY MESH

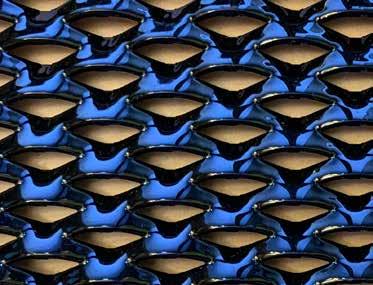

AMICOAT™ FINISHES

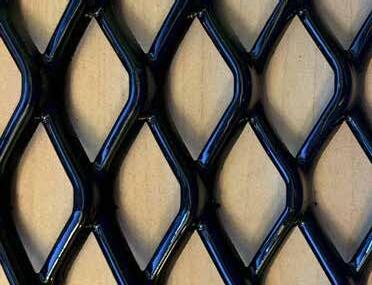

POWDER COATING OVER E-COATING

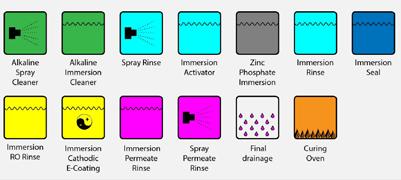

PREPARATION
AMICO Security offers three highly corrosion resistant finishing options:
• Hot-Dip Galvanizing
• AMICOAT™ Powder coating over E-Coating or primer
• AMICOAT™ Duplex Coating, Powder coating over Hot-Dip Galvanizing
All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. While a traditional paint layer aims to prevent water from touching the steel, a zinc layer provides a superior cathodic protection replacing the steel anode with a zinc anode resulting in zinc oxide which forms a protective layer instead of rust.
DUPLEX COATING
Duplex Coating provides a more sophisticated manner of corrosion protection known as the synergistic effect. The hot-dip galvanized steel is powder coated providing two layers of protection. Used independently, both paint/powder coatings and galvanizing provide corrosion protection to steel; however, when utilized together, the two coatings work in synergy. The exterior layer of paint or powder coating slows down the rate at which the zinc is consumed, greatly extending the life of the galvanized steel. In return, once the exterior layer has been weathered down or damaged, the zinc beneath is still available to provide cathodic and barrier protection.
HOT-DIP GALVANIZING Scan/click

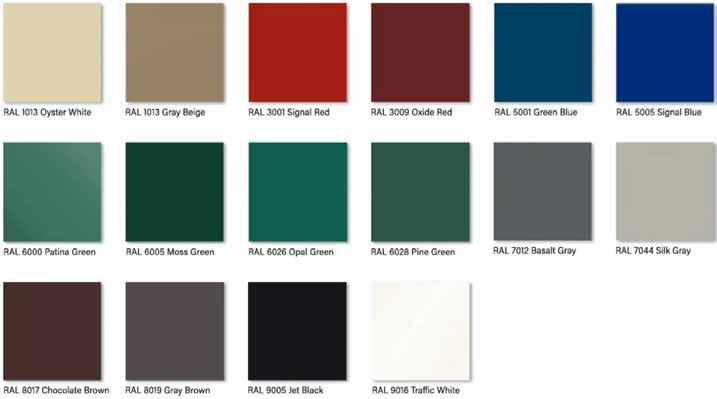

STANDARD COLORS

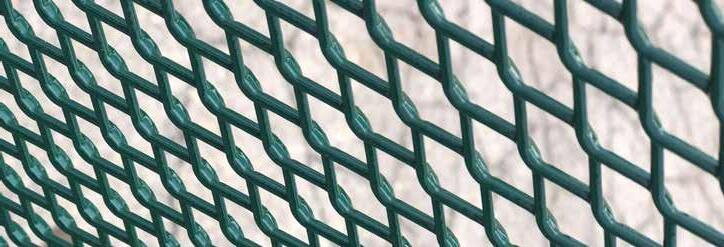

AMICOAT™ STANDARD COLORS FOR AMIGUARD® 6000 & 7000 SECURITY MESHES
Please note that standard AMICOAT™ colors shown in here are for reference only as they can deviate slightly from the actual colors depending on electronic screen or printing.
