AMIGUARD ® 5000 WELDED WIRE PANELS
Top to Bottom, Left to Right

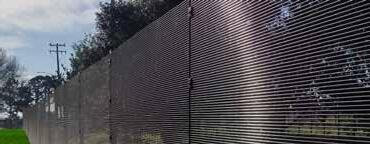

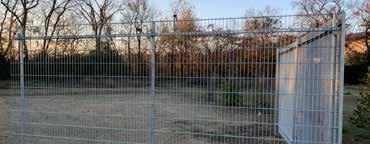

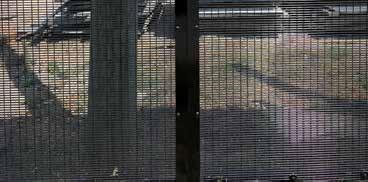

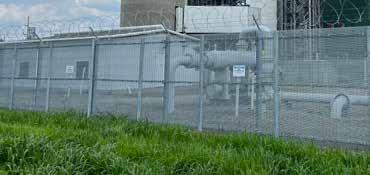

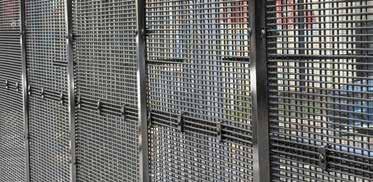

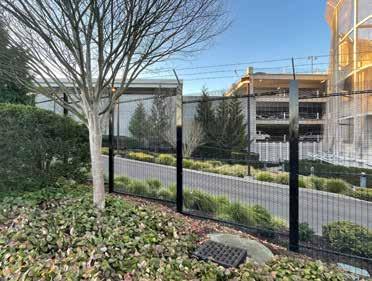

AMIGUARD ® 5700, AMIGUARD DUALGUARD ® MESH 5700/7700, AMIGUARD ® 5700 ON RAIL-LESS FRAMEWORK

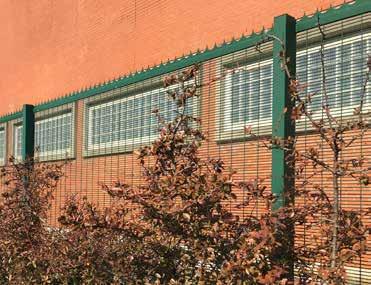

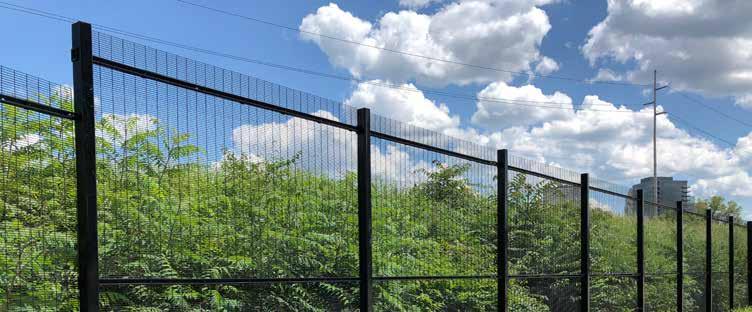

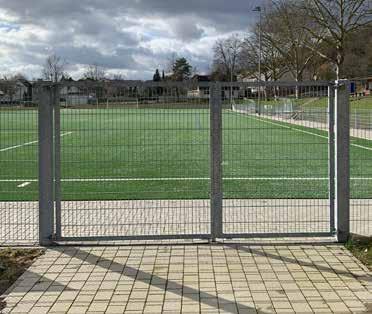

AMIGUARD ® 5700, AMIGUARD ® 5500 ON RAIL-LESS FRAMEWORK,

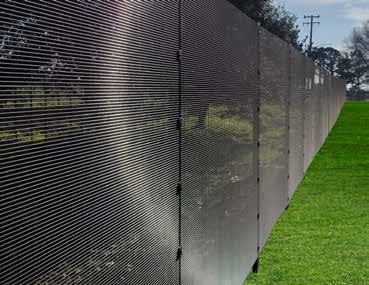

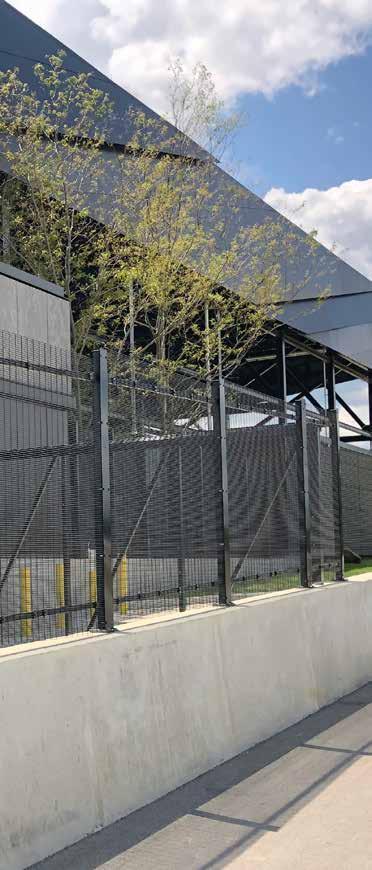

AMIGUARD ® 5700 ON RAIL-LESS FRAMEWORK,

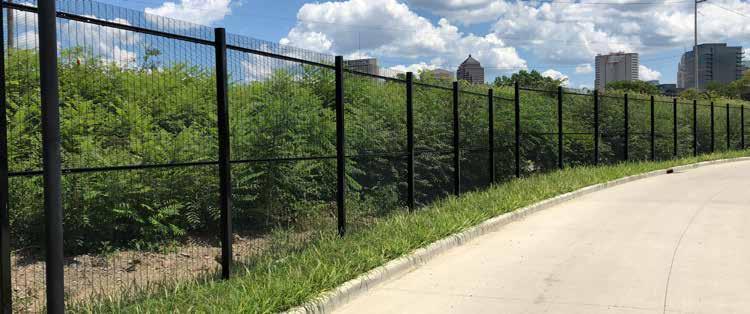

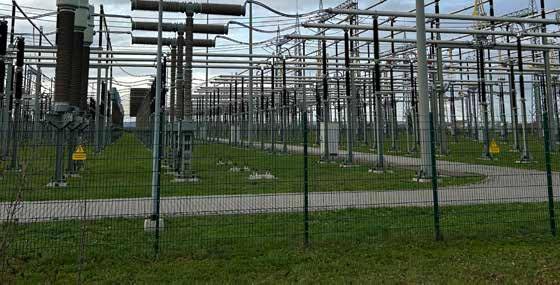

AMIGUARD ® 5600 ON RAIL-LESS FRAMEWORK
Top to Bottom, Left to Right
AMIGUARD ® 5000 WELDED WIRE PANELS
The AMICO Security AMIGUARD® 5000 Series Wire Fence System addresses the drawbacks of chain link fencing. It enhances safety in a cost-effective system without compromising visibility or aesthetics.
AMICO Security Wire system includes 5500 double wire mesh, 5600 3D wire mesh and 5700 wire mesh for enhanced security. These meshes are coated with a polyester powder coating over galvanized wire. Panels come in 8- or 10-feet heights.
All meshes can be installed using the AMIGUARD® rail system or the AMIGUARD® rail-less system. The Chameleon retrofit system provides the solution for replacing chain link fabric with welded wire mesh while keeping the existing posts.
QUALITY
Product

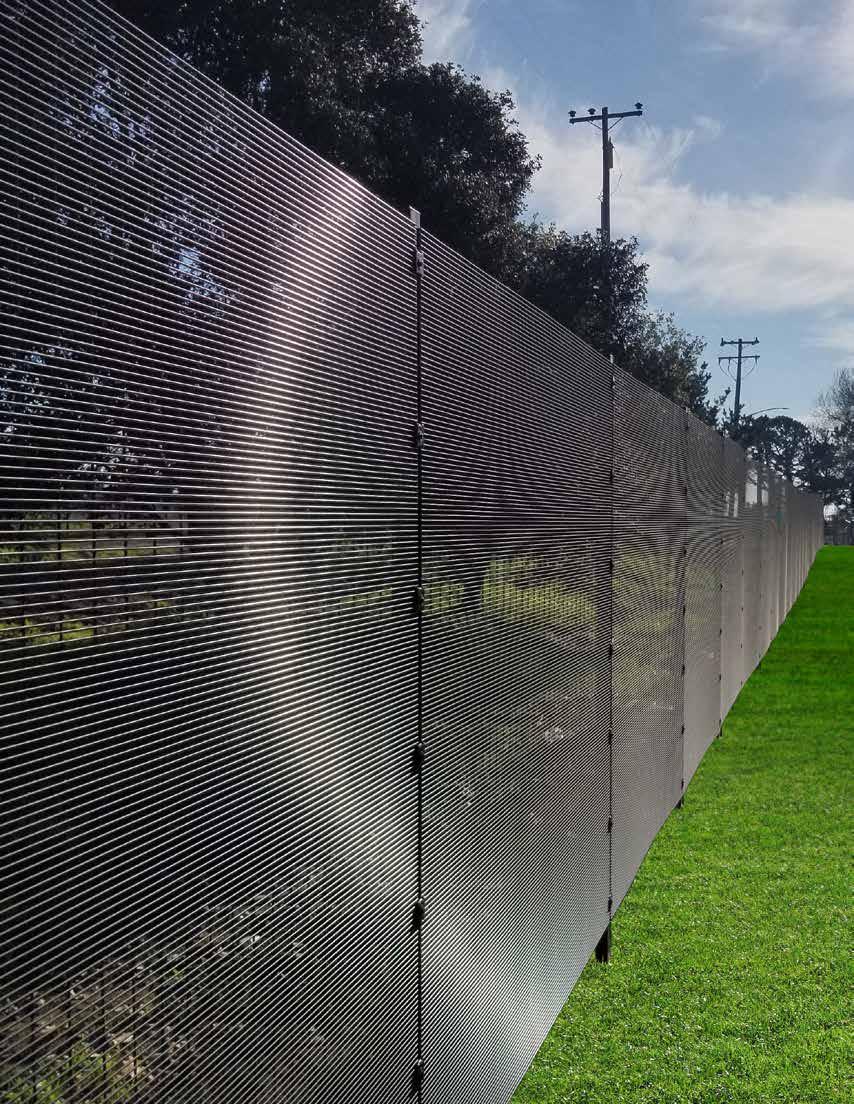

AMIGUARD ® 5700 WELDED WIRE
AMICO Security’s Wire mesh panels are produced in one of the largest plants for reinforcement products and fencing panels in the world. High employee retention and experience positions AMICO Security Products as an industry leader in quality and safety. AMICO’s continuous attention and improvement of its manufacturing processes ensures quality products, working conditions and improved environmental conditions.
Scan/click for more info
5500 MESH

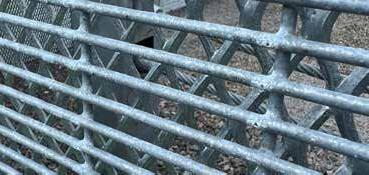

The 5500 mesh is a durable double wire panel and is available in hot dipped galvanized finish or the standard polyester powder coating over galvanized wire. The rods are welded at all intersections for strength and rigidity. These very solid .31”/.24”/.31” (8/6/8mm) double wire fences are perfectly suited for industrial estates, sports stadiums, public buildings, airfields, schools, etc.
NOTE: OTHER WIRE DIAMETERS ARE AVAILABLE UPON REQUEST.
5700 MESH

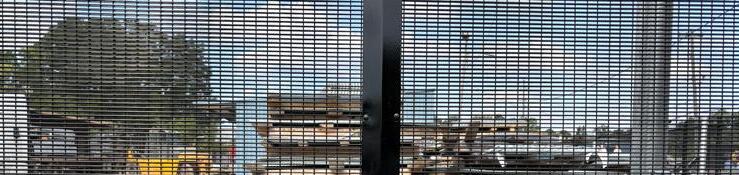

The 5700 wire mesh design makes it extremely difficult to scale or cut the fence without compromising visibility or aesthetics. The 0.5” spacing between the wires prevents getting a foothold for climbing, and it delays or deters cutting as power tools won’t fit in. The 5700 Mesh is ideal for secure applications such as government, utilities, transportation, etc.
CHAMELEON® HIGH SECURITY RETROFIT FENCE SYSTEM
The AMICO Security Wire fence system is fully compatible with our Chameleon® retrofit system allowing you to utilize existing fence posts, saving time and material.
NOTE: OTHER WIRE DIAMETERS ARE AVAILABLE UPON REQUEST.
5600 MESH
The 5600 3D V-mesh is a cost effective solution for schools, residential, public and light industry applications. The 5600 Mesh is ideal for the AMIGUARD® rail-less Spider Clamp System since the integrated V gives the 5600 Mesh a structural rigidity similar to a fence mounted on a rail system.
NOTE: OTHER WIRE DIAMETERS PLUS ADDITIONAL HORIZONTAL WIRES ARE AVAILABLE UPON REQUEST.
AMIGUARD® RAIL-LESS SYSTEM
The AMICO Security AMIGUARD® rail-less Spider Clamp System for the AMIGUARD® 5700 Mesh or the AMIGUARD® rail-less U-Bolt system for the AMIGUARD® 5500 & 5600 meshes are cost effective solutions for applications such as recreation: education facilities, public buildings, self-storage, parking facilities etc.
AMIGUARD ® 5000 WELDED WIRE PANELS
Our Engineering Department is here to assist you with all aspects of the design process for your project. Simple drawings to Engineered Stamped drawings are just a few things they can help with. They are always ready to collaborate with your Engineering Team to ensure your AMICO Security System is installed correctly.

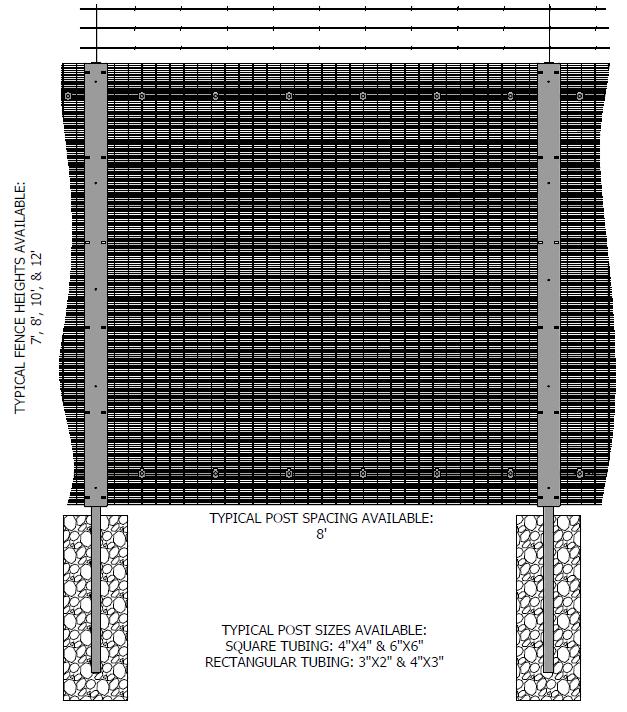

CHAMELEON2® PERIMETER SYSTEM AMIGUARD® 5700 PANELS
TOPPERS AVAILABLE:
TYPICAL PANEL SIZE 99”
BARBED WIRE, RAZOR WIRE & SHARK TOOTH TOPPER
CHAMELEON2® PERIMETER SYSTEM AMIGUARD® 5700 PANELS
DETAIL A (MESH PANELS REMOVED FOR CLARITY)
AMIGUARD® RAIL-LESS SPIDER CLAMP SYSTEM FOR AMIGUARD® 5700 PANELS
5/16" CARRIAGE BOLT WITH 'W' CLIP ON FRONT
AMIGUARD ® 5000 WELDED WIRE PANELS
AMIGUARD® RAIL-LESS U-BOLT SYSTEM FOR AMIGUARD® 5500 PANELS
POST SPACING: SUBJECT TO WINDLOAD CALCULATION
FOOTING & EMBEDMENT: SUBJECT TO WINDLOAD CALCULATIONS
AMIGUARD ® 5700
DUO INFILL
AMIGUARD® 5700 DUO WELDED WIRE INFILL
The AMIGUARD® 5700 Duo Welded Wire Infill on either Chameleon® or Chameleon2® with round or square posts respectively is our most secure welded wire fence product. It utilizes two regular AMIGUARD® 5700 Welded Wire panels which are nested into each other and are staggered by 1.5” inches to the side, resulting in a 1.5” wide by 0.5” tall wire pattern. The AMIGUARD® 5700 Duo Welded Wire Infill has two horizontal wires every 0.5” and one vertical wire every 1.5” significantly enhancing breach times. It also uses cover plates every 4’ compared to every 8’ of the standard Chameleon® Perimeter System.
CHAMELEON® PERIMETER SYSTEM WITH AMIGUARD® 5700 DUO WELDED WIRE INFILL
APPLICATIONS
Top to Bottom

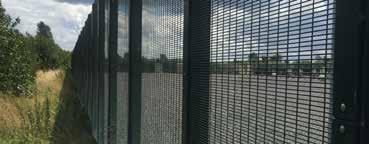

AMIGUARD ® 5700 WELDED WIRE,

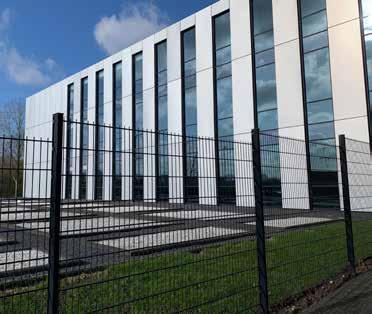

AMIGUARD ® 5500 WELDED WIRE (2)
AMICOAT™ STANDARD FINISHES
AMICO Security offers two highly corrosion resistant finishing options for AMIGUARD® 5000 Welded Wire Panels::
• Hot-Dip Galvanizing after Welding (GAW)
• Hot-Dip Galvanized Wire before Welding (GBW) wsith AMICOAT™ Powder coating after Welding
AMICOAT™ STANDARD COLORS FOR AMIGUARD® 6000 & 7000 SECURITY MESHES
AMICOAT™ STANDARD COLORS FOR AMIGUARD® 5000 WIRE MESHES
Please note that standard AMICOAT™ colors shown in here are for reference only as they can deviate slightly from the actual colors depending on electronic screen or printing.

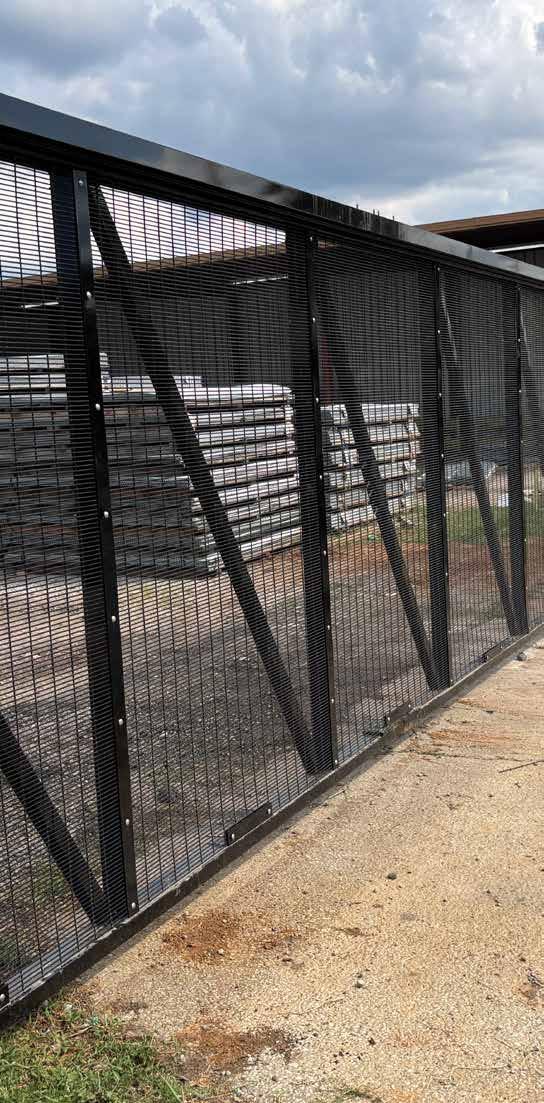

AMIGUARD ® 8500 CANTILEVER GATE WITH AMIGUARD ® 5700
WELDED WIRE INFILL
