Portfolio/24 N
A
Amanda Andersson

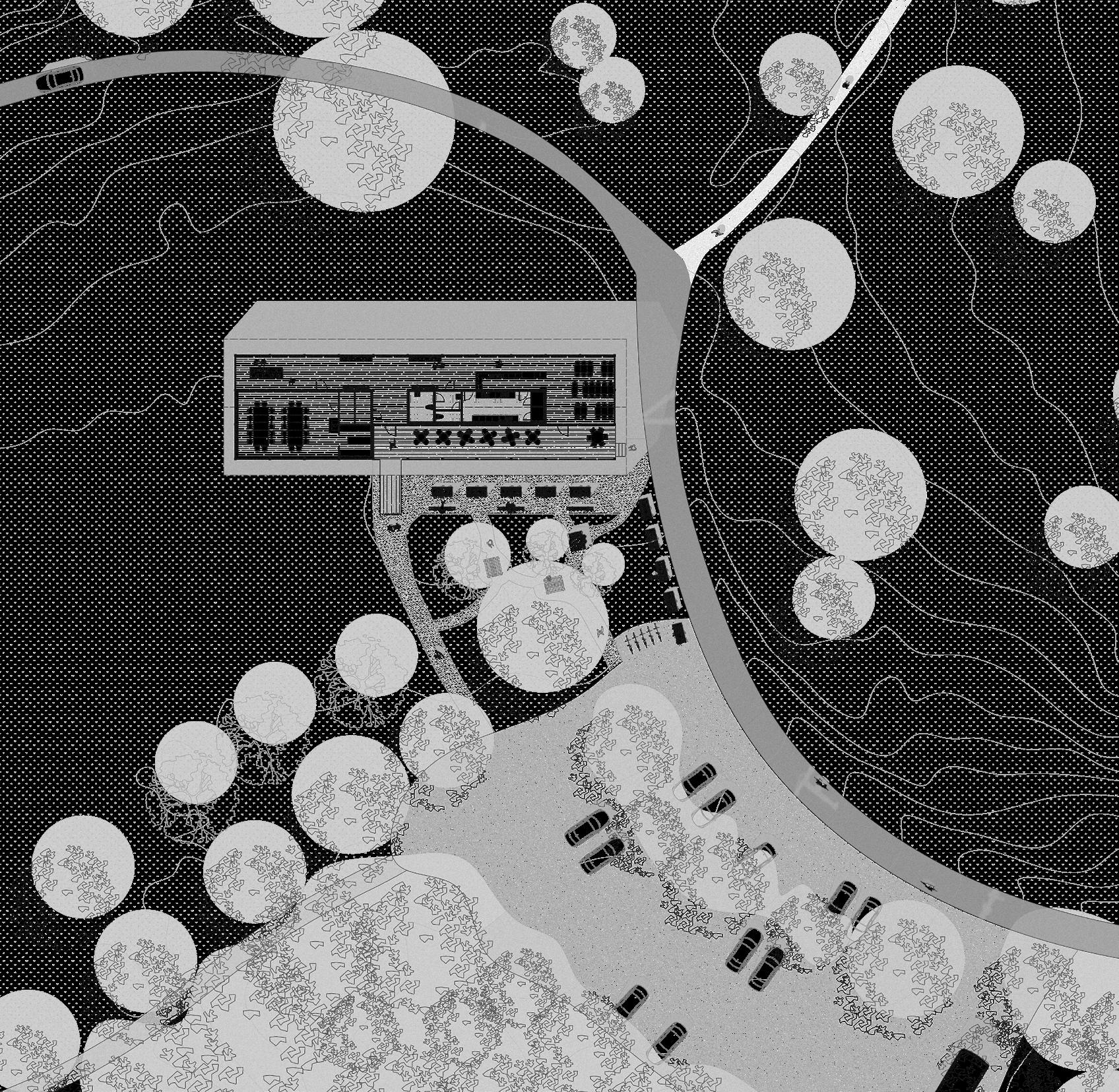

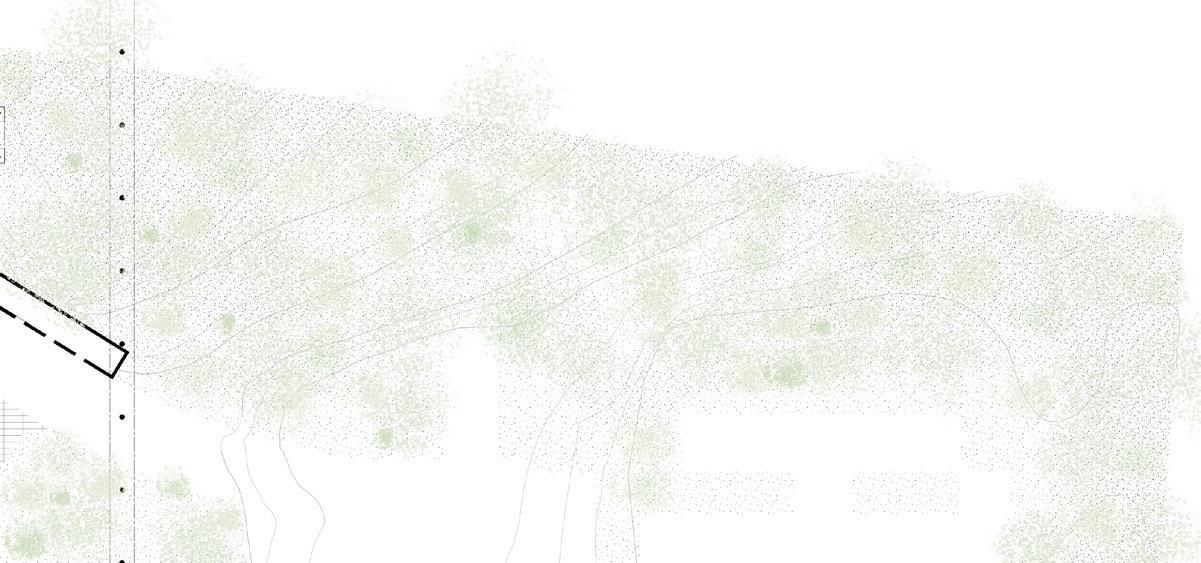

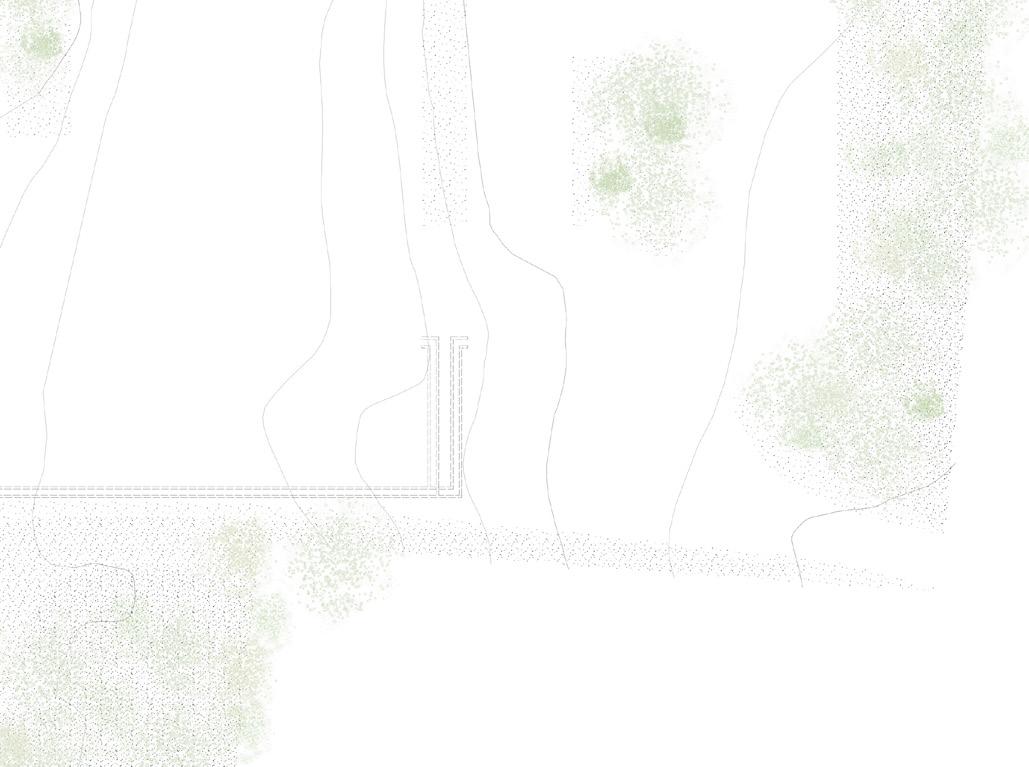

ART GALLERY. Sectoral Situation Plan 1:200 Situation plan showing the art gallery with the surrounding buildings, outdoor spaces and the bridge connecting the settlement, site and beach.
Chalmers Tekniska Högskola Phase 2
Phase 2
Transformation
Section & Elevation South A-A 1:200

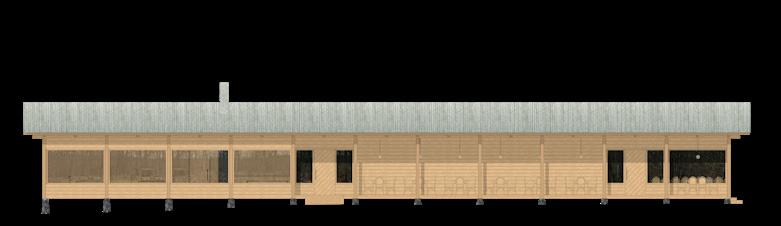

Elevation and section of the art gallery, showing the café, workshop, outdoor workspaces, courtyard and connection to the children’s housing.
ALS SAUVEGARDE · STUDIO BOSSHARD VAQUER · MA1/BA3
FINAL REVIEW · FALL 2022 · GROUP B · AMANDA ANDERSSON

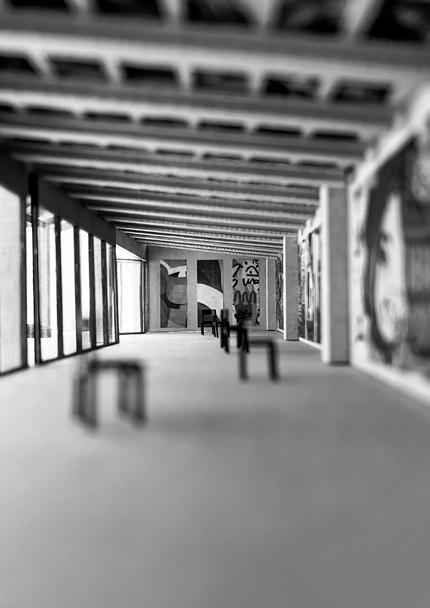

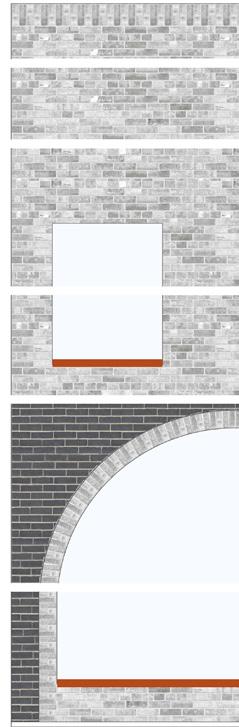

Concrete Model The concrete model serves as an exploration of the spatial quality inherent in the new addition, specifically focusing on the introduction of arched openings in the facade. This model symbolizes the project’s commitment to rawness and materiality, embodying these principles throughout its design.
Shop The image shows the shop and its surroundings. The shop is in a similar position as today but it has been moved further back into the building also using the space behind the foundation. The shop is defined by glass block walls and the arched ceiling. Located near the shop, visible in the center of the image, is a place with seating arrangements for visitors to gather and sit down. The new arched openings in the facade are visible from the shop, with their repeating rhythm of the arches above. Shop
Transformation
