SkyJETisamachineusedtoblowfiberopticcablesintoHDPEpipes.Itcontains twopneumaticairmotors.Theseenginesworkwithhighpressureair. Therefore,youonlyneedtouseanaircompressortoblowthefiberopticcables intoHDPEpipe.

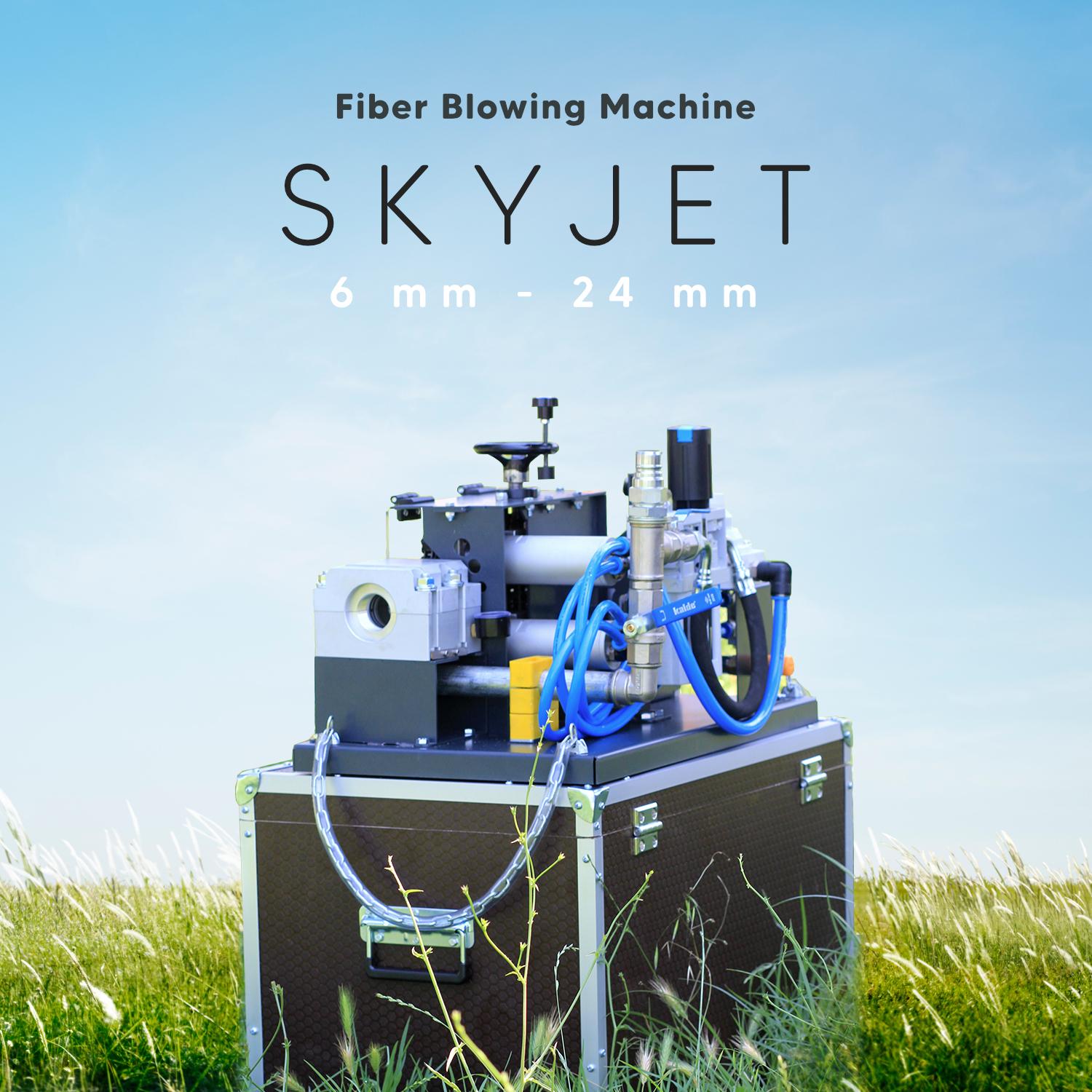

SkyJET| CableBlowingMachine
SkyJETisamachineusedtoblowfiberopticcablesintoHDPEpipes. Itcontainstwopneumaticairmotors.Theseenginesworkwithhigh pressureair.
Therefore,youonlyneedtouseanaircompressortoblowthefiberoptic cablesintoHDPEpipe.
40mmPipeDiameterforSkyJET
StandardSkyJETmachineisproducedfor40mmpipediameter. Regulatingpartsareproducedforpipediameterslessthanorgreater than40mm.
Incaseswherethepipediameterismorethan40mm,pipefittingsare giventotheoutletboxaccordingtothedesiredlinelinkdiameter. Youmustinformusofyourpipediameterwithyourorder.
EasyInstallationandOperation
Allpartsandequipmentrequiredforthefiberopticcableinstallationprocessareprovidedwiththemachine.SkyJETtakesitspowerfromtheair compressorandtransmitsittotheairmotors.Inthisway,youdonotneed anyadditionalpowersupply.Youjustneedtoassemblethecompressor adapteronthemachine.Theseadapterscomewiththemachineasakit.In addition,compressorconnectionapparatusareprovidedfreeofcharge withthemachine.
GeneralDetails
Recommendedminimumair pressureforSkyJET: 12bar/10m³/min.(40mmHDPE Pipe)
FiberOpticCableDiameterRange: 6mm-24mm
BestPerformance: 8mm-18mm
HDPEPipeDiameterRanges: Canbeadjustedoptionally

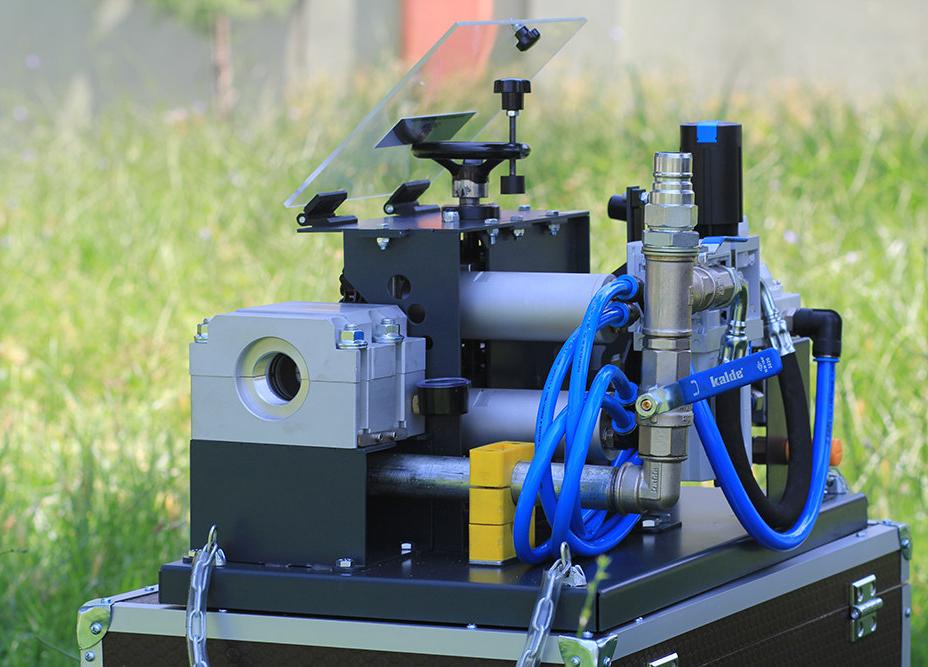

SkyJETmachine containstwo pneumaticair motors
StandardCableandPipeSizes
StandardcableandpipesizesusedinSkyJETCableblowingmachine
StandardHdpepipesizes: 12mm-14mm-16mm-20mm-25mm-32mm-40mm-50mm-63mm (Witheachcablediameter,cablepadsandnutringsarealsogiven.)

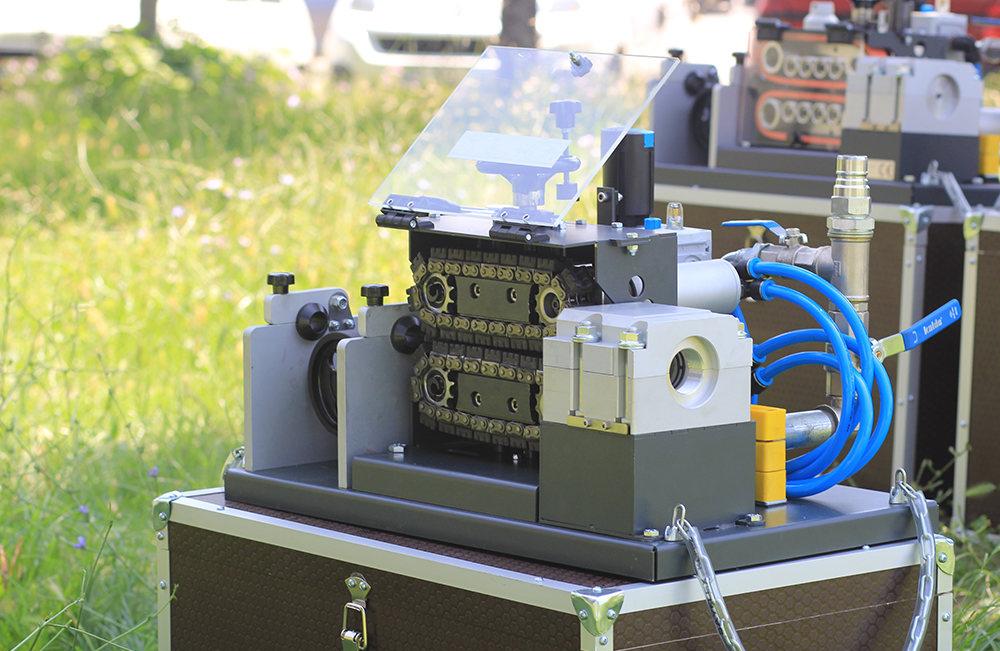

Thereare4setsofchainsforCableDiameters.
6mm-8mmChainSet
9mm-13mmChainSet
14mm-18mmChainSetand19mm-24mmChainSet
SkyJETGeneralFeatures
•Mechanicalyardagemeterthatisresistanttoroughweather conditions.
•CablepusherTwosimultaneouspneumaticairmotors.
•Bi-directional(Forward-Backward)directedpropulsion.
•Compressorairconnectioncoupling.
•Fiberopticcablepadsfordifferentdiameters(from6mmto24mm)
•HDPEpipeconnectorsfordifferentdiameters(from14mmto 63mm)
•Specialchainsets:6mm-8mm/9mm-13mm/14mm-18mm/ 19mm-24mm
•Separatesetsofpartsforeachcablediameter.
•Semi-automaticaxerworkingindifferentdiameters.
•First-classmaterialsandworkmanship
•2yearfullwarranty.
•10yearsparepartsguarantee.
HdpePipeDimensions
Hdpepipesizes: 20mm-25mm-32mm-40mm-50mm-63mm
Ifyouhaveapipediameterbetweenthesedimensions,pleasenotifyoursalesrepresentative.
Pleasecontactusforfurtherinformationor placingorder.
SkyJETTechnicalSpecifications
PushingForce: 0–300N
PushingSpeed: 0–150m/dak
CableSize: 6–24mm
BestPerformance: 8–18mm
HDPEPipeDiameter: 14–63mm
DriveMotor: Air(DoubleEffectiveAirMotors)
Airconsumptiontominimumrecommendedpipediameter(at12Bar):
0–25mm: 4m³/min150CFM
26mm–30mm: 5m³/min185CFM
31mm–35mm: 7m³/min250CFM
36mm–40mm: 10m³/min375CFM
41mm–44mm>: 12m³/min450CFM

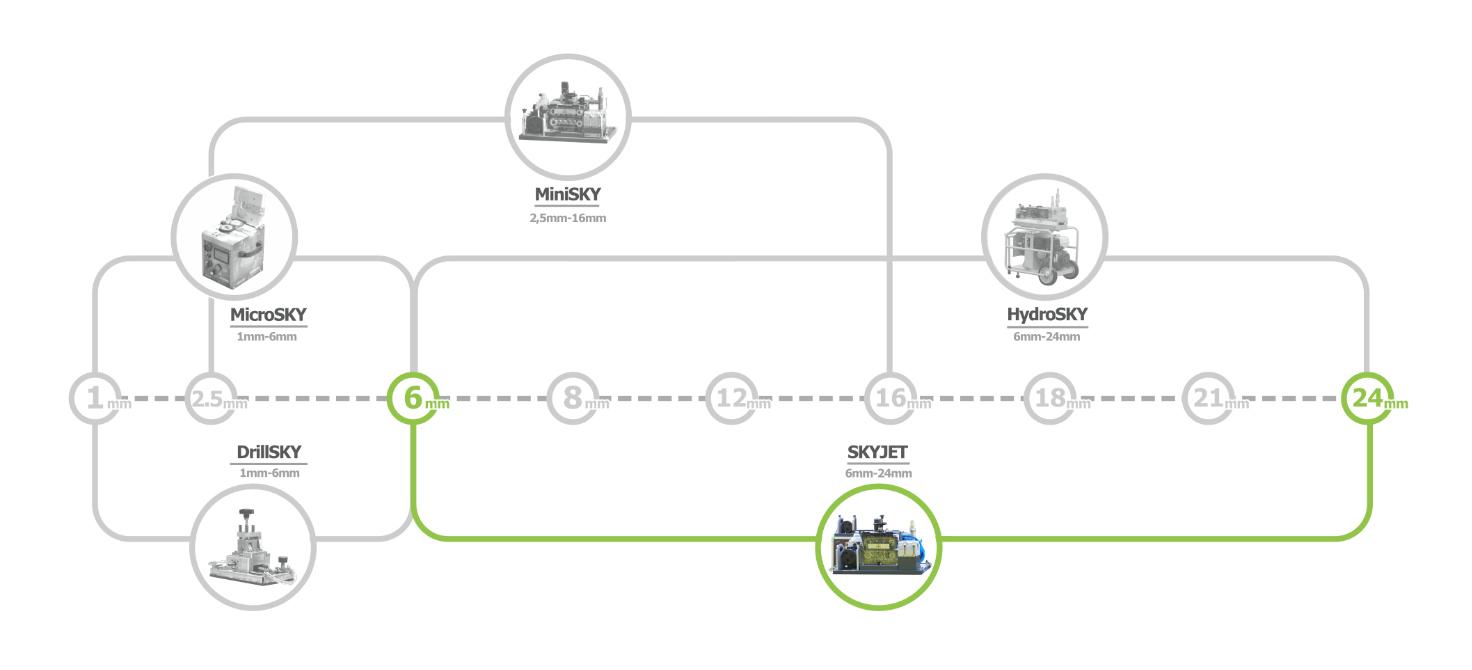

SkyJETFiberOpticCableDiameterRanges
