HydroSKYisamachinethatisusedtoblowfiberopticcablesintoHDPEpipes, poweredbyahydraulicpowerunitandcanworkwithhydraulicmotors.HydroSKY cableblowingmachineperformsblowingoffibercablesbetween8mmand24mm.
HydroSKY| CableBlowingMachine
HydroSKYisamachinethatisusedtoblowfiberopticcablesintoHDPE pipes,poweredbyahydraulicpowerunitandcanworkwithhydraulicmotors.HydroSKYcableblowingmachineperformsblowingoffibercables between6mmand24mm.

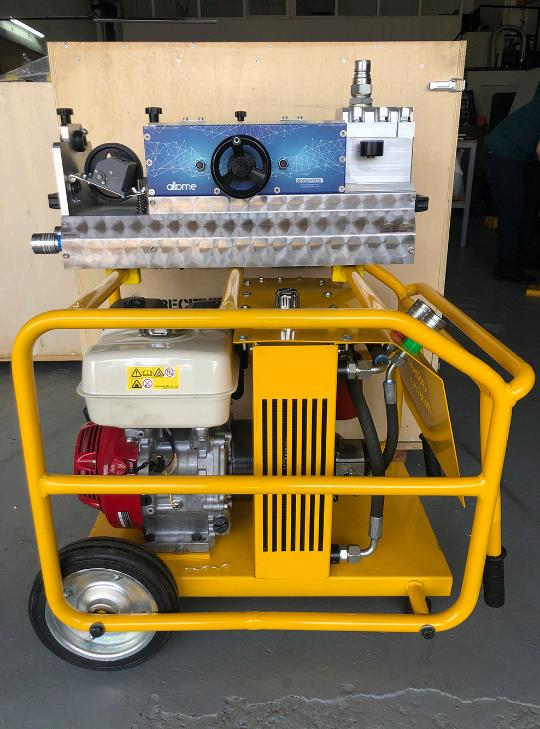

ThehydrauliccableblowmachineHydroSKYisthemostpowerfulmachine initsclass.Thereisa9hp(HondaGx270)gasolineengineonthemachine. Alsoitprovidestrouble-freeperformancewiththecoolingandfiltering systeminthepowerunit.
20LitersOfHydraulicOilCapacity
HydroSKYcableblowmachineprovides8litersofoilpressureperminute with20litersofhydraulicoilcapacity.Withitsdetachablecontrolunit, HydroSKYcaneasilyblowthefibercableevenindifficultconditions.
Itsmainareasofuseareairports,Petropipelines,TelecomCompanies, Outdoorinfrastructureandsuperstructureprojects,Fiberinfrastructure supportcenters,industrialfiberopticdatacentersFTTH–FTTX.
Upto180MetersofThrustperMinute
Itpushesyourfiberopticcables(armoredorunarmored)upto180meters perminute.Therecommendedamountofspeeddependsonyourcable diameter.
GeneralDetails
Recommendedamountofair pressureforHydroSKY: 12bar10m³/minute(for40mm Hdpepipe)
FiberOpticCableDiameter: Range:6mm-24mm
HDPEPipeDiameterRanges: Canbeadjustedoptionally
HydroSKYBlowing MachineisUpto 180Metersof ThrustperMinute
Real Power Experience

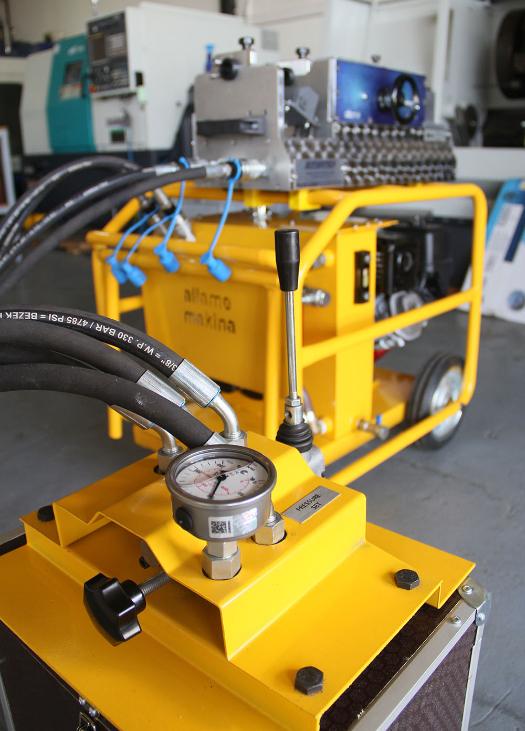

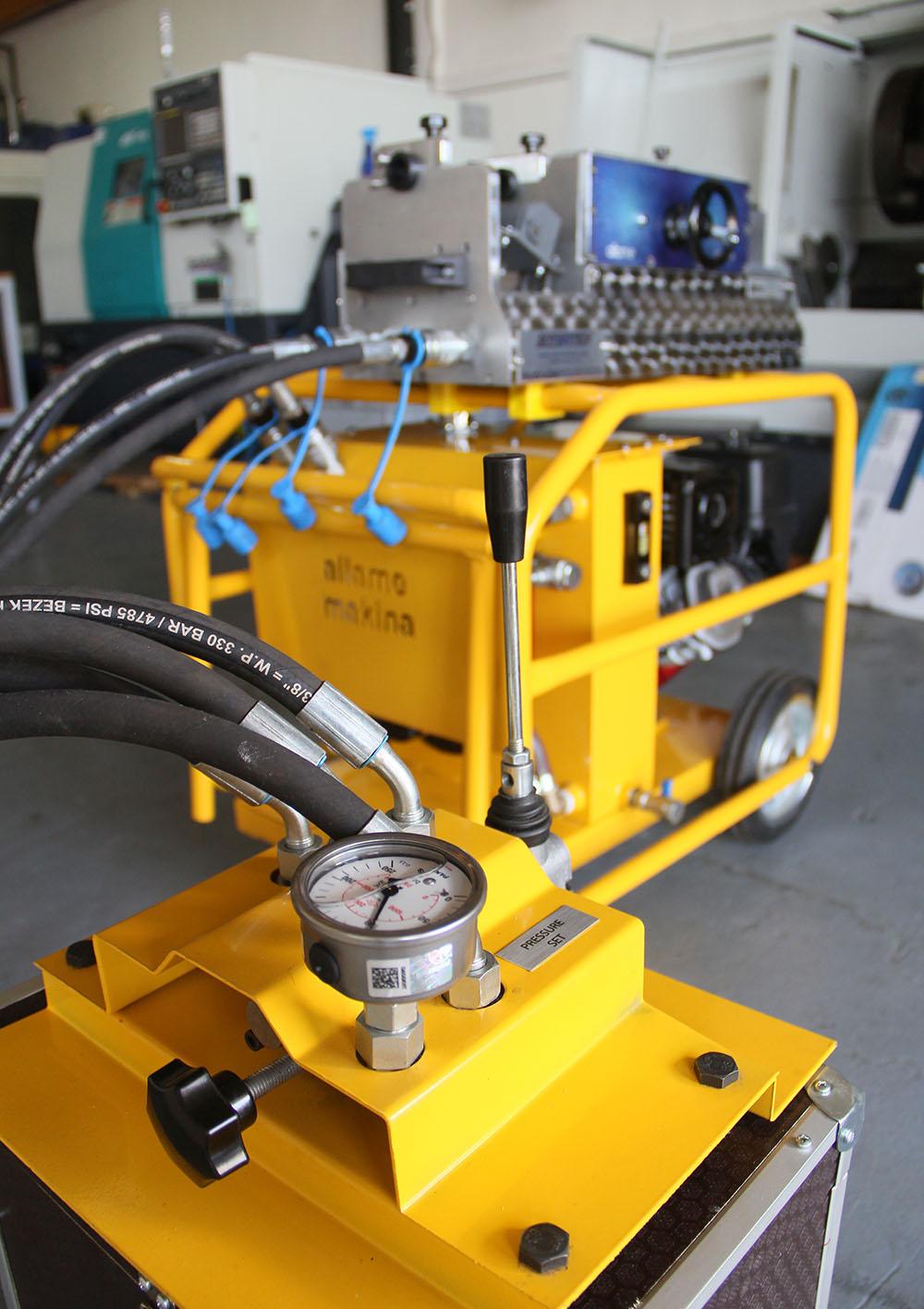

HydraulicCableBlow

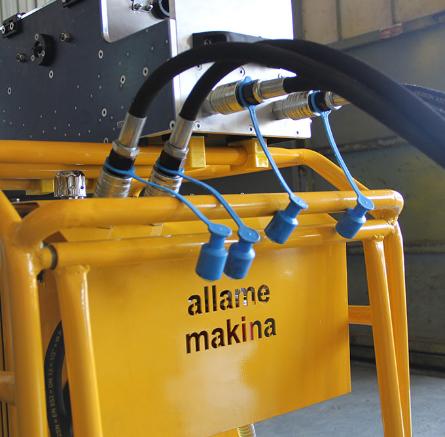

Itperformsagreathydrauliccableblowprocesswithitsstrong structuralbalance.After2hydraulichosesareattachedtothehydraulicpowerunit,itiseasilyreadyforuse.

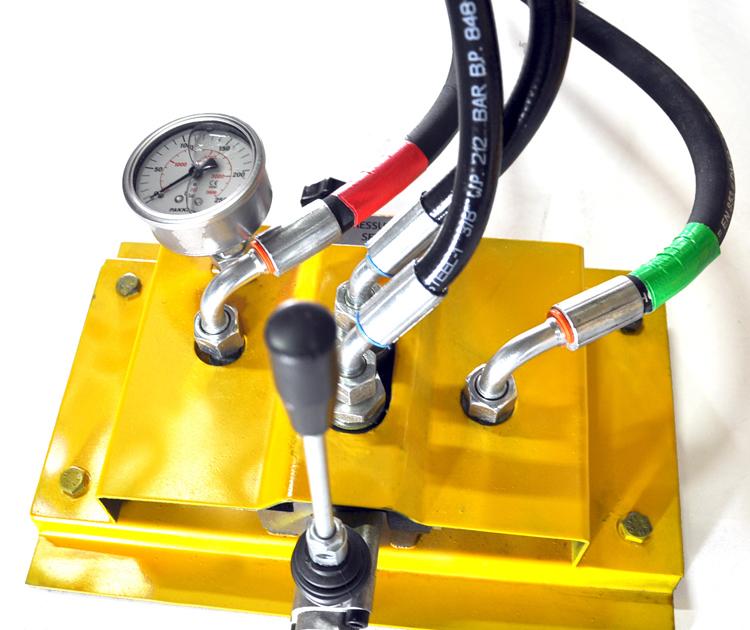

Owingtoitsergonomicstructure,itiseasytocarryeverywhere.It adaptstoallconditionswithitseasy-to-usecontrolunit.
Thereisanextrametercounterinthecabledblowunit. Itisextremelysuccessfulinlongcableblowprocesses.
*Youcaneasilyblowcablesupto6000meterswithourmachine. (Thisdistanceisdirectlyrelatedtoyourprojectconditions.) Optionalwaterinletcanbeaddedtoincreasetheblowdistance.
HydroSKYstartsworkingafterconnectingthecableblowmachine tothecompressorwiththeairhosecoupling.

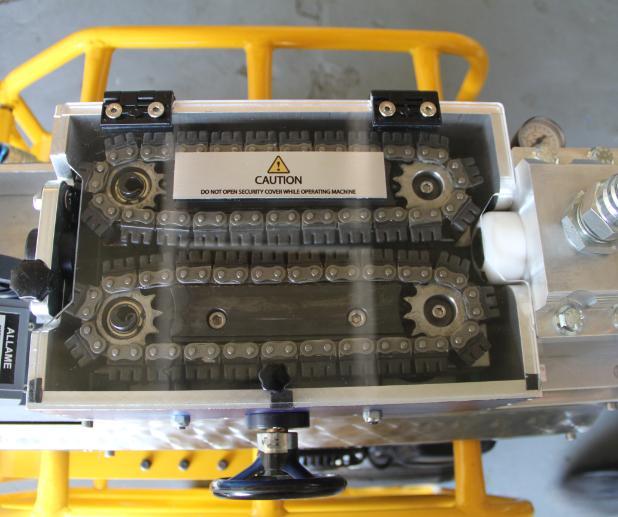

3DifferentBeltSystem!
FiberOpticCableBlowMachineforYour IntegratedProjects
Belttoolsets; 4mm-7mm/8mm-12mm/13mm-18mm/ 19mm-24mm
Pipesizeset(canbeproducedinanydiameter optionally)

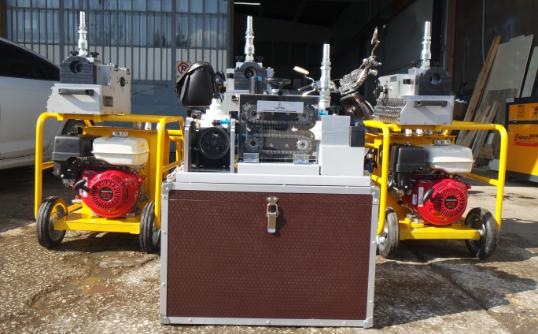

Allequipmentandsupporterapparatusrequired foryourprojectsareprovidedwiththemachine.
HydroSKYGeneralFeatures
•Thebestforlongdistanceblowing.
•Quickandeasychangechainsystem.
•Remotecontrolunit
•Built-inhydraulicpowerunit(8litersofoilpressureperminute withHondaGx270)
•Differentbeltsizesforcablesofdifferentdiameters.
•Specialgearsystem
•Semi-automaticbeltpresssystem
•Pipepressuremanometer.
•Quickconnectionelements.
•Optionallyinterchangeablepipeapparatusesofdifferentdiameters.
•Safetyprotectioncap
•2Yearservicewarranty
•10yearsparepartsguarantee
•Waterproofmarine-contrastoragebox

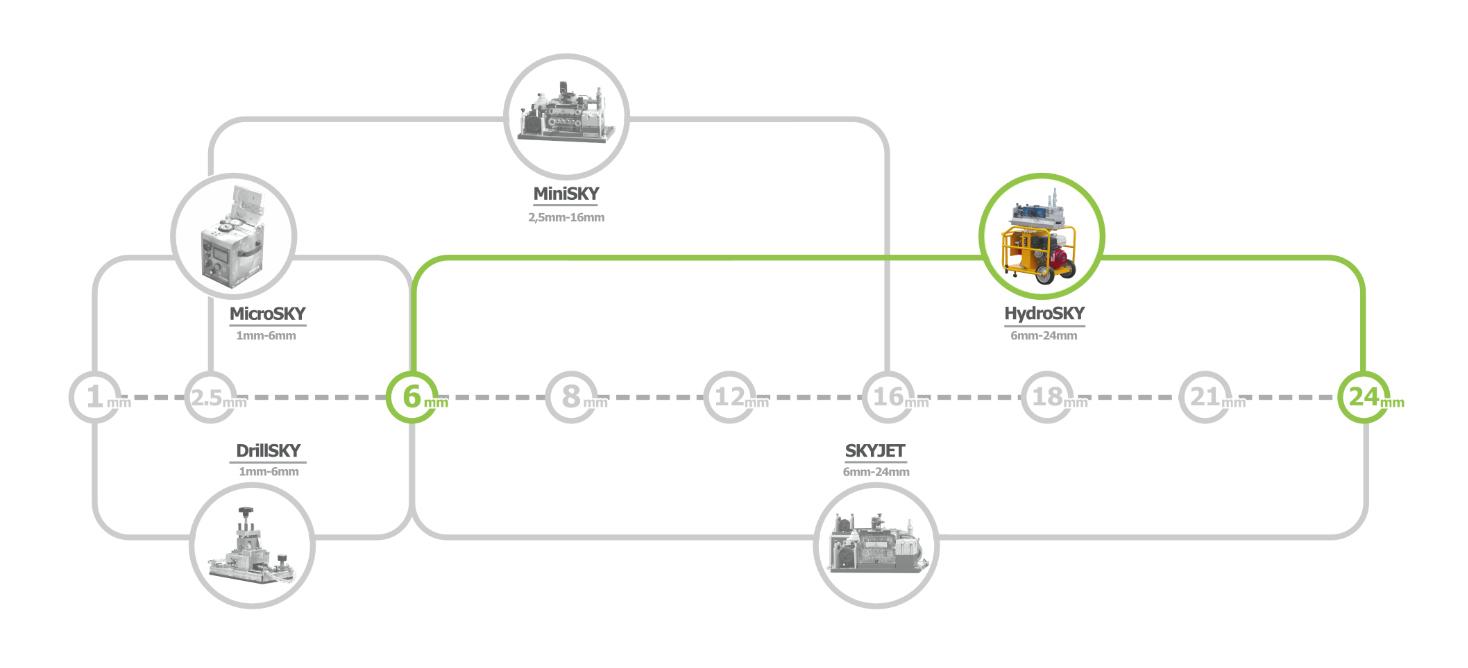

HydroSKYFiberOpticCableDiameterRanges
HydroSKYTechnicialSpecifications
PushingForce: 0–100kg
PushingSpeed: 0–180m/min
CableSize: 6mm–24mm
HDPEPipeDiameter: 20–63mmO.DPLB
HydraulicDriveSystem: 100Bar(Max)
UsingFeatures:

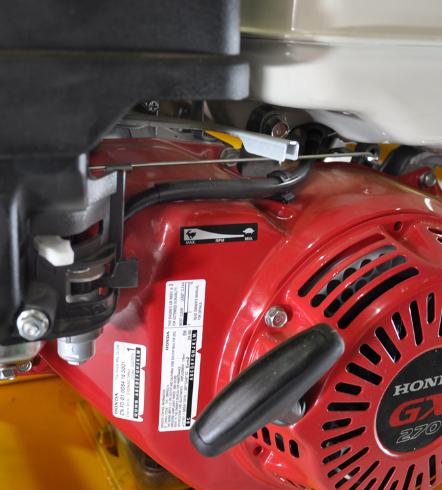

HondaMotor:Gx270 9HPGasoline
HydraulicOilCapacity: (Filledbytheuser) 25Liter
ConnectionSystem:
HeavyDutyHydraulicHose(min): 25mm(1”):
Compressorconnectionhoseisnot providedwiththemachine.
Operatingpressure: 12Bar
Airconsumptiontominimumrecommendedpipediameter(at12Bar):
0–25mm: 4m³/min150CFM
26mm–30mm: 5m³/min185CFM
31mm–35mm: 7m³/min250CFM
36mm–40mm: 10m³/min375CFM
41mm–44mm>: 12m³/min450CFM
