Product Catalog
Gateways
Controllers
Sensors
Configuration Utility
Our Purpose
We believe that a data-driven world will make business more efficient, employees more engaged, and the environment more sustainable.
Connect 1 billion devices Our Mission
Table of Contents

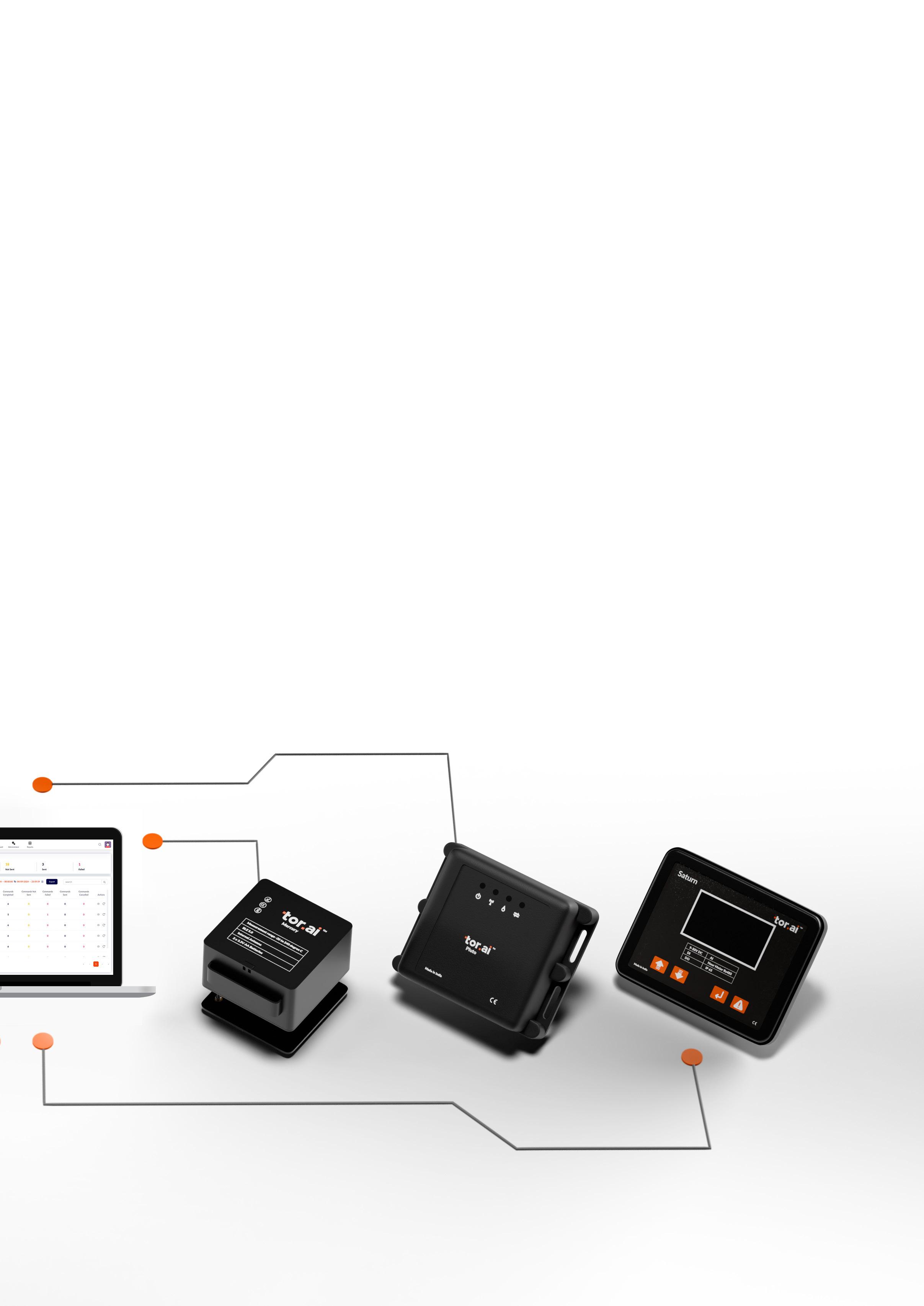

Gateways
Designed for industrial environments, Tor.ai’s gateways deliver reliable performance with features like multi-network connectivity (4G, Ethernet, BLE), advanced telemetry, and secure over-the-air updates. These gateways provide a comprehensive solution for monitoring, controlling, and optimizing equipment across distributed operations.

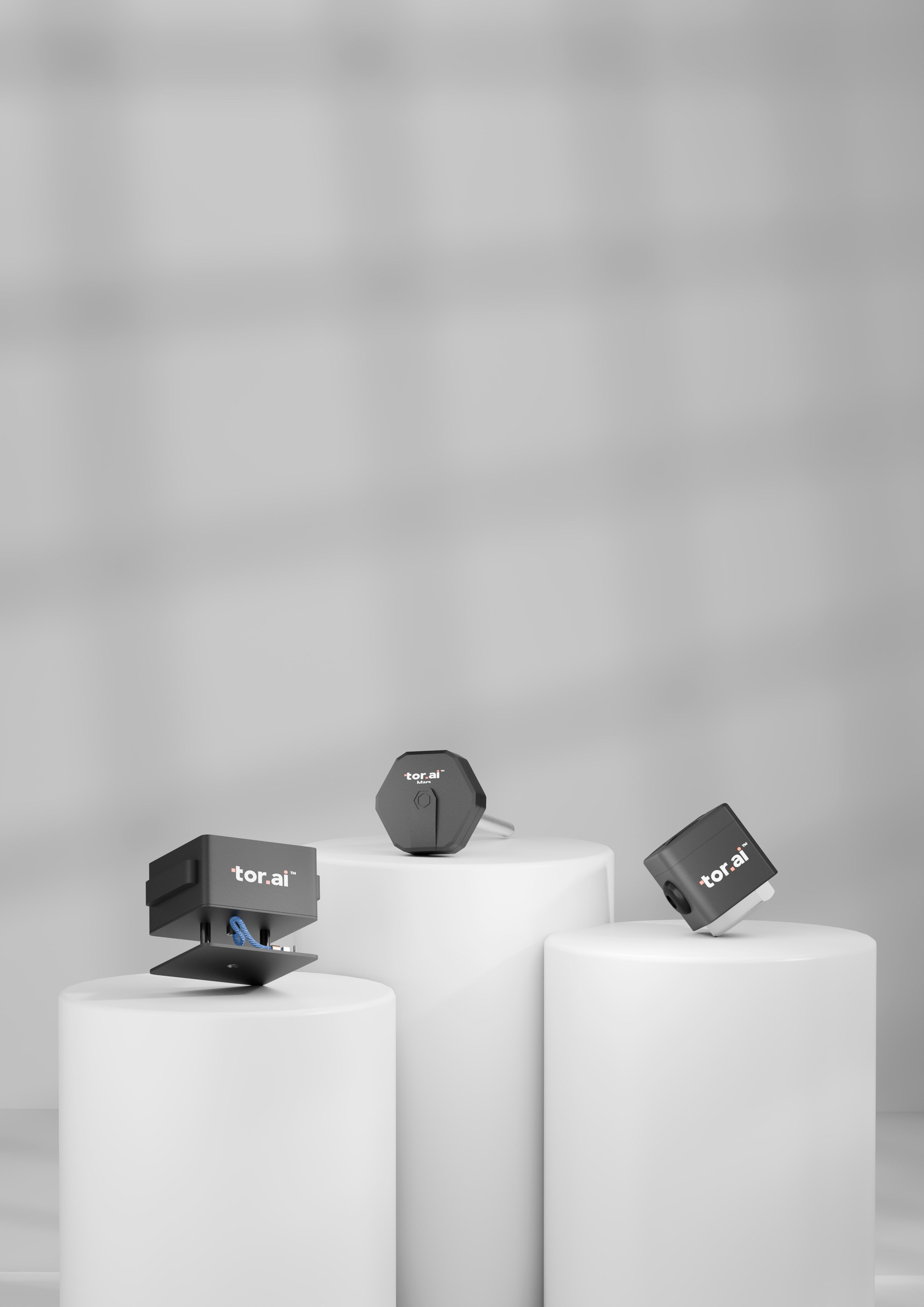

Sensors
Our sensors provide comprehensive environmental and operational data, supporting advanced analytics for predictive maintenance. Designed for harsh industrial conditions, they ensure precise readings and are compatible with a wide range of equipment, enhancing your ability to manage and protect assets efficiently.
Controller
Designed for flexibility, Tor.ai’s controllers provide robust control over diverse equipment, supporting automated workflows and remote configuration. These controllers integrate effortlessly with our IoT platform, allowing for dynamic adjustments and optimized performance in real-time.
Tor Saturn 32
Device Provisioning Utility
DPS Utility by Tor.ai offers centralized control over device provisioning, allowing for effortless activation, configuration, and tracking. It supports large-scale deployments, ensuring that all devices are correctly set up and ready for immediate use, enhancing overall operational efficiency.
Tor Apollo 36

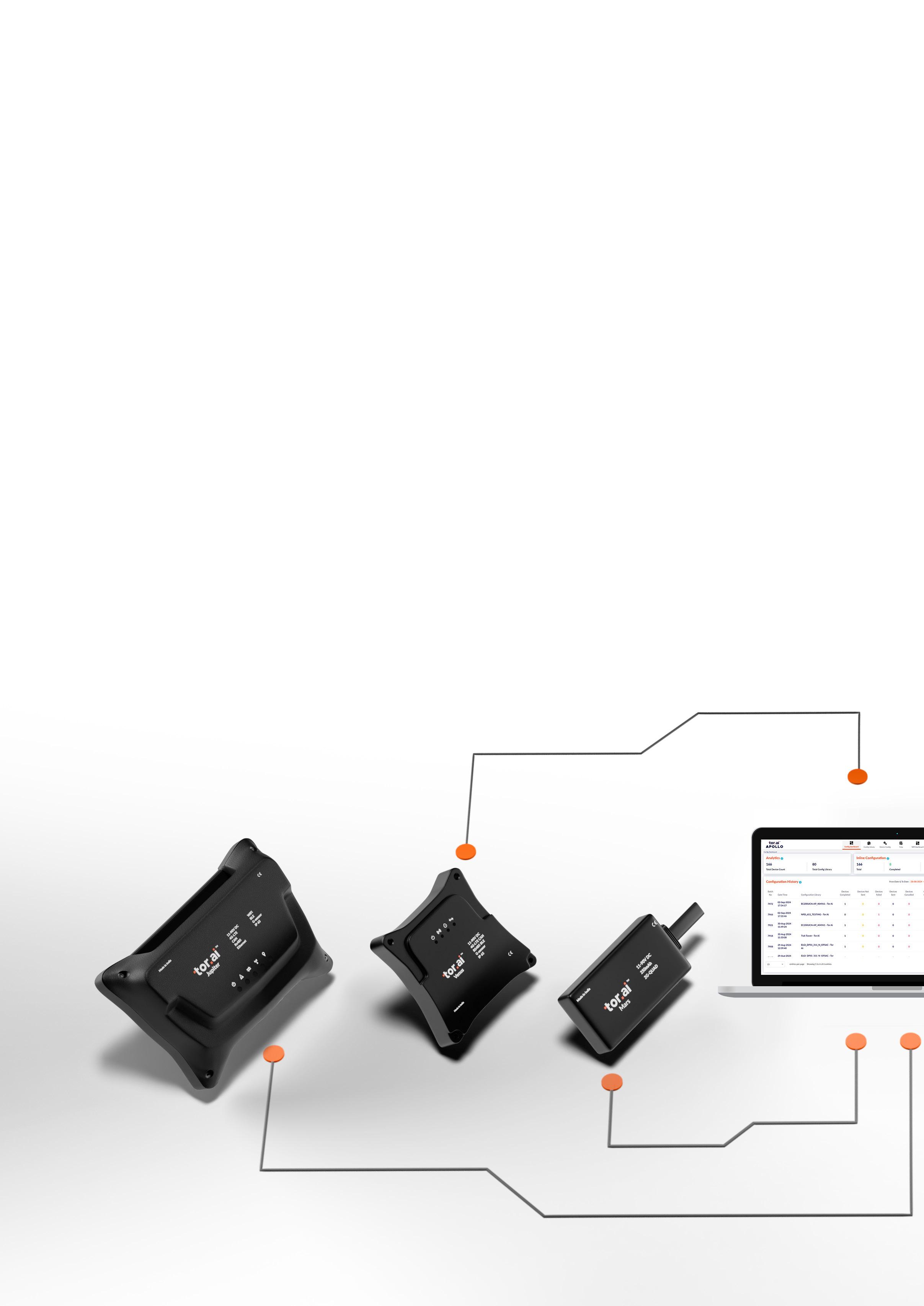

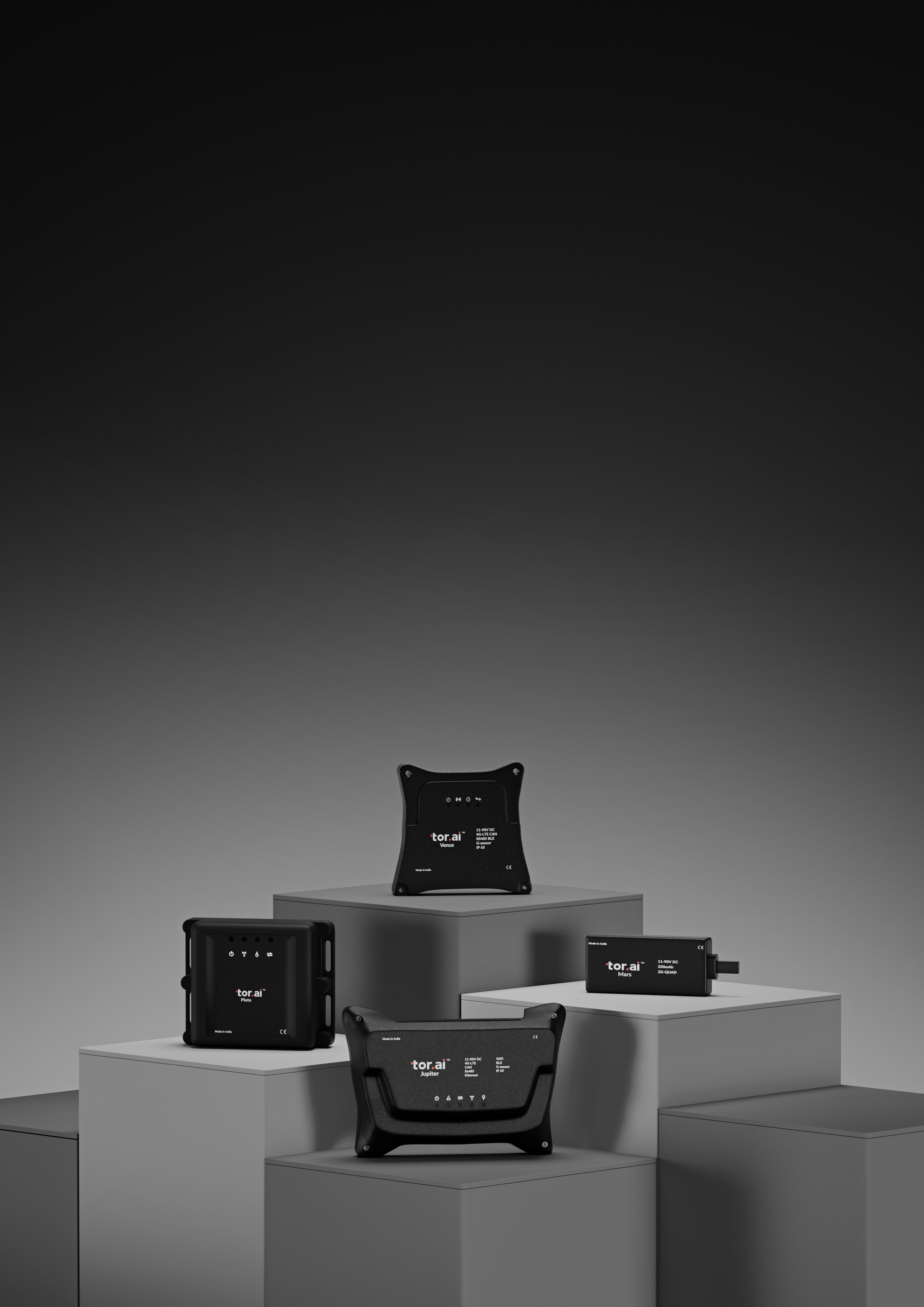

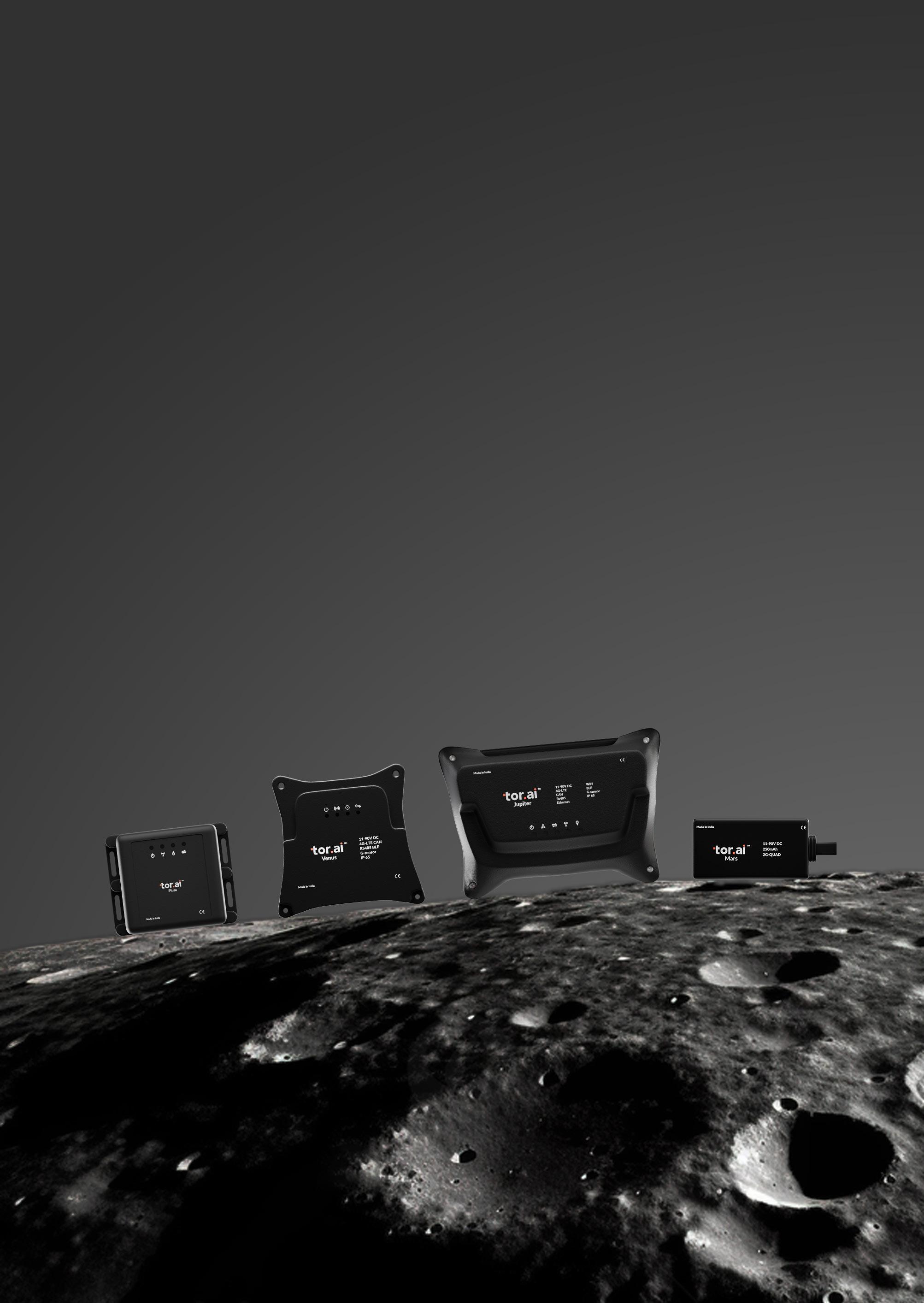

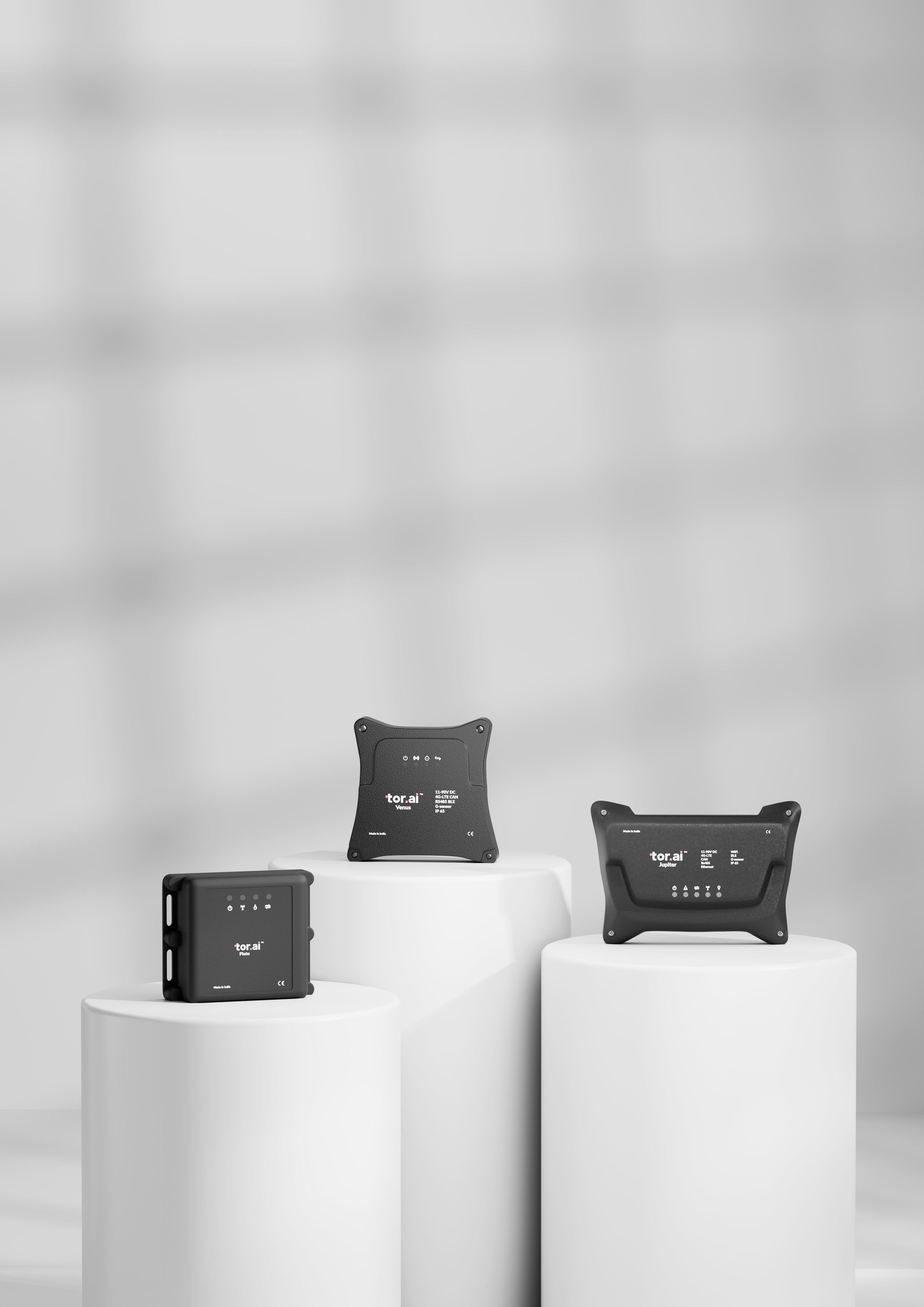

Gateways
Robust type tested edge gateways
Unmatched performance even in harsh conditions

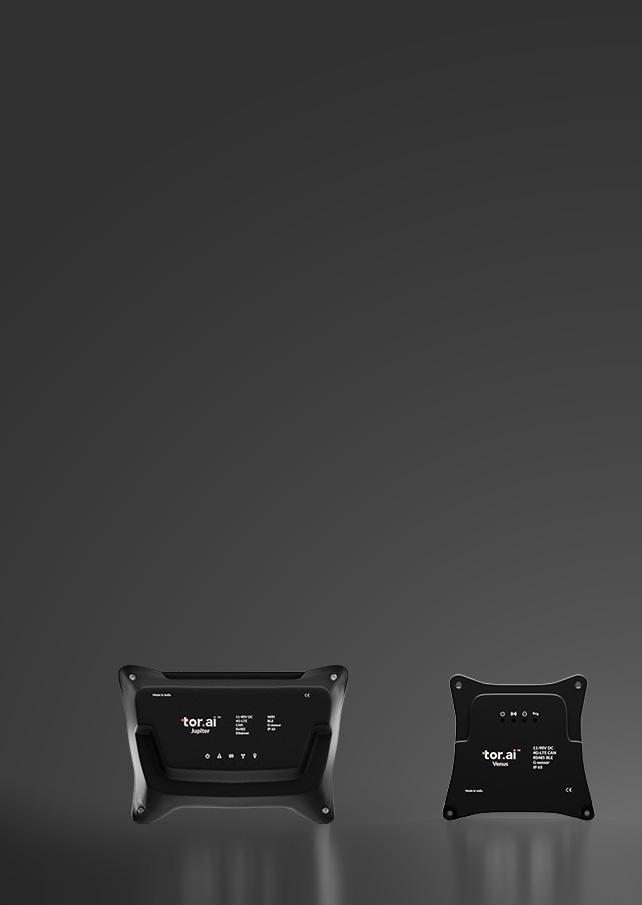

Pluto Series Essential Venus Series Advanced Jupiter Series Pro
Jupiter 511 | 512 | 513
Venus
Advanced
Jupiter 811 Advanced
Industrial application device having 4G LTE Cat1 connectivity with flexible communication protocols support and flexible Inputs along with a high capacity battery backup
Jupiter 611
Ethernet device having 4G LTE Cat1 connectivity with flexible communication protocol support along with a high capacity battery backup
SNMP

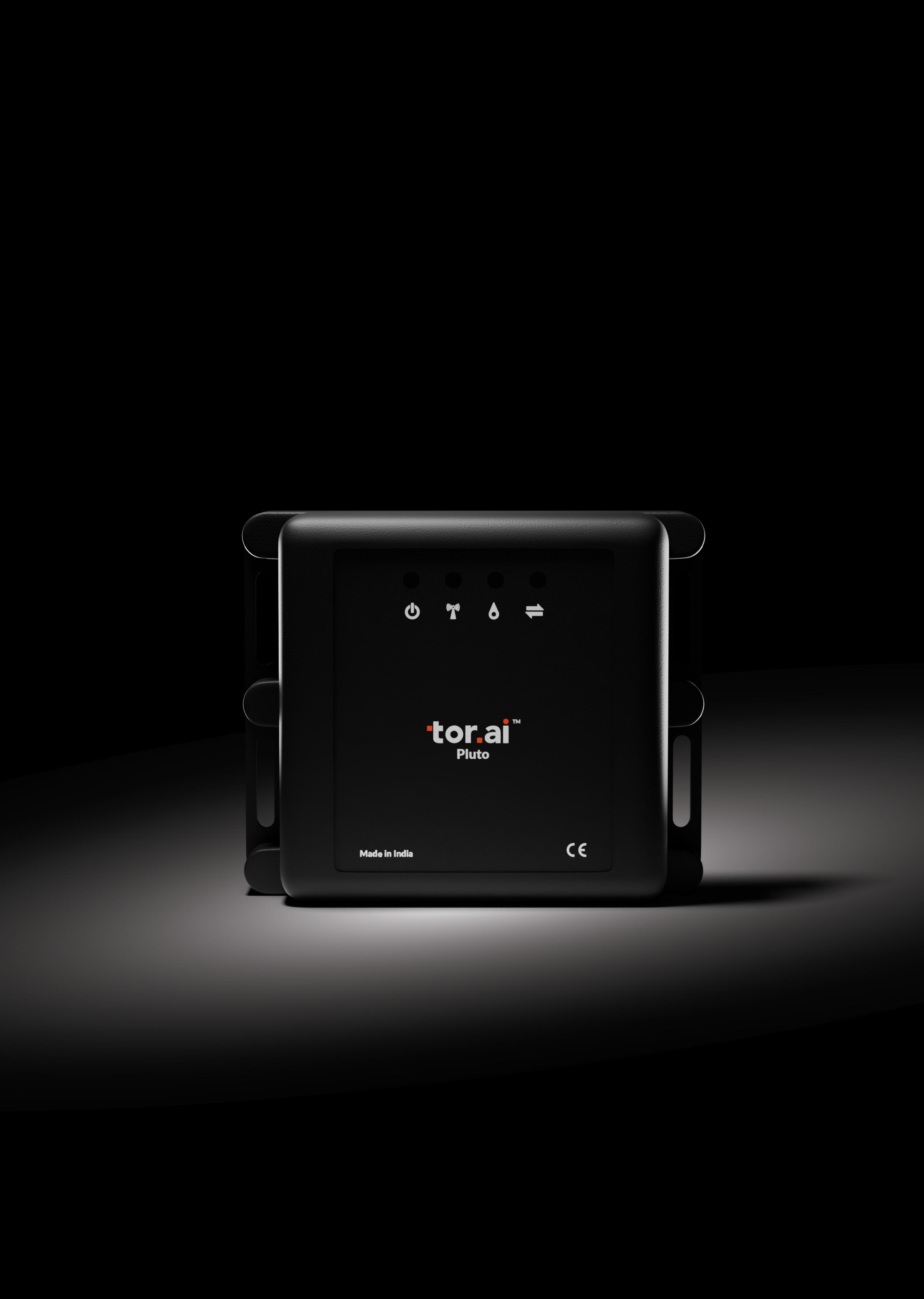

Tor Pluto
GNSS
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
Network Protocol Http, Mqtt Http, Mqtt Http, Mqtt
Supported peripherals Fuel sensors, BLE Beacons Fuel sensors, BLE Beacons Fuel sensors, BLE Beacons
Additional Features
Configuration & FW update Web configuration
Operating Environment Operating
Enclosure Ingress Protection (IP)

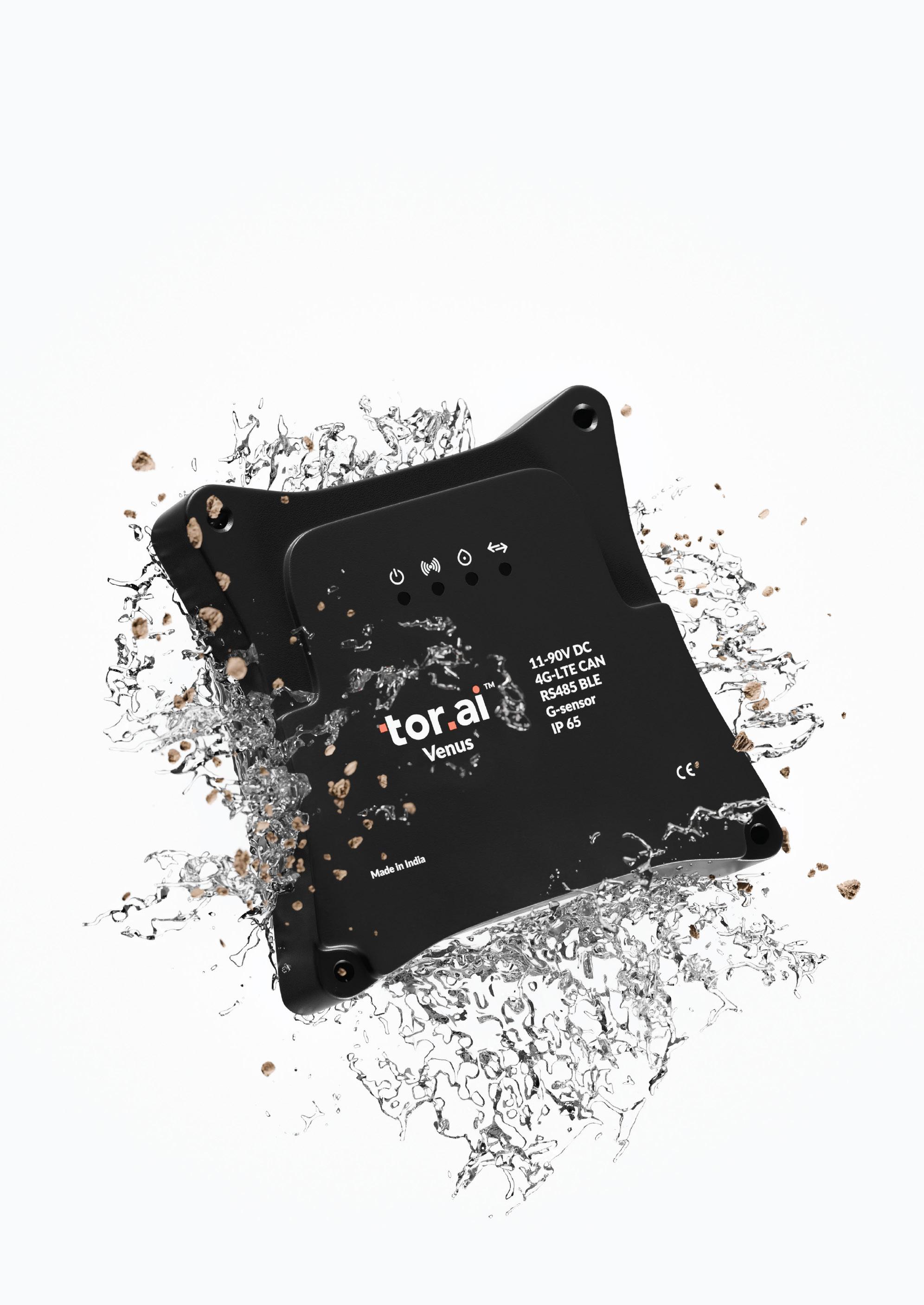

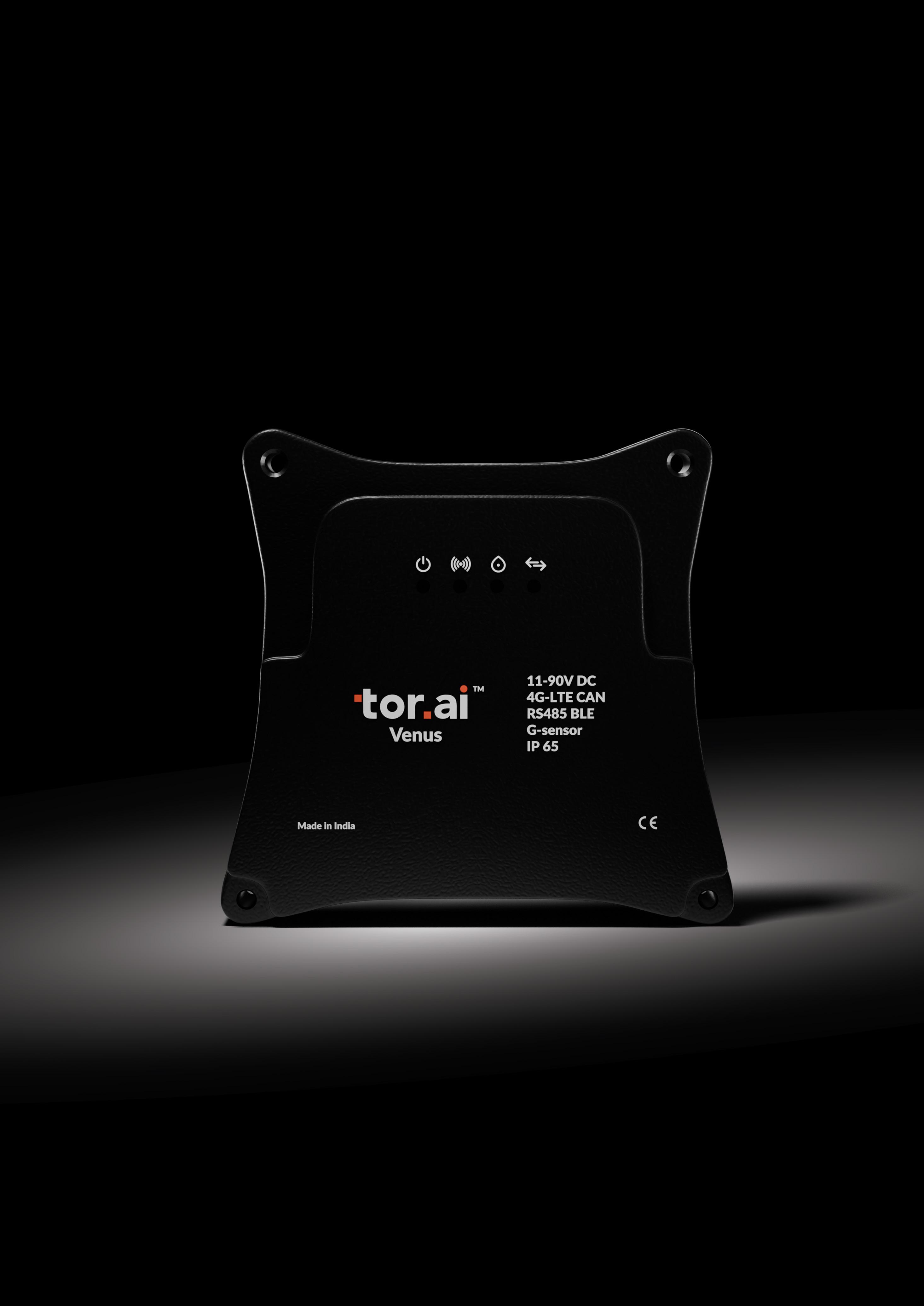

Tor Venus
GNSS
"4G- LTE-FDD B1/B3/ B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz"
GPS, GLONASS, BeiDou, Galileo, QZSS
"4G- LTE-FDD B1/B3/ B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz"
GPS, GLONASS, BeiDou, Galileo, QZSS
"4G- LTE-FDD B1/B3/ B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz"
GPS, GLONASS, BeiDou, Galileo, QZSS
Network Protocol Http, Mqtt Http, Mqtt Http, Mqtt
Additional Features
Environment

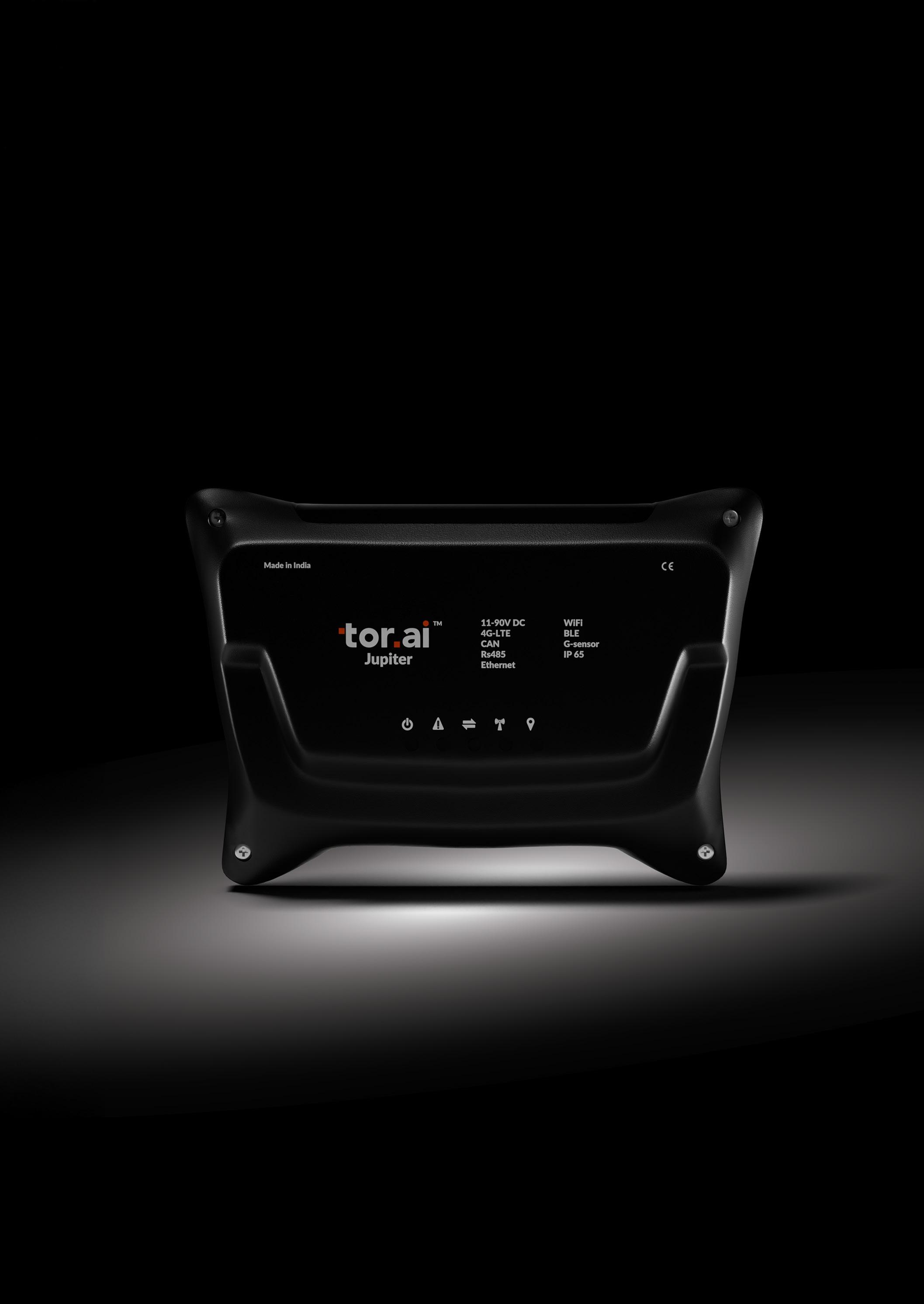

Tor Jupiter
Communication
Cellular
GNSS
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
512
513
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GPS, GLONASS, BeiDou, Galileo, QZSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Network Protocol Mqtt, TCP IP Mqtt, TCP IP Mqtt, TCP IP Mqtt,
Interfaces
Supported peripherals Fuel sensors, BLE Beacons Fuel sensors, BLE Beacons Fuel sensors, BLE Beacons Fuel sensors, BLE Beacons
Jupiter 515
Jupiter 611 Jupiter 612
4G- LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/ B40/B41
2G- GSM 900 MHz/1800 MHz
GLONASS, BeiDou, Galileo, QZSS
Interfaces
4G- LTE-FDD B1/B3/B5/B7/ B8/B20 LTE-TDD B38/B40/ B41WCDMA-B1/B5/B8
GSM 900 MHz/1800 MHz

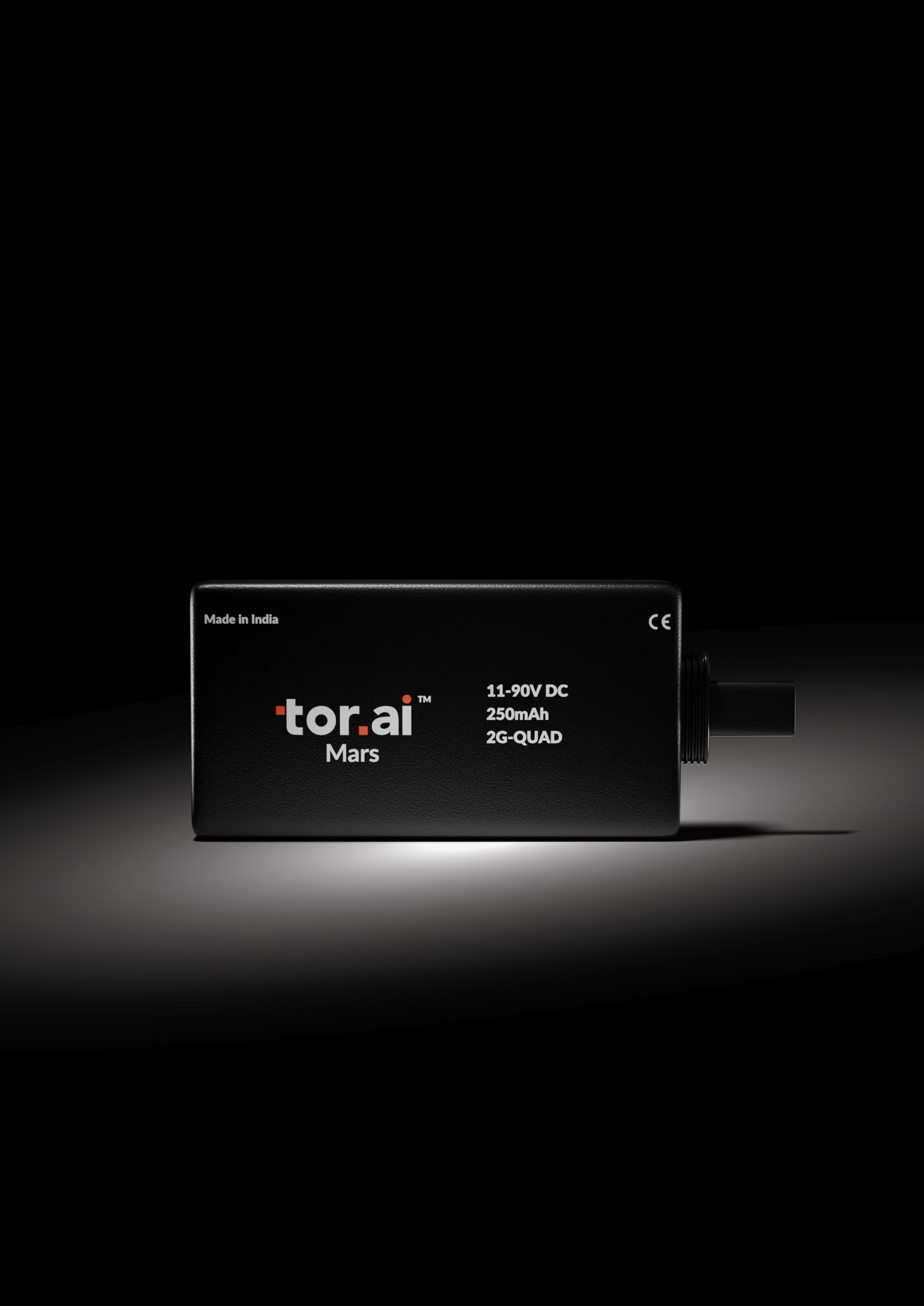

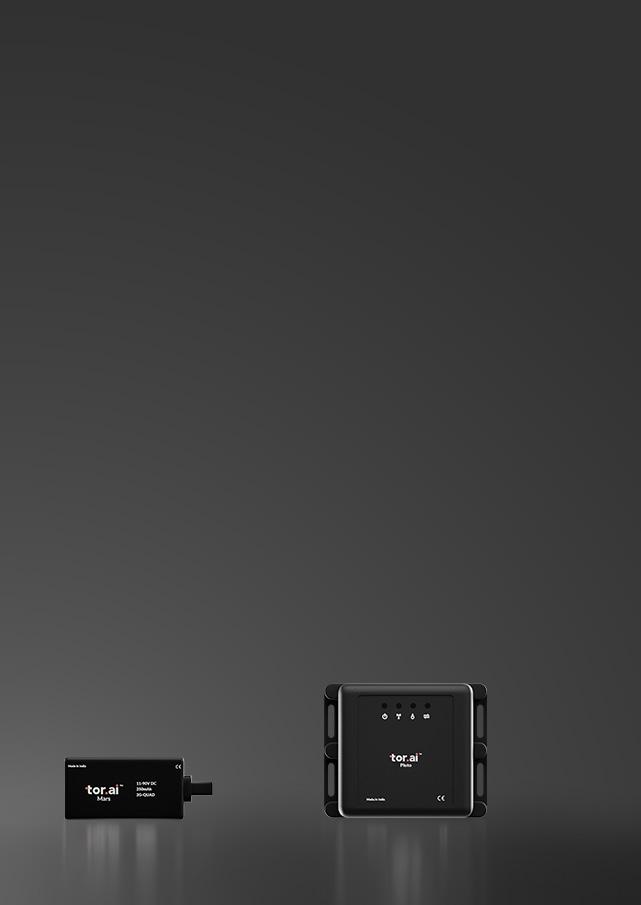

Tor Mars
Model Number
712
Tor Locate
Interfaces
Sensors
Temperature, Fuel & Vibration

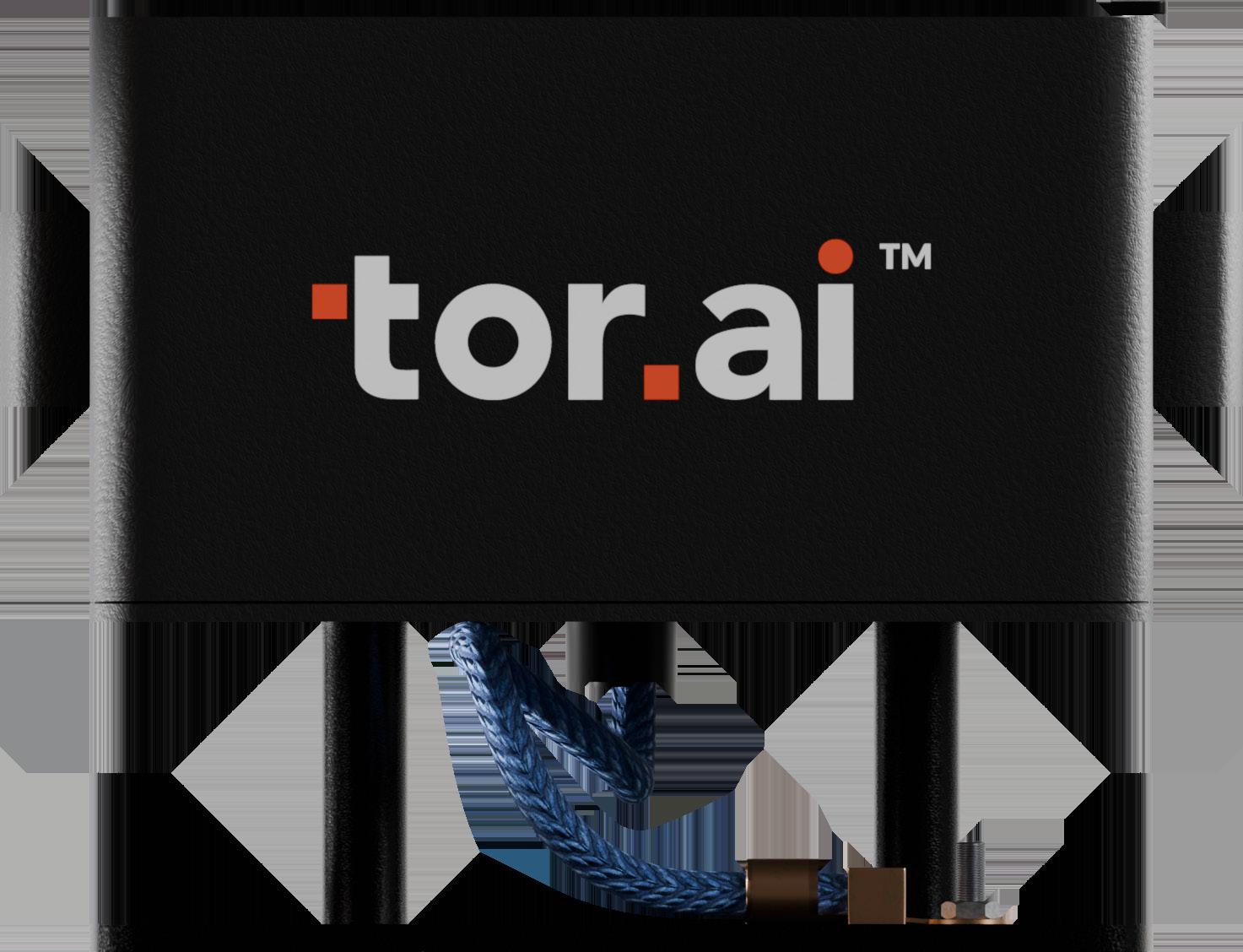

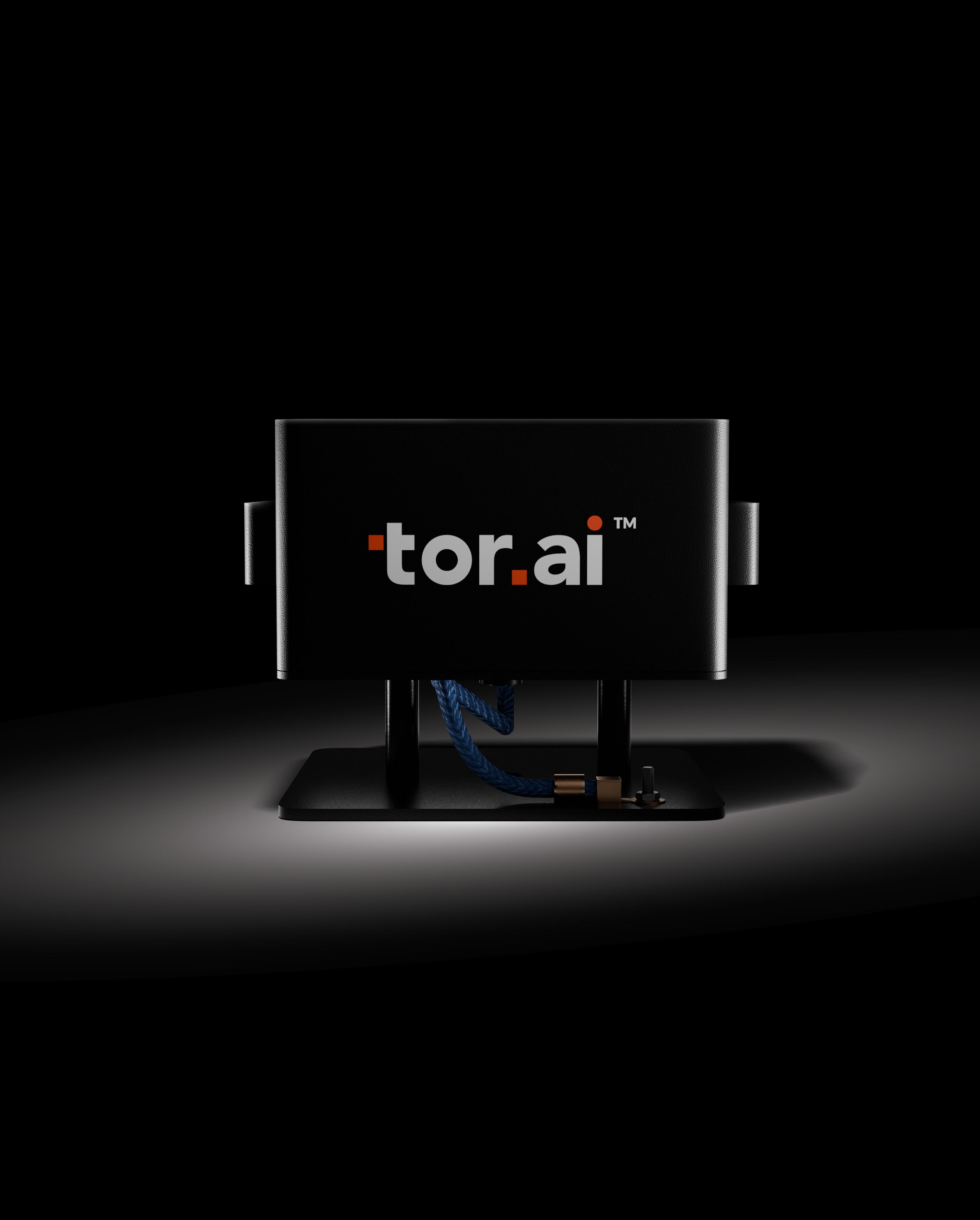

Tor Mercury
Suitable for a variety of bus bar trucking systems, panel deployments for distribution systems temperature monitoring applications
Configurability
Mobile based utility to pair with Gateways
Wireless Connectivity
Seamlessly connect with Tor Gateways and other industrial controllers using the industry-standard BLE communication, integrate effortlessly with existing systems
Built Tough. Built to Last
The IP65-rated enclosure shields your device from dust, dirt, and water jets, ensuring it thrives in even the harshest environments
Battery
Operating voltage 7.2V (nominal)
Dimensions 65 x 70 x 65 (L x B x H)
Communication BLE 5.2, advertising mode
Communication range 50 meter
Ingress Protection IP40
Attachment method
Adhesive for horizontal busbars, Extension clip

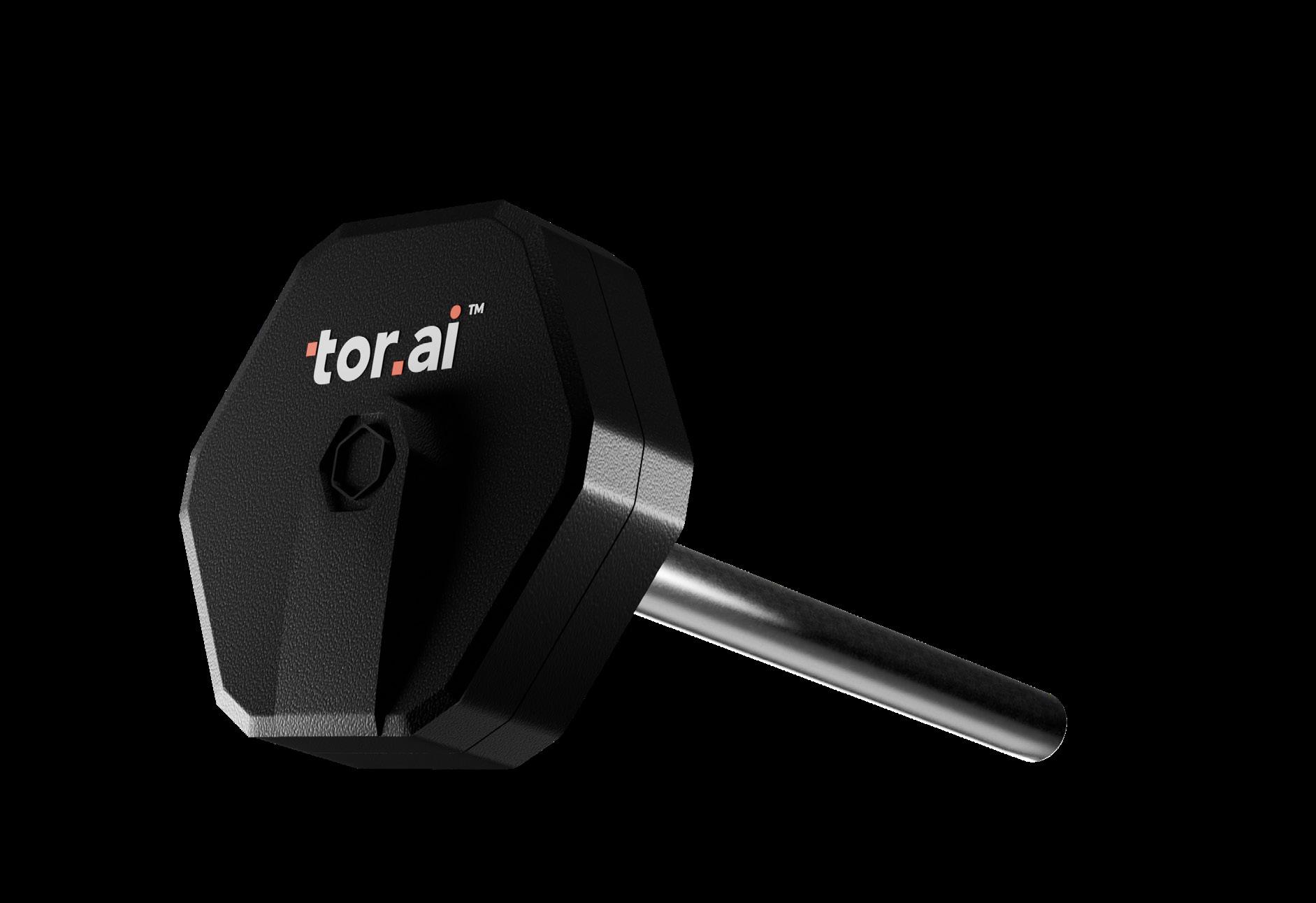

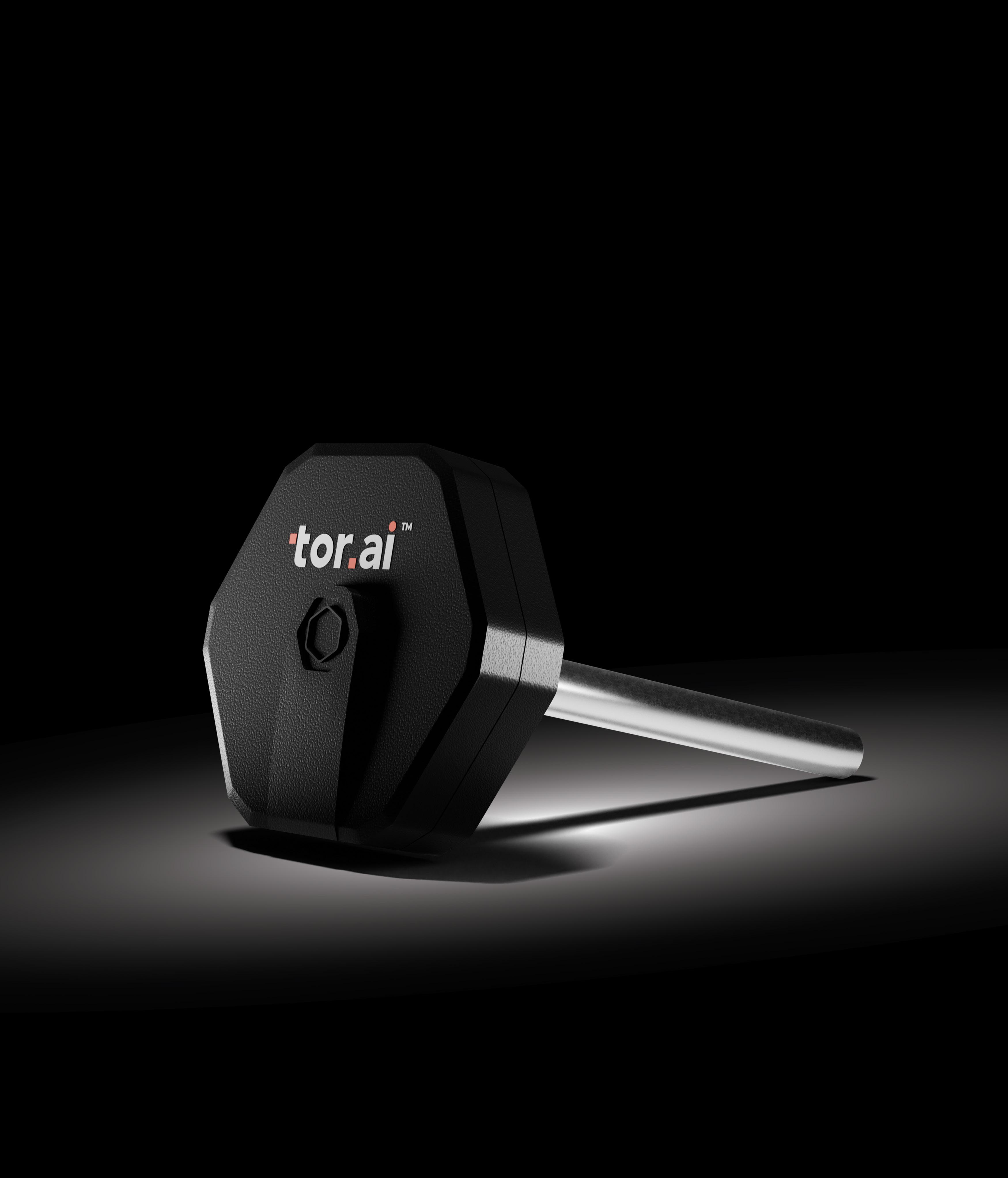

Tor Ceres
Tor Fuel Sensor is bluetooth enabled, highprecision capacitive fuel level sensor, which is used to monitor fuel consumption, refueling, draining and theft on all types of vehicles, as well as stationary tanks
Configurability
Mobile based and web based utility to setup pairing, self pairing feature is also added which makes the configuration super easy
Communication
In addition to digital, frequency and analog output signals, BLE mode has been added to this sensor
Adoptability
The fuel monitoring sensor is easy to set up and perfectly interacts with monitoring systems of any make
Build to Last
Operating temperature range from -60/+85 °C. It comes with a embed-ed battery which can power your installation up to 3 years
Measurement error in the effective range up to 1%
Operating modes BLE
Output range not less than 10 meters
Ingress Protection
IP69
Explosion proof mark OEx ia IIB T6 X
Operating Temperature- ambient -40 to +50 °C
Operating Temperature- extreme ambient -40 to +85 °C
Dimension
Battery life
90*90*(L+38)mm, where L is sensor length in mm
5 years

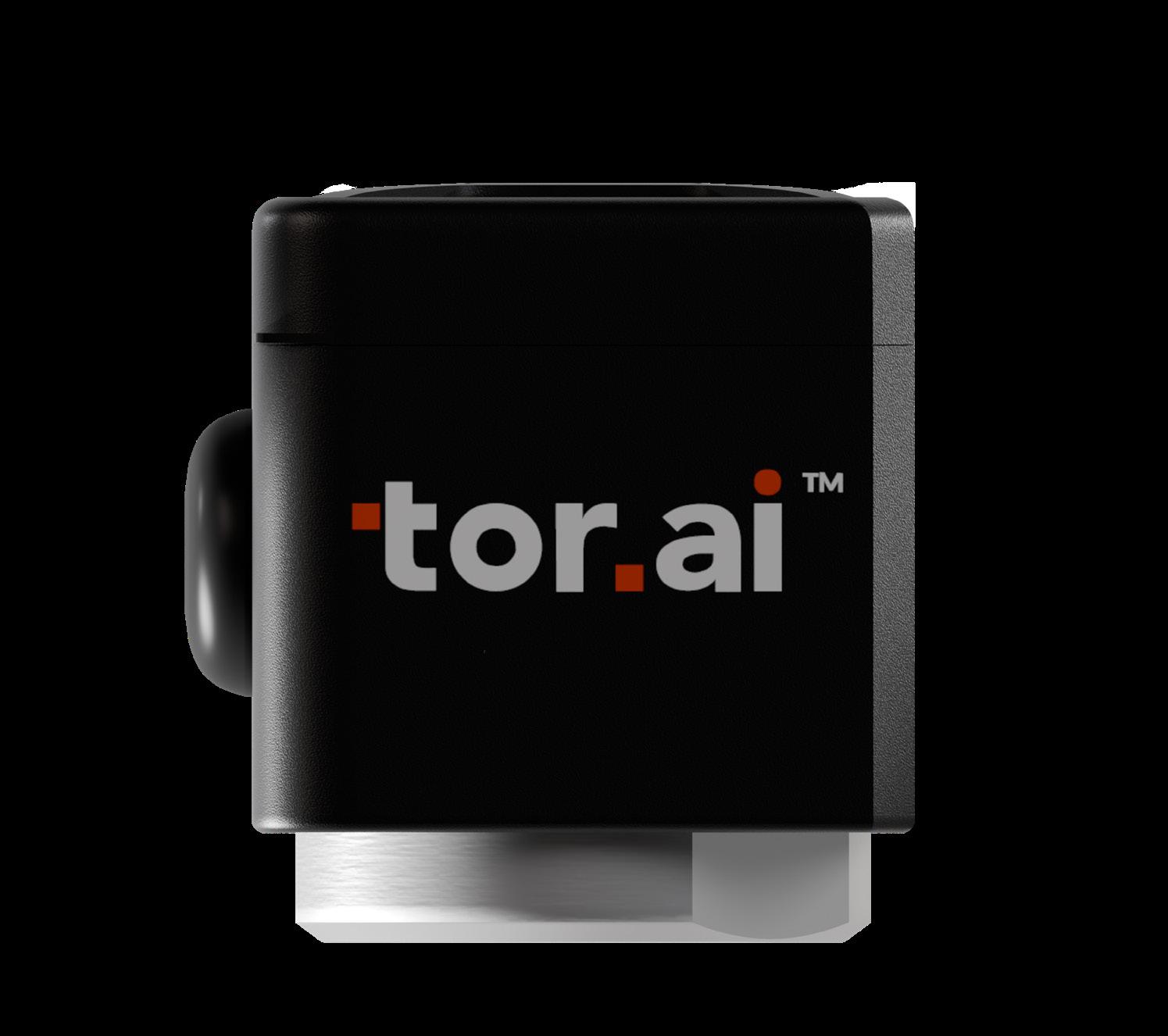

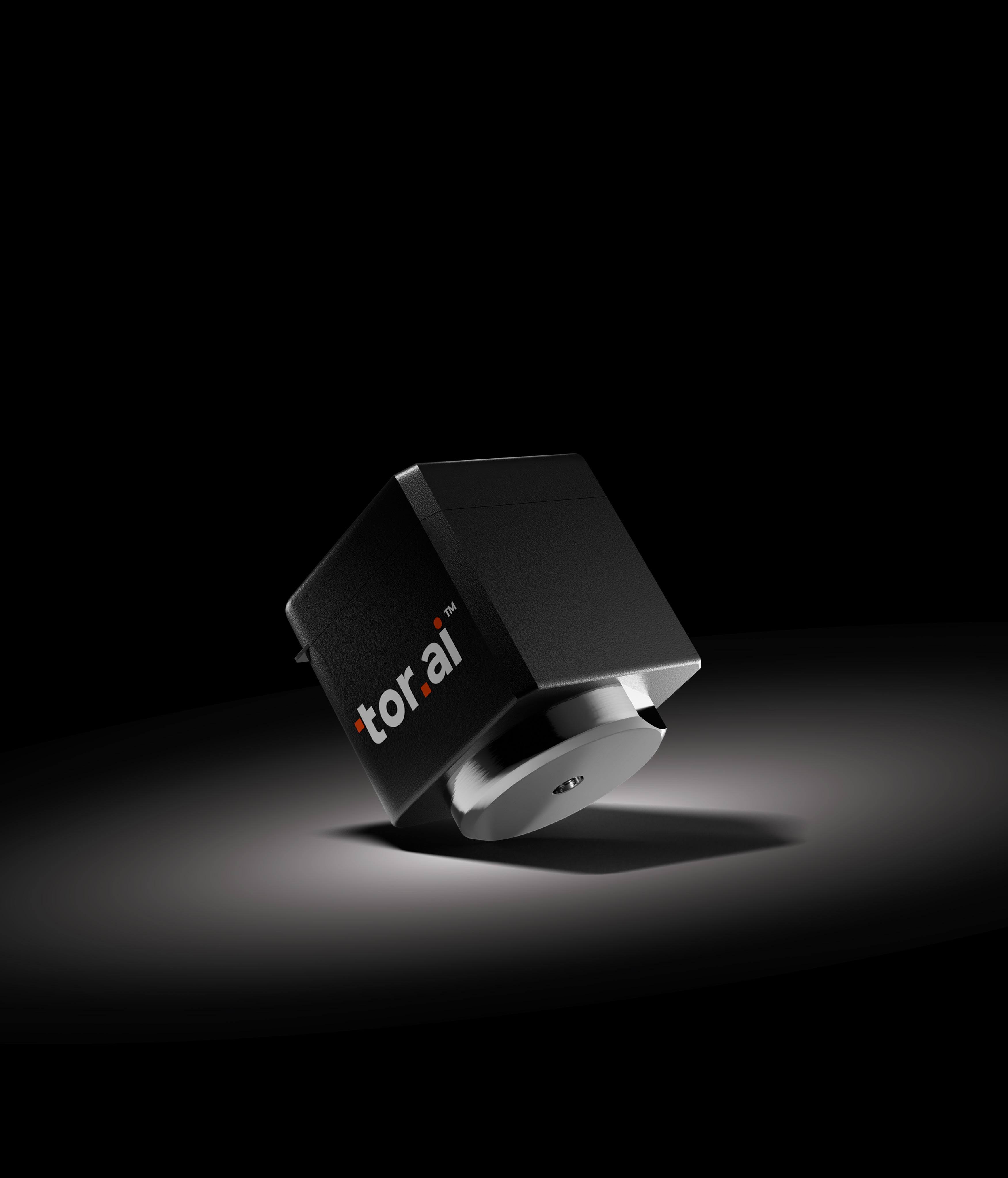

Tor Neptune
Industrial application device, the vibration sensor is a cost-effective solution with high sensitivity, fast response, and superior performance
Sensing Tech
Vibration Sensor
Frequency Range
Sampling Rate
MEMS Based
3-axis MEMS Sensor
10Hz to 1.3kHz
6.66k per sample
Shock Tolerance 10,000g for 0.2ms
Linear Acceleration sensitivity
0.488mg/LSB (± 16G)
Resolution 16 bit
Data from sensor
Temperature Sensor
RS-485
Magnetic base for ease of mounting and built to use in harsh industrial working conditions
Protection
Load dump protection as per ISO 7637-2 with IP 65 Enclosure
Interfaces
Lite Gateway with serial communication interfaces : RS 485/CAN/BLE
Condition-based monitoring
Enable your preventive maintenance to increased reliability, improved uptime. Remote & real-time monitoring system helps in achieving high operation efficiency
3-axis acceleration & velocity RMS, Temperature
Semiconductor senor with max 0.2 °C accuracy over -40 °C to 100 °C range
RTU connectivity on Modbus protocol
Ease of Mounting
Controller

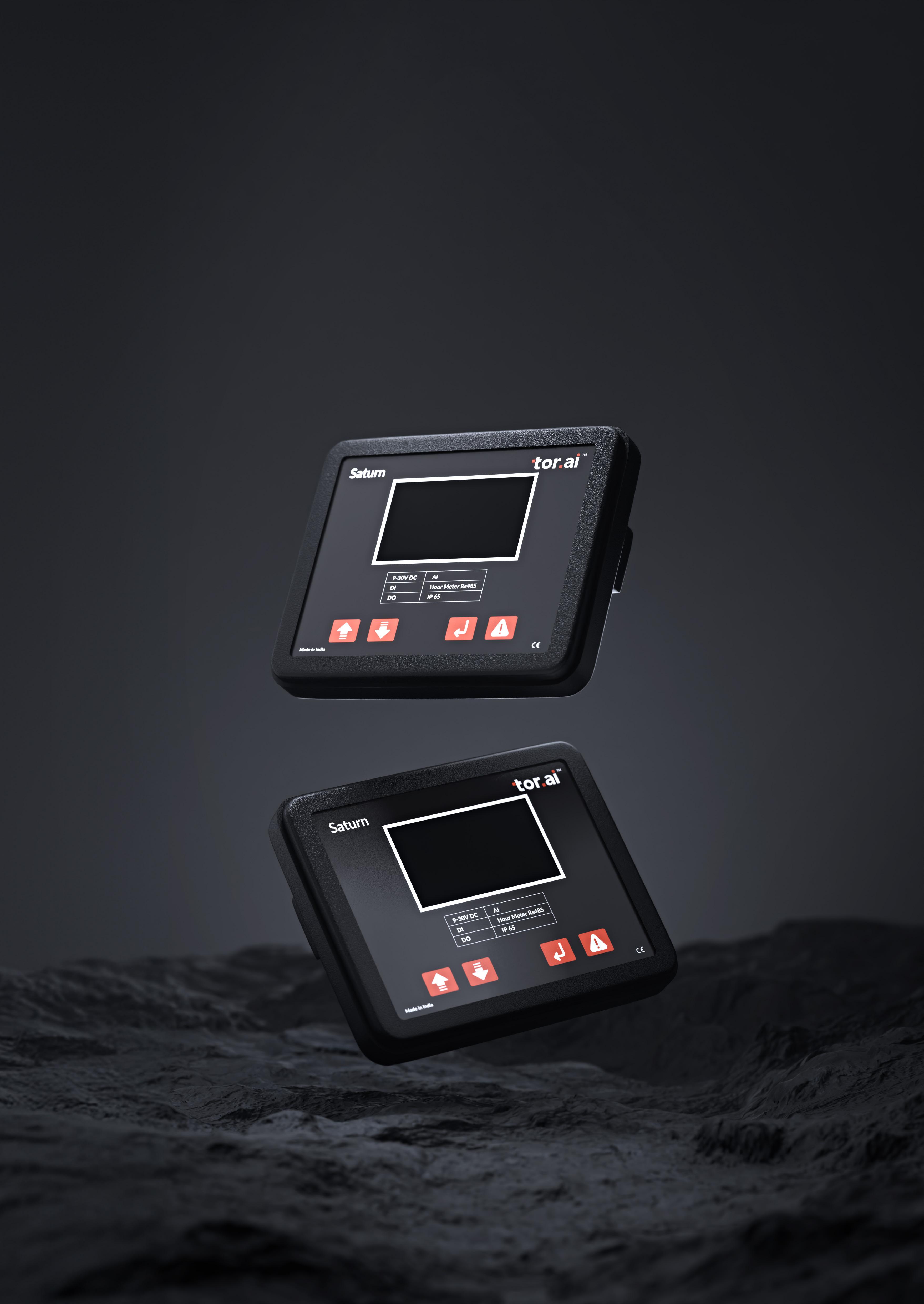

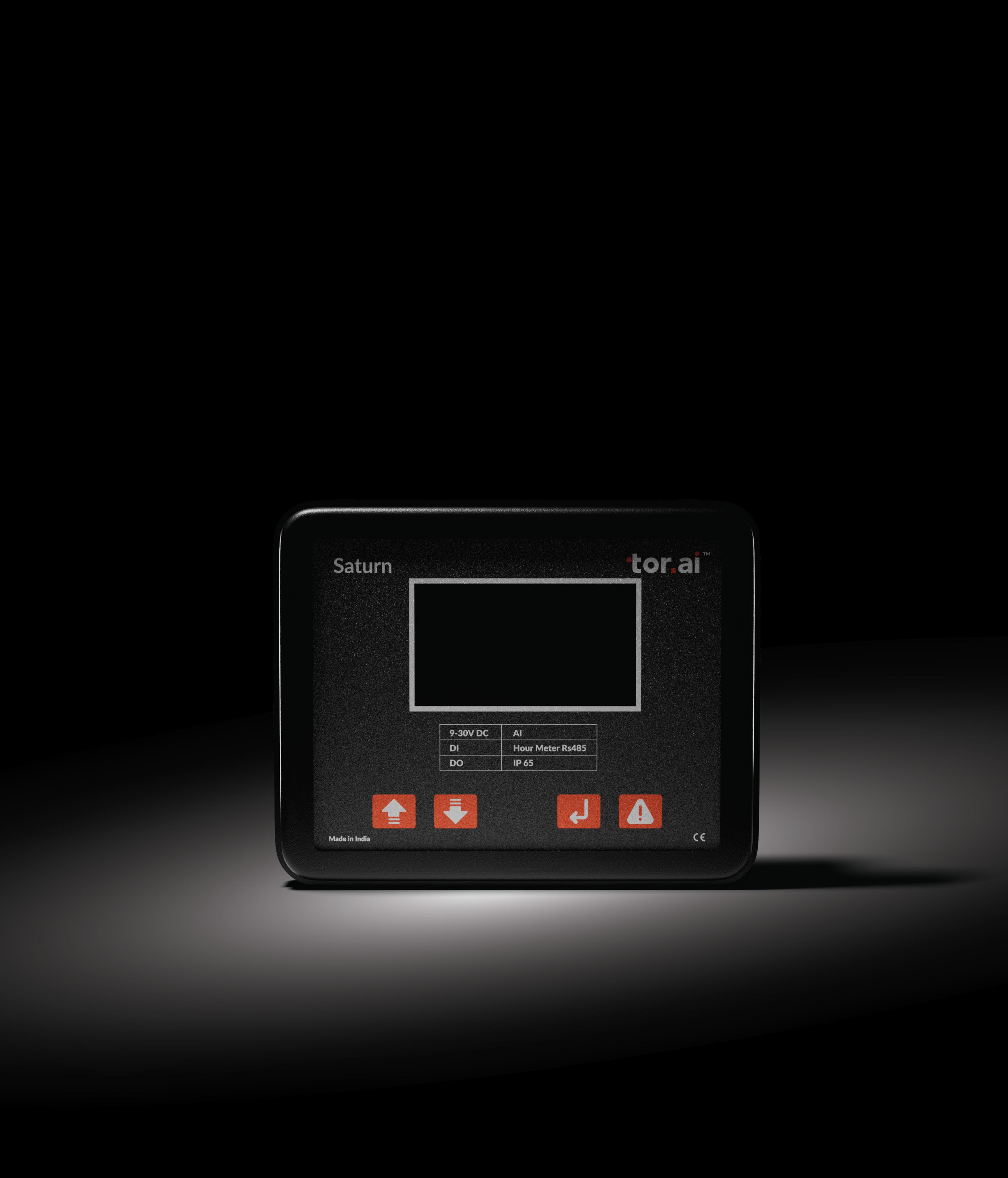

Tor Saturn
Model Number
Device Provisioning System

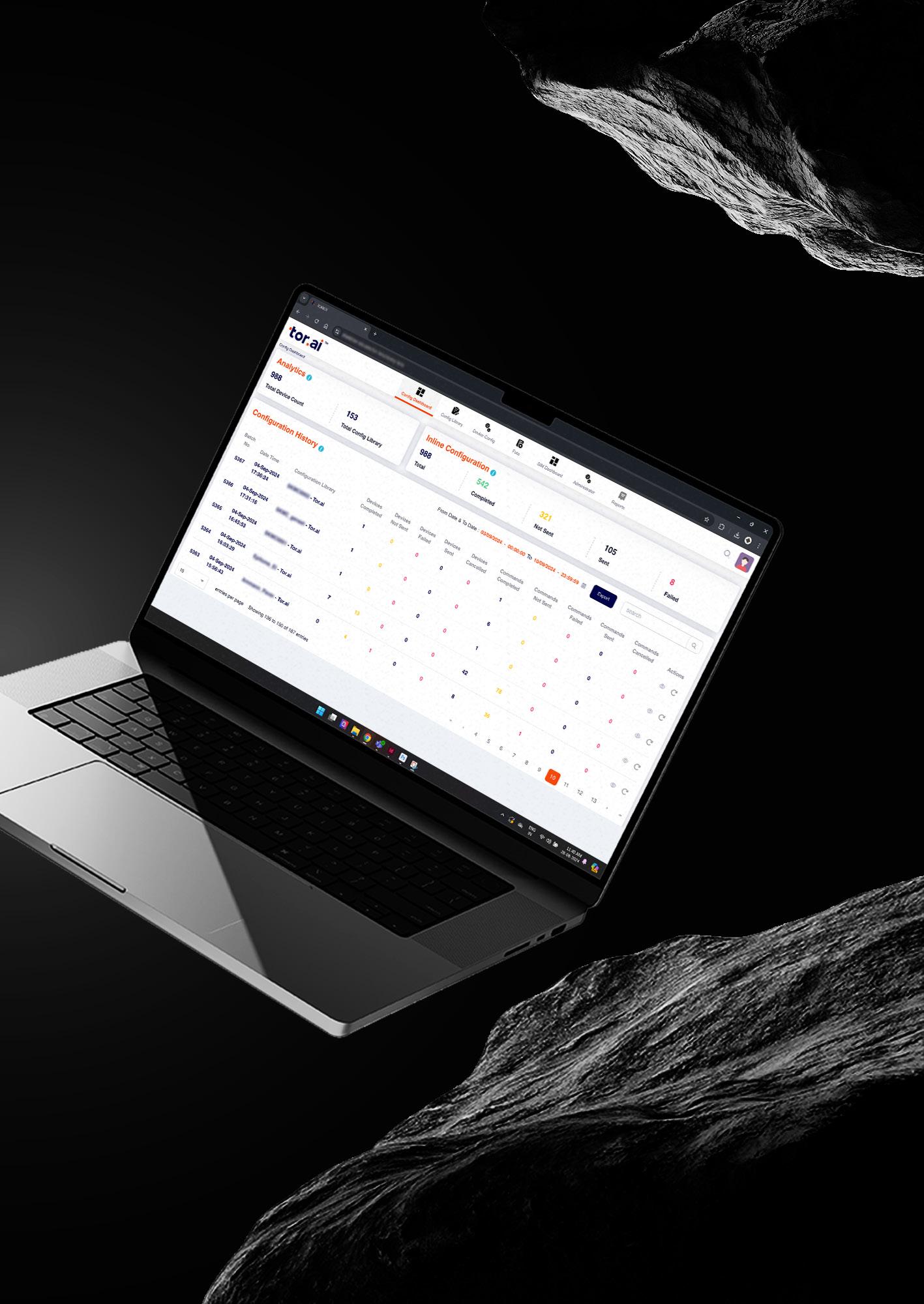

State of art, web utility to enable customers configure Tor Gateways remotely

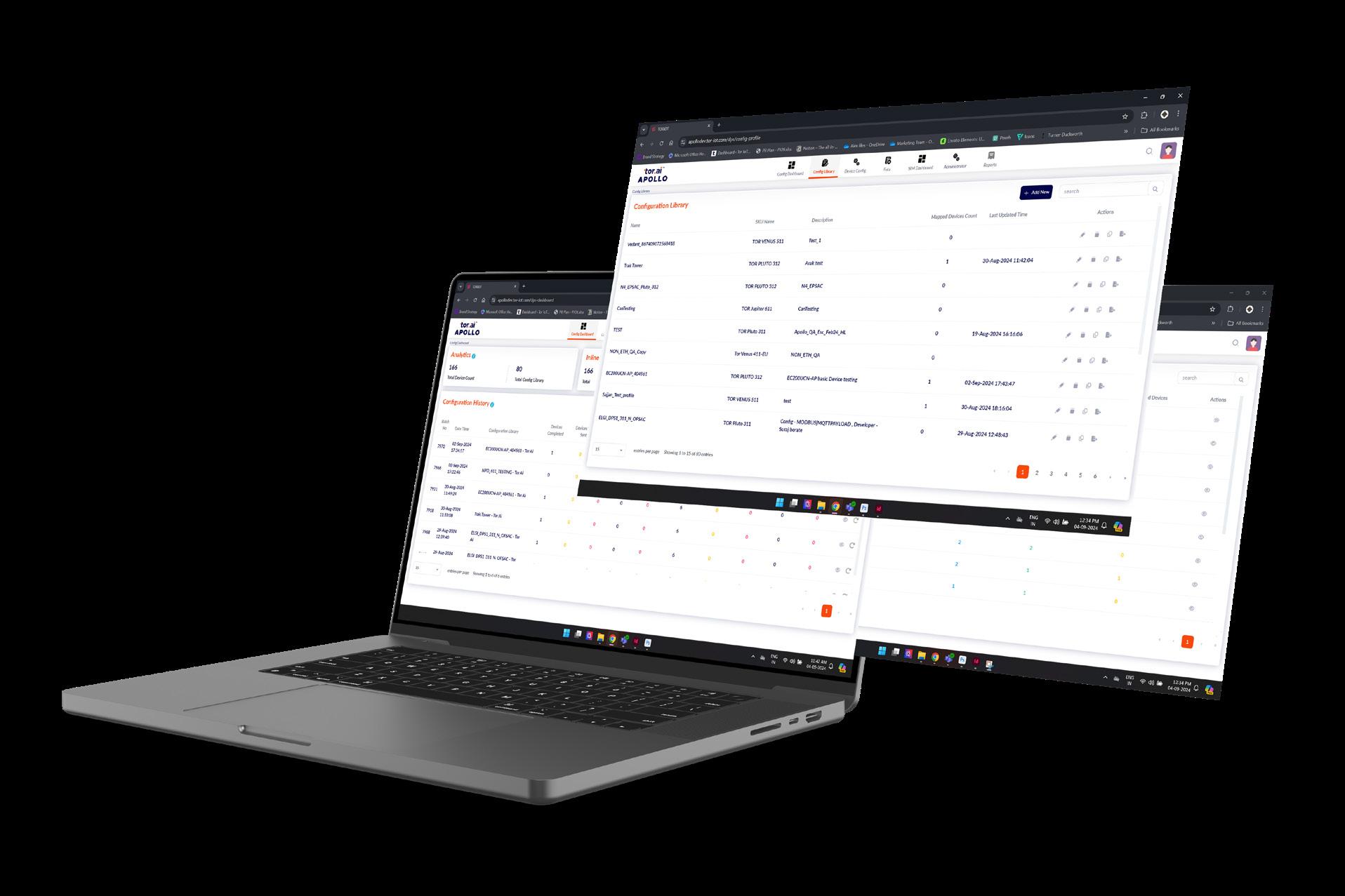

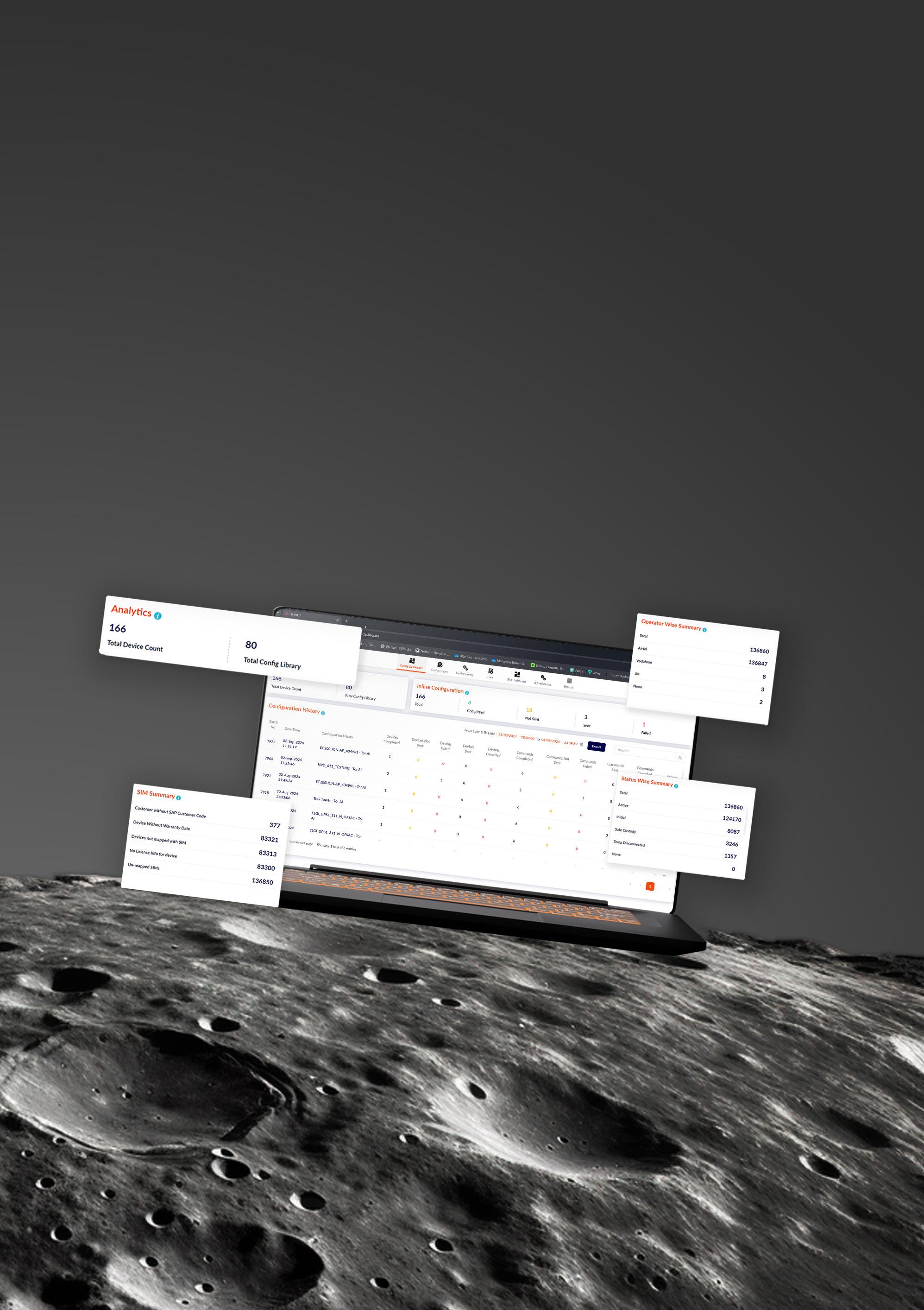

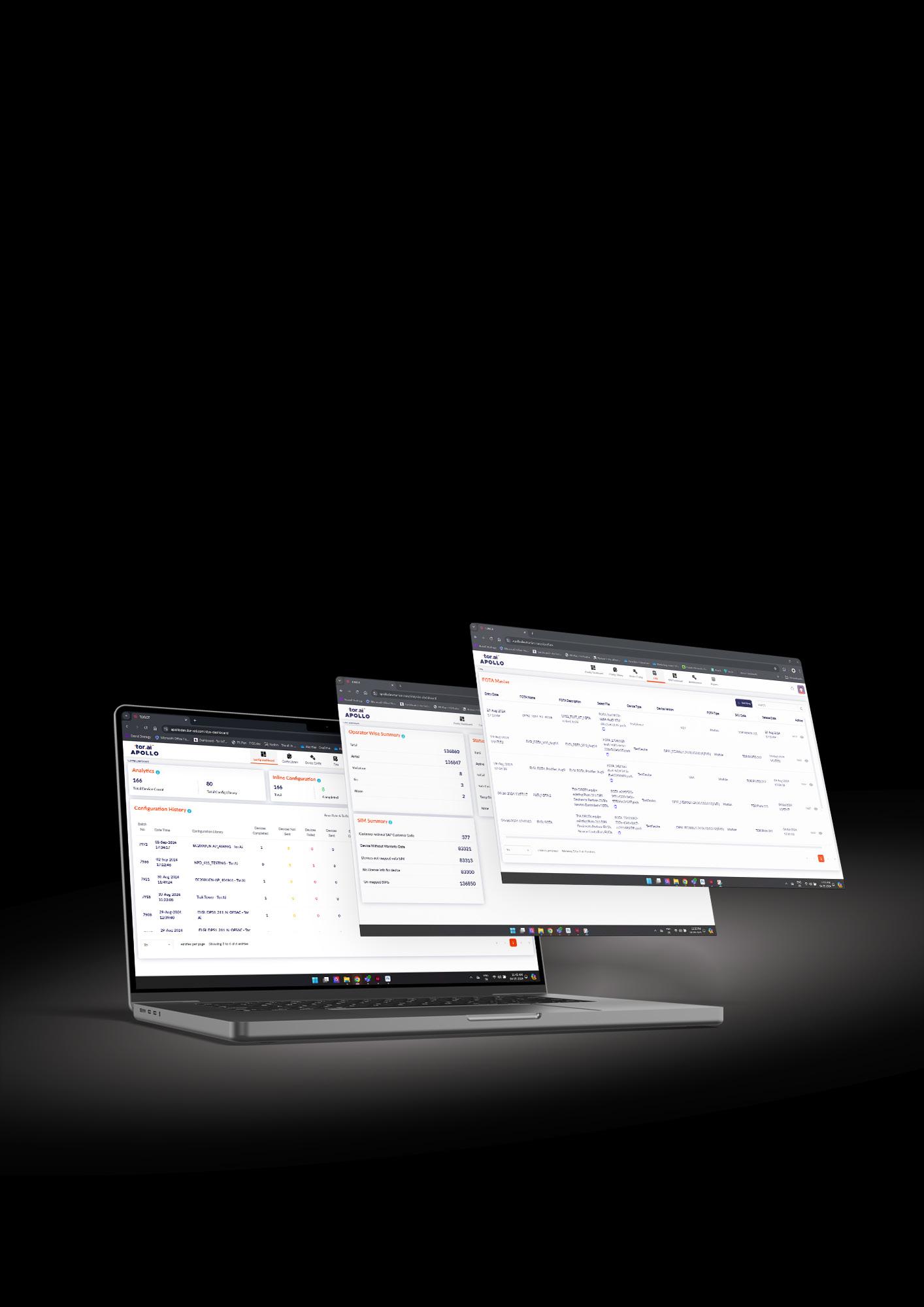

Tor Apollo
Device provisioning system
Tor Apollo is a stateof-the-art Device
Provisioning System or a configurator designed to simplify gateway configuration, intended for the use by OEMs and system integrators
Device Connectivity and Configuration
Customize device settings such as network configurations, security protocols, and operational parameters according to your specific requirements
Gain control over all of your deployments
Monitor remotely configs to optimize device performance, troubleshoot issues, and efficiently perform routine maintenance tasks
Change Logs and Audit Trail
Keep track of all configuration changes with a detailed change log, providing transparency and accountability
Enable your infra for remote updates
Seamlessly update peripheral devices’ firmware and software over the air, ensuring devices are always up-to-date with the latest features and security patches
