3D SOLUTIONS SPOTLIGHT

A World Leading 3D Project Partner

About Us

Aerometrex is a geospatial tech company with over 45 years industry experience We've proudly won numerous awards for our work across Australia, USA, and Europe and are recognised as a leading global innovator in high-resolution 3D reality modelling

Whether you’re a global technology leader or a boutique studio, across thousands of projects, Aerometrex delivers the same uncompromising level of quality and precision, time after time

We're trusted by international governments, enterprise organisations and industry leaders and our client portfolio includes the likes of Google, Codemasters, and a large range of major engineering, mining, resources and construction giants

We envision this breadth of expertise and adoption should give you condence, reecting the reliability, scalability and consistency of our 3D products

Aerometrex 3D datasets are designed to meet the demands of both highly complex, large-scale environments and smaller, specialised projects alike

Our Methodology

After understanding the client requirements, use cases and any budgetary constraints we can propose a single or exible multiresolution reality mesh output to cater for any project or Intellectual Property (IP) requirements

Unlike many standardised, one-size-ts-all models, our approach may integrate multiple capture methodologies: including xed-wing aircraft, helicopters, drones and terrestrial techniques

We ensure optimal accuracy, coverage and detail across diverse environments while maintaining exceptional visual quality and spatial accuracy The result is a level of consistency, scalability and realism that few providers globally can match, giving clients condence in both the detail and reliability of their 3D data

Deliverables are available in multiple industry-standard le formats to ensure seamless integration into existing mine planning and GIS workows Major 3D formats include FBX, OBJ, Cesium 3D Tiles, OSGB, ESRI i3s, Bentley 3SM/3MX, and Skyline TerraExplorer 3DML. Other GIS outputs include LAS 3D Point Clouds, DSM, and True Ortho

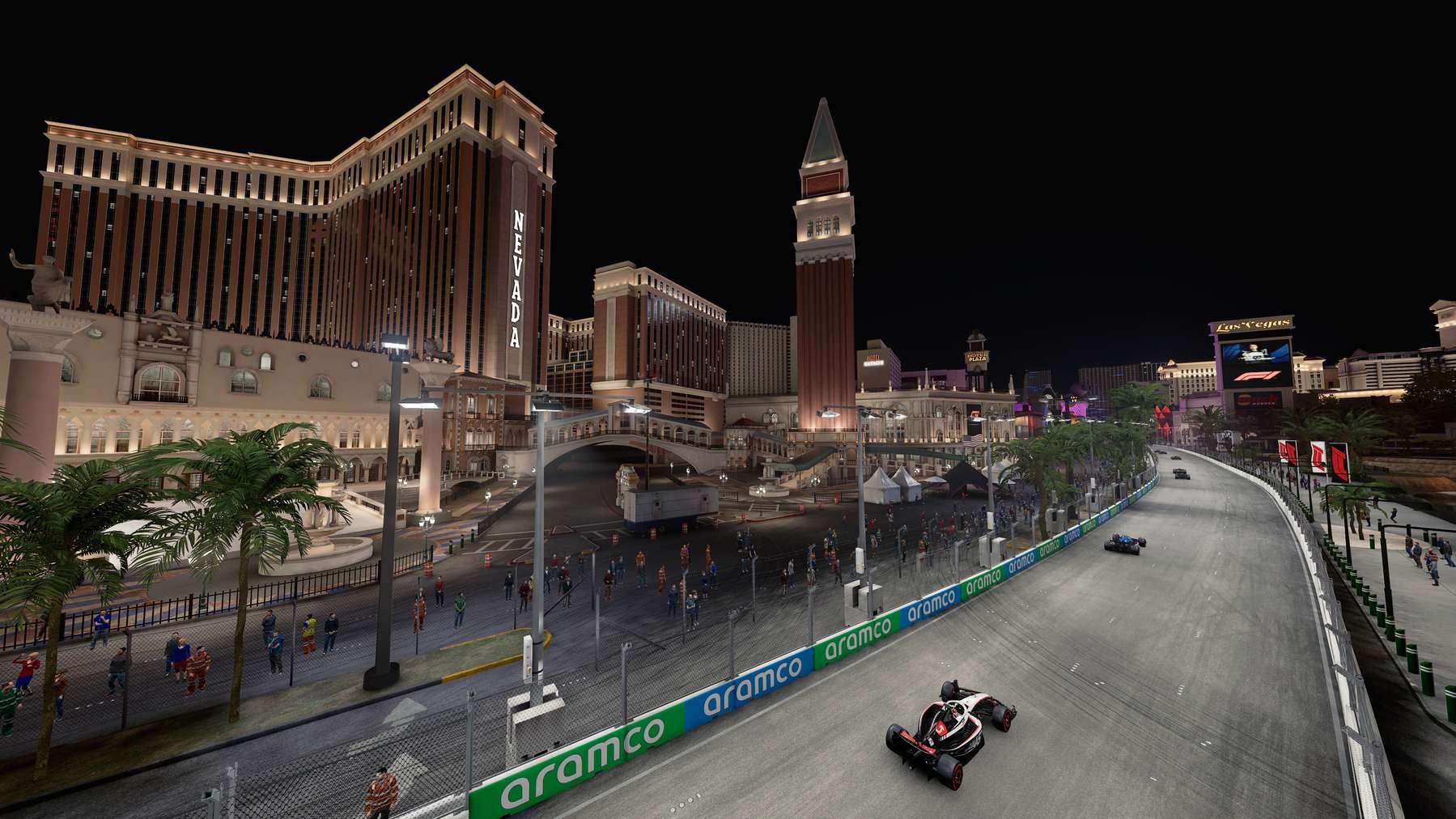

Aerometrex 3D Reality Mesh Helps Build the Las Vegas Circuit in EA SPORTS™ F1® 23 Read Case Study

“Las Vegas was a highly complex area that could not be interpreted with images alone After completing an in-depth analysis of additional vendors, Aerometrex data was deemed the highest quality overall The Aerometrex 3D model helped immeasurably in data accuracy by providing a method of visualising a large component of the areas in a three-dimensional textured form ”

Codemasters, EA Sports

From digital twins to gaming and the metaverse, environmental monitoring, heritage archiving and virtual tourism - as an award-winning industry leader, no matter the use case, Aerometrex partners with you to deliver beyond expectations Backed by a world-class team, industryleading technology, and in-house custom workows, we provide precision, scale and quality you can rely on!

In addition to data supply, Aerometrex provides dedicated 3D consulting services, analysis, technical support, and high-impact visualisation videos to support internal planning, training, executive reporting, investor communications and external stakeholder engagement

Our Value Proposition

Aerometrex's 3D solution produces fully textured, geographically accurate 3D models and a range of derived products that offer an extremely rich three-dimensional replica of the real world in high detail and great accuracy We have delivered 3D spatial data for numerous organisations globally to support planning, development, public consultation, and engagement Our datasets have set international standards for quality and accuracy of 3D spatial information and have been widely used by government agencies as well as international tech leaders such as Google and Microsoft.

High Quality

It is widely acknowledged that we deliver the highest quality at multiple resolutions, offering a balance of scale & economy From our high-res aerial capture to ultra-high-res street-level data, be assured of photo-realistic results of highest delity

Expertise And Customisation

Our team has delivered hundreds of custom-built 3D solutions in consultation with clients Our aim is to provide you the right product offering to address your business challenges - adding our expertise to yours

Cutting-Edge Technology

We are proud to lead the world in innovation and are continually developing our capabilities We drive innovation to support recent developments; aim is to make our solution work for you and are always open to feedback

Reliable Accuracy

We offer you greater accuracy than most other commercial solutions operating at large scale This ensures reliability in precise and consistent measurements when your business demands the very best

Flexible Access

We work with a range of software partners to enable delivery in the format of your choice Ingest our data in GIS platforms like Esri, and specialist 3D platforms like Skyline, Cesium & Bentley or a range of Game Engines like Unreal & Unity, among others

Extensive Off-The-Shelf Coverage

We are constantly capturing and processing new datasets to expand our 3D catalogue covering major cities These city models are available immediately in a wide range of industry formats, offering great value and quick turnaround

PRODUCTS & SERVICES

Access a range of 3D solutions that provide context to your projects, help develop and visualise scenarios as well as offer a comprehensive 3D base dataset for change monitoring

Our 3D Range

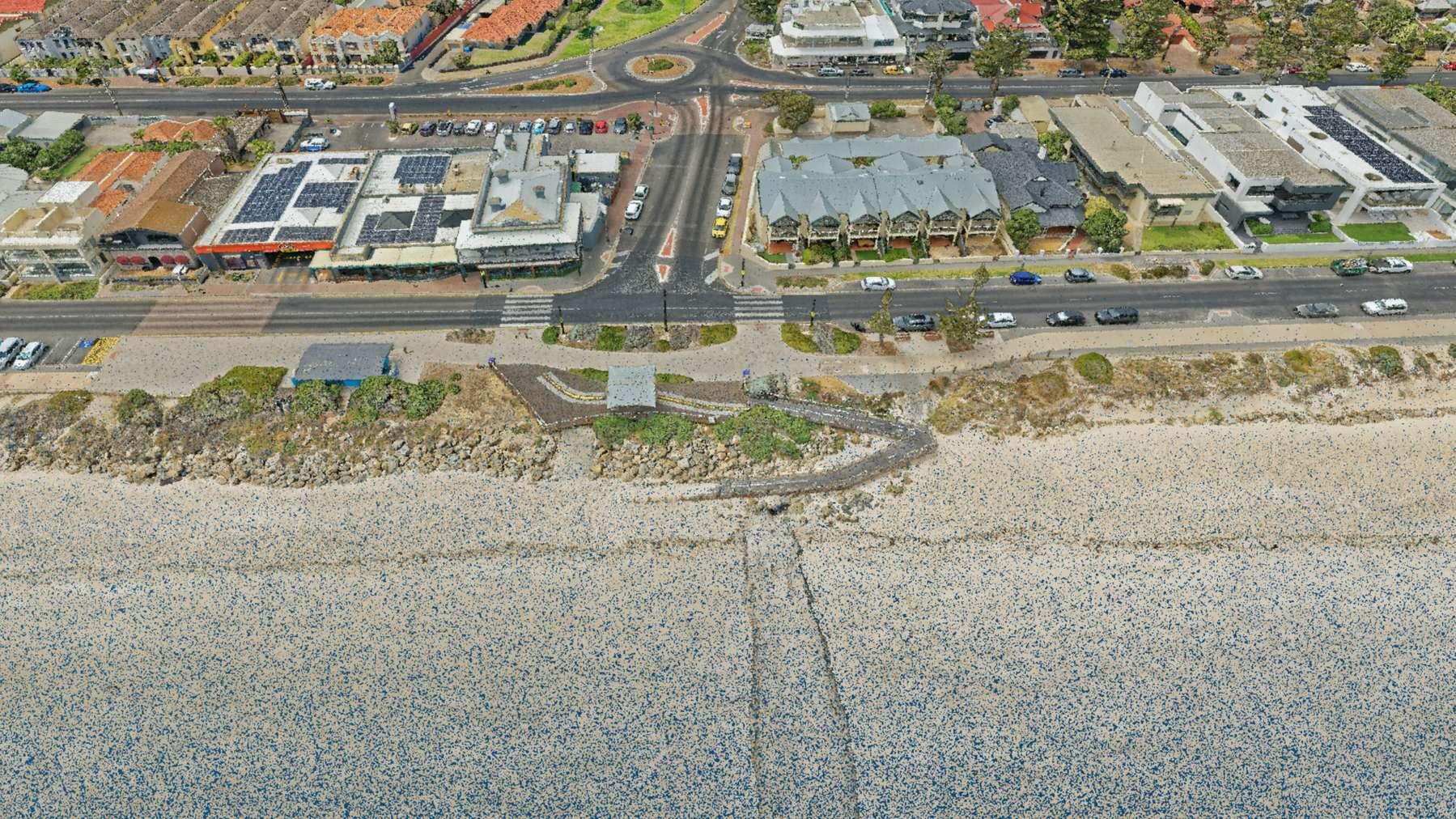

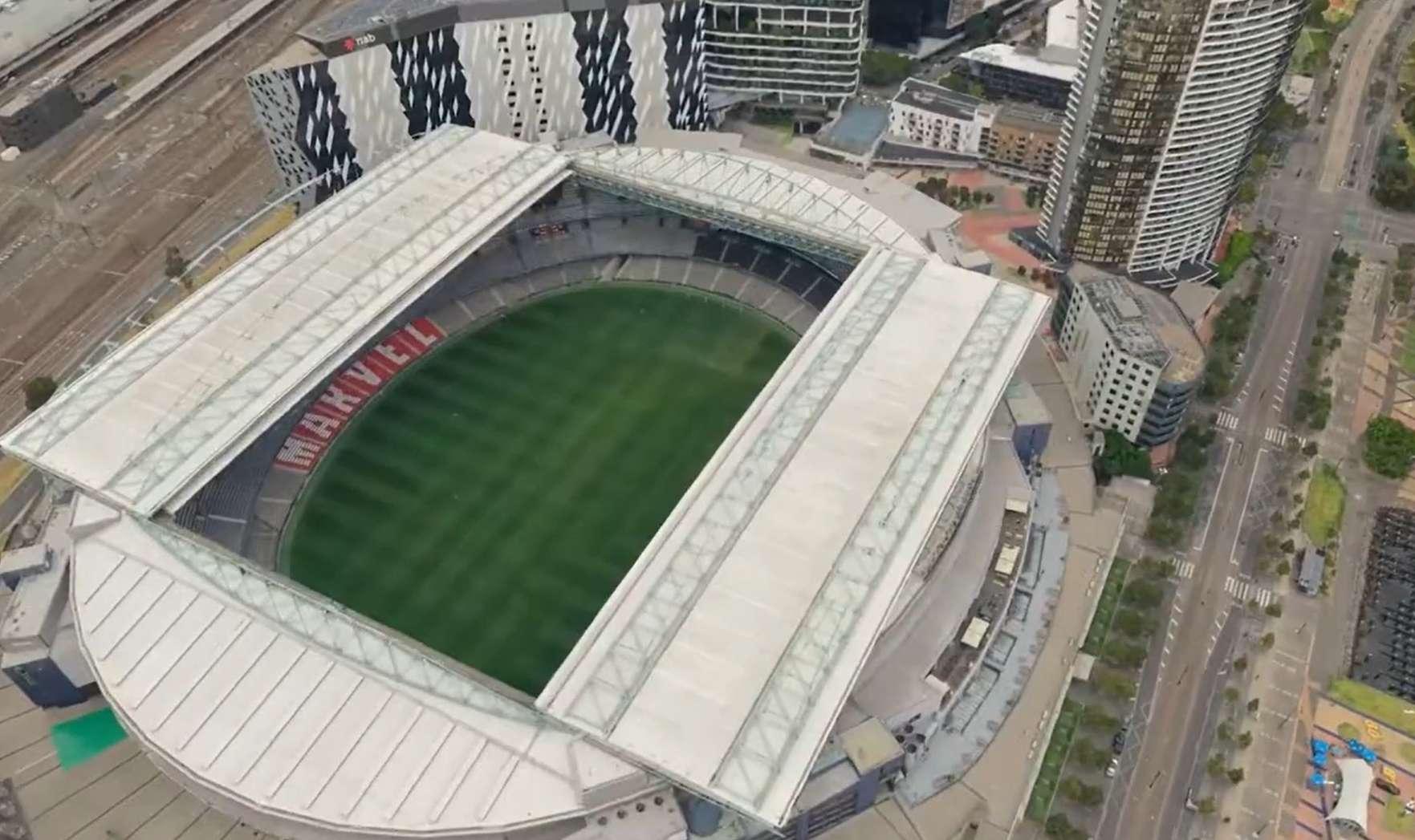

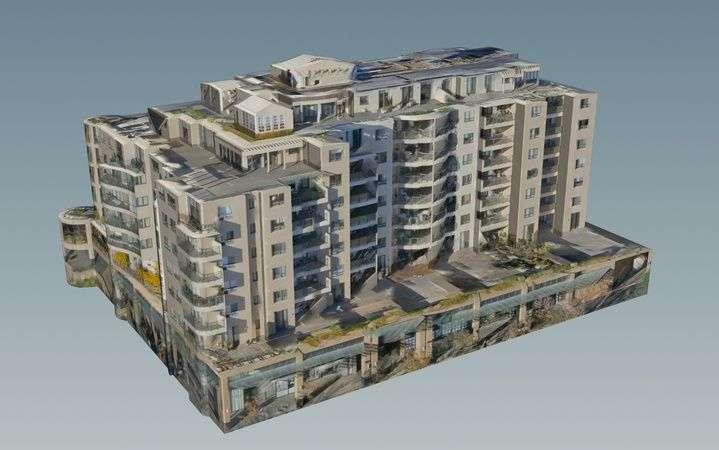

3D Reality Mesh Models

Our agship 3D solution offers you standard, high, and ultra-high detail based on your requirements, delivered to you in a range of compatible formats and accessible as downloadable les or via API services such as 3D Image Dedicated for companies running an Esri suite

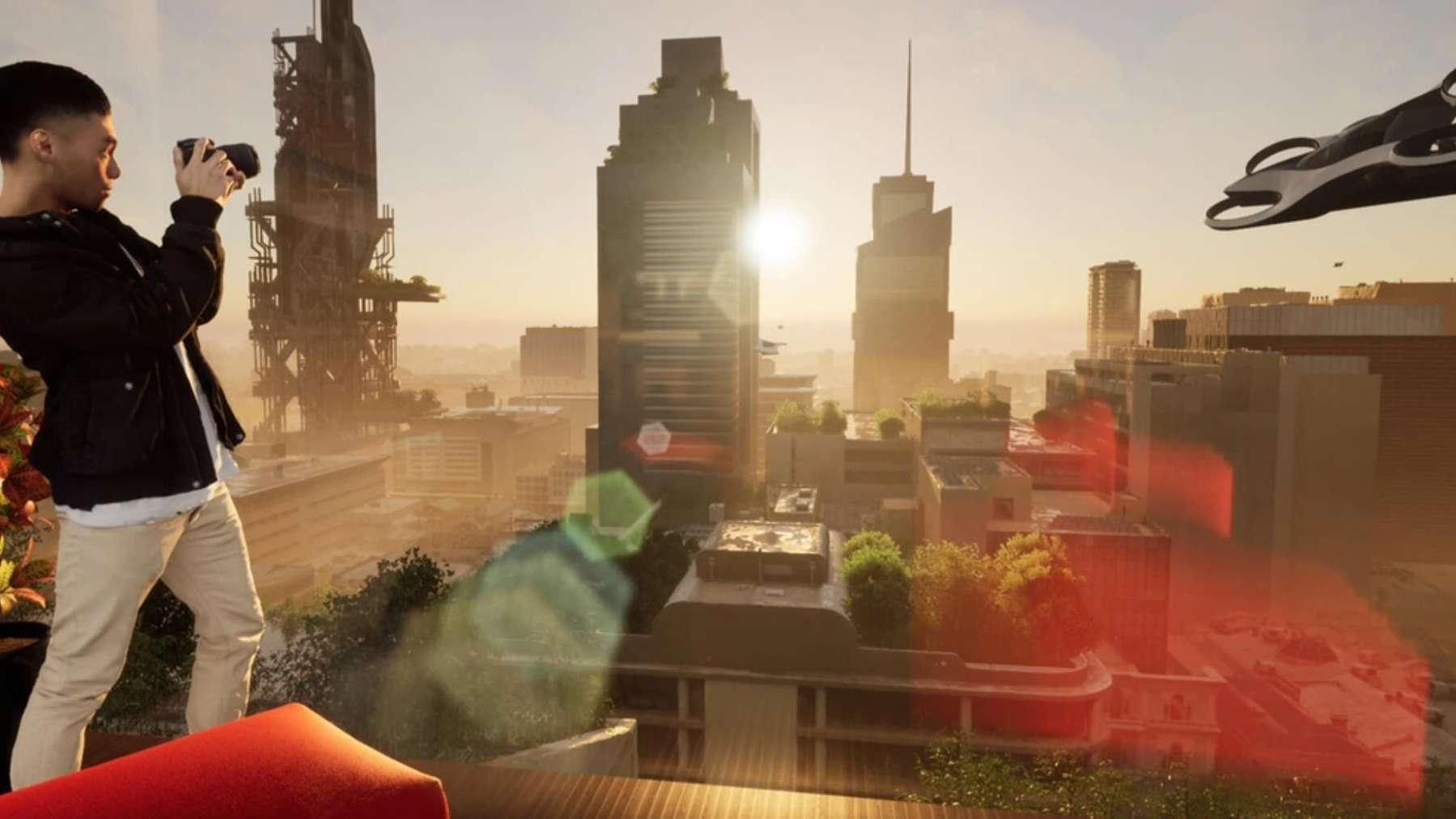

3D Visualisation

Our visualisation services can support your organisation with more advanced and interactive solutions to complement stakeholder communications, presentations or reporting Take your visualisation efforts to the next level with the help of our experts.

3D Building Models (LODs)

Our 3D Building Models are derived from highly accurate 3D mesh models, and available in different LOD (Level of Detail) This output helps when planning requires building isolation & attributing They are lightweight & storage-ecient, ensuring seamless integration into your systems

3D Change Analysis

Conduct analysis for improved planning & decision-making using our 3D change analysis service. With multiple captures, we can help you analyse change over time for a range of assets This can especially be useful for regulatory planning and management.

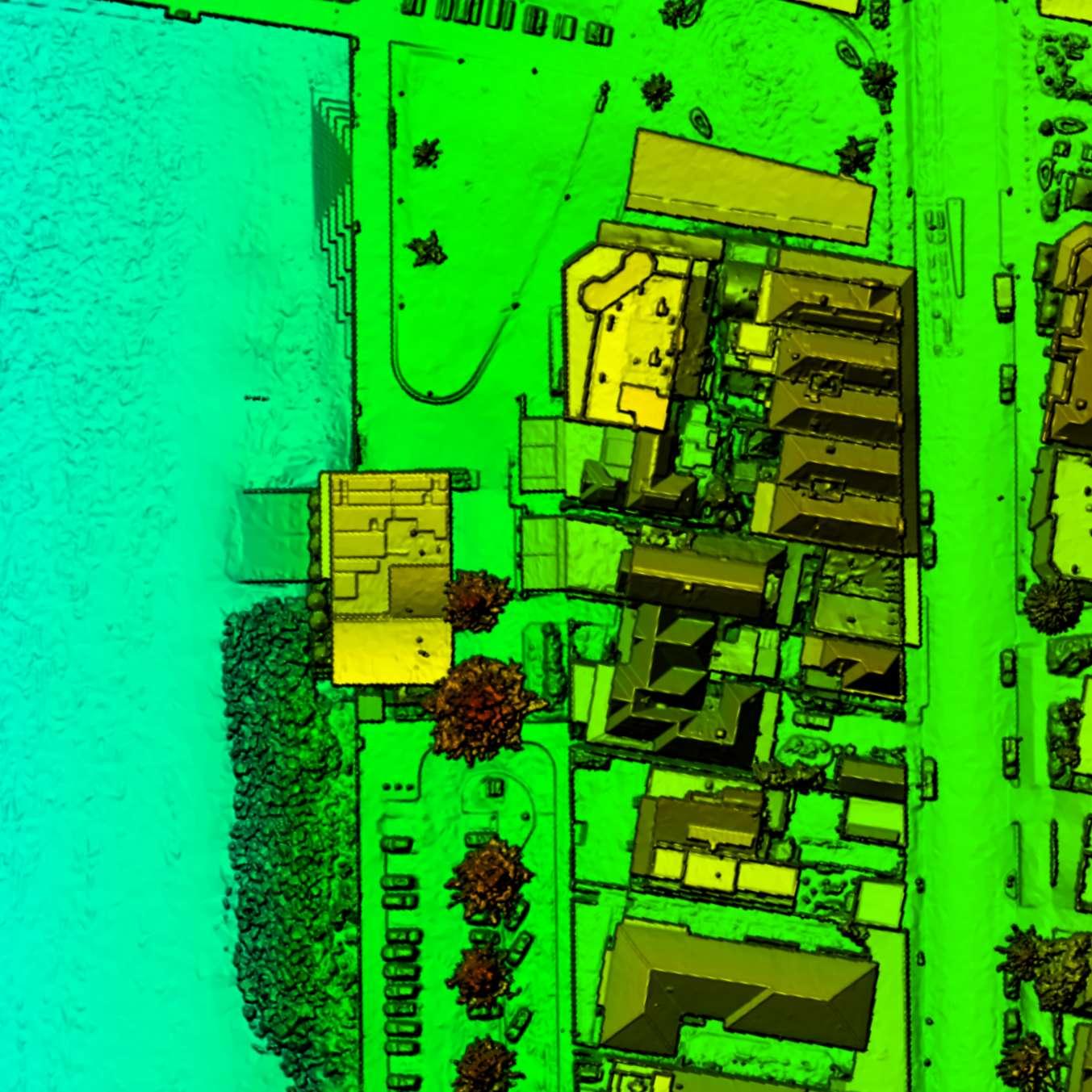

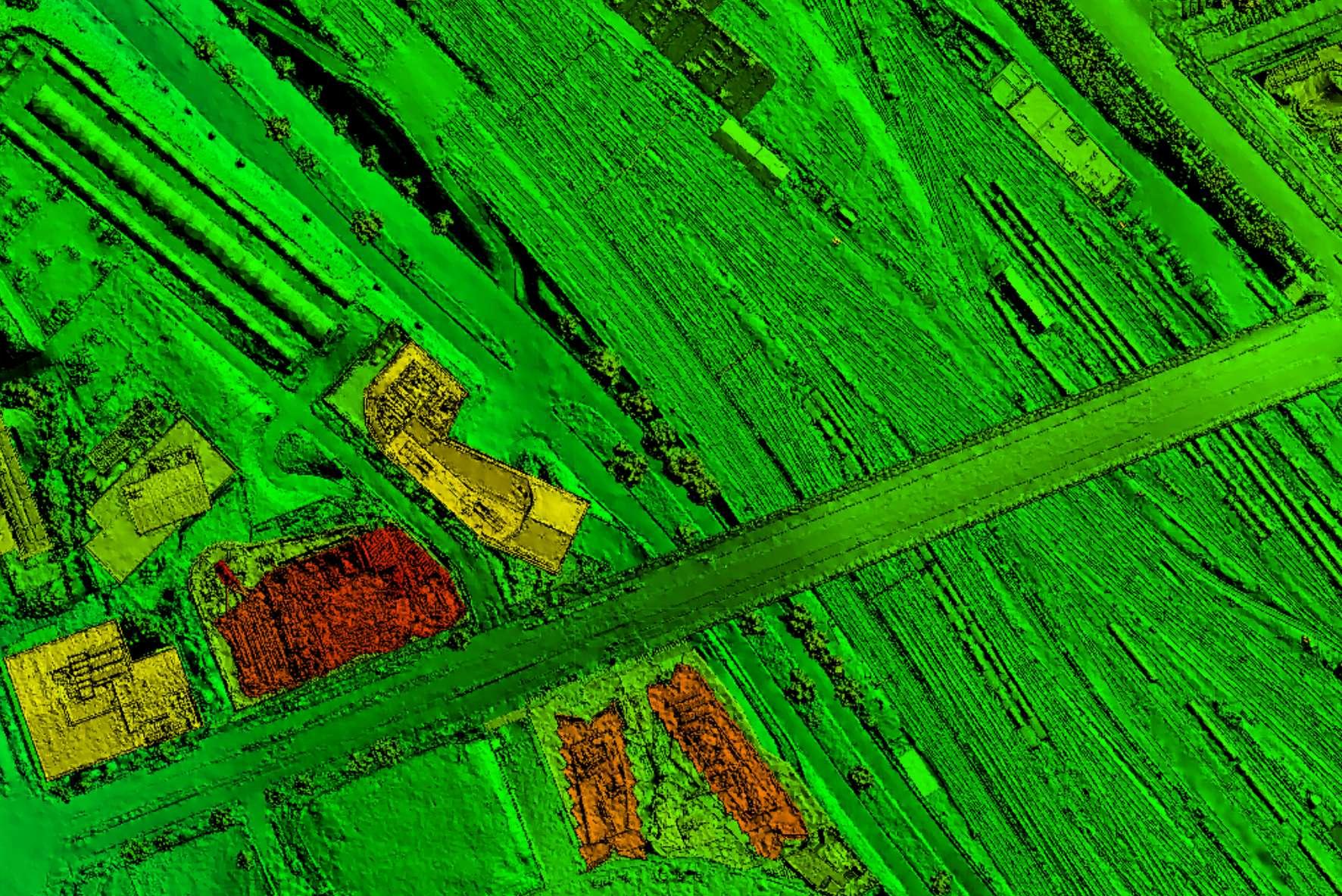

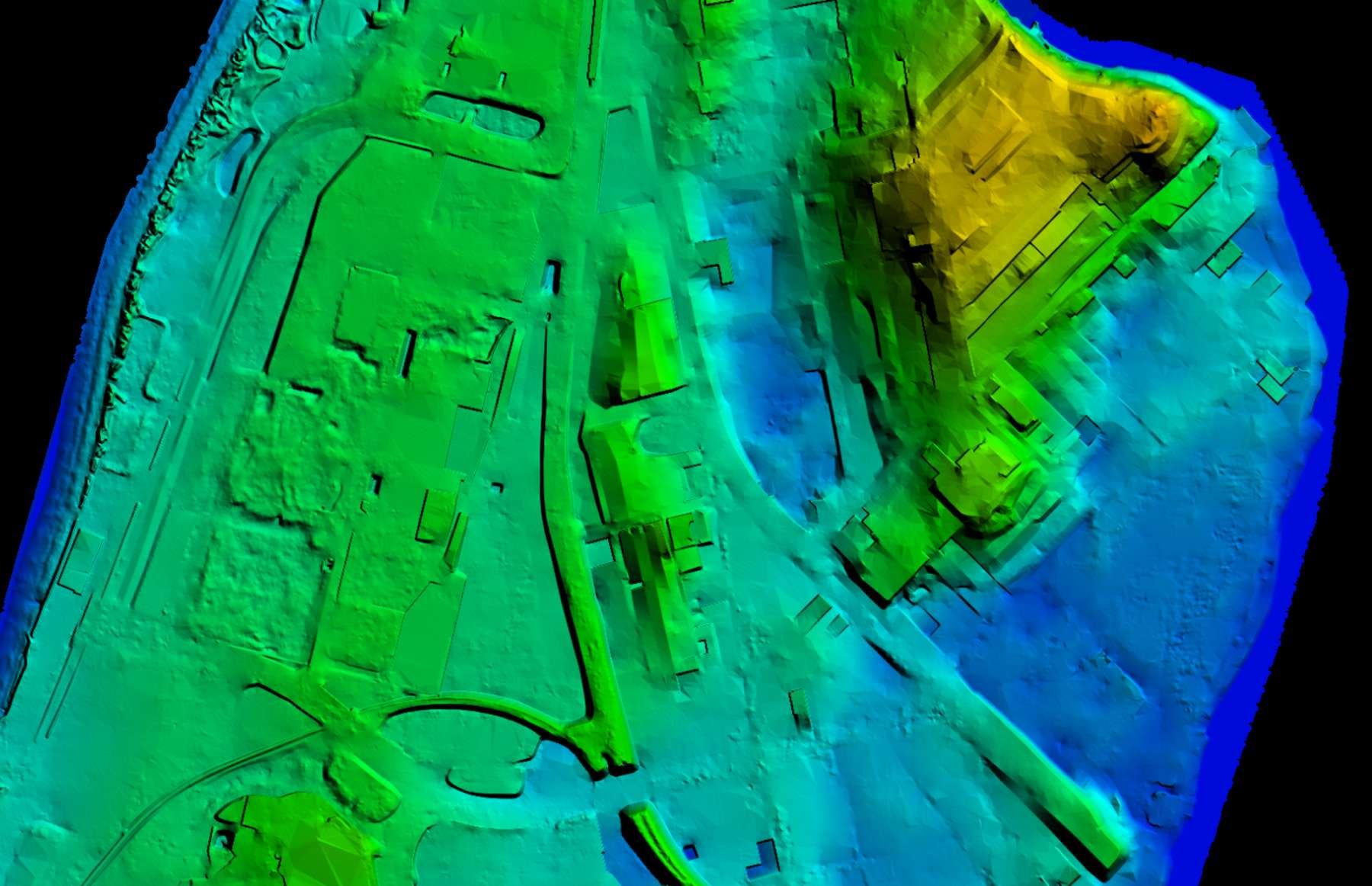

3D-Derived Elevation

Elevation and topography datasets derived from 3D mesh models can be extremely useful for city-wide urban planning, landscape-scale groundwater management, ood mitigation planning, local engineering works, and various other applications

3D Consulting Services

Our 3D consulting services act as an extension of your internal teams, freeing up resources for critical tasks. For organisations new to 3D data, our costeffective consulting services simplify the implementation and use of 3D data within your business.

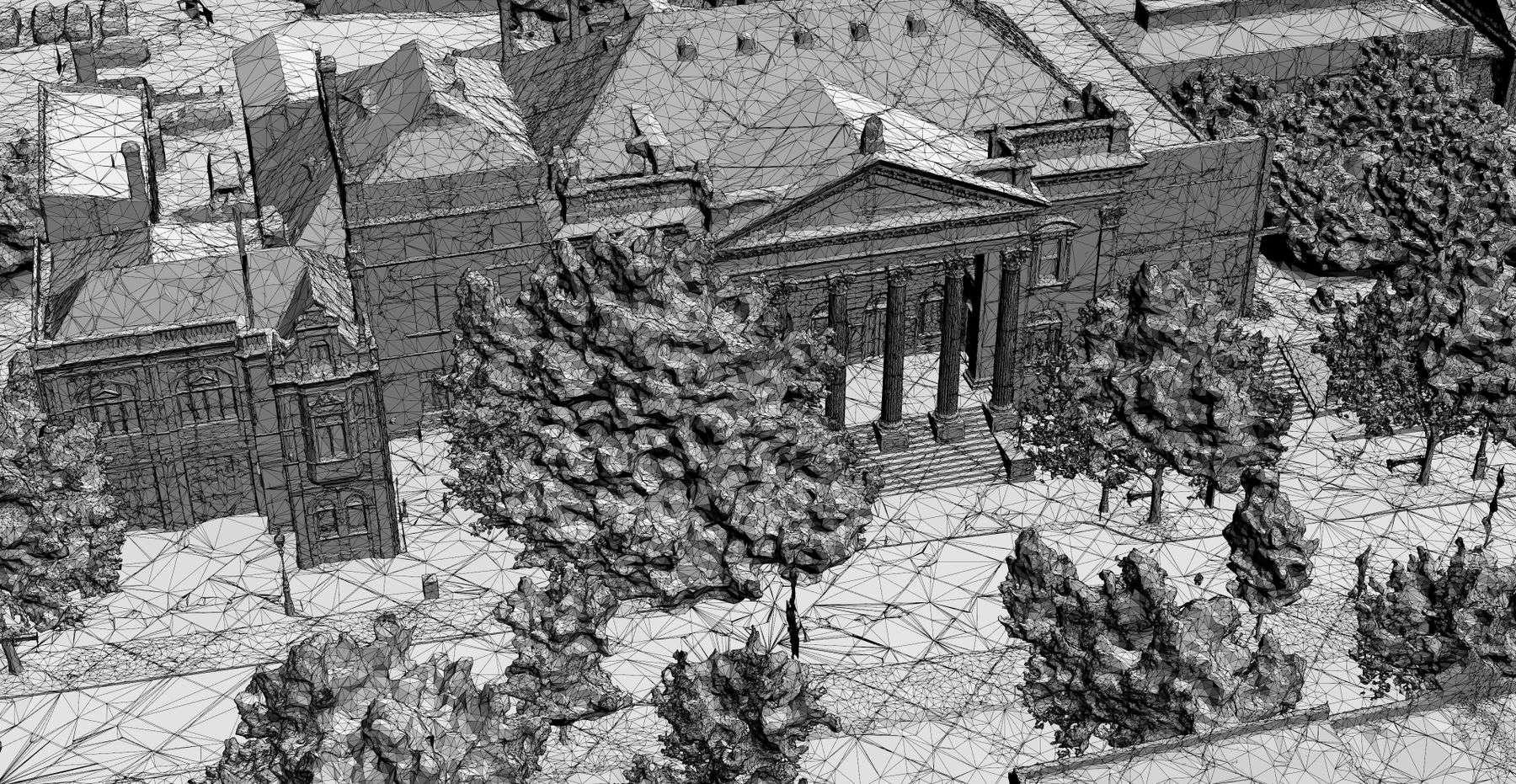

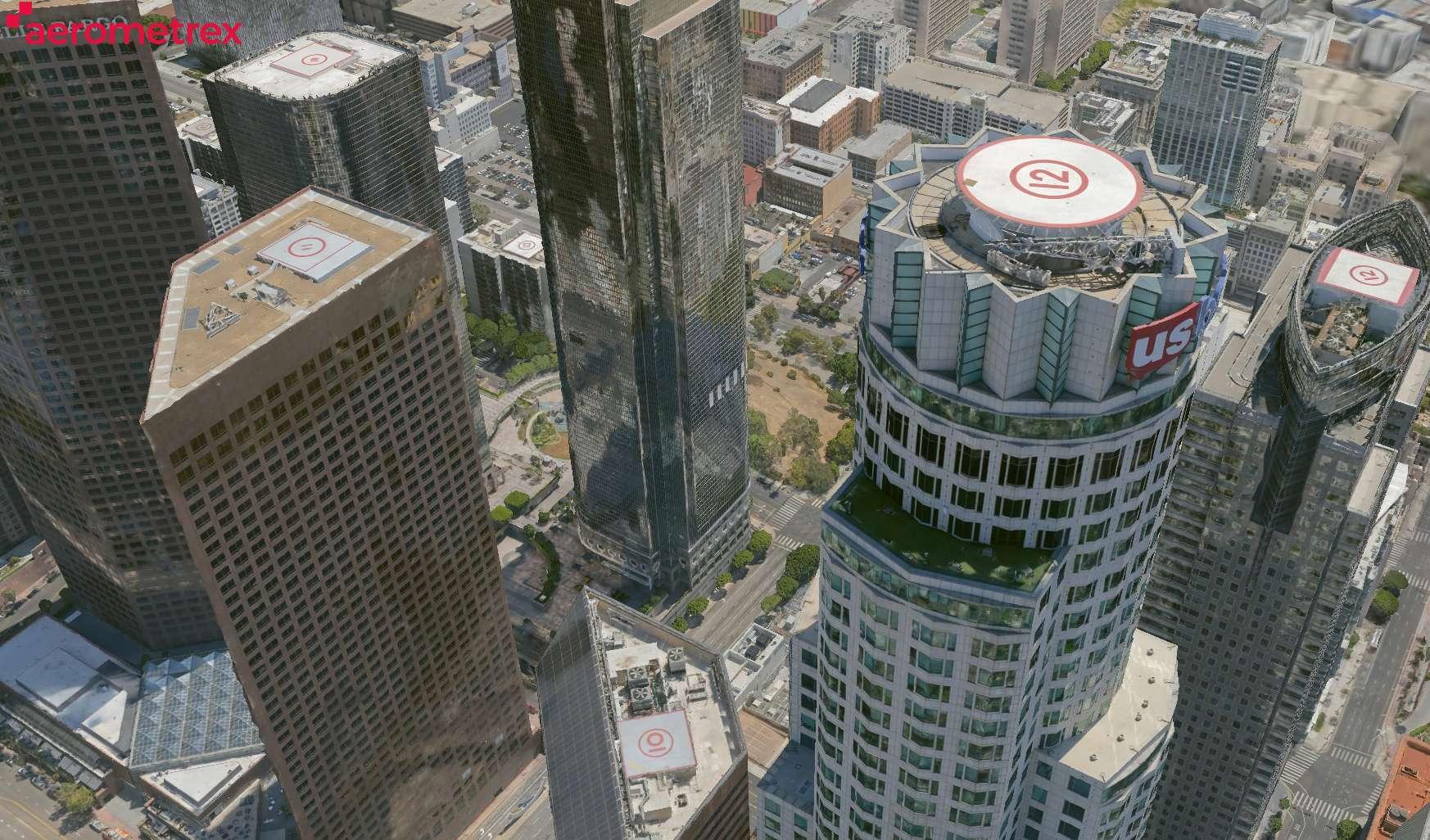

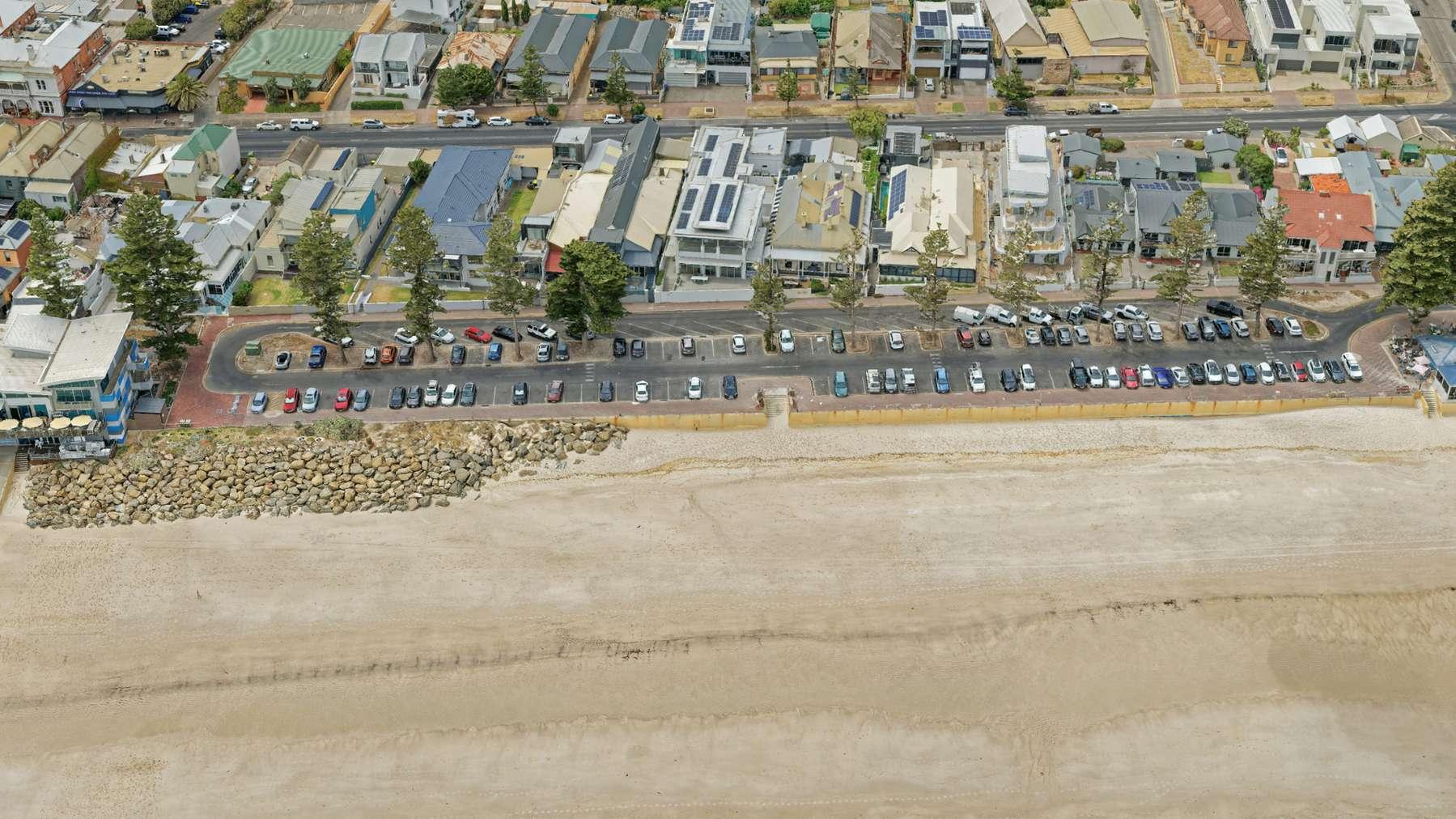

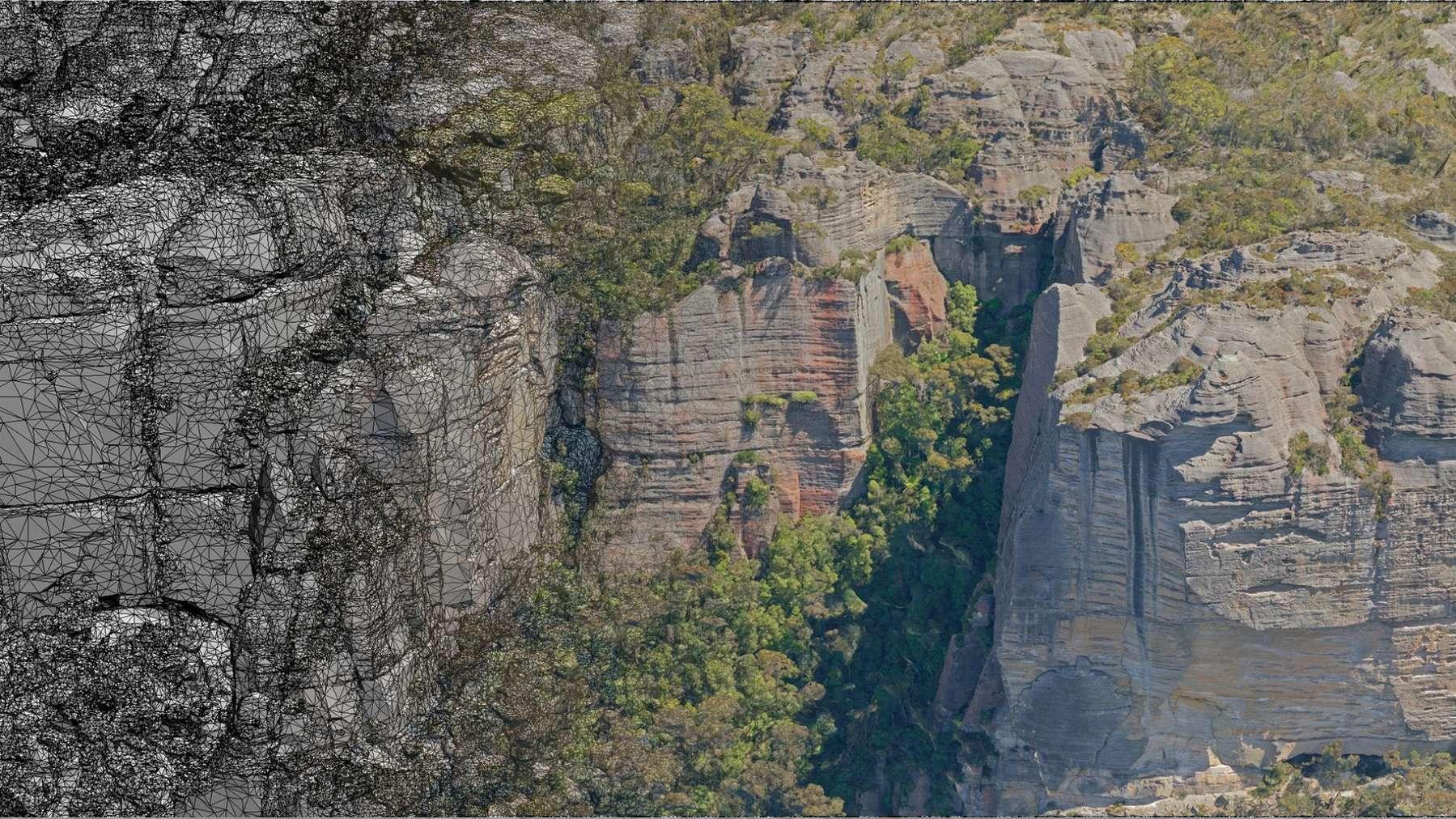

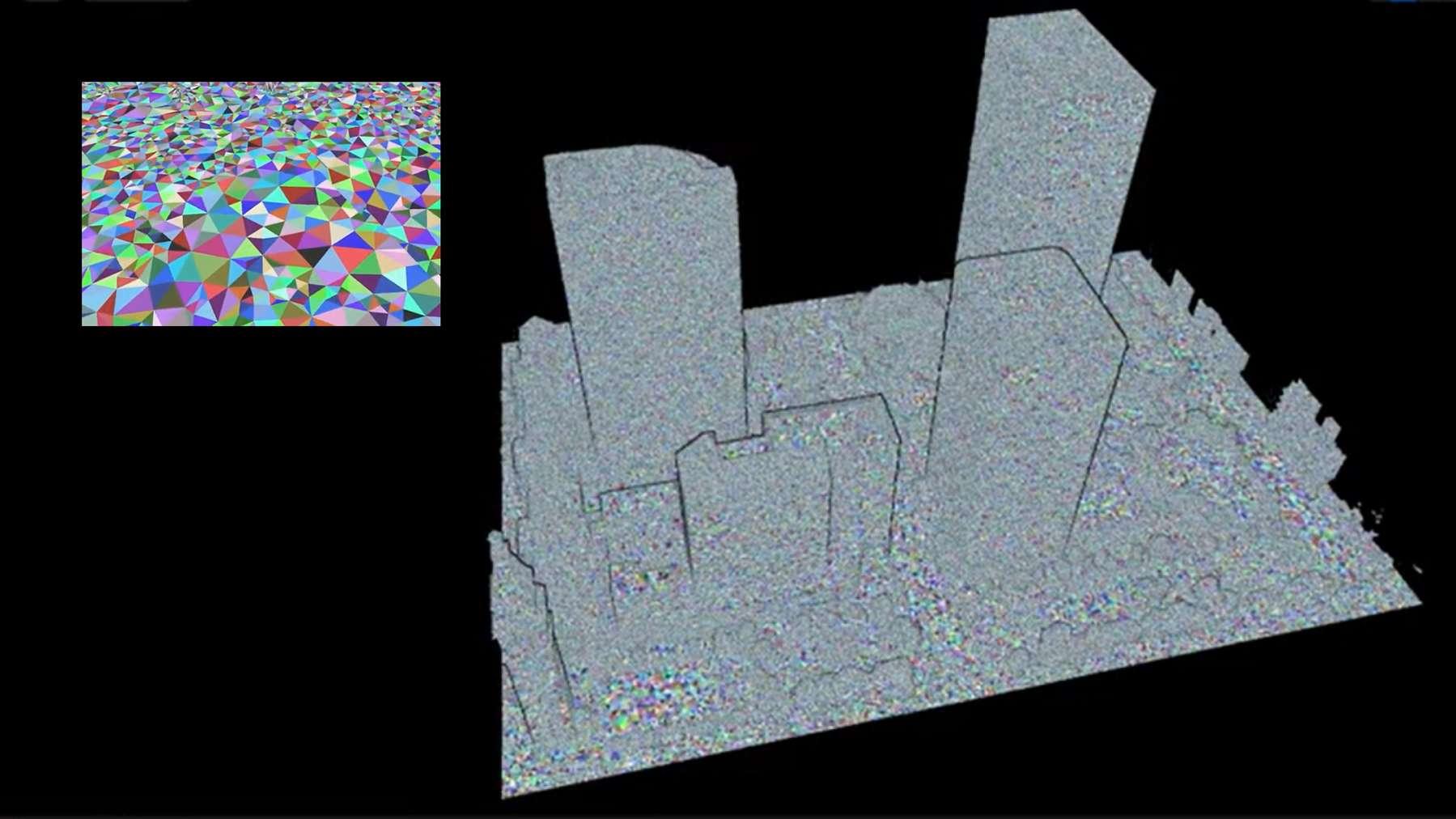

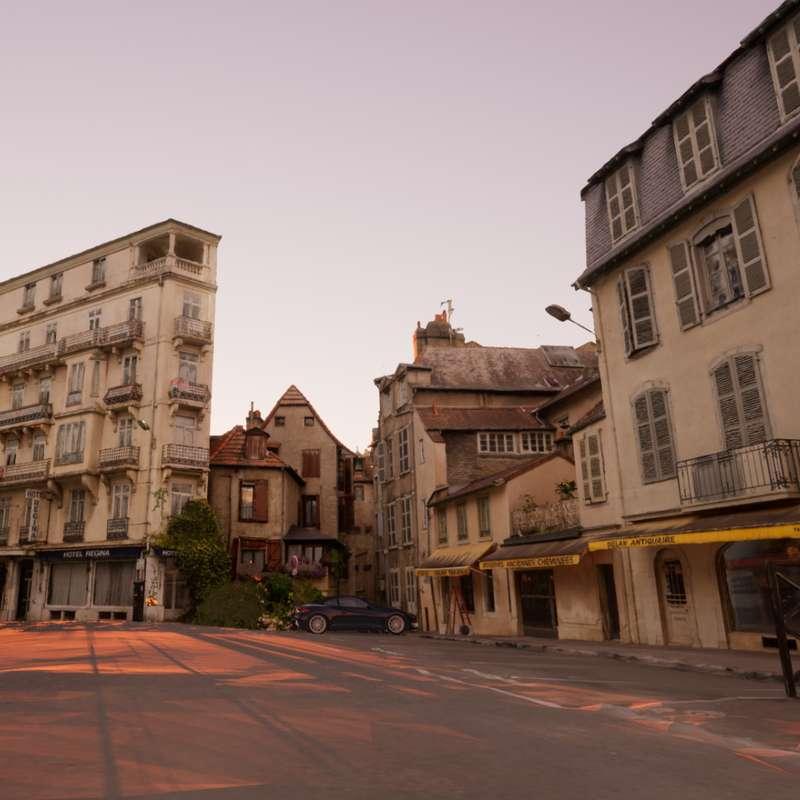

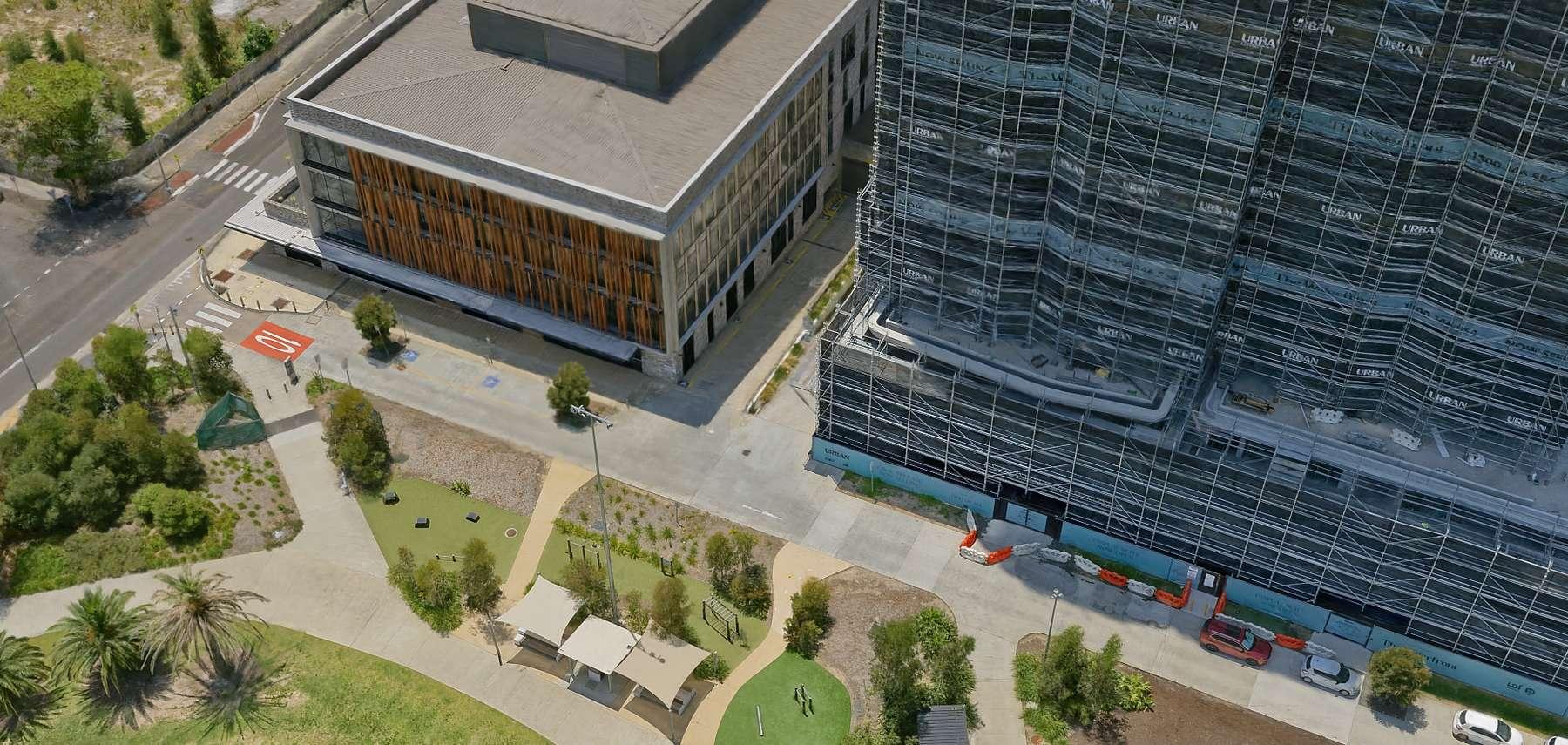

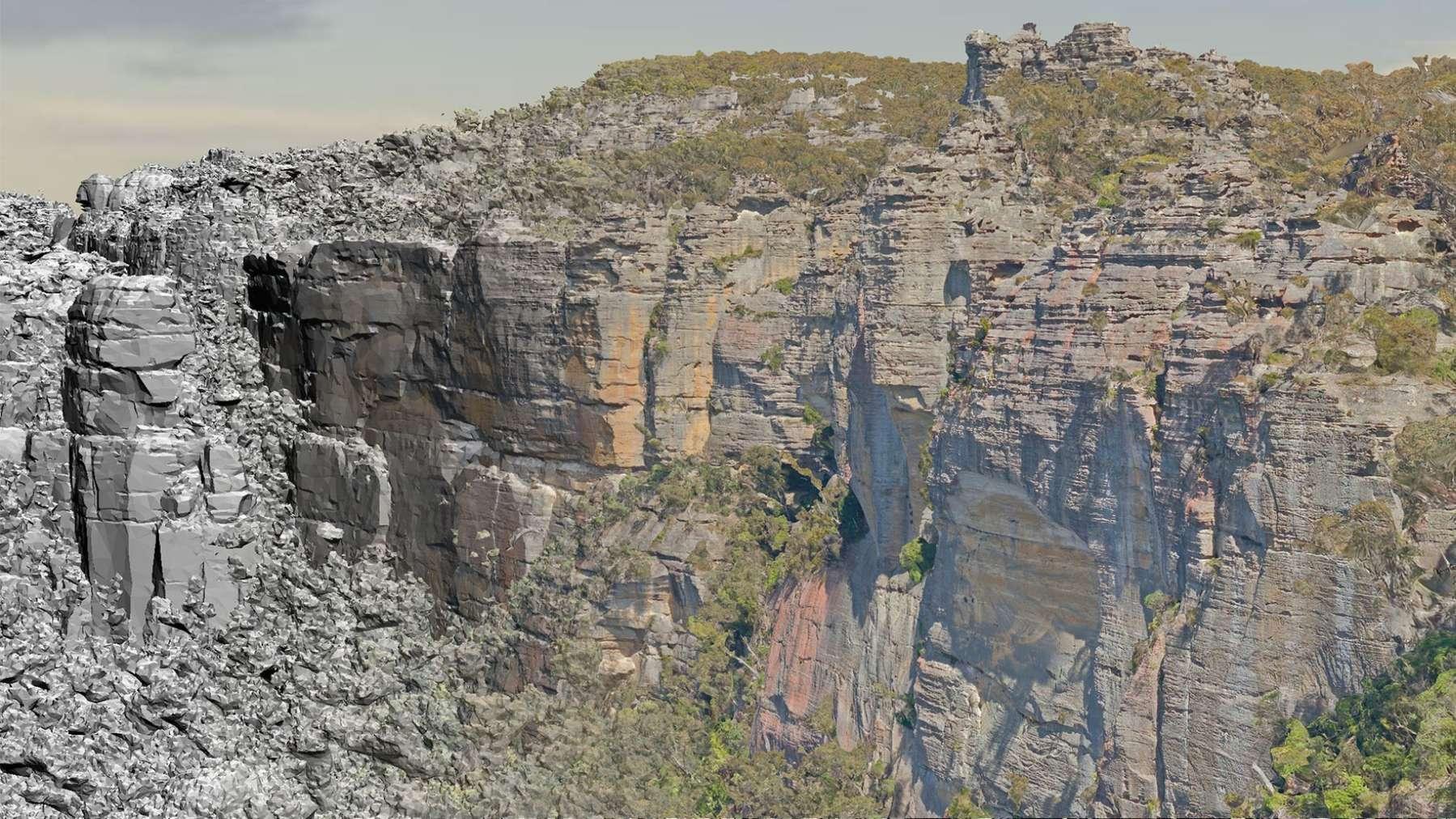

3D Reality Mesh Models

SUB-CM GSD

What Do You Do With Them?

These immersive 3D environments enable teams to remotely explore and analyse real-world locations with precision: measuring distances, areas and elevations, assessing assets, and visualising change over time The result is improved planning, reduced reliance on physical site visits, and clearer communication and decision making across technical, operational and executive stakeholders

Beyond traditional use cases, Aerometrex’s 3D models are increasingly being adopted for cutting-edge applications, including integration into gaming engines such as Unreal Engine, virtual tourism experiences, and immersive digital twins. From concept visualisation to entertainment, our models provide a powerful foundation for innovation, storytelling and engagement at scale

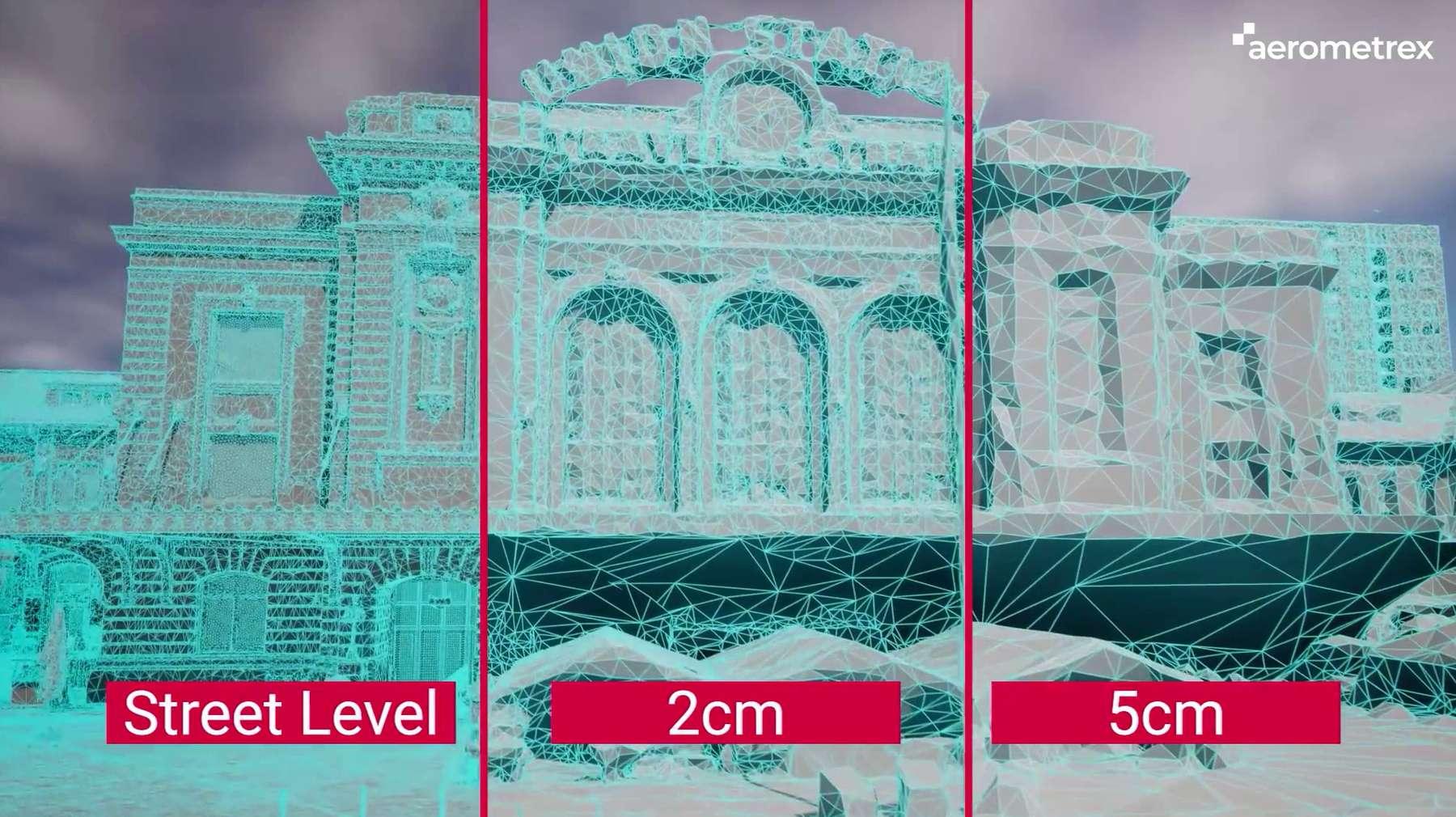

3D Mesh - Technical Specications

Listed below are standard specications for Aerometrex's 3D reality mesh product offering Actual specications for projects may vary and can be customised to match your requirements Please refer to the scope of work for specic details

Image Resolution (GSD)

Accuracy (RMSE)

Data Formats for 3D Model (costs may vary depending on formats chosen)

Approach

Ground Control

Aerial imagery is captured & processed at nadir resolutions of 2 - 7 5 cm GSD (pixel size) or better Street-level capture resolutions are sub-cm GSD (pixel size)

3 pixel or better (in most cases we aim for 2-pixel RMSE as a horizontal accuracy standard)

OBJ, FBX, Cesium 3D Tiles, SLPK (additional formats may be available)

▪ Aerial Images are captured from xed-wing aircraft and/or helicopter and street-level data is captured on ground

▪ Models undergo QA and clean-up to provide the accuracy and quality promised

▪ Data is controlled by ground survey to ensure spatial accuracy

Ground control is recommended to ensure spatial accuracy of the data Aerometrex can work with survey points supplied by the client, provided they meet the required specications for aerial survey (details can be supplied separately on request)

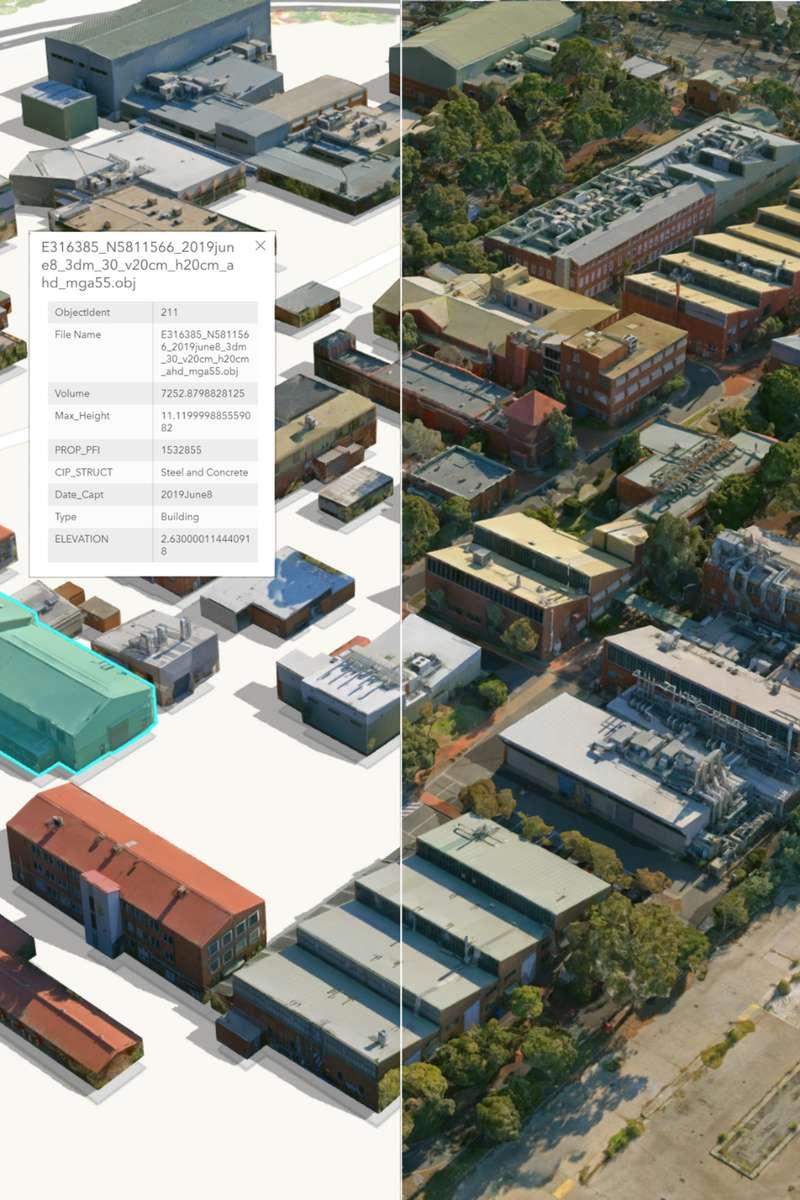

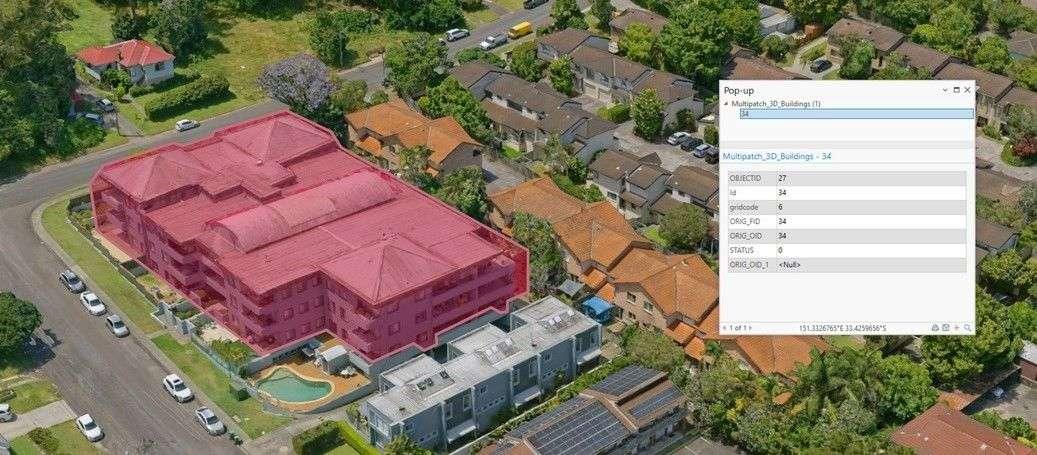

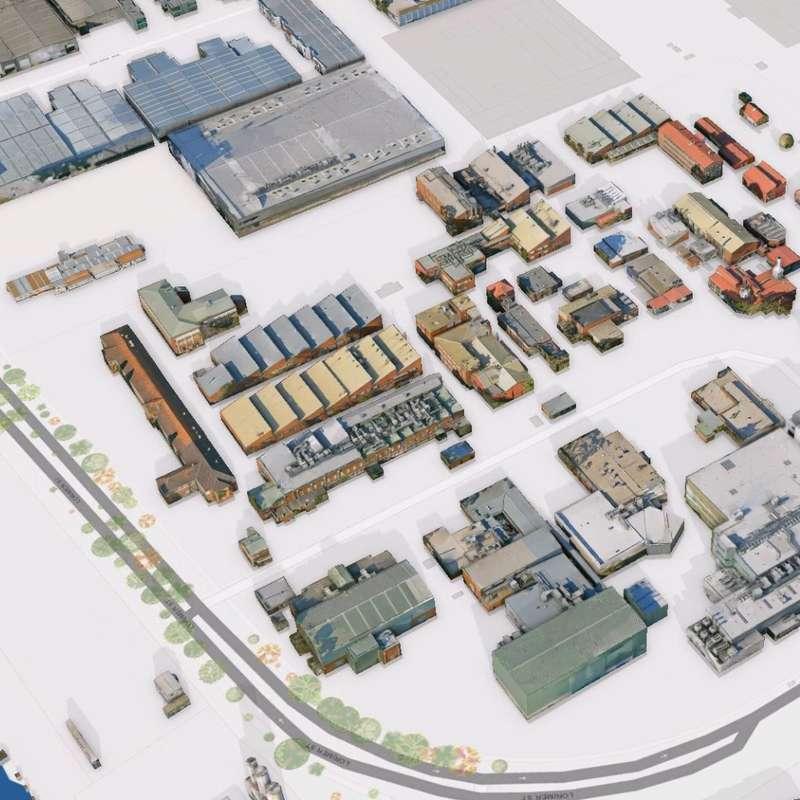

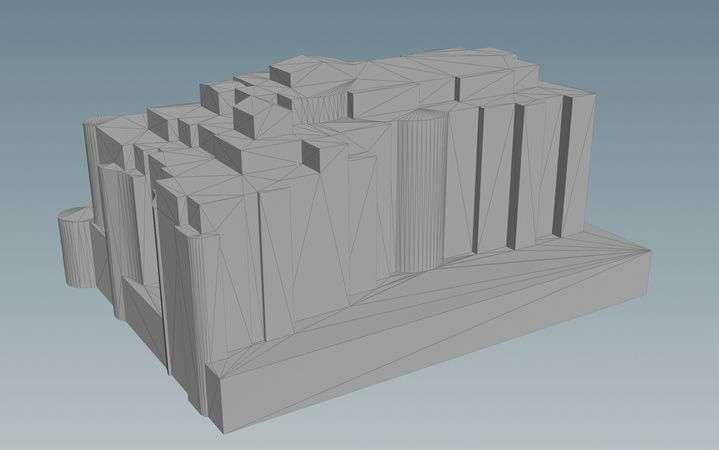

3D Building Models (LODs)

A 3D Building Model, also known as LOD (Level of Detail) Model is a three-dimensional representation of a building with a varying degree of detail They are widely used in sectors such as urban planning, architecture, and geospatial analysis to tailor the level of detail to specic use cases, balancing precision with eciency

In geospatial applications, LOD models allow for scalable visualisation and analysis, enabling users to adapt data complexity based on use cases, computational resources, and viewing scale A key feature of LOD models is the ability to attach data to individual models, allowing for the models to be enriched with relevant metadata such as building IDs, dimensions, land use classication, energy use and more

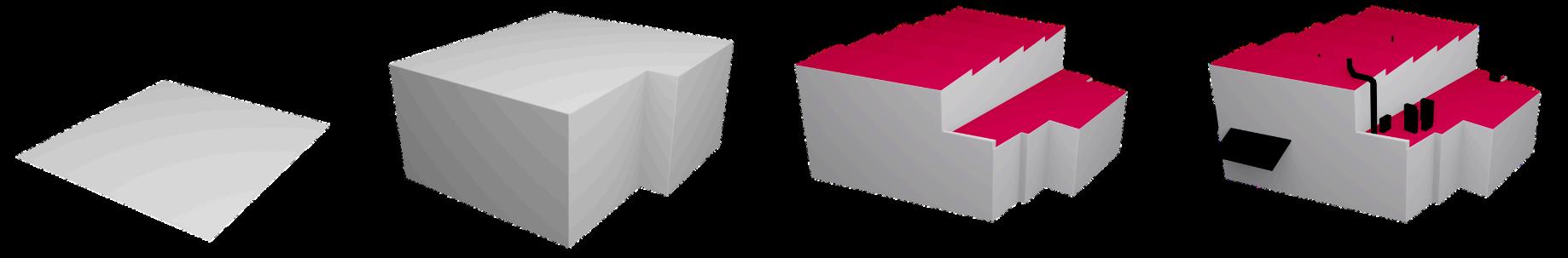

Standard LOD Hierarchy

LOD models often follow a standardised hierarchy, with increasing complexity

LOD 0

Flat, 2D representations like terrain or building footprints

LOD 1

Simplistic 3D models, often block shapes

LOD 2

Enhanced detail, including roof shapes and textures

LOD 3

High-detail architectural models with windows, facades

Benets Of Using Textured LOD Models: Unlock Hidden Data For Better Decision-Making

Integrating LODs with reality meshes enhances both performance and functionality Reality meshes provide visual realism, while LODs add structure, data, and analytical power Together, they enable applications ranging from large-scale city planning to detailed engineering workows, creating a unied solution for geospatial and 3D modelling needs.

REAL-WORLD REPRESENTATION

Provide realistic representation facilitating simulations, visual impact analysis, large-scale urban planning, and infrastructure projects

SEAMLESS INTEGRATION

Ensure easy sharing, collaboration, and integration with existing systems and GIS workows assisting reliable spatial analysis

OPTIMISED PERFORMANCE

Optimise performance, reducing computational load while retaining critical details

ENHANCED VISUALISATION

Enhance visualisation for stakeholder presentations and public engagement

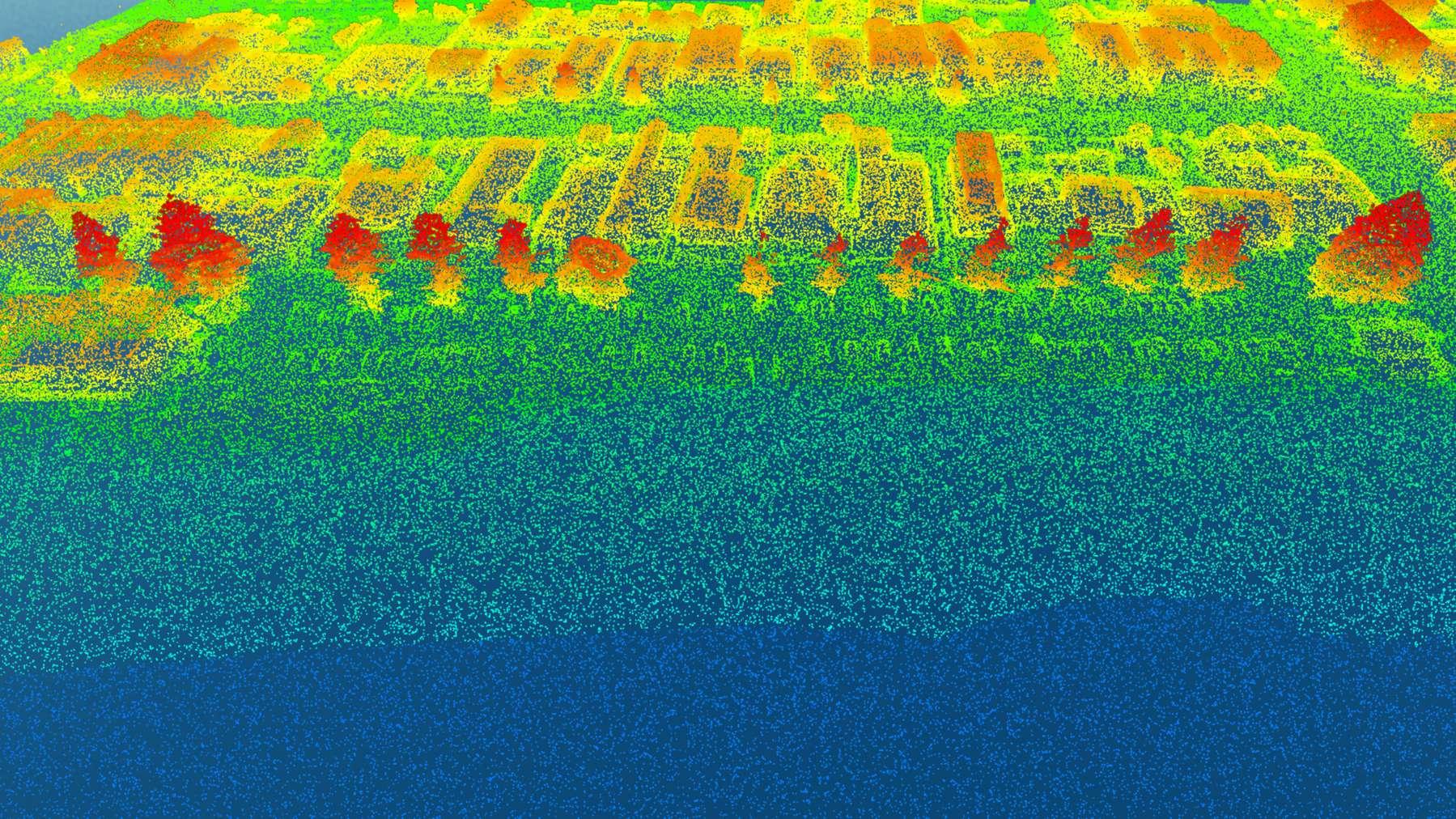

3D Point Clouds Derived From Mesh

An unclassied point cloud delivers additional data that users can classify, measure, and extract insights from according to their specic project needs

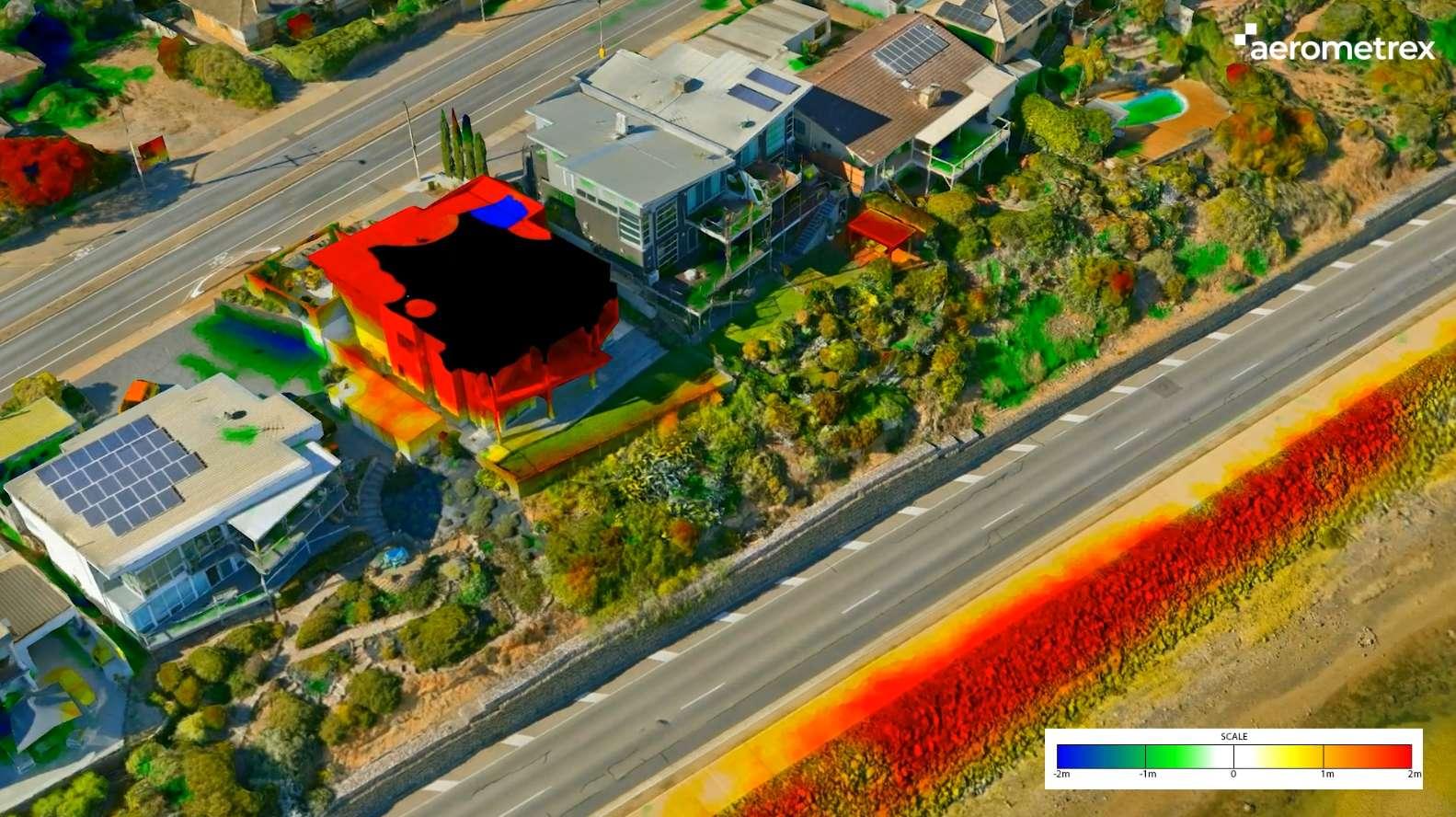

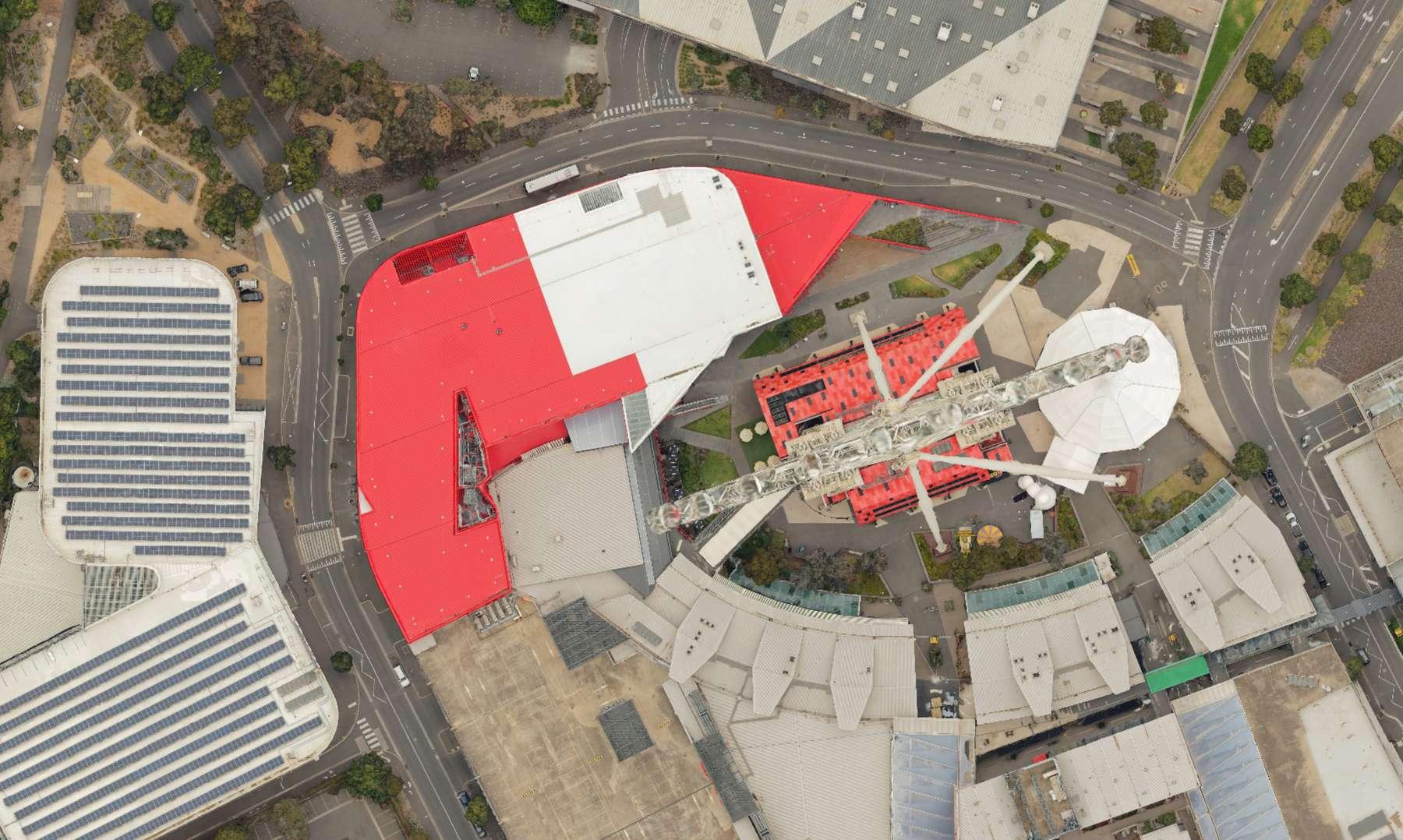

Change Detection Analysis

With multiple captures, analyse change over time for a range of assets. This can especially be useful for regulatory planning and management.

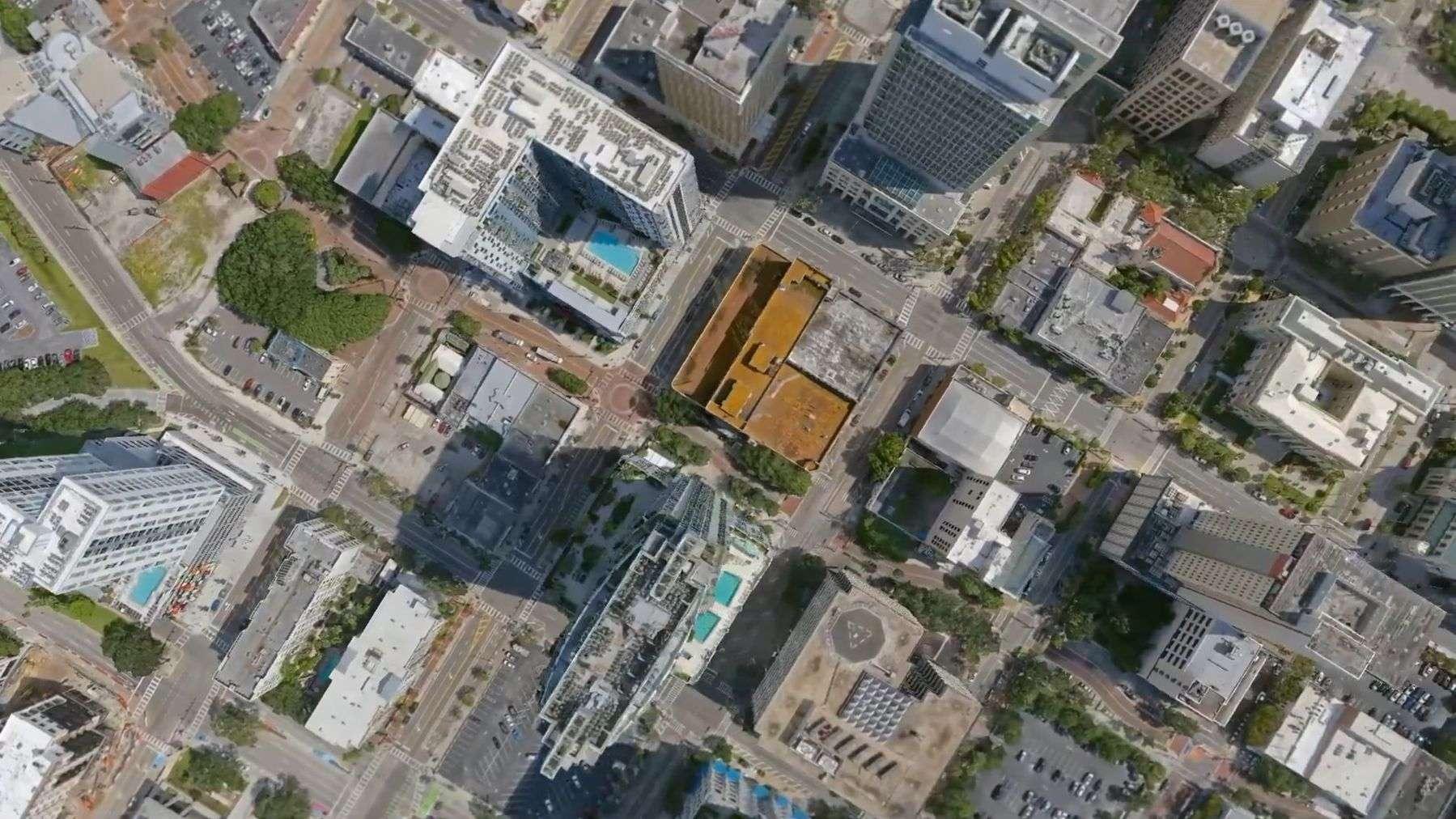

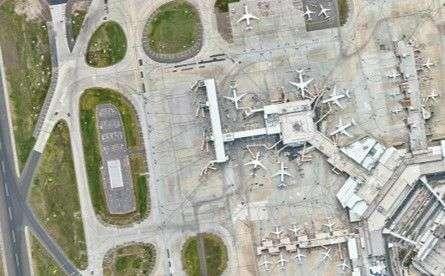

True Ortho Imagery

A true orthophoto is a uniform, map-accurate image where every pixel is in its correct ground position, enabling precise measurements and condent decision-making Unlike standard Orthomosaics, which can suffer from occlusions and displacement around vertical structures, true Orthos provide a clean, top-down view where buildings, infrastructure and features are presented without tilt or duplication - making them far more reliable for urban planning, engineering design, asset management and GIS integration

Consulting & Visualisation Services

Our 3D consulting services act as an extension of your internal teams, freeing up resources for critical tasks. For organisations new to 3D data, our cost-effective consulting services simplify the implementation and use of 3D data within your business

Our visualisation services can support your organisation with more advanced and interactive solutions to complement stakeholder communications, presentations or reporting. Take your visualisation efforts to the next level with the help of our experts.

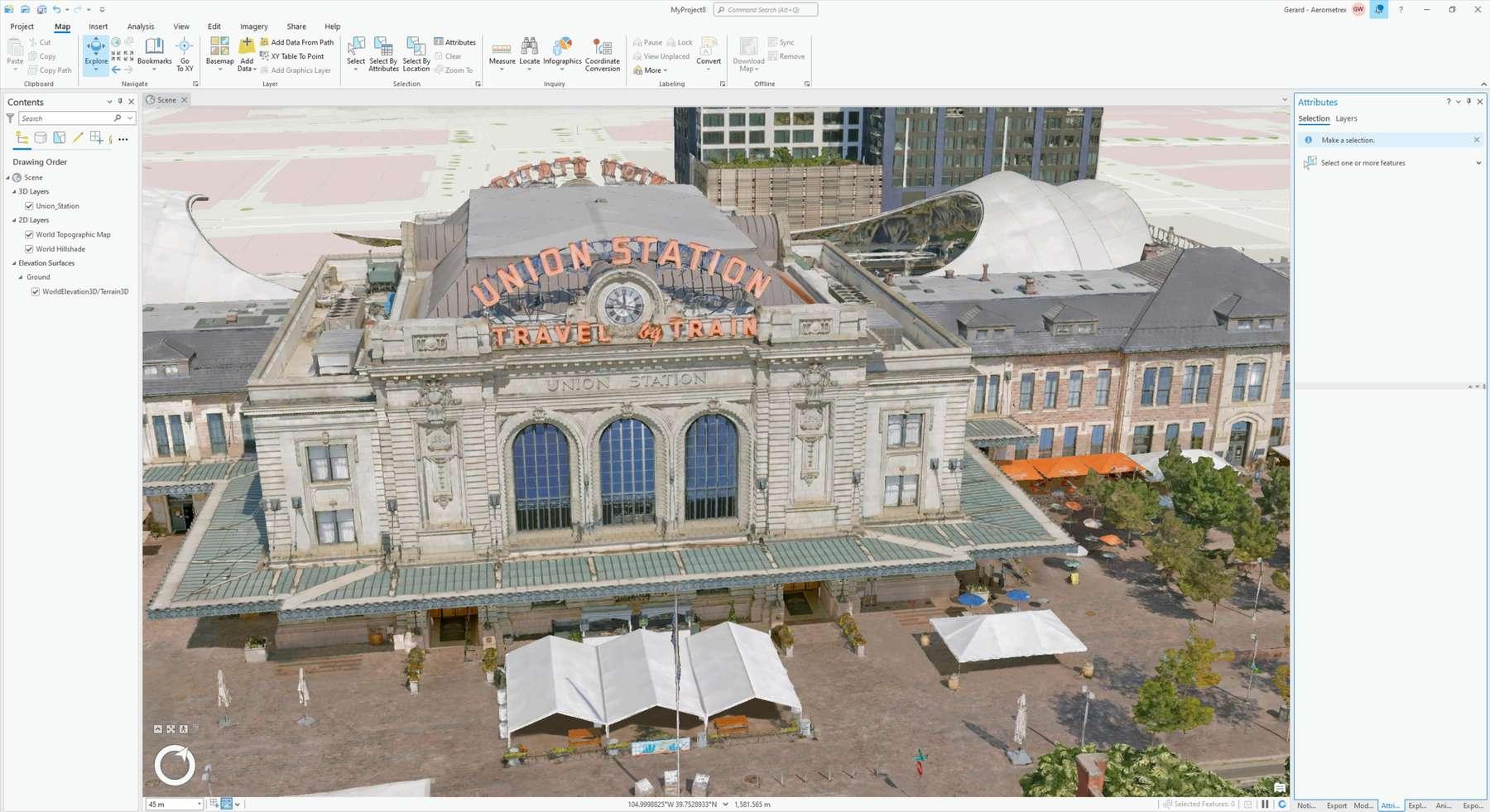

3D Image Dedicated For Esri

3D Image Dedicated is a managed Software-as-a-Service (SaaS) data hosting pipeline offered by Aerometrex in collaboration with Esri. This service enables customers to seamlessly stream 3D data from AWS into ArcGIS and other Esri products

Organisations aiming to optimise the distribution of 3D data, particularly those utilising an Esri-based environment, will nd this service highly benecial. Ideally, it suits teams requiring ecient access and managing large 3D datasets.

Seamless Integration

Stream data seamlessly into a range of Esri products including ArcGIS Pro, ArcGIS Online, and more

Ecient Data Management Remote Accessibility

Manage extensive 3D datasets, including city-scale models that can reach hundreds of gigabytes in size

Distribute 3D data with ease to onsite & remote employees, contractors, or other stakeholders

Get Started In 3 Easy Steps:

Create A Project

Open ArcGIS and create a new Global Scene for your project

→ Add Data

Select “Add Data” from the Map tab and click “From Path ” Then, enter the provided URL and login credentials

→ View & Use Data

The data will be displayed within the Scene window and listed under the 3D Layers in the Contents window

Our Other Solutions

MetroMap Imagery

Access our high-resolution aerial imagery by subscribing to MetroMap We capture major locations across metropolitan & regional Australia regularly each year whilst constantly looking at expanding our coverage footprint. In addition to gaining access to our ongoing captures, MetroMap provides you with a rich archive of historical data going back decades MetroMap can save you time by enabling remote measurements and project management Accessible via our MapViewer, or in your own GIS with an API, MetroMap offers spatially accurate maps Learn More

Airborne LiDAR

Our LiDAR sensors acquire details of the terrain and above-ground features such as vegetation and infrastructure, with accuracy & resolution unparalleled by other airborne methods We offer largescale, high density, and high accuracy three-dimensional models of the landscape, whether it be rural or urban environments From point clouds and elevation models to simultaneous-captured aerial imagery, our LiDAR surveys offer quality at great value Learn More or visit our LIDAR Product Catalogue.

KEY USE CASES

3D models are a multi-industry and multi-use solution for visualising, managing, and monitoring changes to your areas of interest. Precise measurements, and accurate geolocation provides context to your projects, helps develop and visualise scenarios, and offers a comprehensive base dataset for change monitoring

Our 3D models are often viewed as a valuable asset allowing users to interact and extract real 3D information in both natural and built environments

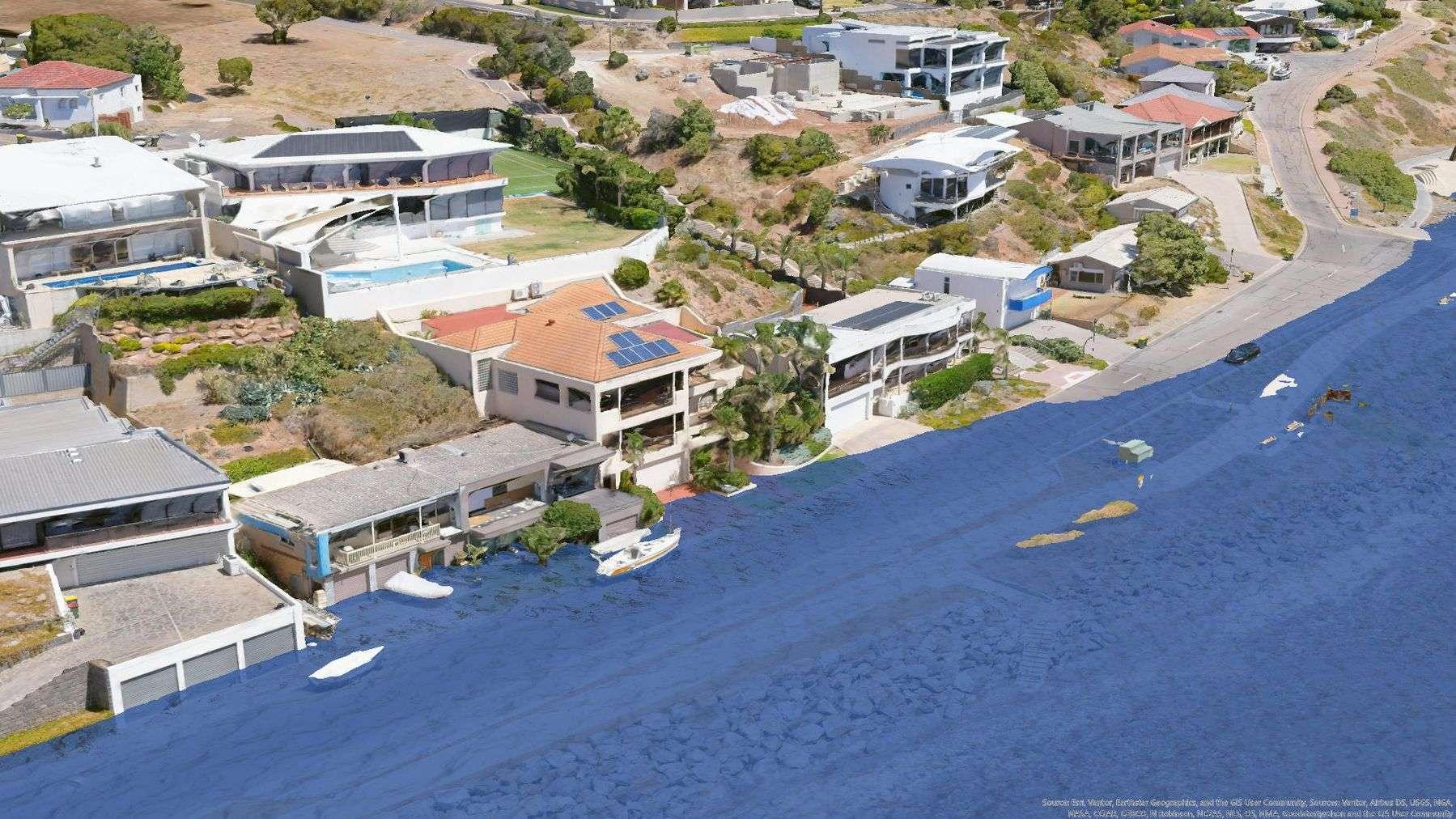

Environmental Monitoring, Compliance & Risk Assessment

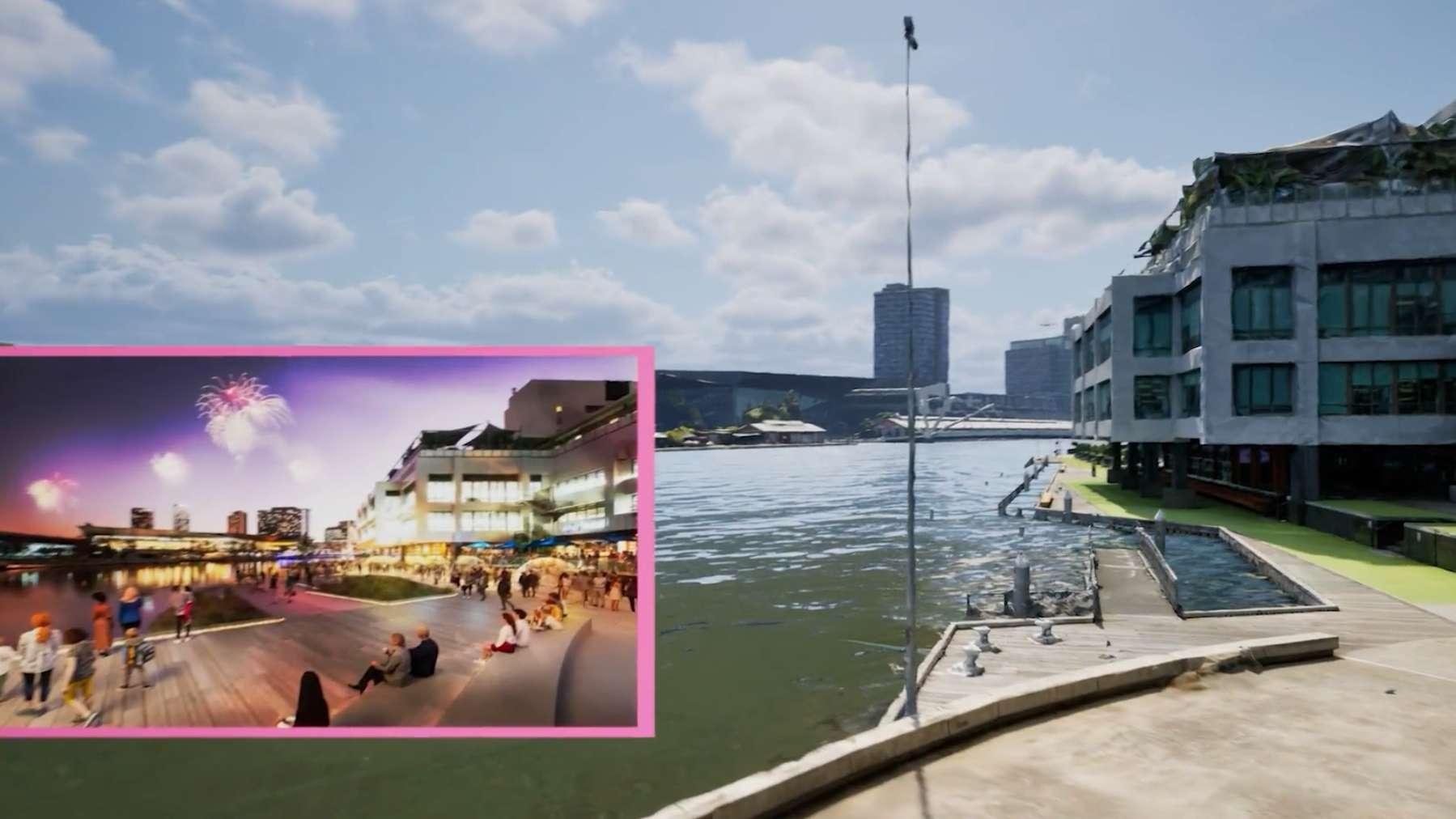

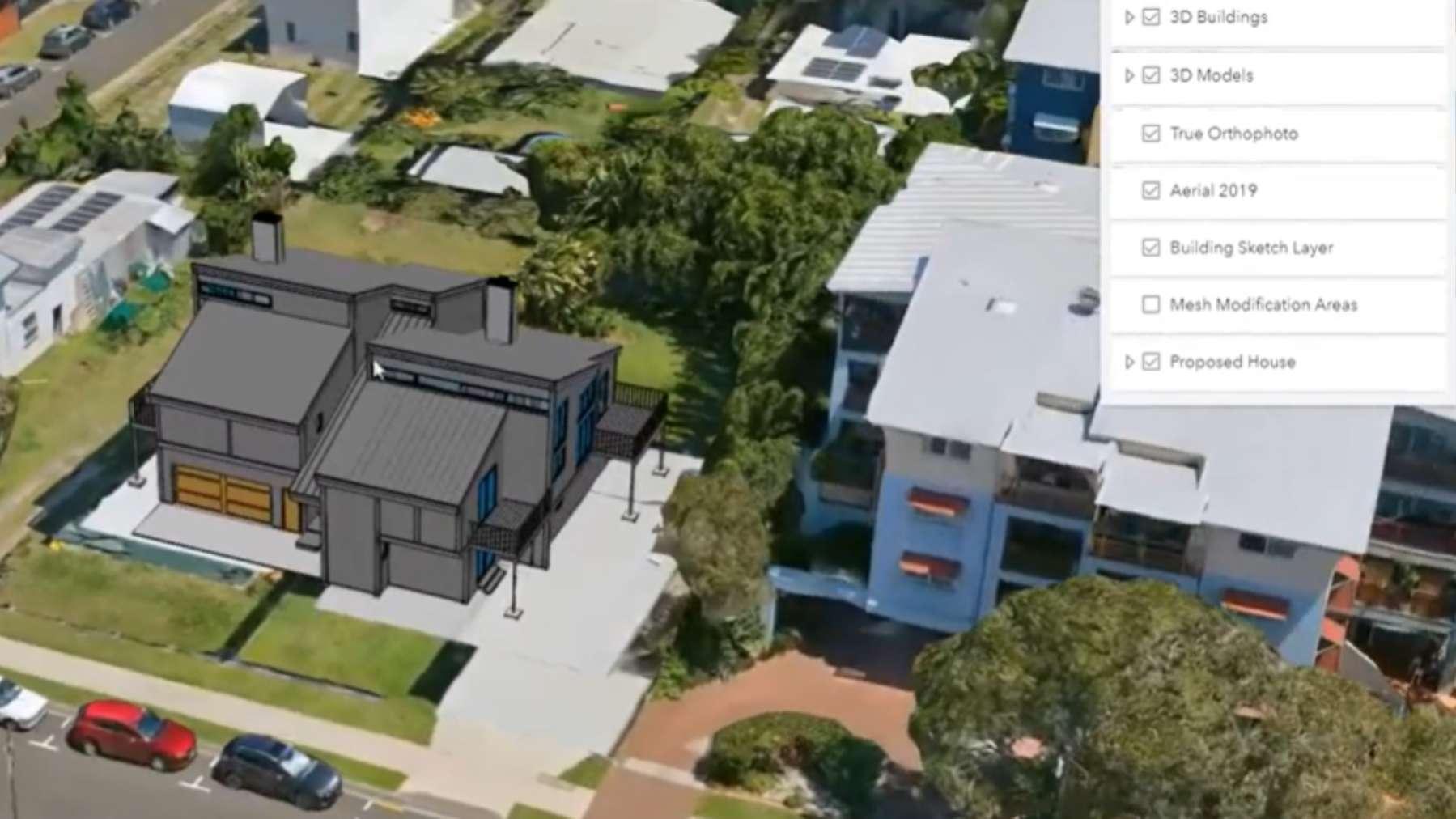

New Design Integrations, Planning & Community Engagement

Transit-Oriented Development

Read Case Study

"With 3D data, we can show developments in real-time context This investment isn't just about better visualisation – it's about building a foundation for smarter city planning Every month we nd new ways to use our 3D model helping in building a more connected, bettermanaged city "

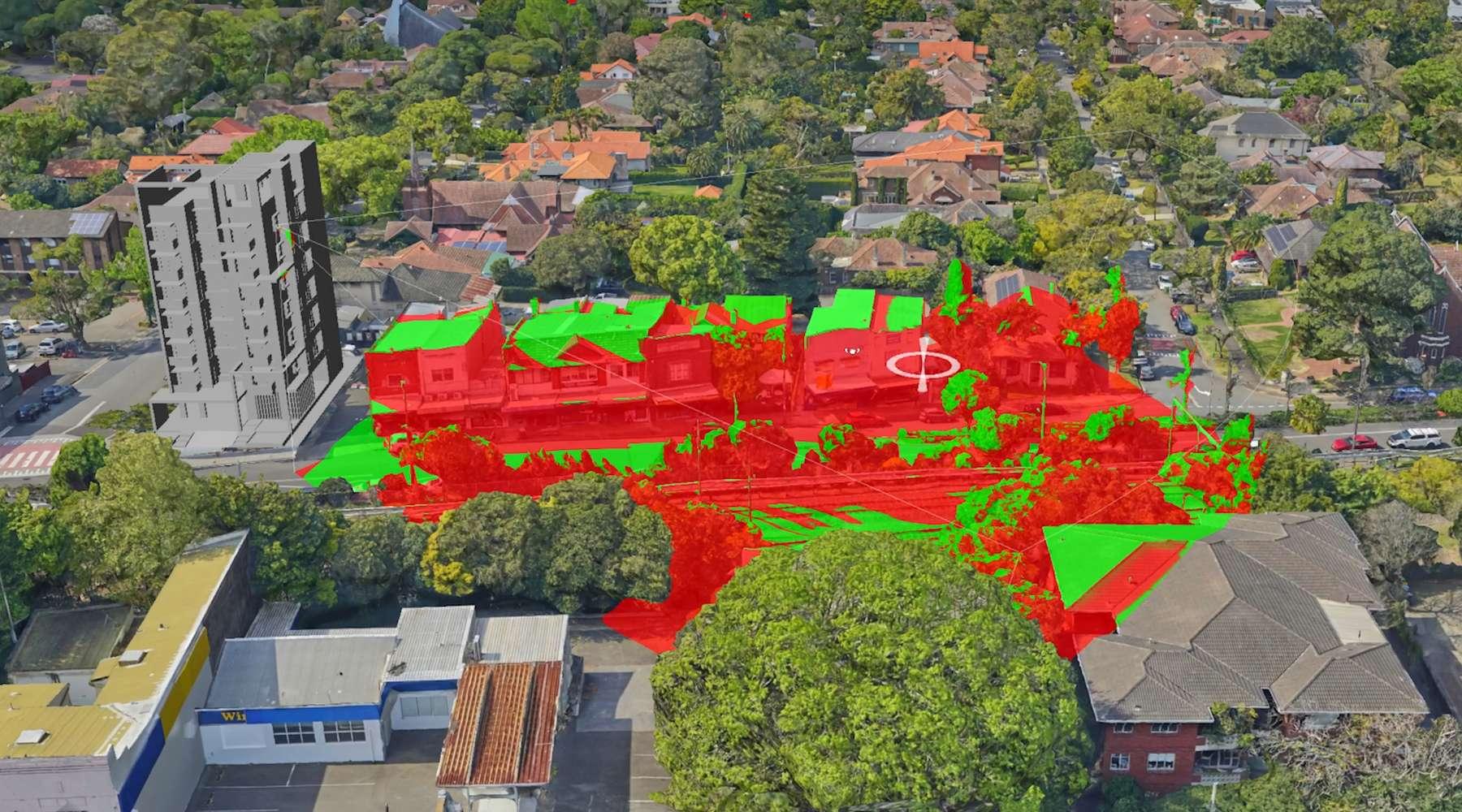

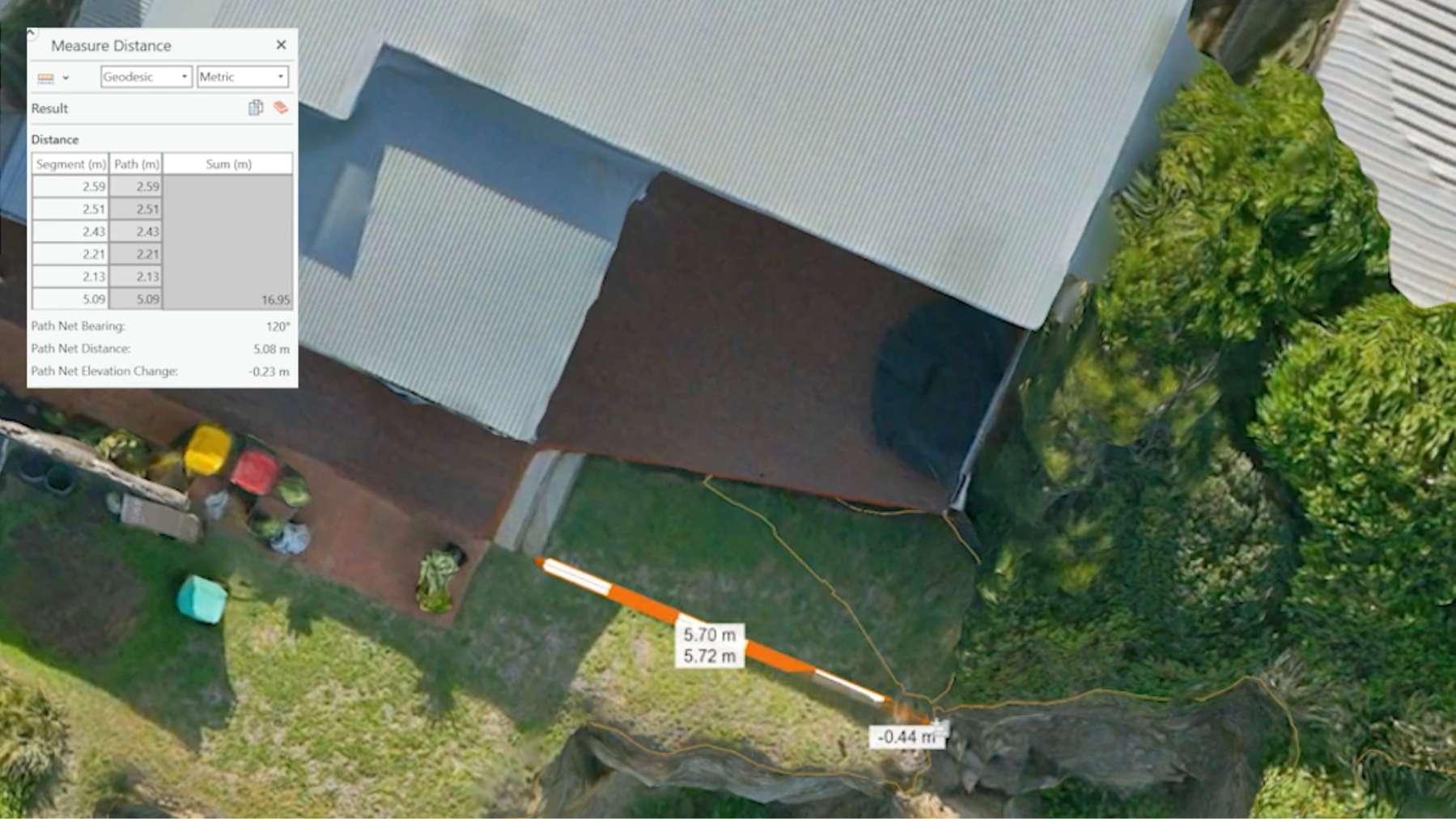

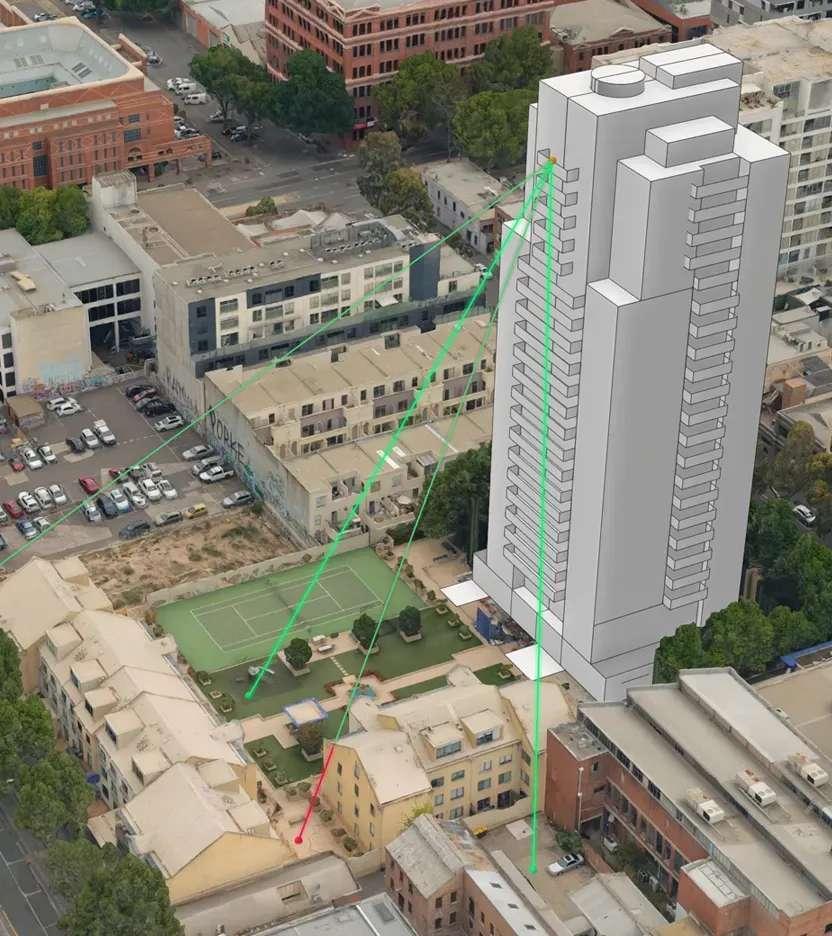

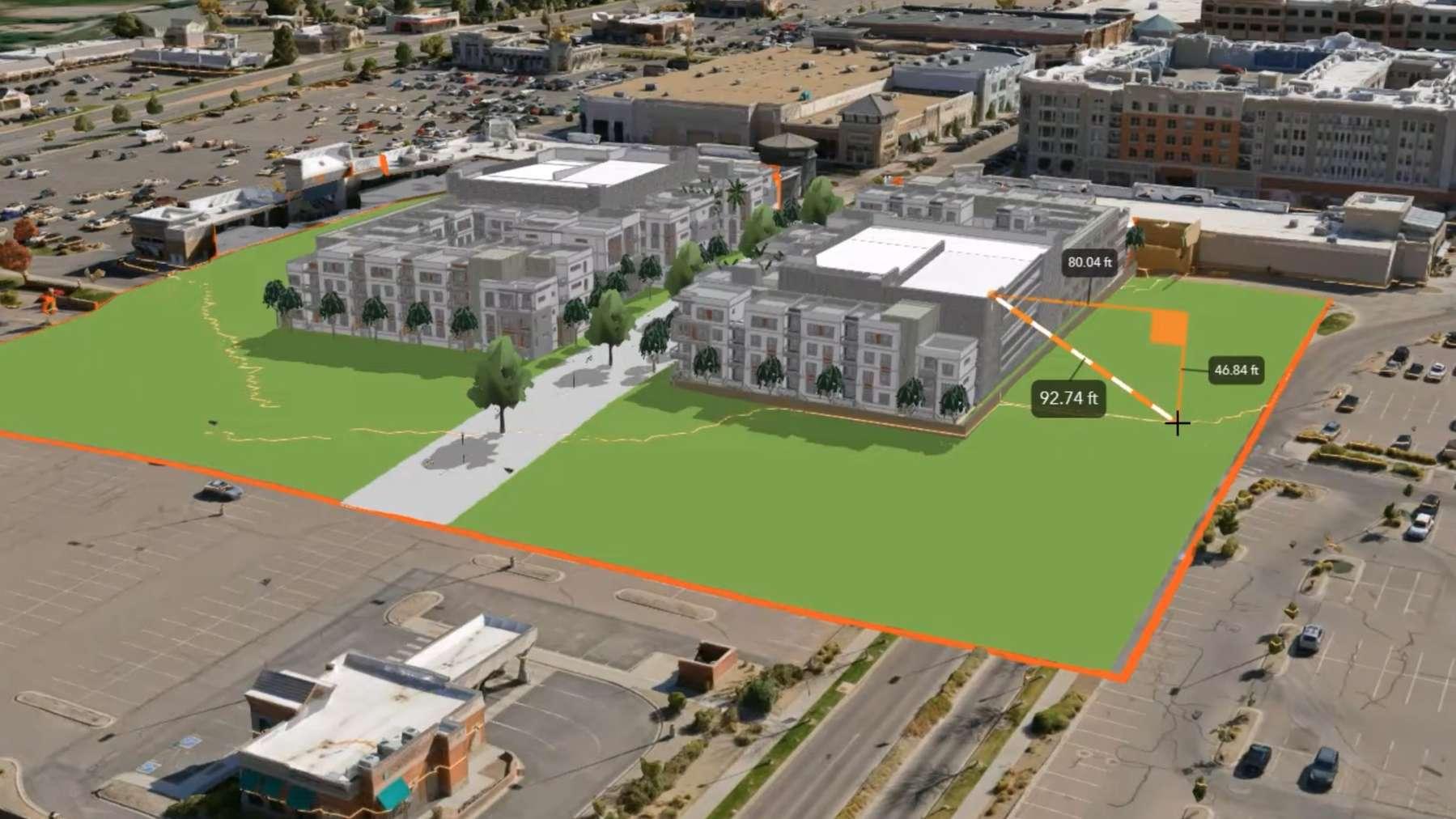

Measurements, Line Of Sight Viewpoints & Shadow Analysis

Assessing complex proposals can be time-consuming and prone to errors With high-resolution 3D models, your organisation can visualise planned developments with precision, identify overshadowing or privacy issues early, and streamline approval processes, saving both time and resources.

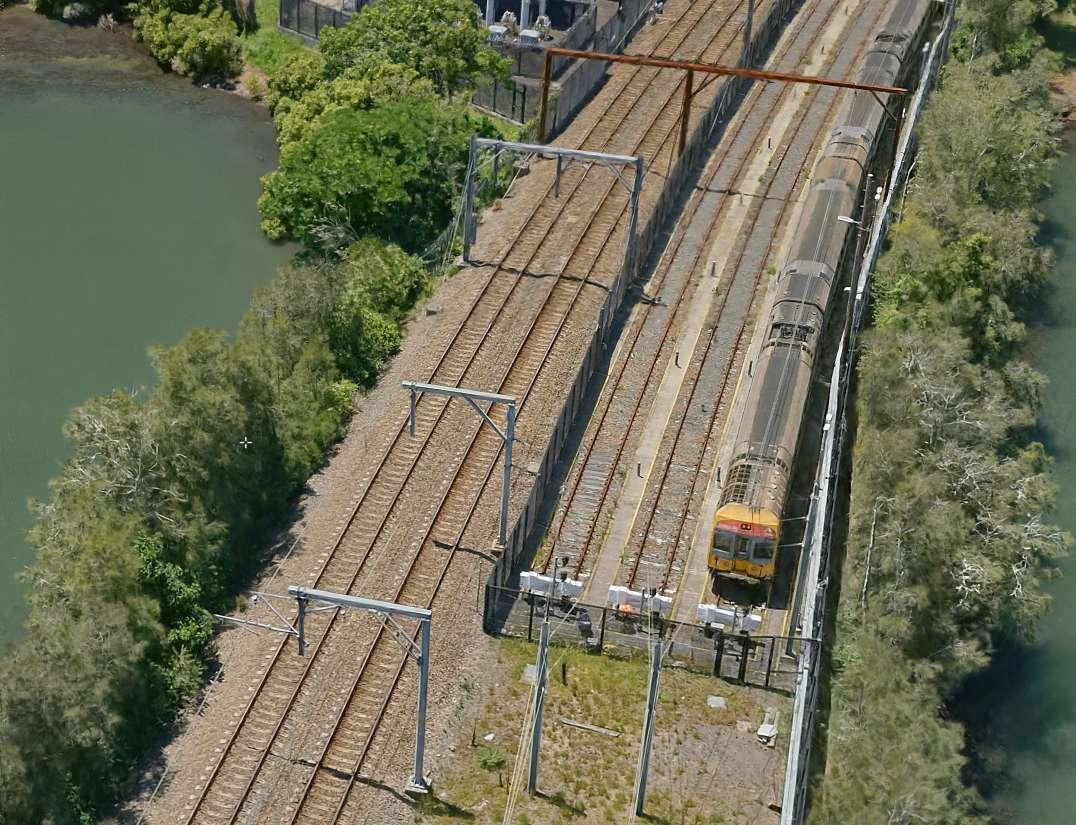

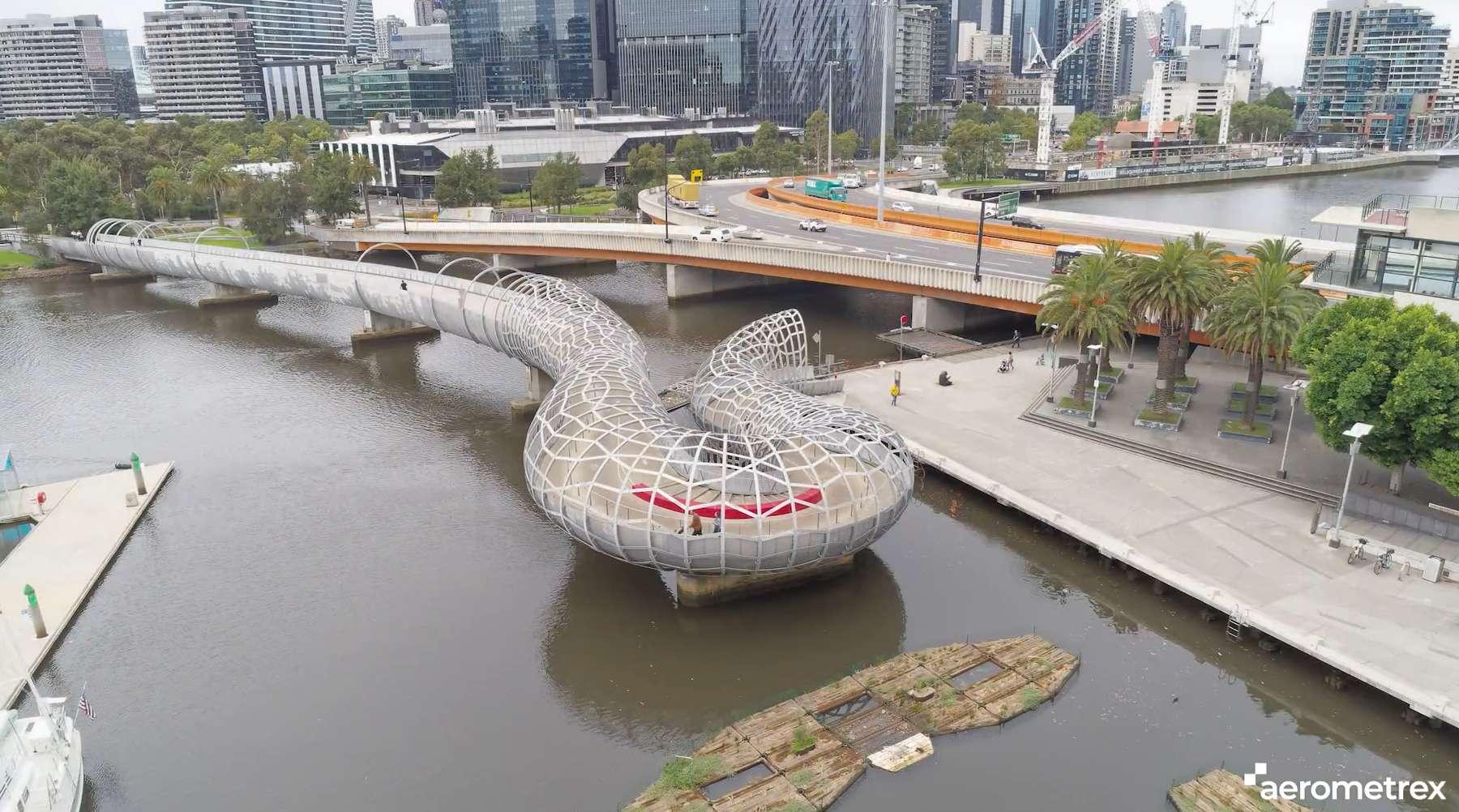

Clarity For Complex Infrastructure & Stakeholder Engagement

Our 3D reality modelling integrates seamlessly with other spatial datasets, providing a cohesive digital representation of complex asset environments 3D mesh reality models create detailed, photo-realistic representations of energy and utility environments by combining aerial imagery with spatial geometry. These models provide intuitive visual context that supports both technical analysis and communication.

Key benets for your team:

Understand assets in context – see infrastructure within their true environment

Improve planning and design reviews – assess interfaces, constraints and impacts visually

Enhance training and scenario planning – use realistic models for familiarisation and preparedness

Communicate clearly with stakeholders – share intuitive visuals to support decisions

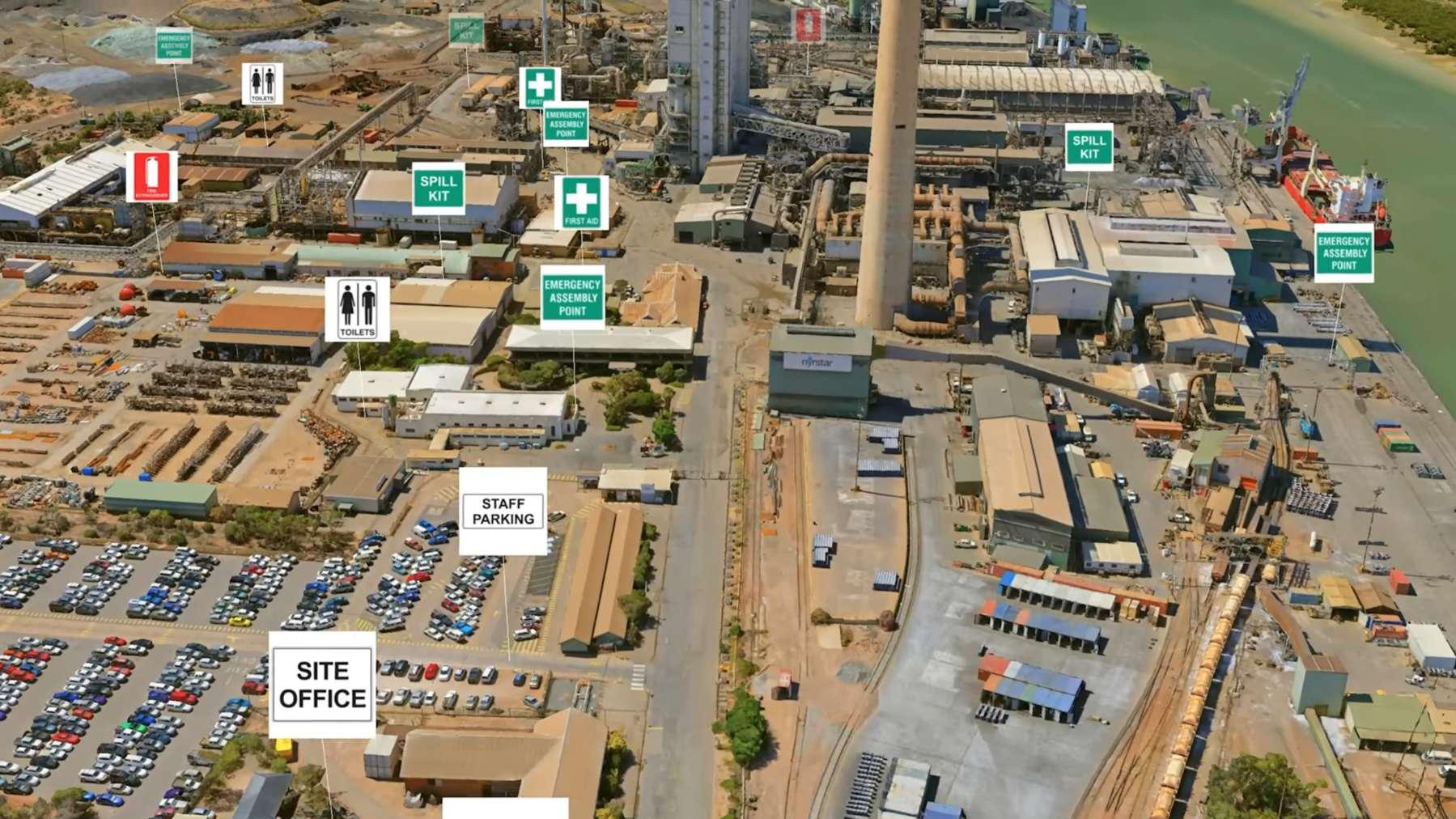

Enhancing Asset Management & Safety

Read Case Study

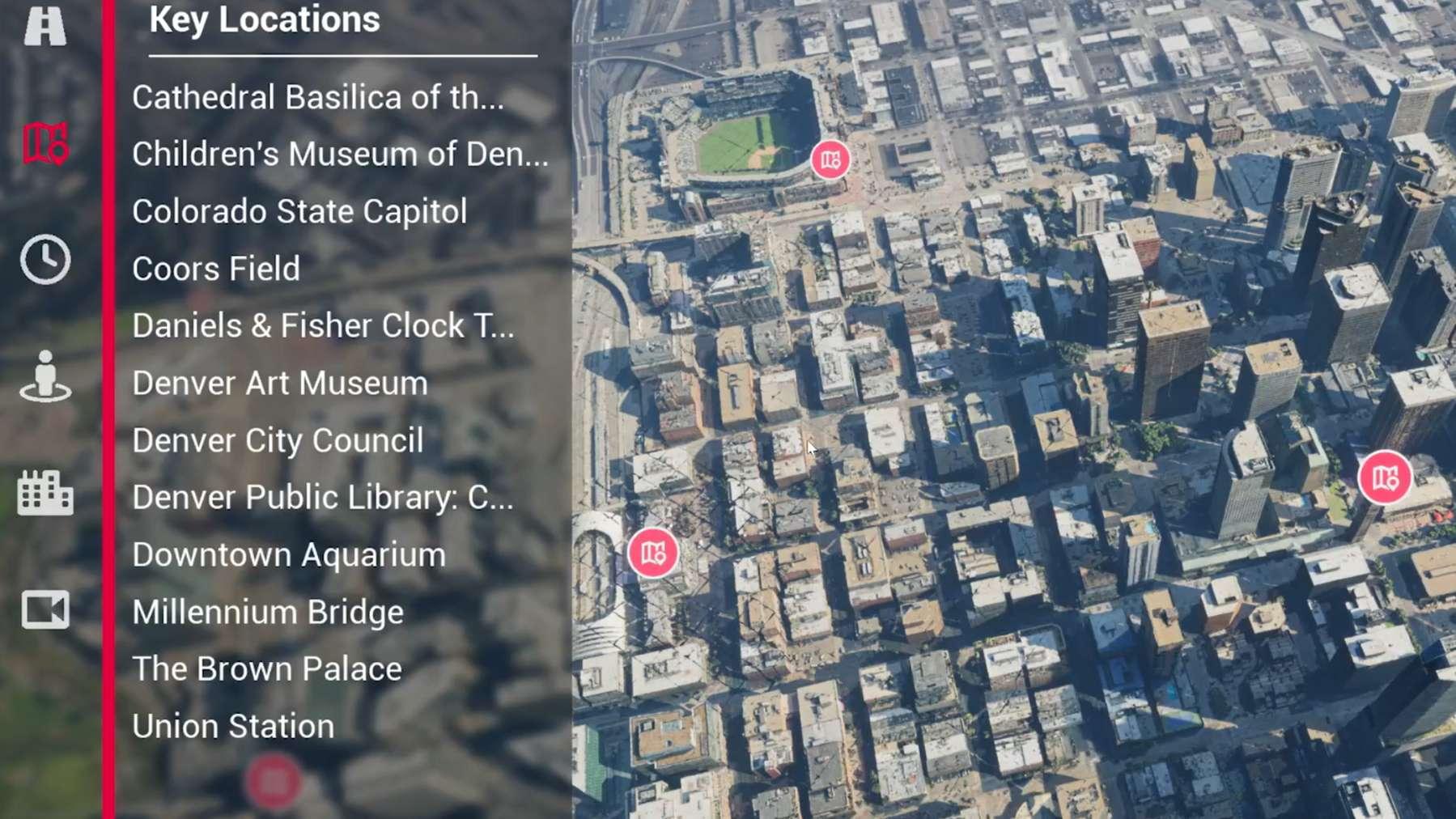

Digital Twins For Government, Resources, Insurance, Construction & Telco.

Showcase video presenting the rst stage of a high resolution (1 inch / 2 cm GSD) mesh model Recommended Watch

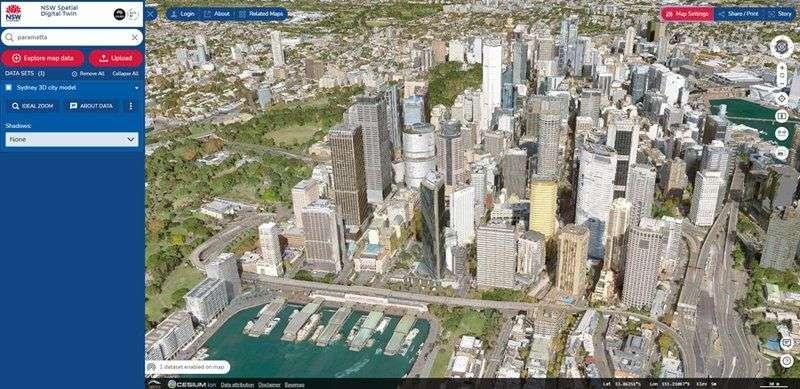

The NSW Spatial Digital Twin: incorporating one of the largest 3D modelling projects ever undertaken Read Case Study

“The high availability of aggregated data will help with planning future development Using the digital twin, we can model where we put the roads, hospitals, schools, etc with precision planning like we’ve never done before This is truly transformational technology and the best thing about it is that it’s open source – industry can use it, councils can use it, everybody can get involved and build this asset together for all of us

Department of Natural Resources, Mines and Energy (DNRME): 3D Modelling to Support the Cross River Rail Project

Read Case Study

The Department of Natural Resources, Mines and Energy (DNRME) are Queensland’s lead agency for spatial information Land and Spatial Information is responsible for acquiring, creating and maintaining foundation spatial datasets, including imagery (aerial, drone and satellite) and elevation (including raw las, digital elevation models and contours)

The Cross River Rail project had an immediate need for a data set to support stakeholder engagement, simulations, community consultation and project planning activities Being one of Queensland Government’s highest priorities, the required datasets were to be of the highest quality The nal product had to be free from cloud, smoke, haze, cloud shadow and processing distortions As part of the project, Aerometrex delivered normal resolution & high-resolution 3D mesh models, in addition to a 2D orthophoto derived from the capture and metadata for each deliverable

“A combination of the 3D layers and gamication allows you to literally walk around the model before it gets built and make decisions using visualisation – decisions linked to crowd movement, disability access, etc Using the 3D model and timelapse, you can visualise the development over time and bring the project to life; you can see what the nal product will look like and where the project currently stands.”

Graeme Newton, CEO, Cross River Rail Delivery Authority (CRRDA)

The CRRDA project really was a rst of its kind in Australia where BIM, GIS and 3D modelling have been fully integrated on a major infrastructure project and across multiple use cases

A key learning that has been stated by the CRRDA team, is to acquire the 3D modelling early, so it can be used consistently across the project lifecycle and not just as a sales and marketing tool for the project These lessons have now been taken on board and used for similar projects across the state

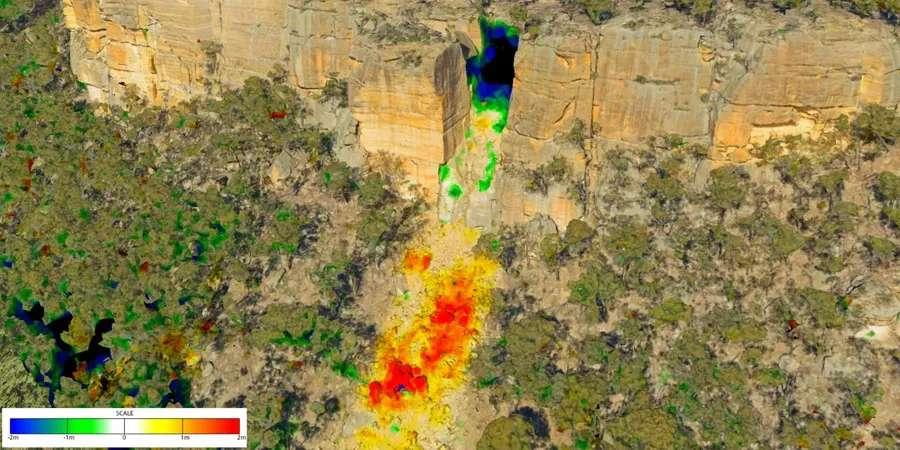

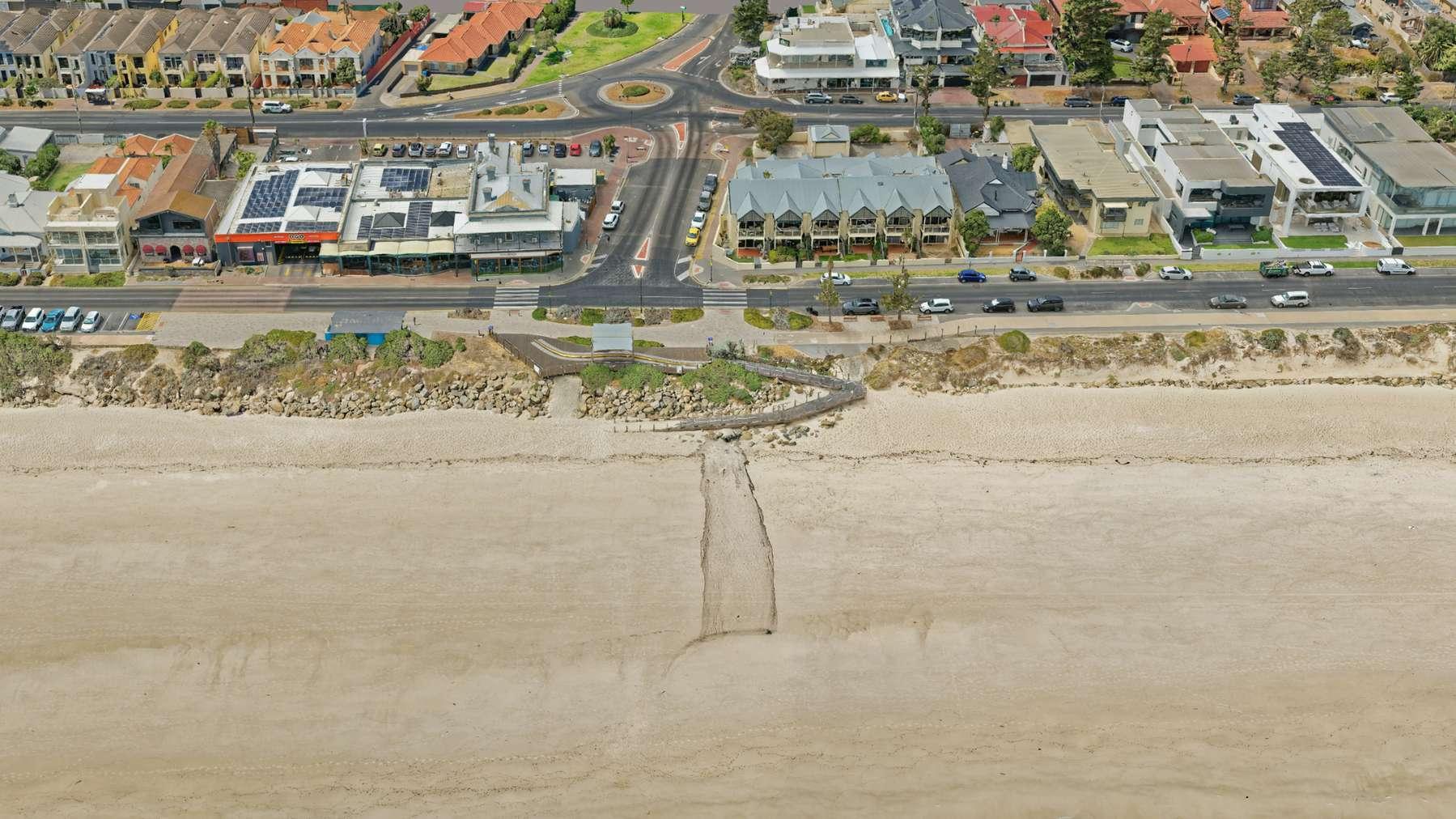

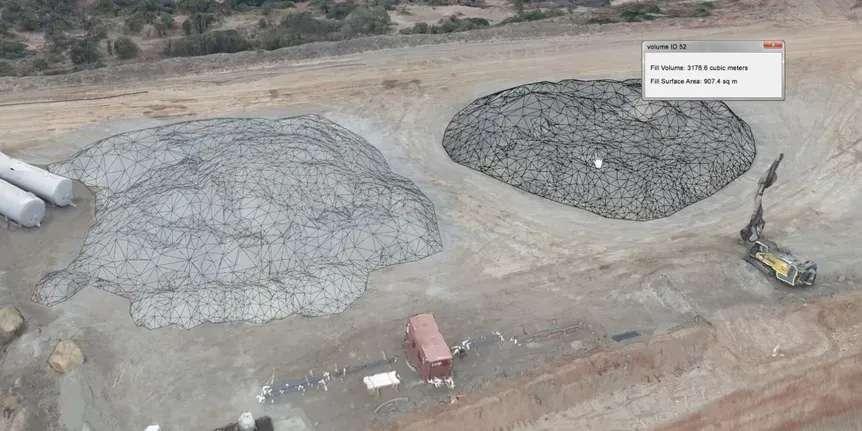

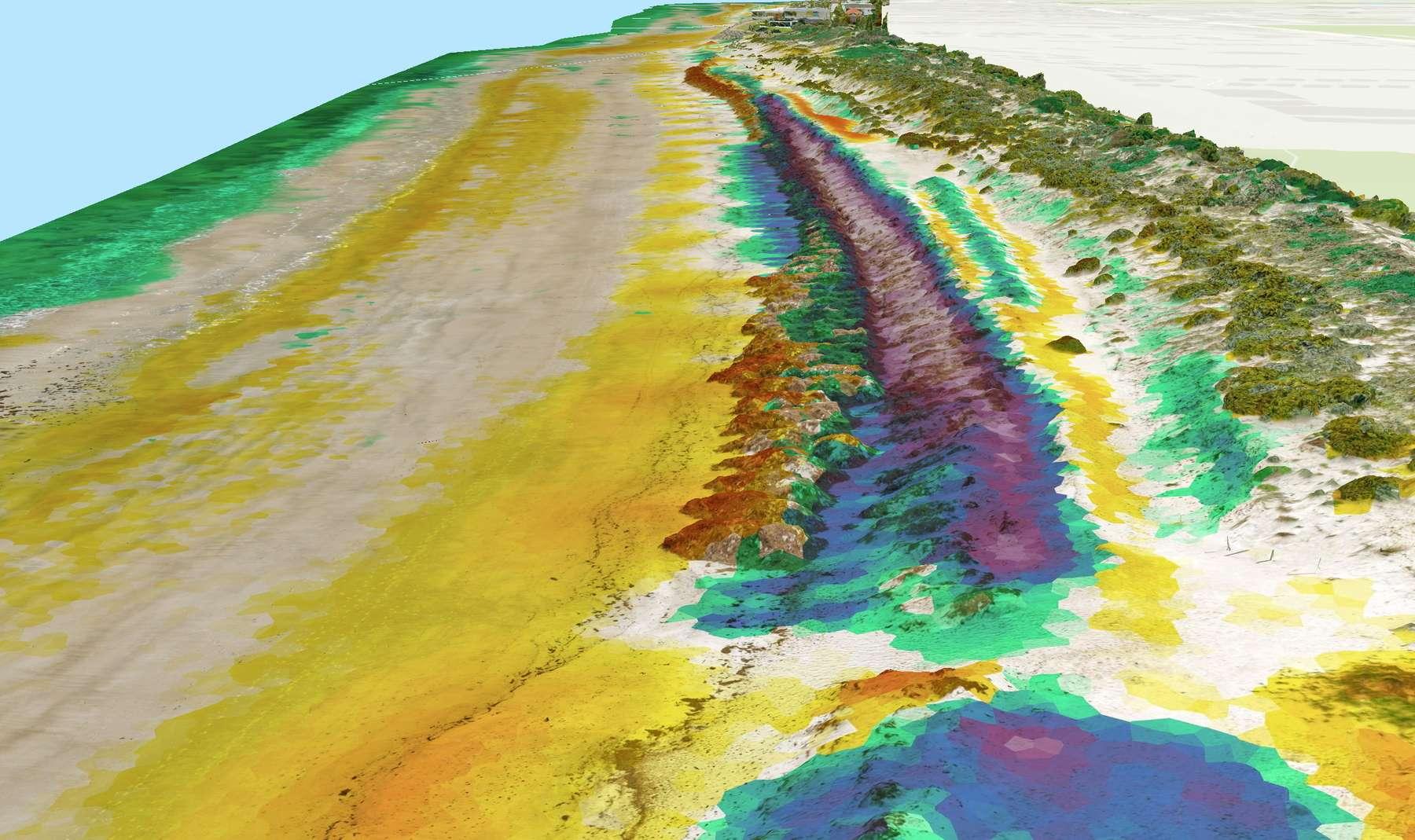

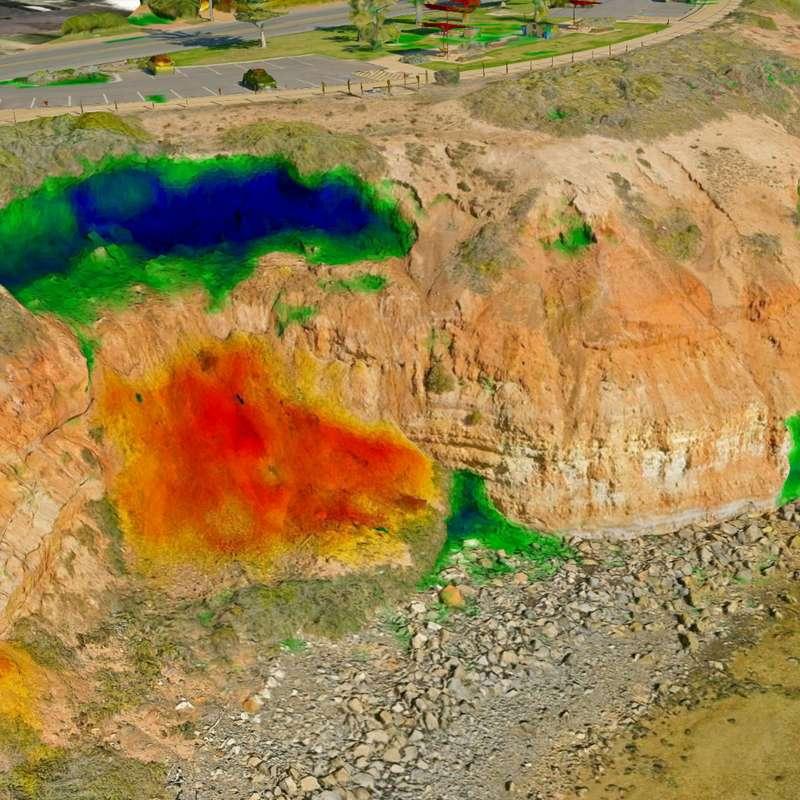

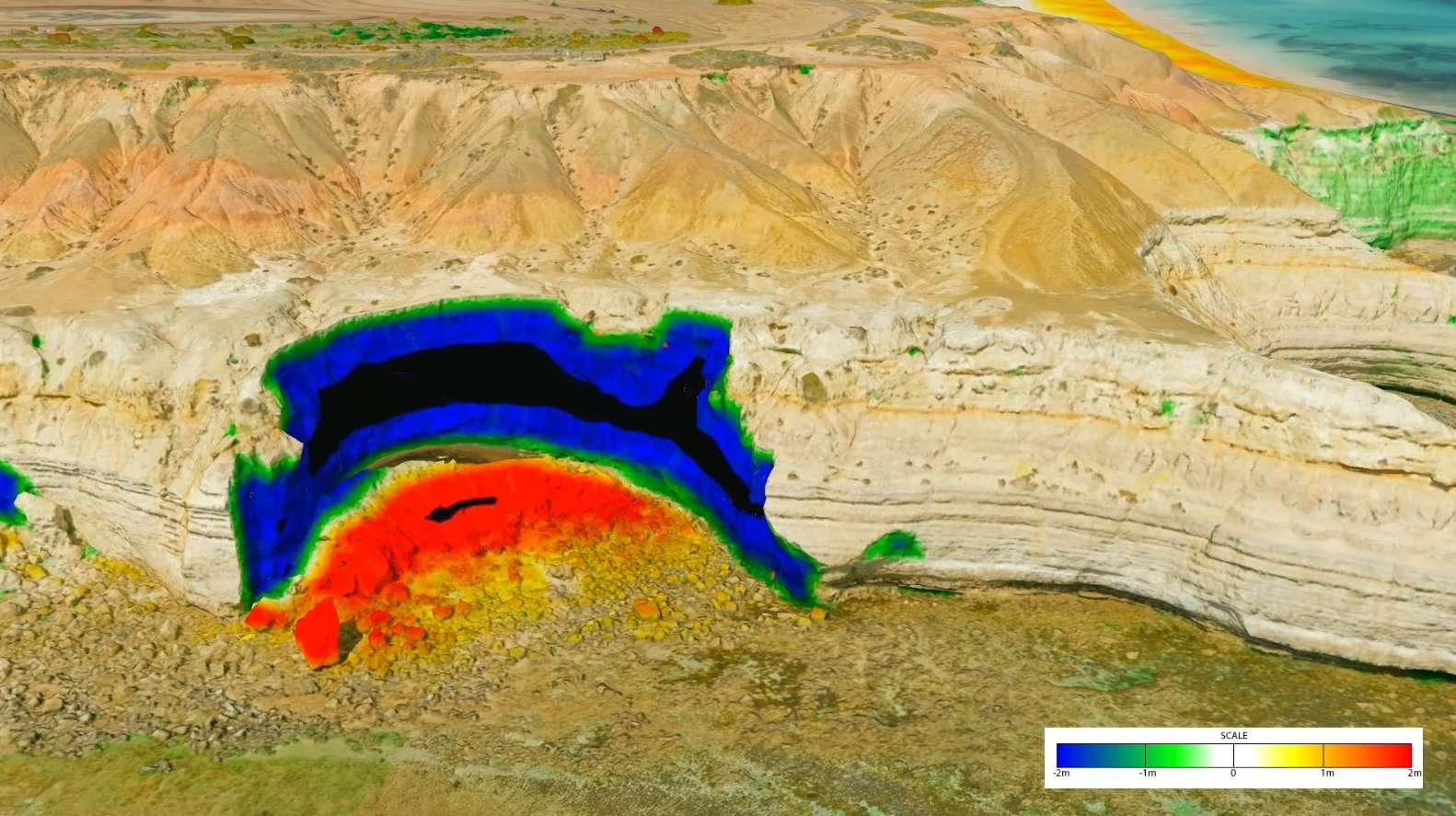

Change Detection, Terrain Analysis & Volume

Calculations

With Aerometrex 3D, users can visualise change, analyse scenarios like ooding or erosion, perform accurate volume analysis for stockpile management and earthworks, and communicate effectively with stakeholders - all within a seamless spatial environment that supports better decision-making and response planning.

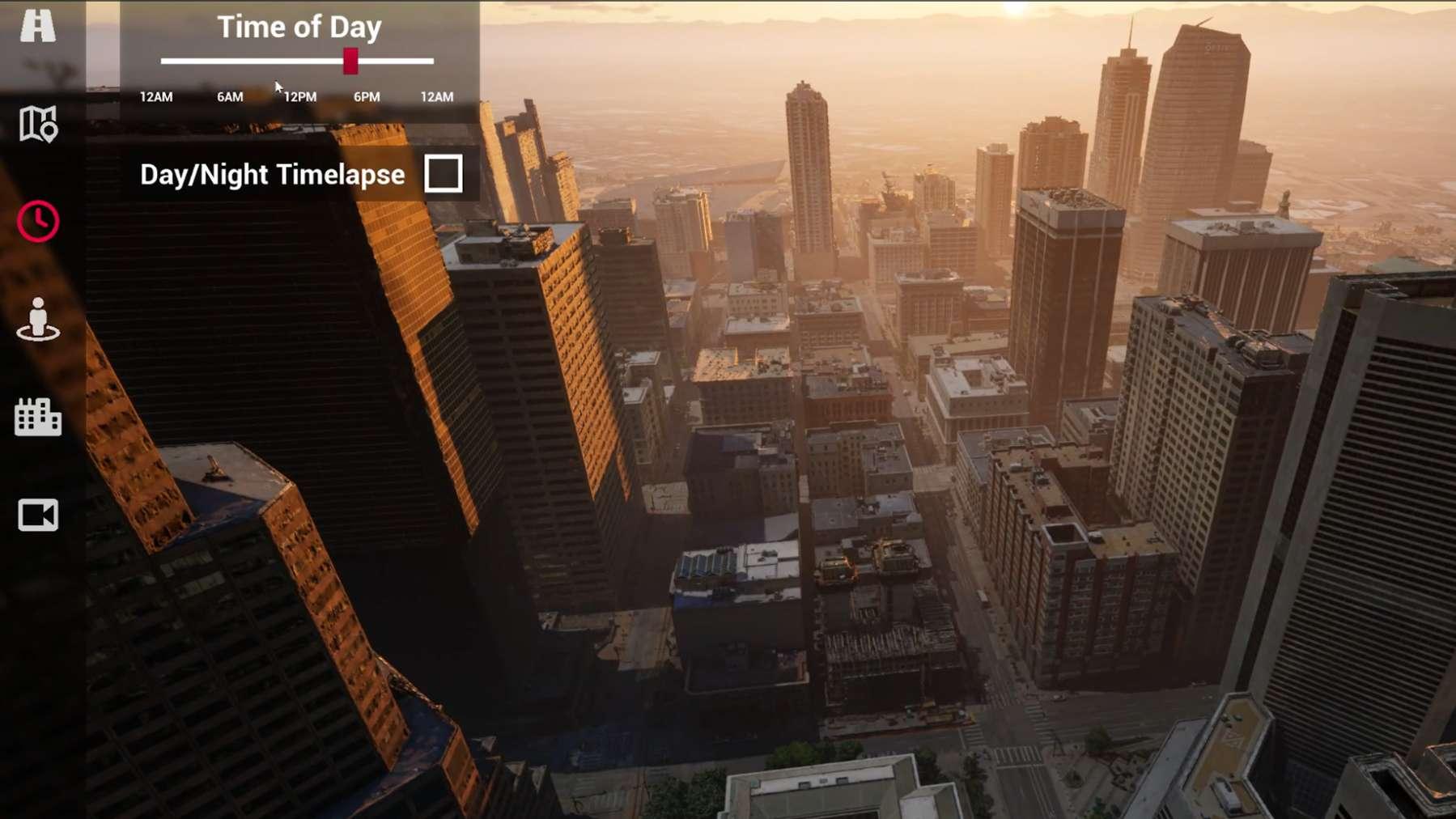

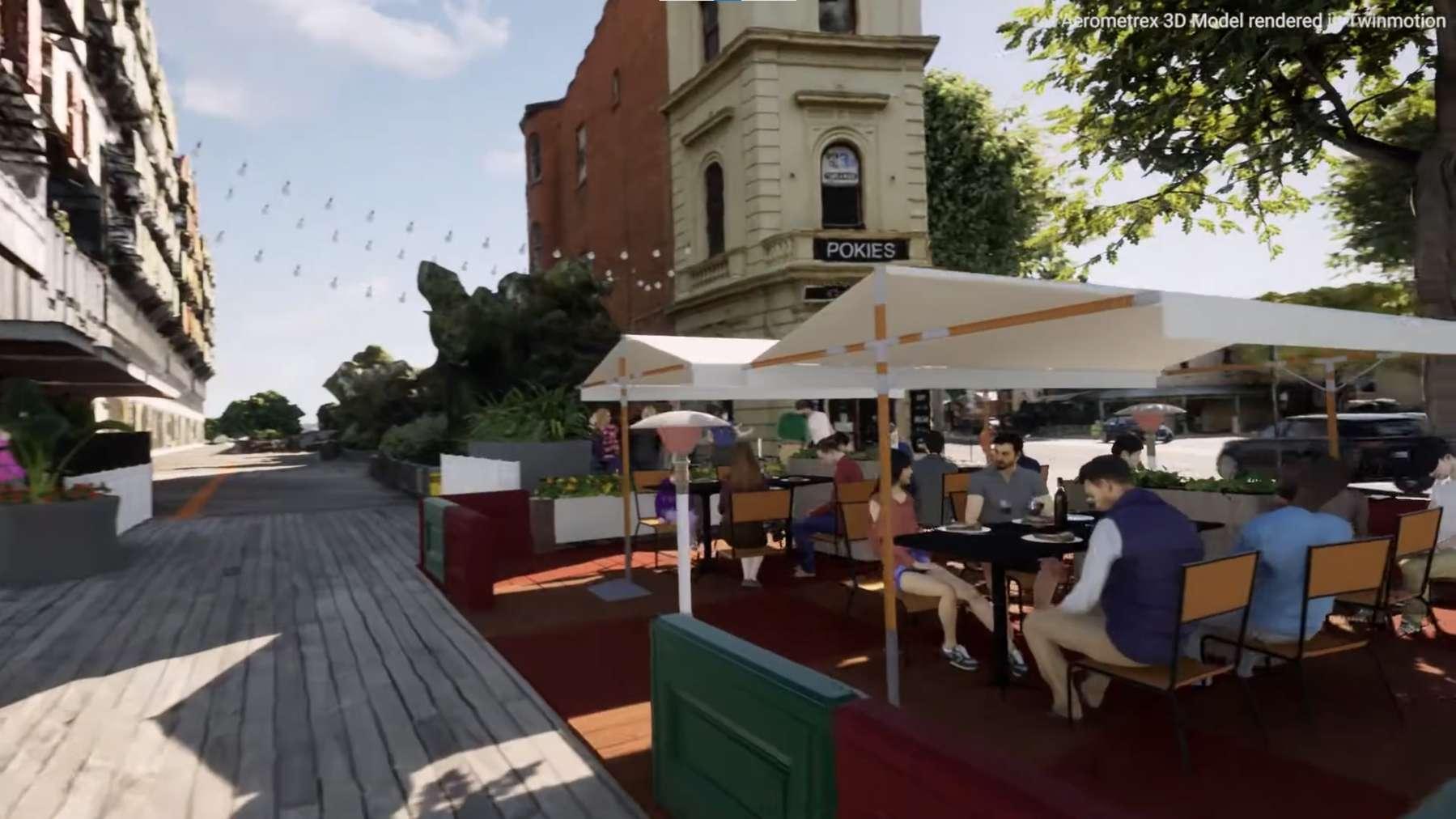

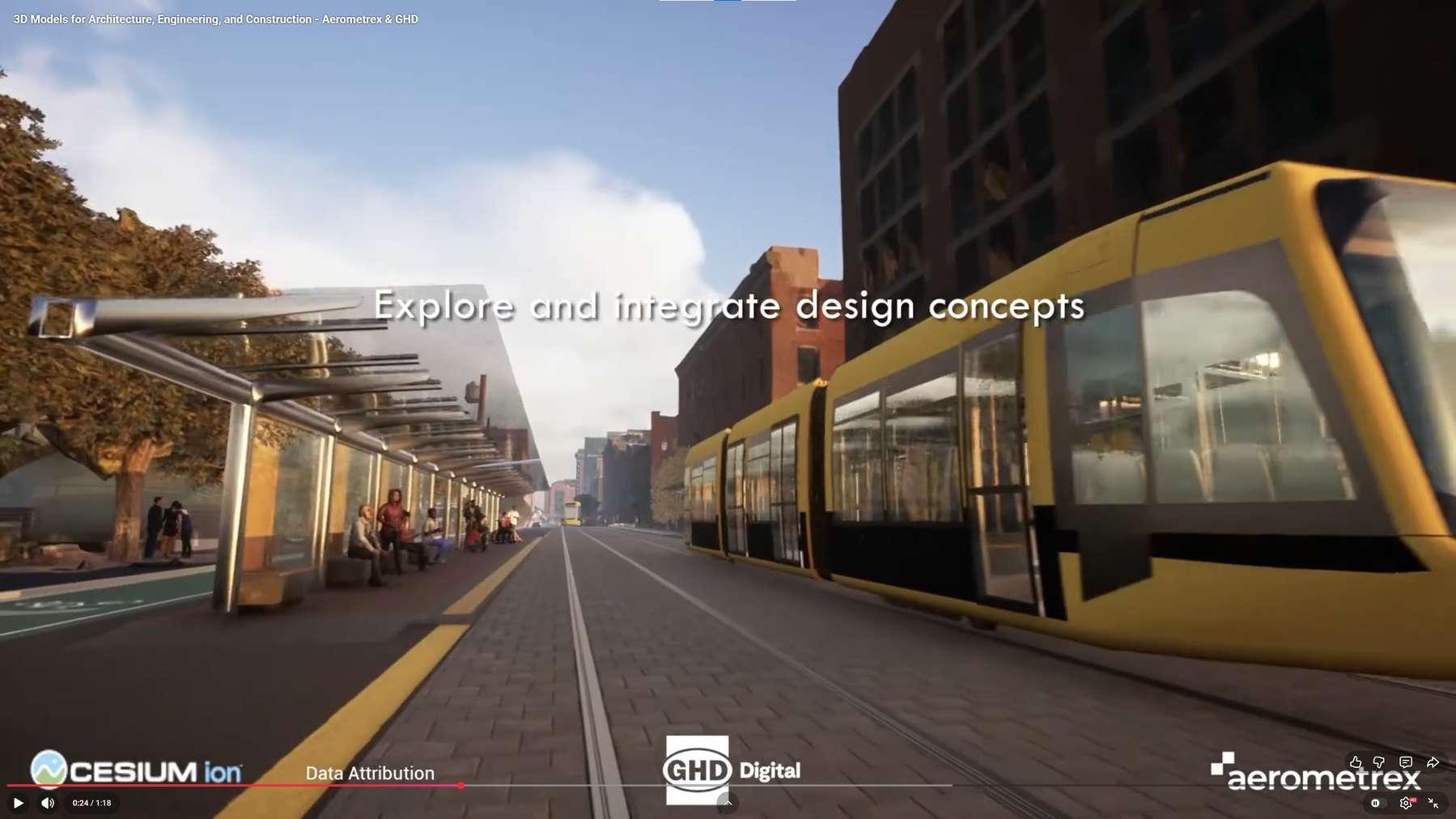

Visualisation For Current & Future Projects

Our visualisation services can support your organisation when you’re looking for more advanced and interactive solutions to complement your stakeholder communications, presentations or reporting Take community consultation and engagement to the next level with the help of our visualisation experts

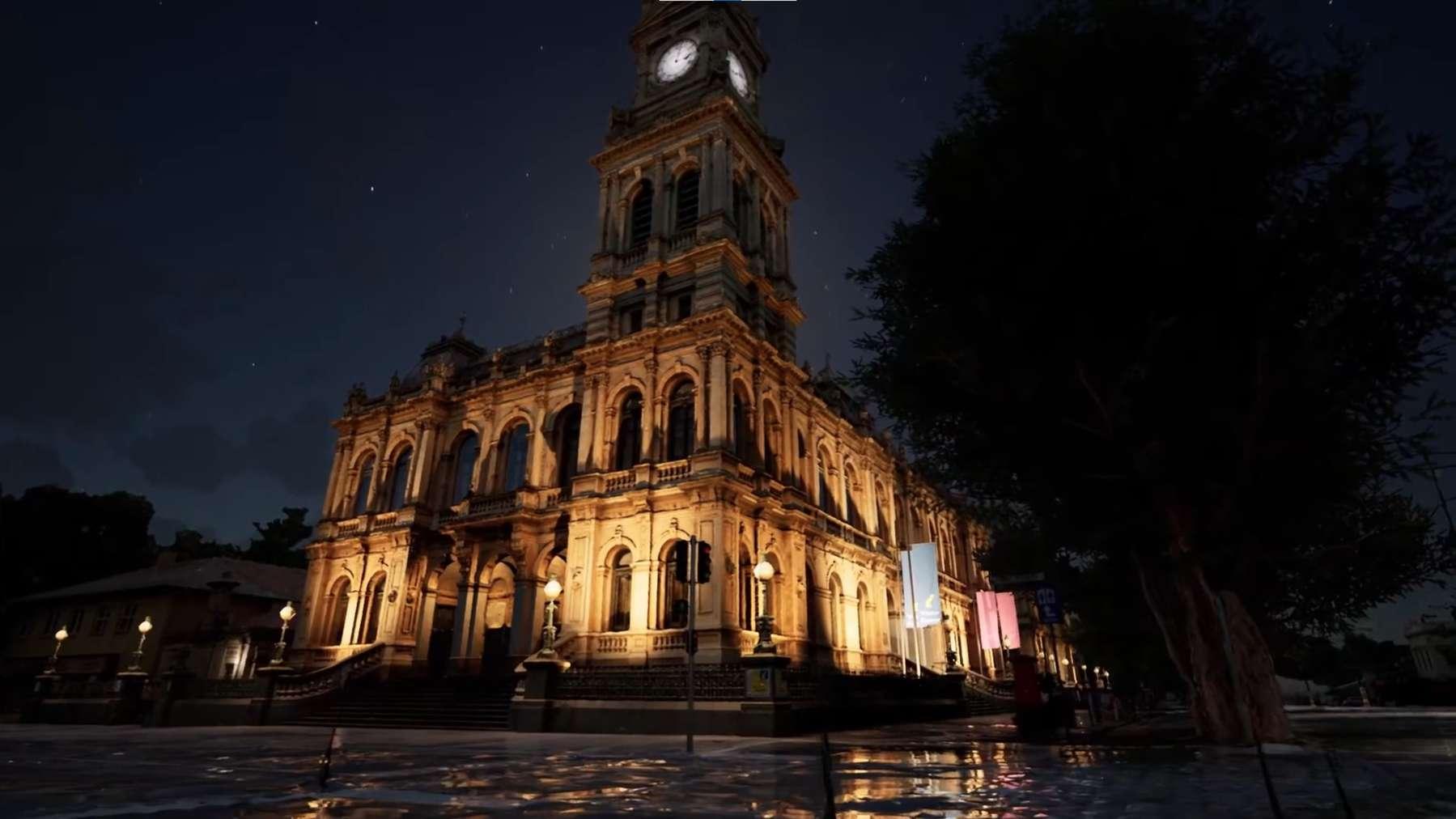

Gaming, Immersive Entertainment, Heritage & Virtual Tourism

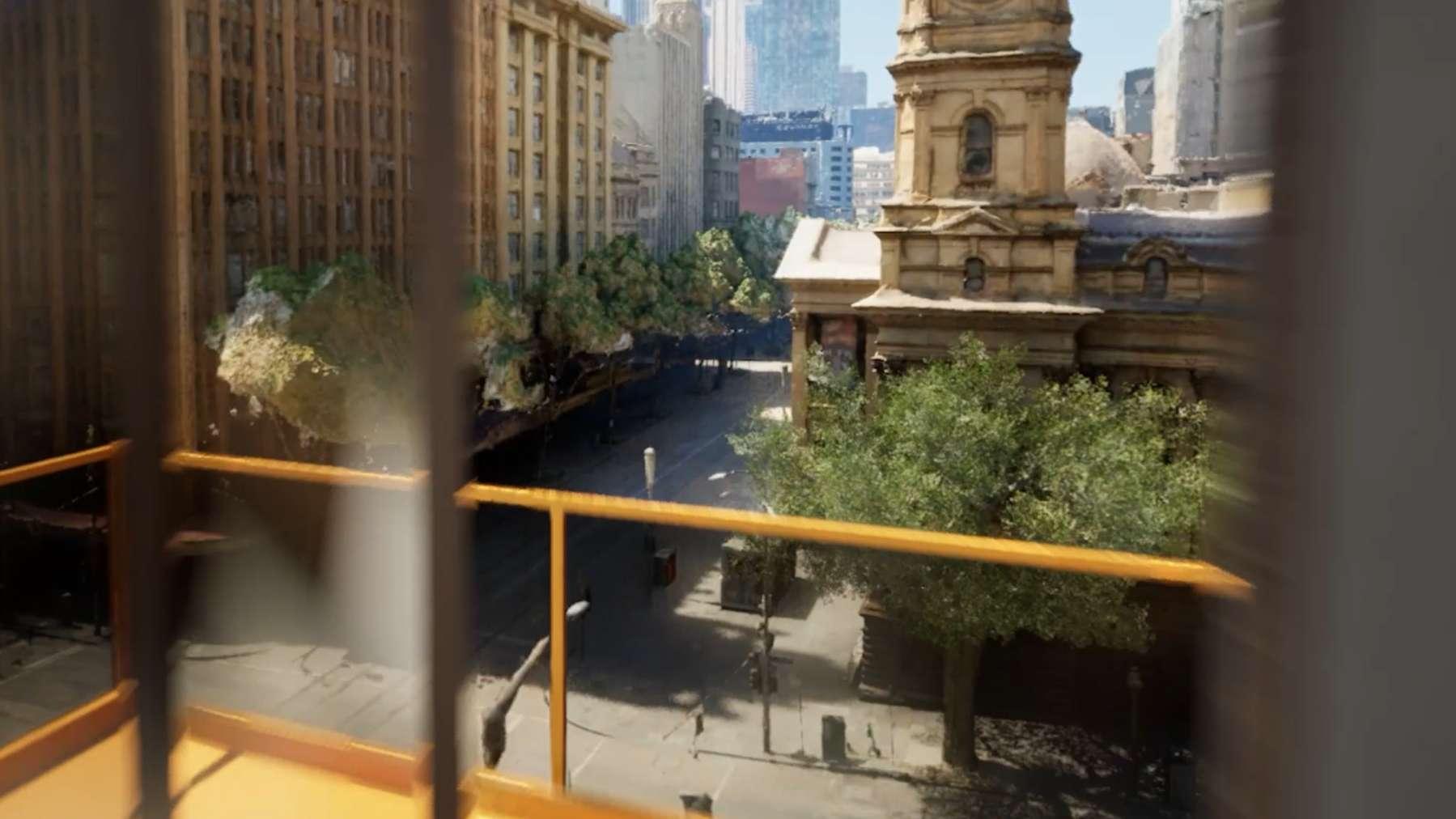

Recent advancements in AR/VR technology and Game Engines such as Unreal Engine when combined with high-quality 3D data, can provide exibility that can’t always be achieved with a physical environment The data, technology and creativity behind it make storytelling far more immersive and engaging

Aerometrex’s 3D modelling solution was recently used as a part of the tech powering NBC News Election Coverage Our 3D model of Rockefeller Plaza in the US became the iconic backdrop for election day news on NBC The size, scale and delity of the 3D dataset is breathtaking when seen on the big screens and provided an extremely immersive virtual environment for the studio

UNDERSTAND ENHACE IMPROVE COMMUNICATE

Remotely explore and analyse real-world locations with precision- measuring distances, areas and elevations, assessing assets, and visualising change over time

The result is improved planning, reduced reliance on physical site visits, and clearer communication and decision making across technical, operational and executive stakeholders.

Evolve With Aerometrex

As industries rapidly evolve toward digital, data-driven environments, having access to accurate, high-resolution 3D is no longer a luxury - it’s a competitive advantage

Aerometrex empowers your team with the tools to plan smarter, move faster, and operate with greater condence, all while reducing time on site and improving safety outcomes. Unlock new eciencies, streamline workows, and reduce operational costs with 3D data you can trust.

Whether you ' re enhancing internal decision-making or delivering compelling external experiences, Aerometrex provides the foundation to innovate, differentiate, and stay ahead of the curve

Gaussian Splats

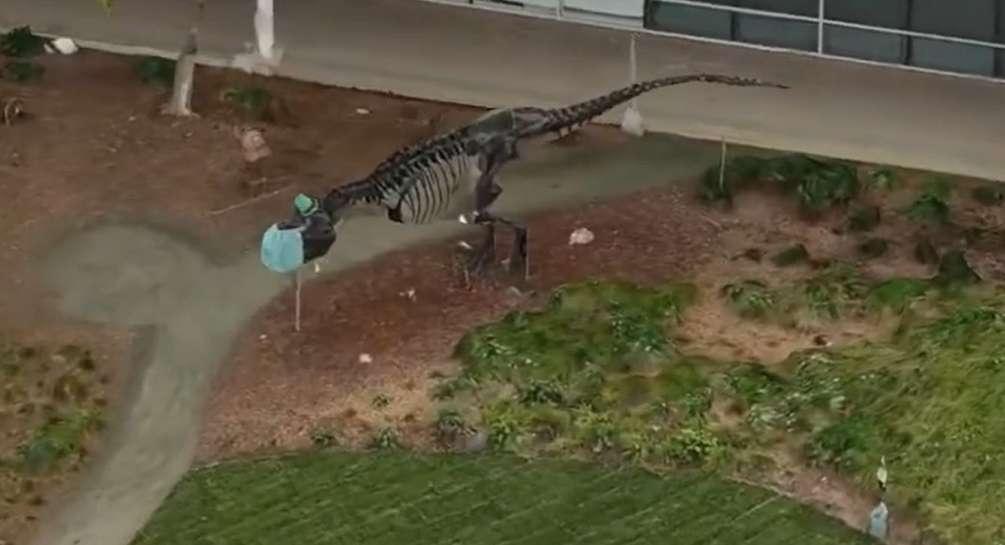

The dinosaur at Google's Mountain View headquarters (Googleplex) is a bronze replica of a Tyrannosaurus rex skeleton named Stan It is a prominent feature of the campus, designed to serve as a daily reminder to employees to evolve, adapt, and keep innovating to prevent the company from becoming a "dinosaur" (i e , becoming obsolete or extinct)

See Video: Silicon Valley Tech HQAerometrex 3D Models

Gaussian Splats are a new 3D technology that complement existing mesh outputs by revealing a more detailed view of ner objects like power lines, cranes, scaffolding and foliage We are excited to continue testing this new processing methodology and determine how it can assist in widening adoption for 3D datasets

in the geospatial industry
