The collection

Preface

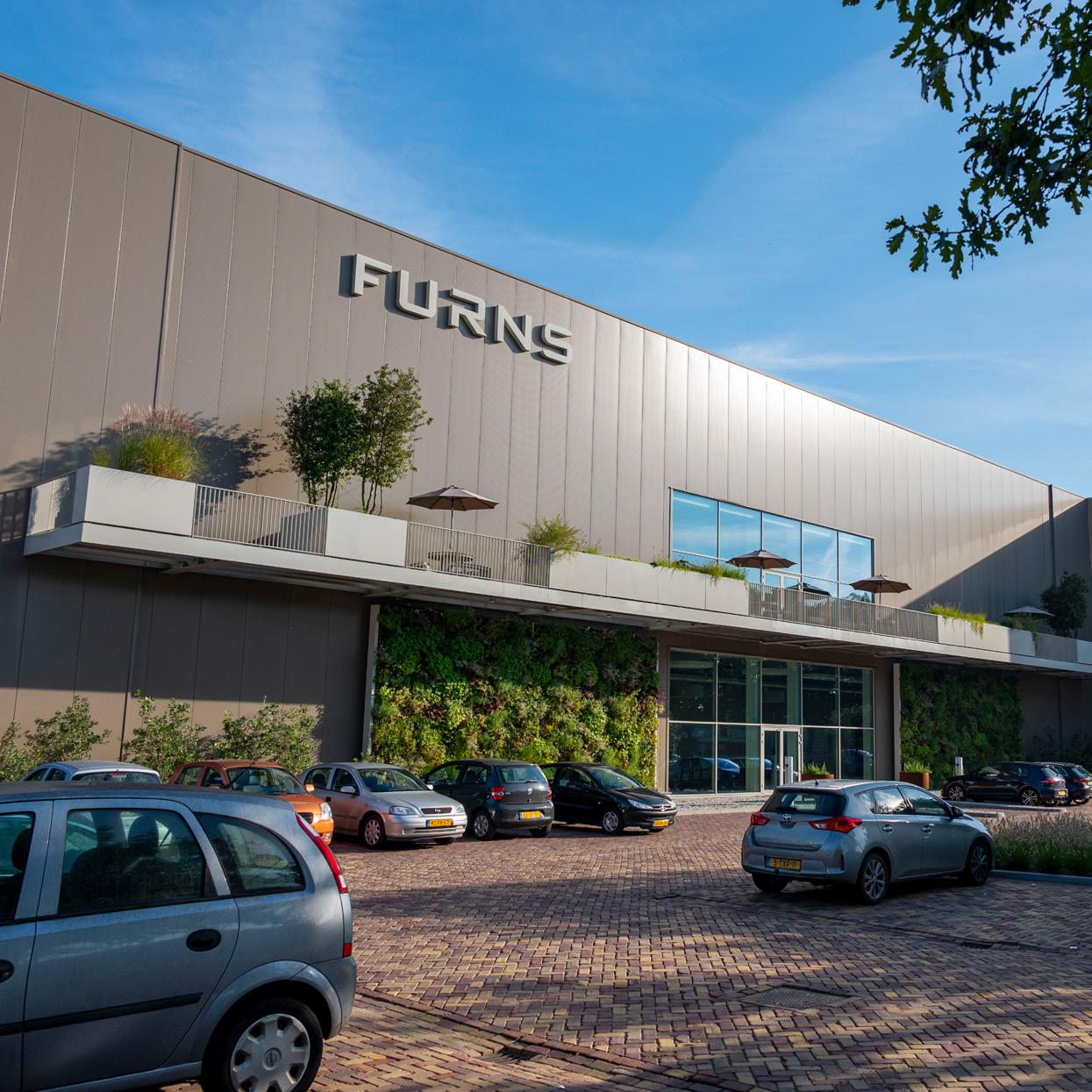

FURNS was founded because the projects to which ADEZZ delivers continued to grow in size and increasingly these ended up in public spaces. With FURNS, the experiences, qualities and specialist crafts of the past have been merged to focus fully on public spaces. We utilise durable materials that can withstand weather and vandalism. This is essential in outdoor spaces. FURNS has been supplying robust outdoor materials in various climates for many years. Our project managers are happy to proactively jump on board with you and your client to consider the applications of our furniture, to help perfect your project together.

With stunning, timeless designs, all our products can be beautifully combined. As a result, FURNS products can also be of immense added value for larger garden and park projects. For instance, projects in sports, culture and hospitality areas.

BENCHES AND TABLES

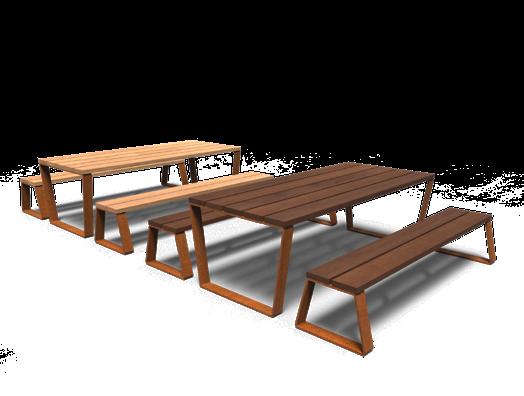

PICNIC SETS

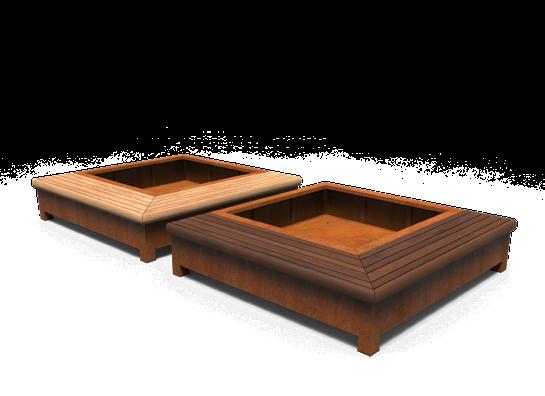

GREENPOINTS

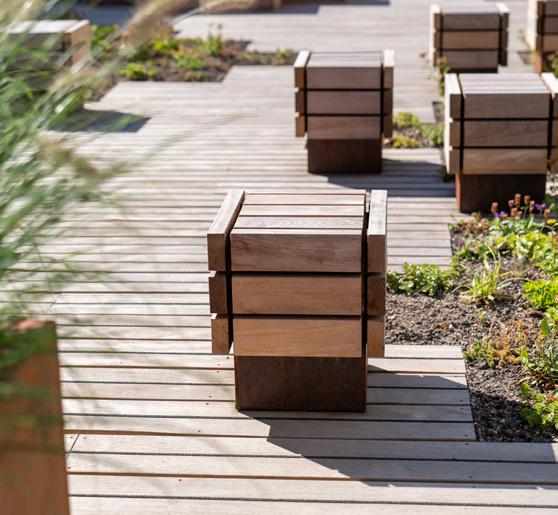

HOCKERS

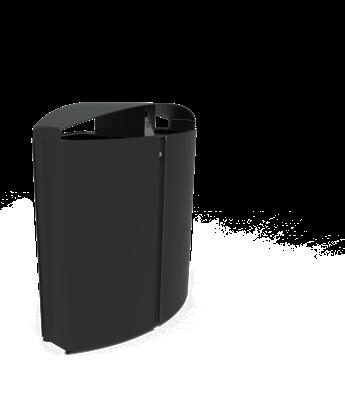

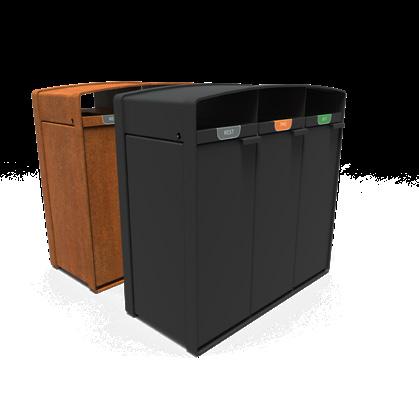

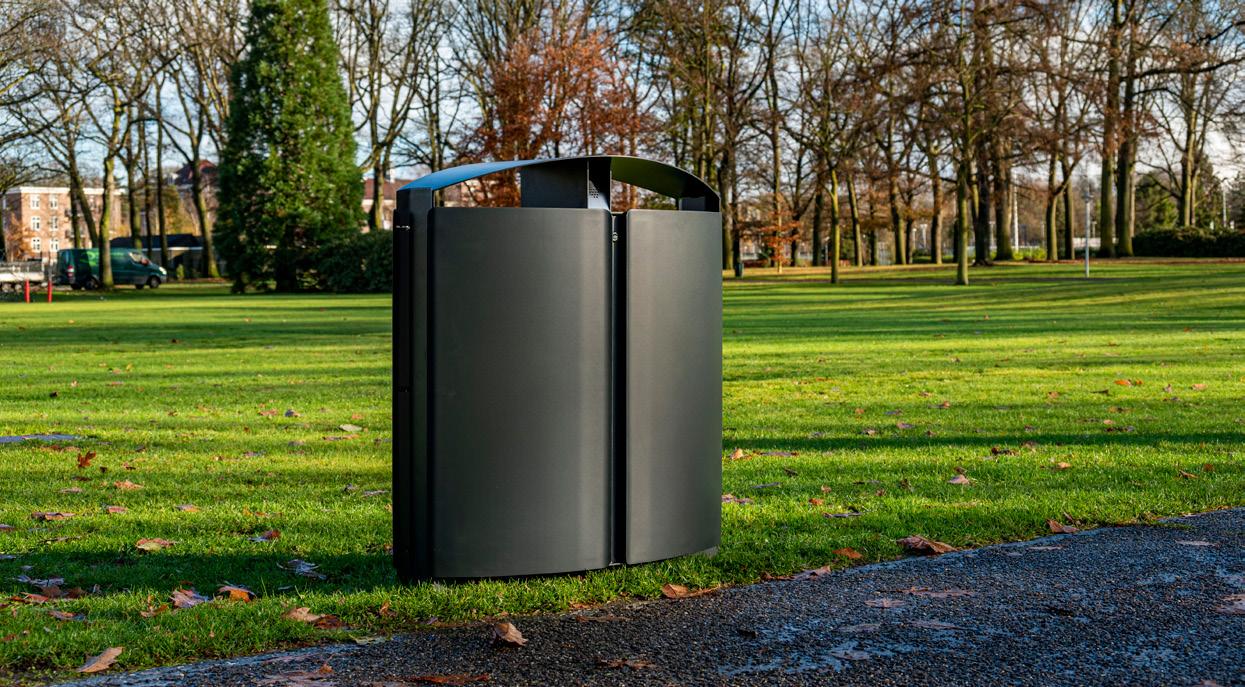

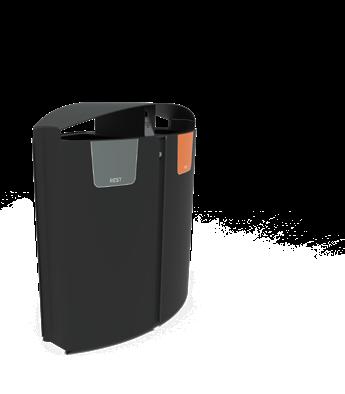

LITTER BINS

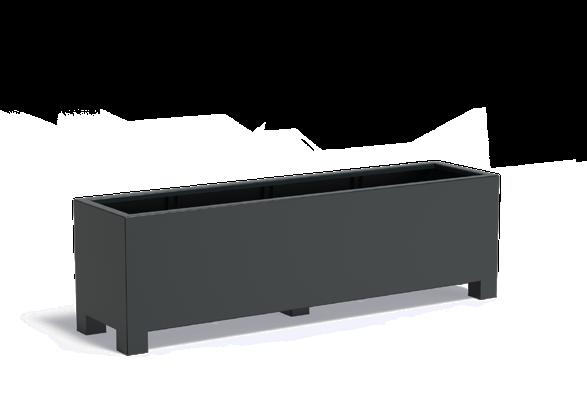

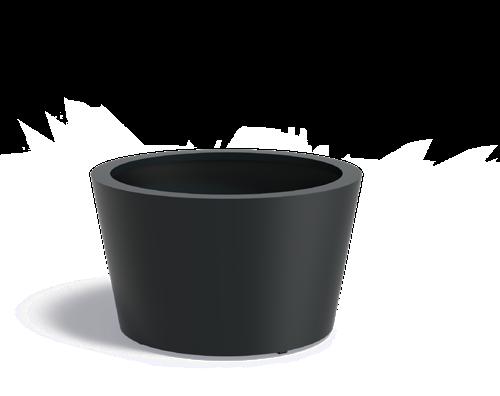

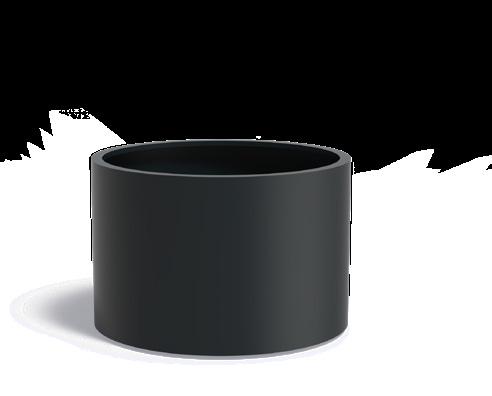

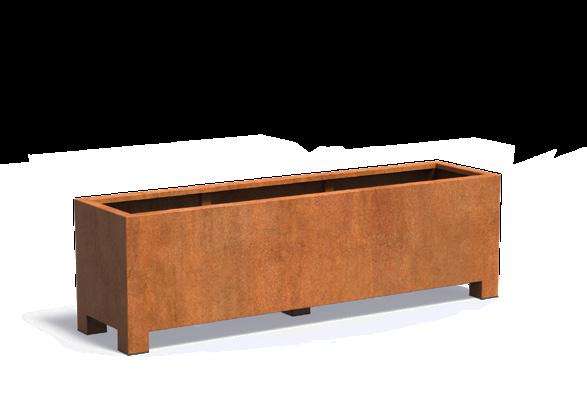

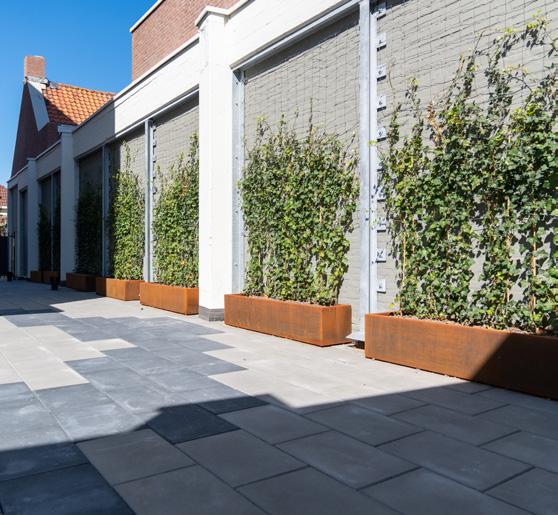

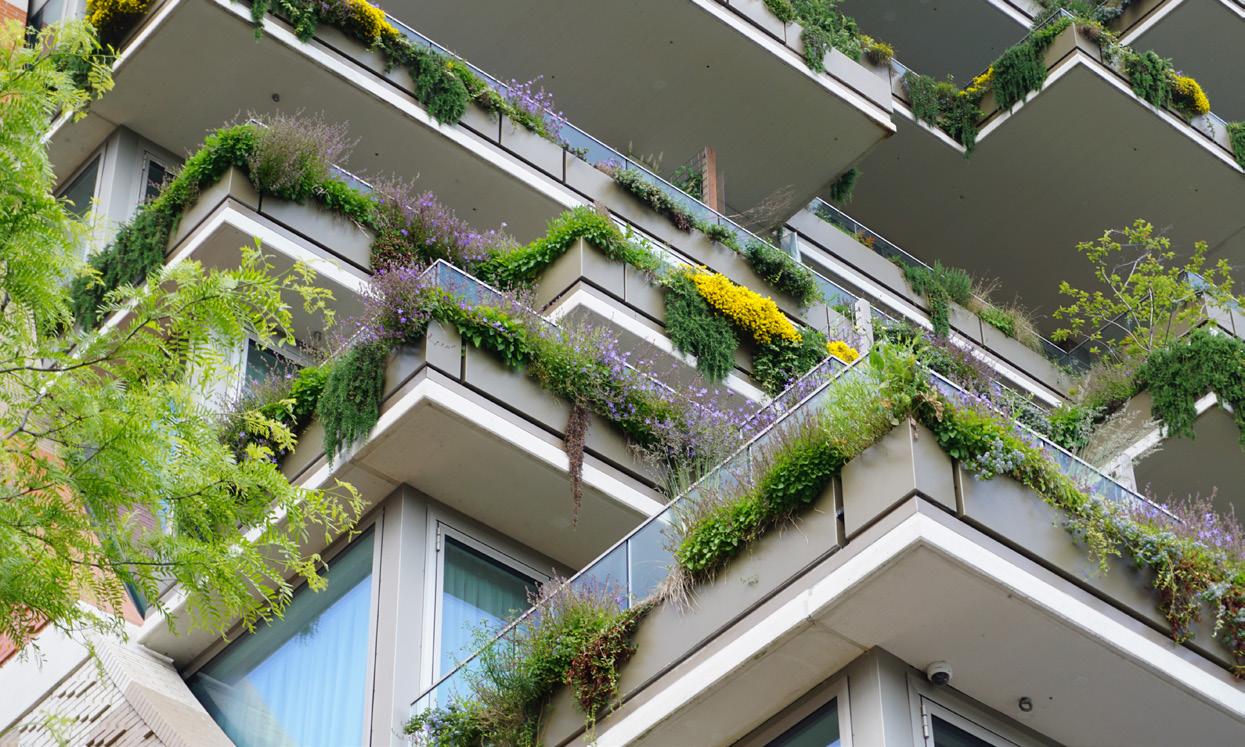

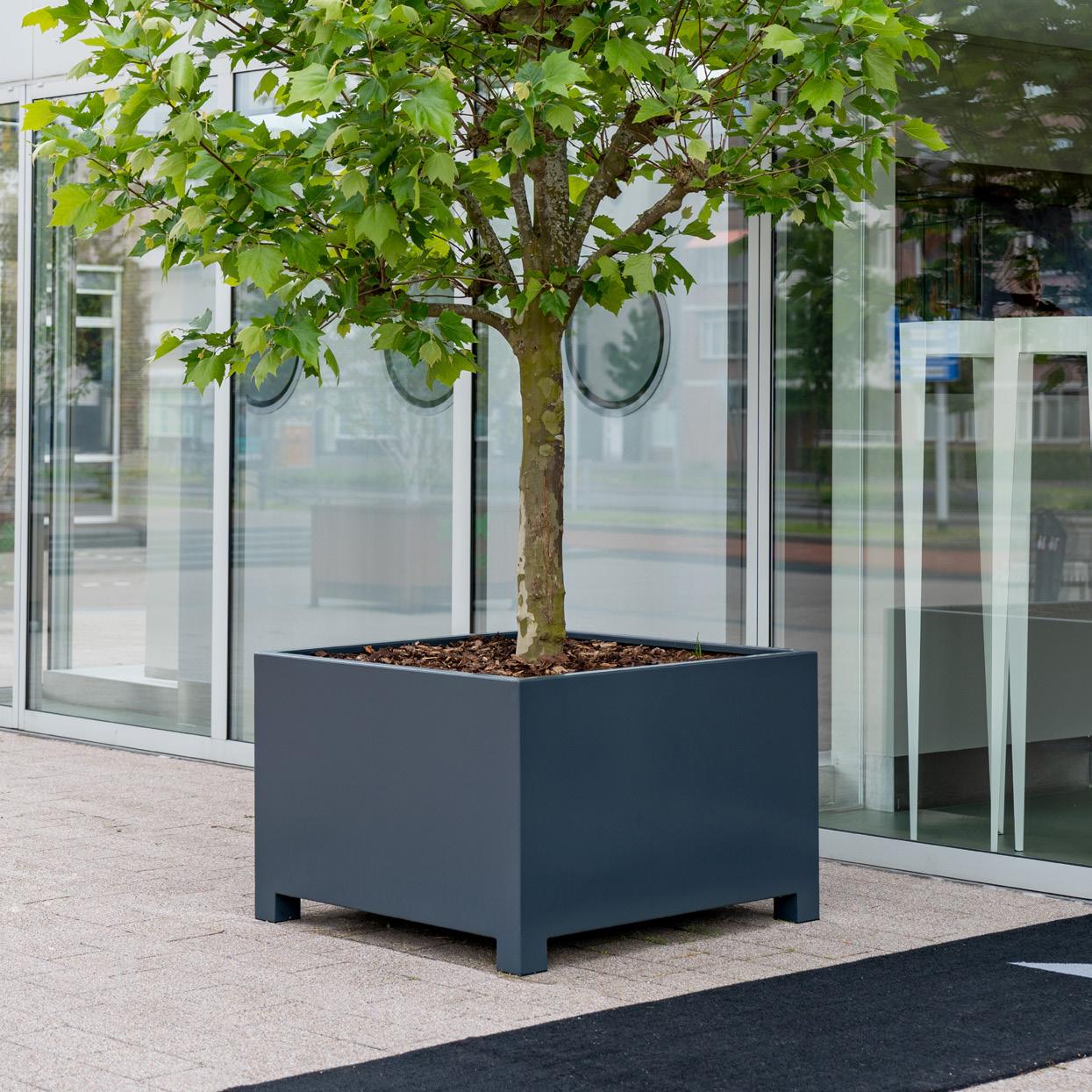

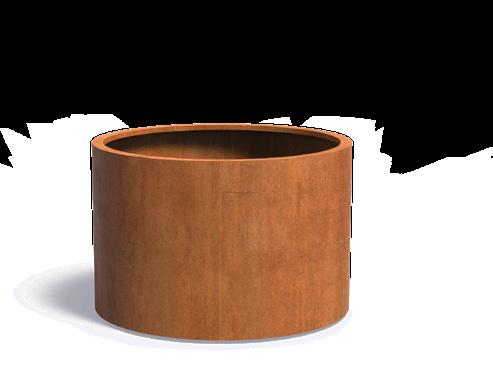

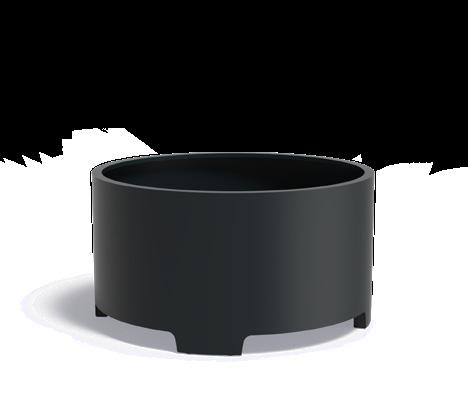

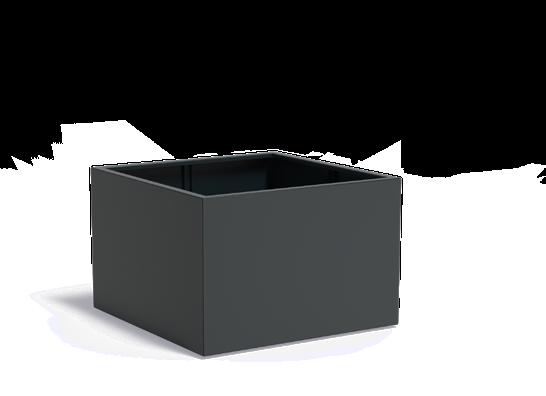

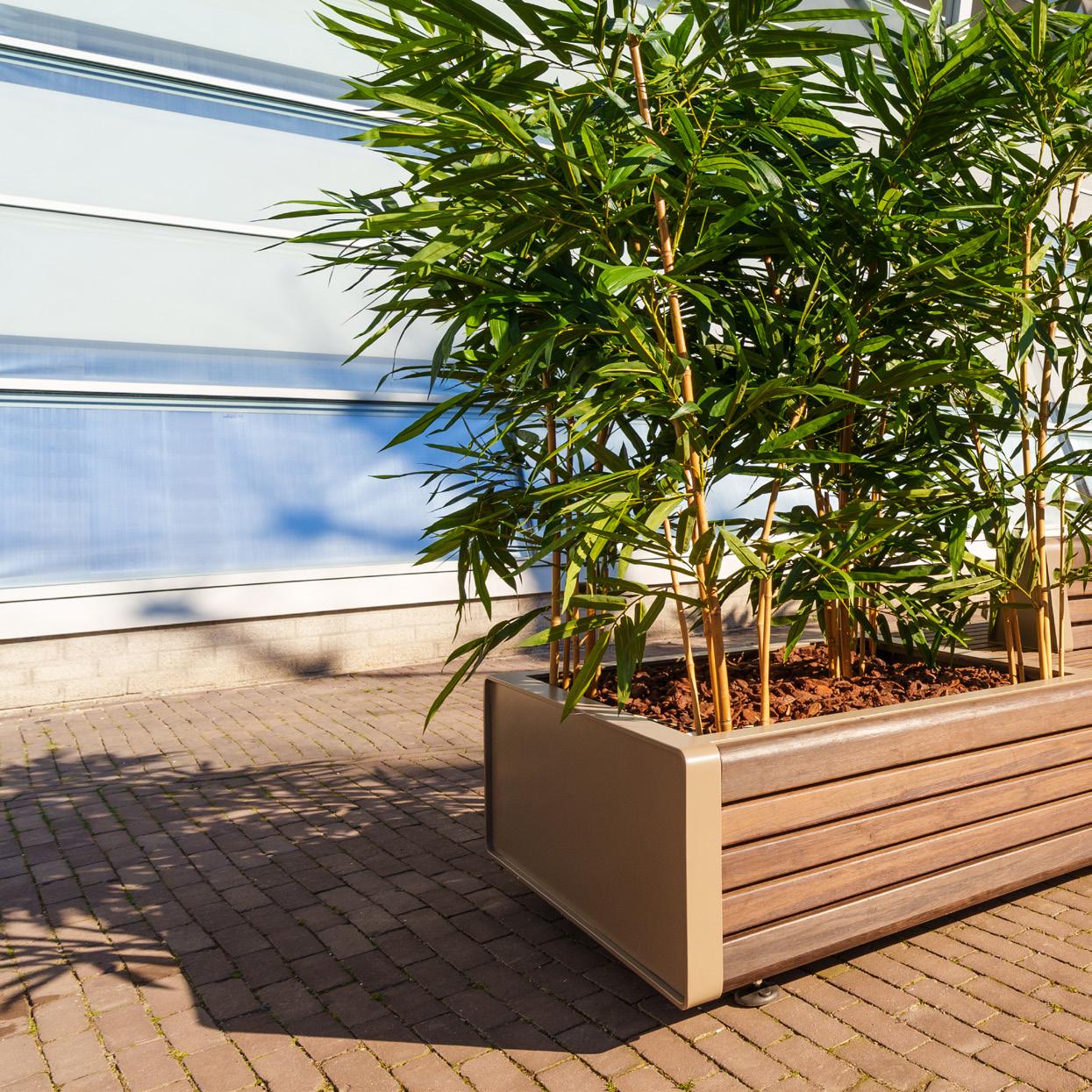

PLANTERS

RETAINING WALLS

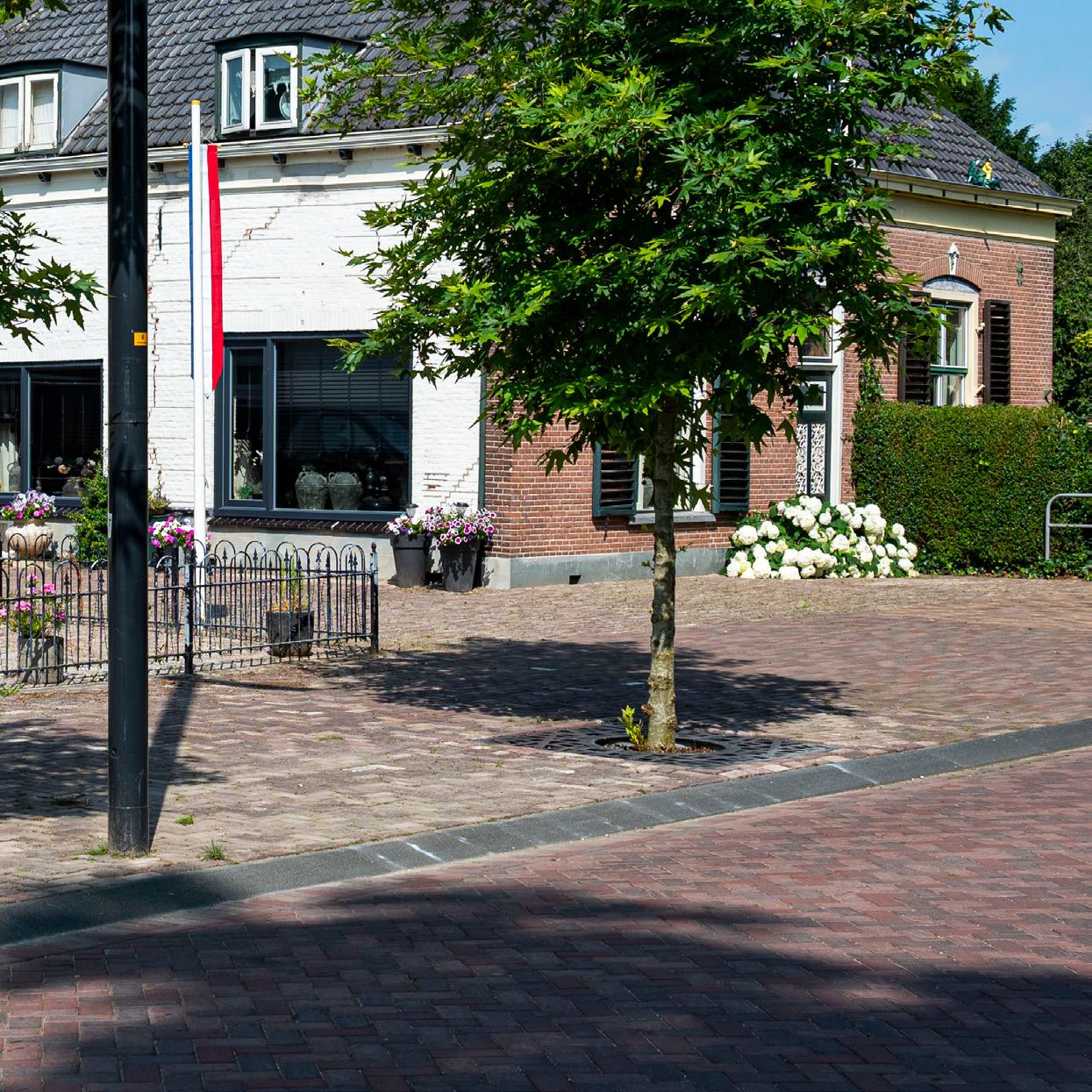

TREE GRATES

TREE GUARDS

TREE PITS

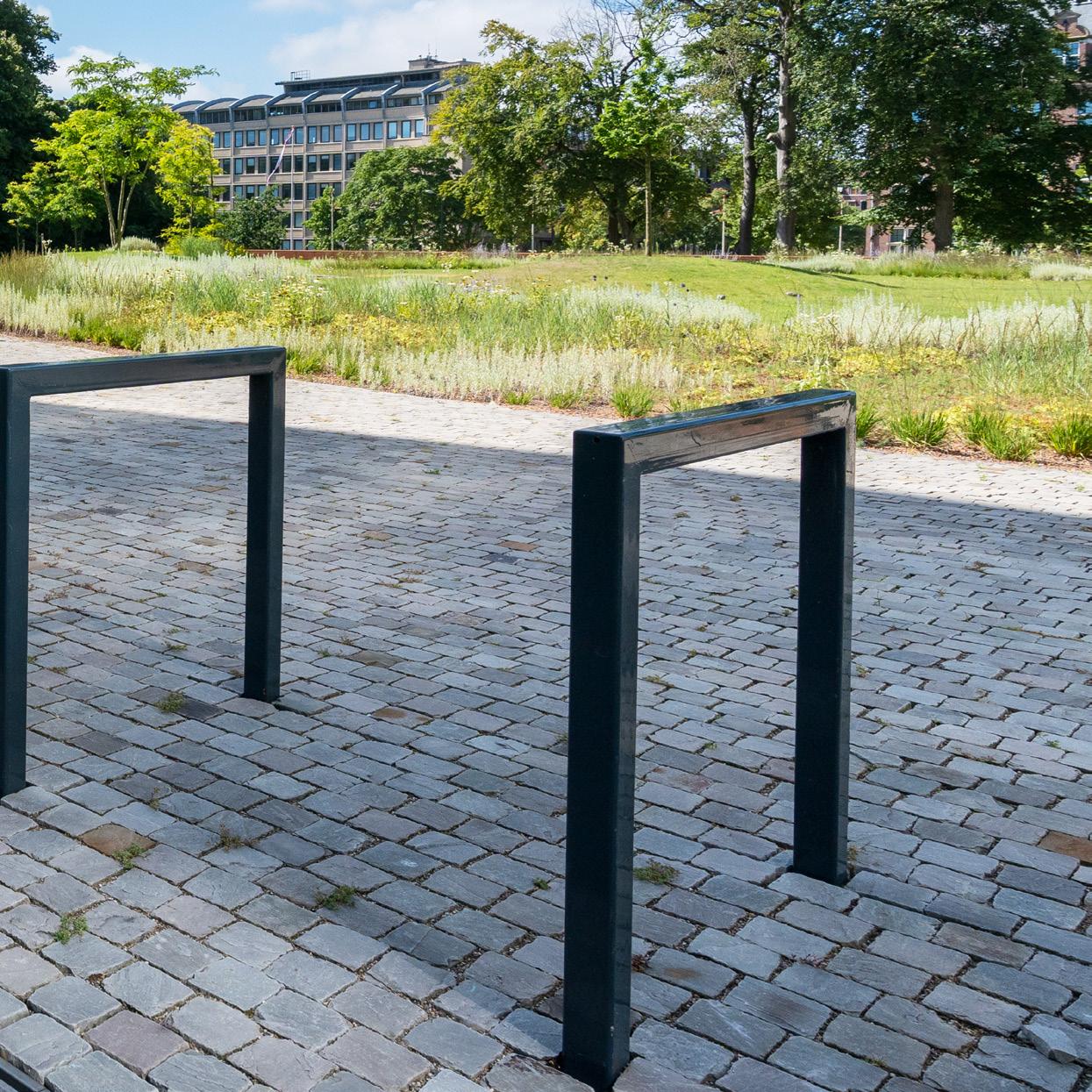

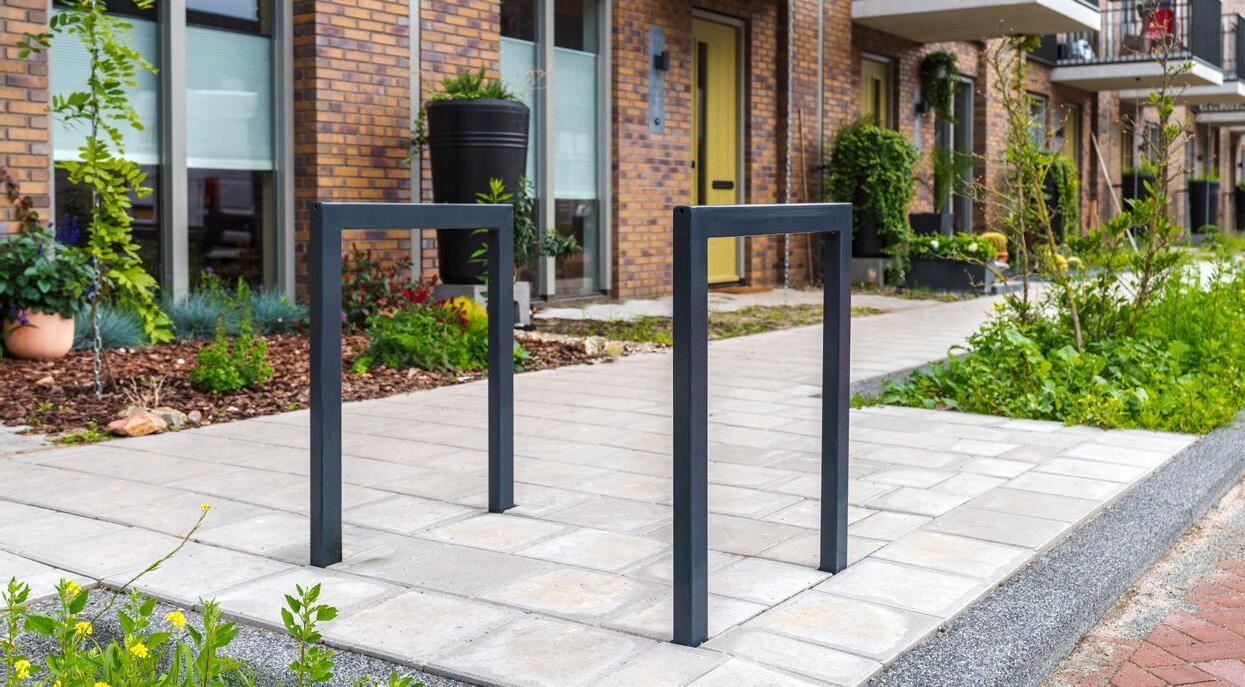

BICYCLE RACKS

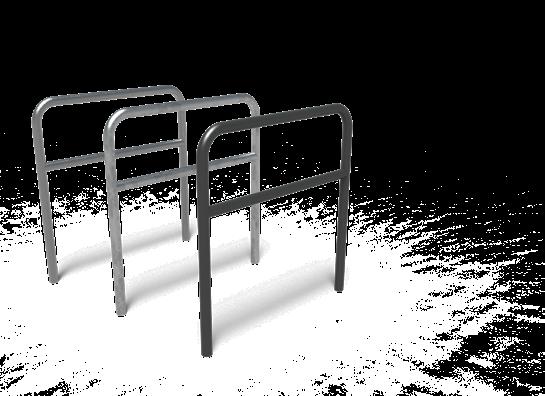

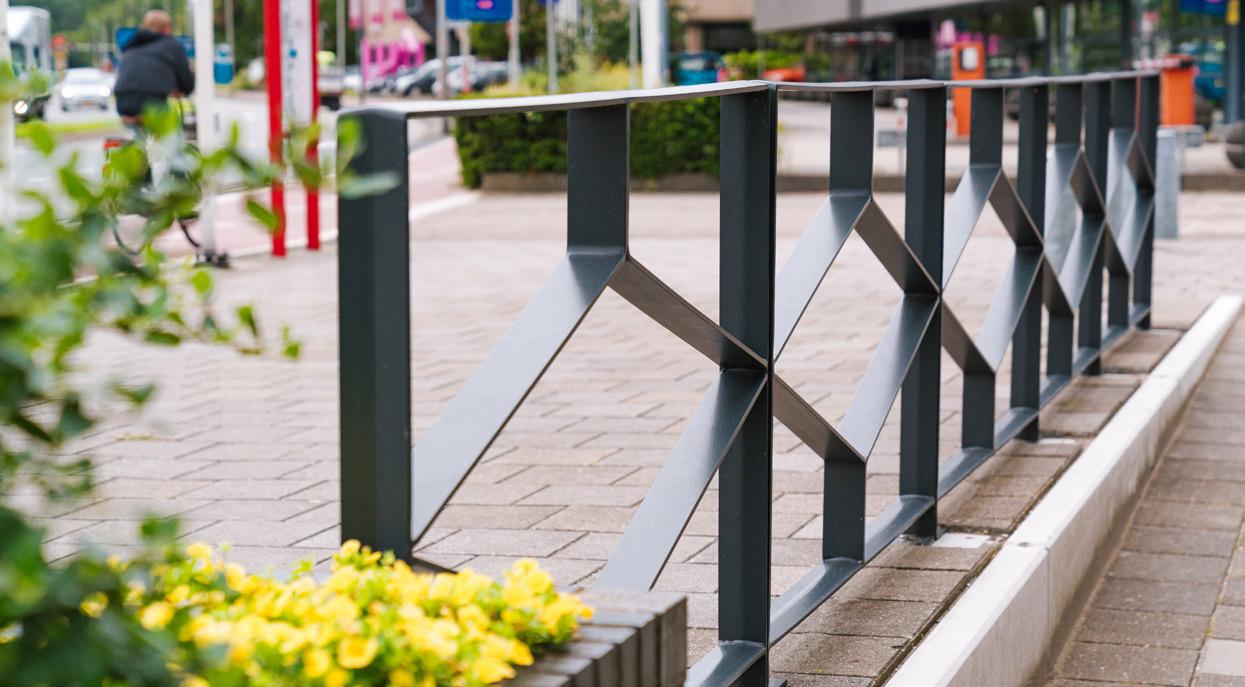

BARRIERS

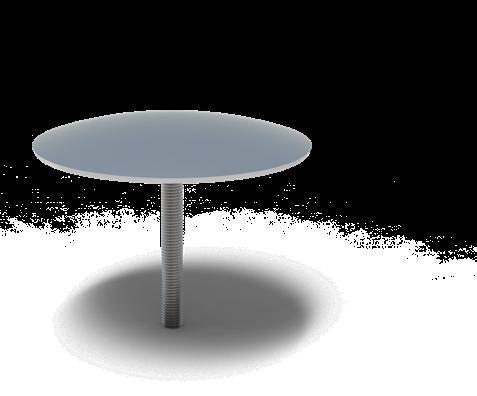

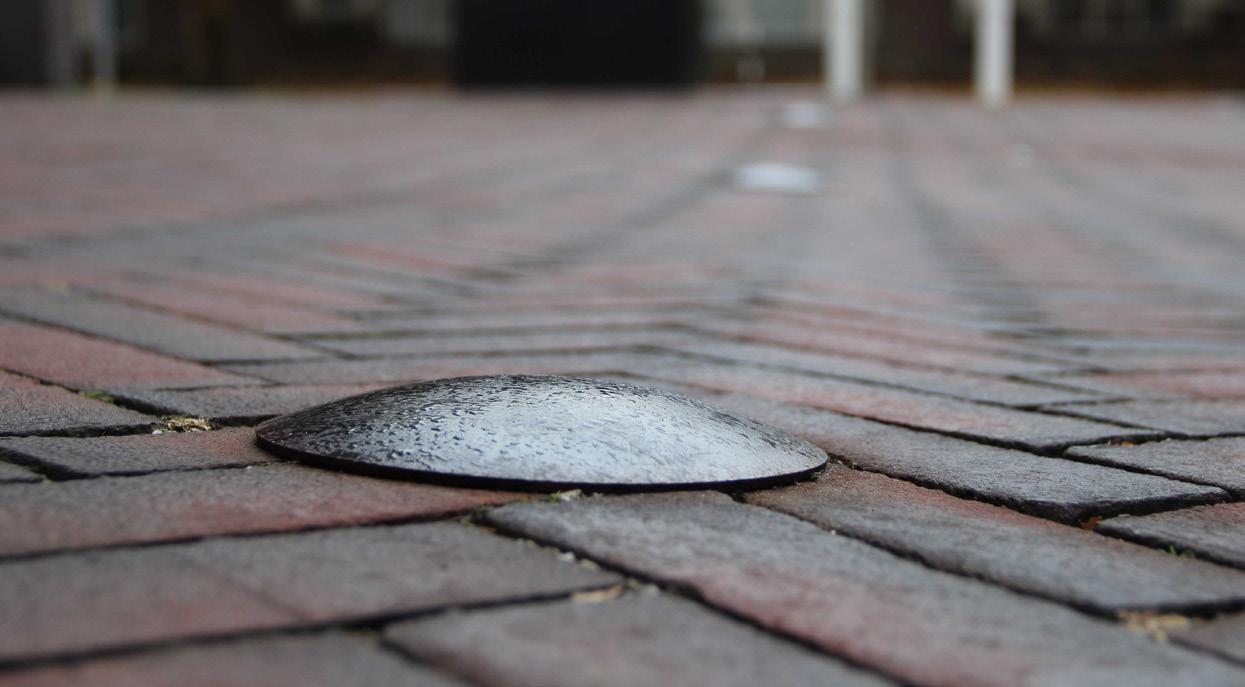

ROAD STUDS

VERTUSS

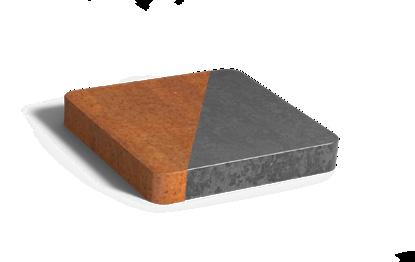

Materials

Within the FURNS collection we use a number of Standard materials for the collection.

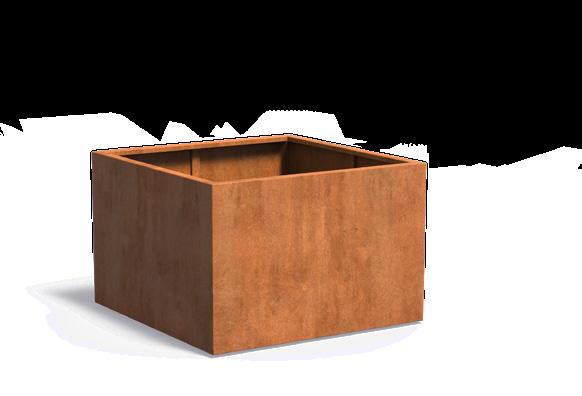

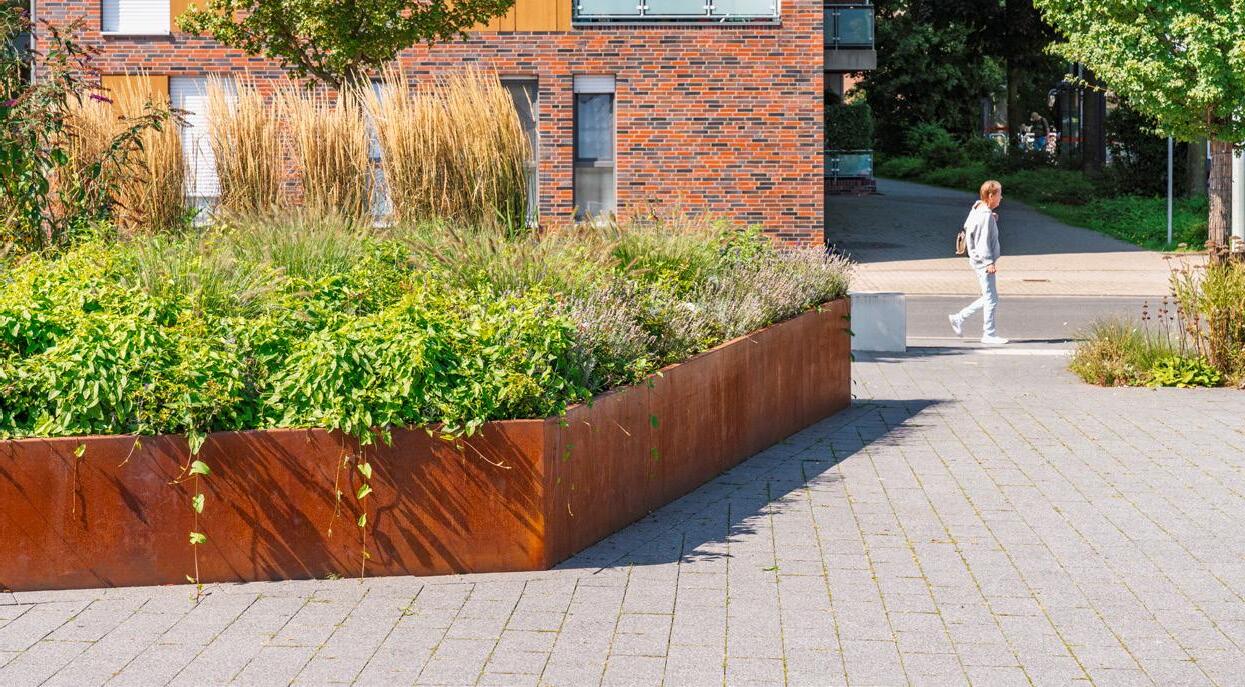

Corten steel

The Corten steel material has an orange-brown color, which is formed by a natural layer of rust. Another name for Corten steel is weathering steel: weather conditions have a positive influence on this material.

Corten steel is a metal alloy consisting of iron, to which copper, phosphorus, silicon, nickel and chromium have been added. When exposed to the outside air, the material is covered with a protective layer of rust. This natural rust layer forms the protection against further corrosion. As a result, Corten steel products have a long lifespan.

Coated steel

Once constructed, the product is given several finishing treatments. The metal is roughened to allow better adhesion of the powder coating. This is applied with a strong adhesive primer. Finally, the product is finished with a hard topcoat of Qualicoat class 2. These layers ensure that the product is of very high quality and scratch resistant.

RADIANCE AFTER 6 MONTHS

APPEARANCE UPON DELIVERY

Aluminium

Aluminium is corrosion resistant and can therefore be left outside all year round. The material will not be harmed by the weather. After the aluminium product has been produced, it is powder coated with a strong adhesive primer. It is then finished with a scratch-resistant colour coating.

Galvanised steel

Galvanised steel is a corrosion-resistant, strong material. It is produced by hot-dip galvanising metal. In hot-dip galvanising, the metal is immersed in a bath of molten zinc. This prevents the material from rusting and creates a layer around it. This gives you decades of pleasure from your product.

Stainless steel

Stainless steel, also called stainless steel, is an alloy of mainly iron, chromium, nickel, and carbon. This composition makes the material corrosion-resistant and thus extremely suitable for outdoor areas. The material does not rust because it has an oxide skin. This layer seals off the rest of the material from the various weather conditions.

2-LAYER POWDER COATING

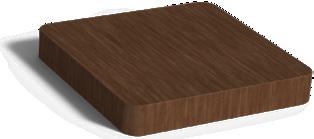

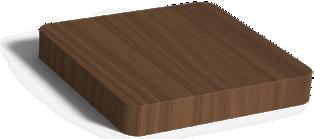

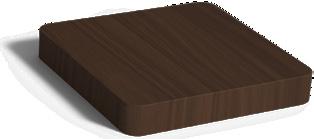

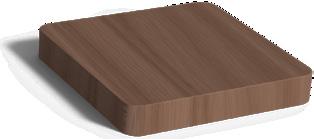

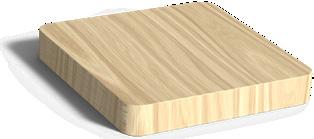

Our wood types

Nearly all of our products are available in the following wood types at an additional cost. Choose the finish that best suits your project.

Garapa

Garapa hardwood is a popular type of hardwood, sourced from sustainable forestry in Brazil. The material is durable and known for its resilience. Typical characteristics of this wood include stability, straight grain, and a subtle sheen. Due to its high resistance, it is perfect for outdoor use.

Bamboo

Bamboo elements are becoming increasingly common, including in our products. The material is an excellent alternative to tropical hardwood. Bamboo grows faster, allowing it to be harvested earlier. Tropical hardwood forests take 60 to 120 years to recover from the logging process, whereas bamboo can be harvested every 4 to 6 years due to its rapid regeneration. In fact, regularly harvesting a bamboo forest is even necessary.

MOSO BAMBOO X-treme is a material obtained by heating bamboo fibres and then compressing them under high pressure. This preservation process results in the highest quality bamboo products. It is extremely hard and therefore highly suitable for outdoor use.

Accoya

Accoya has the natural light colour with a decorative fine grain pattern you would expect from pine wood. Through modification, the material gains the properties of hardwood while retaining the appearance of pine. Beautiful, hard, and durable.

Softwoods like pine are made durable through the acetylation process at Accoya. This process uses acetic acid and heat to transform ‘soft’ wood into a natural building material with the highest hardness. Since the fast-growing pine trees used are from sustainable forestry, this is a renewable building material that also stores a lot of CO2.

Reclaimed Wood

We reuse wood that has already completed a full lifecycle. We give it a second life by incorporating it into our street furniture.

The end of a wood’s lifecycle in a particular structural application does not mean the material is completely written off. In practice, for example, sheet piling that has been replaced can still be used for applications in furniture and cladding. The reclaimed wood is resized and planed for its new purpose in our range. By upcycling the used wood, we avoid tapping into new resources.

Reclaimed wood consists of hardwood previously used for structural construction or road and waterway applications. Therefore, it may vary in origin and wood type. Our buyers ensure that the quality of the wood always matches the application we intend to use it for.

Kebony

Kebony is an environmentally friendly, patented process that enhances the properties of sustainable softwood with a bio-based liquid. The process permanently modifies the wood cell walls, giving Kebony the premium hardwood characteristics and rich brown colour in two basic steps.

The double modification process involves impregnating softwood (usually pine) with a biobased liquid derived from agricultural waste, followed by a heat treatment. This permanently changes the cell structure of the wood, giving it properties similar to those of tropical hardwood.

Savrame

Savrame is a newer thermally modified hardwood that is more impact-resistant than many other modified wood types. This makes it extremely suitable for horizontal installations, such as on FURNS street furniture.

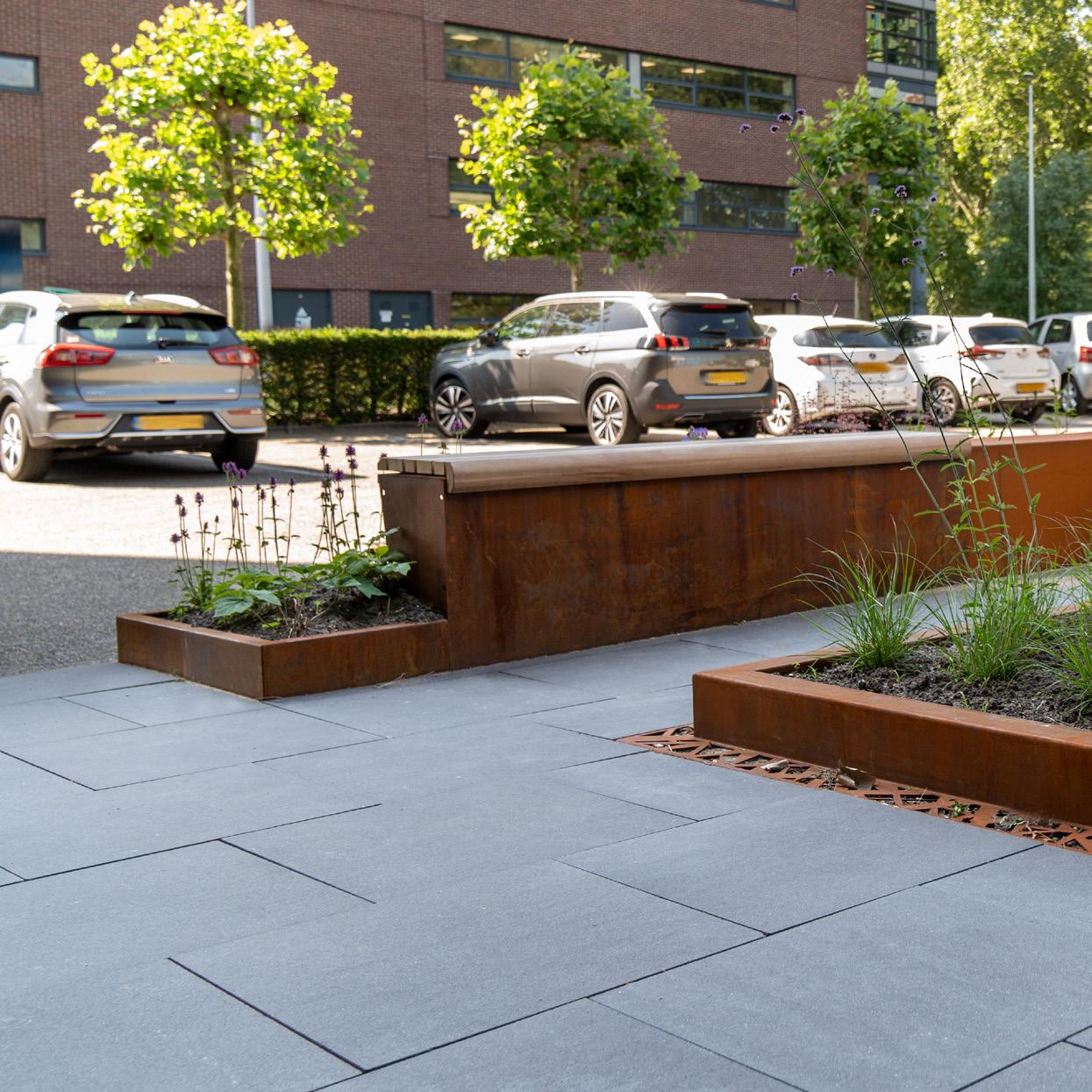

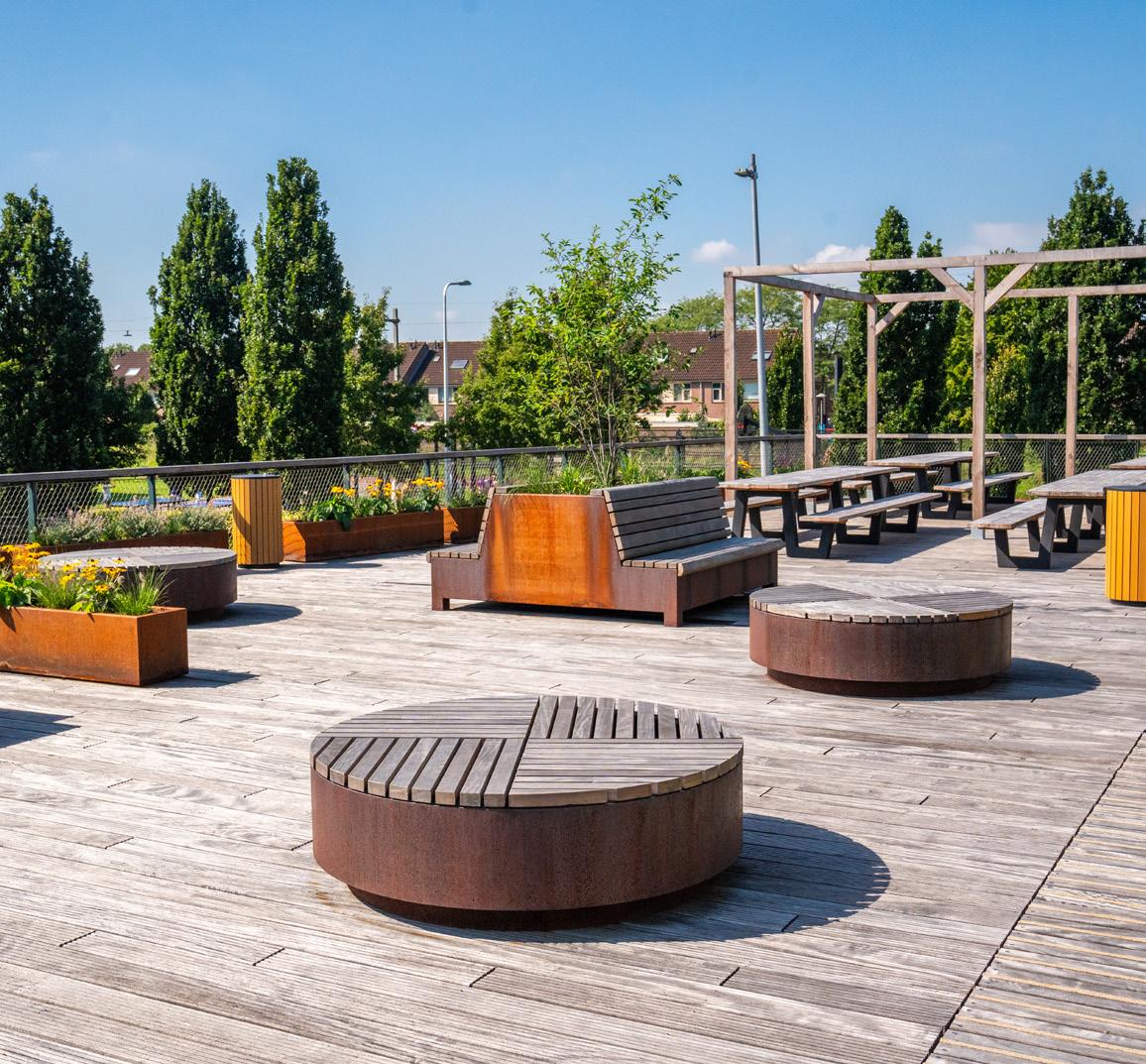

Projects

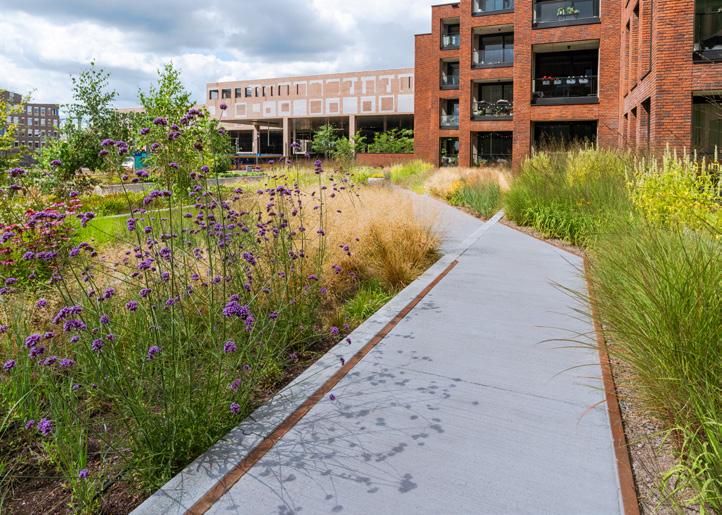

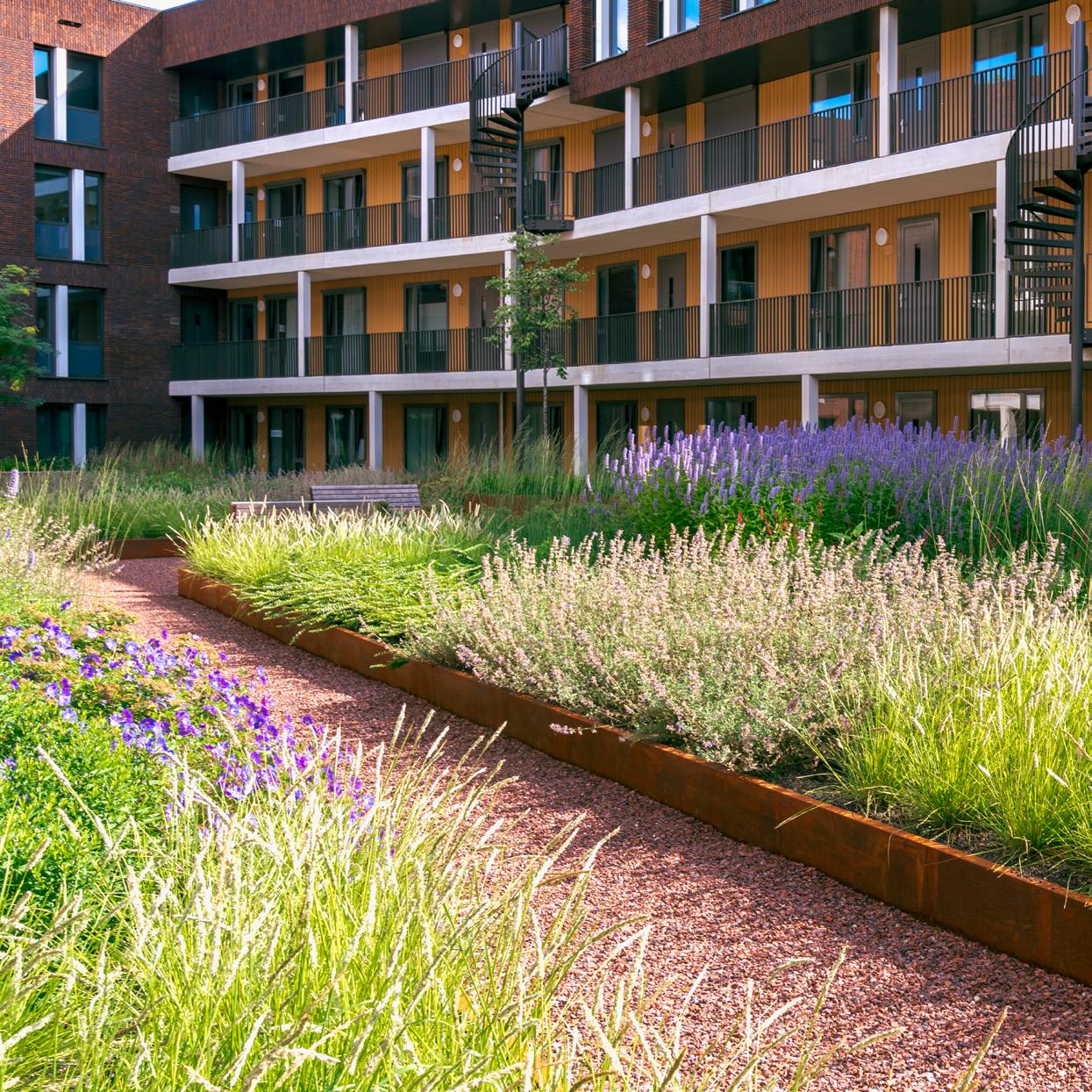

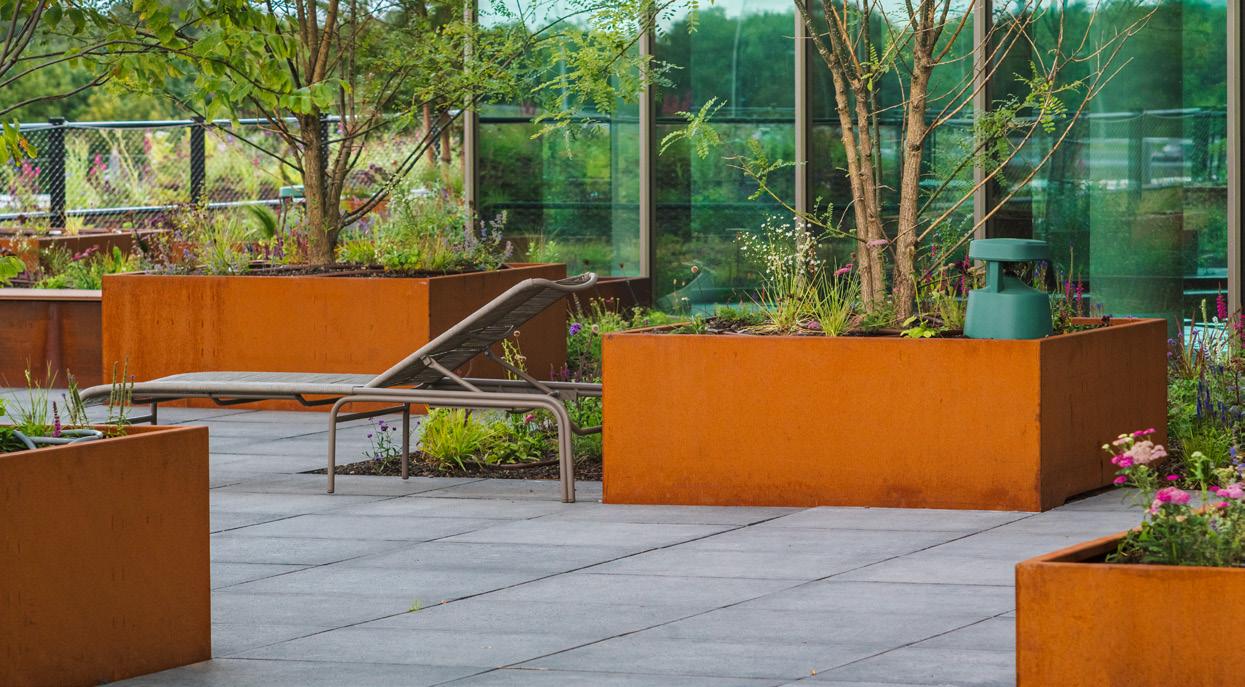

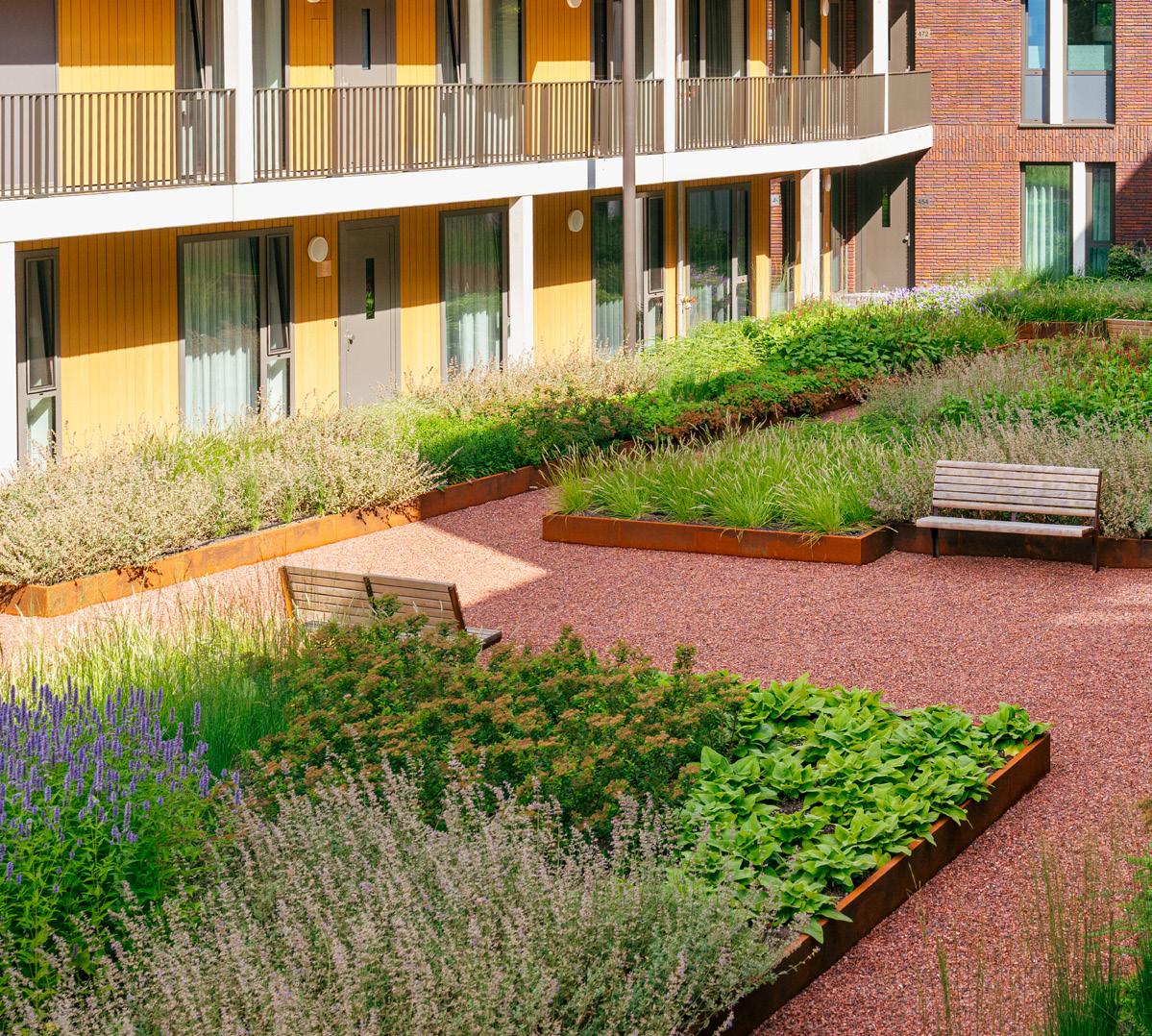

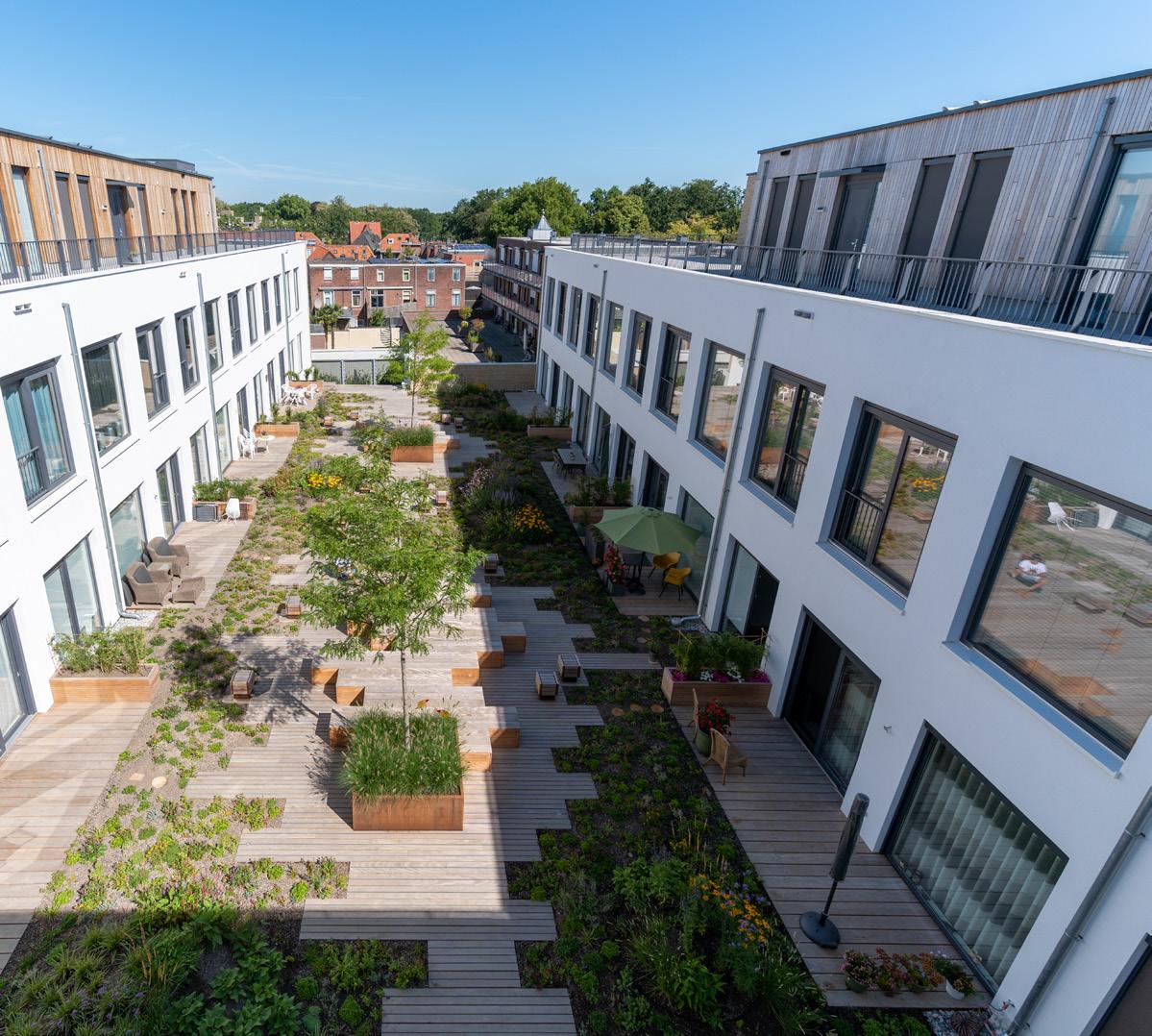

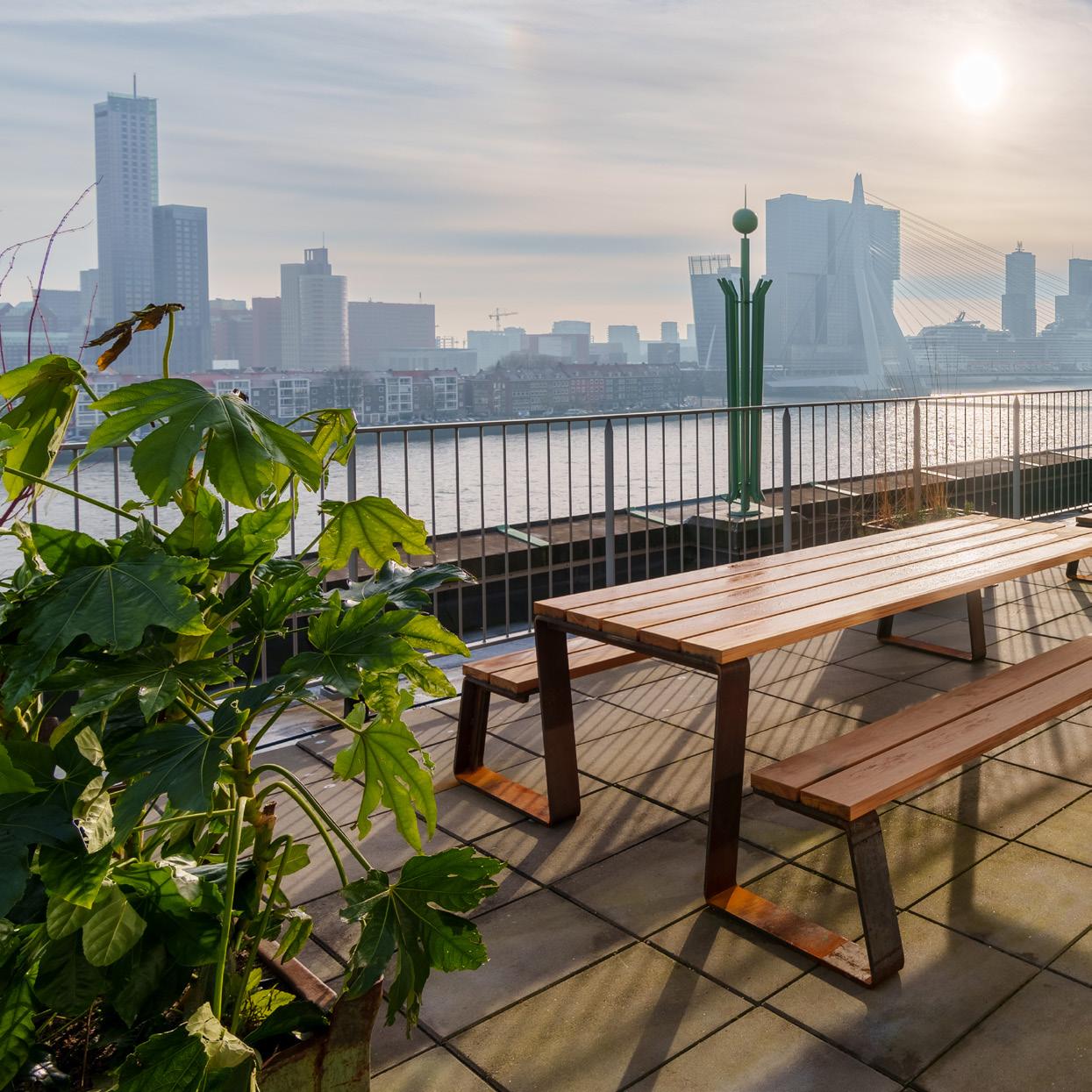

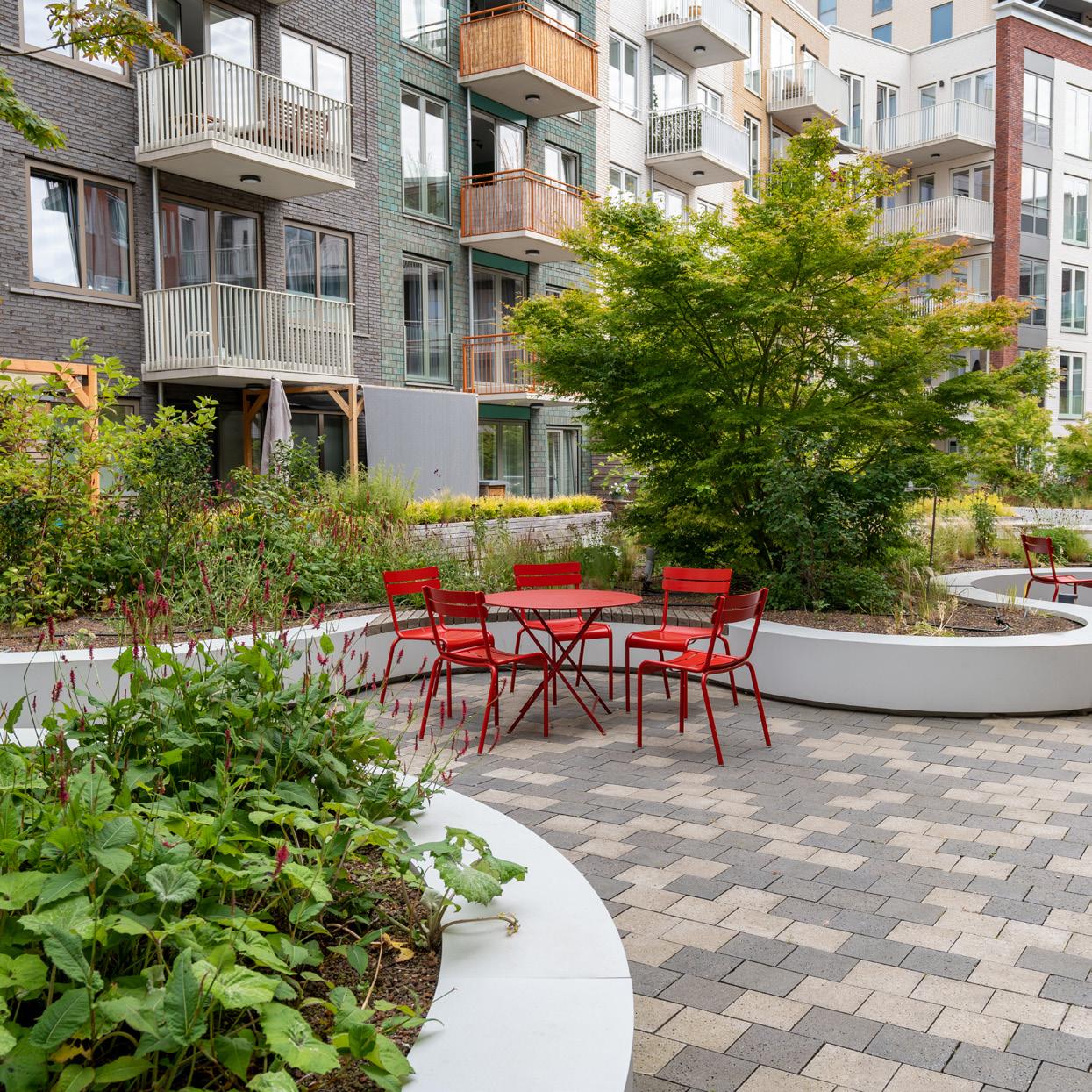

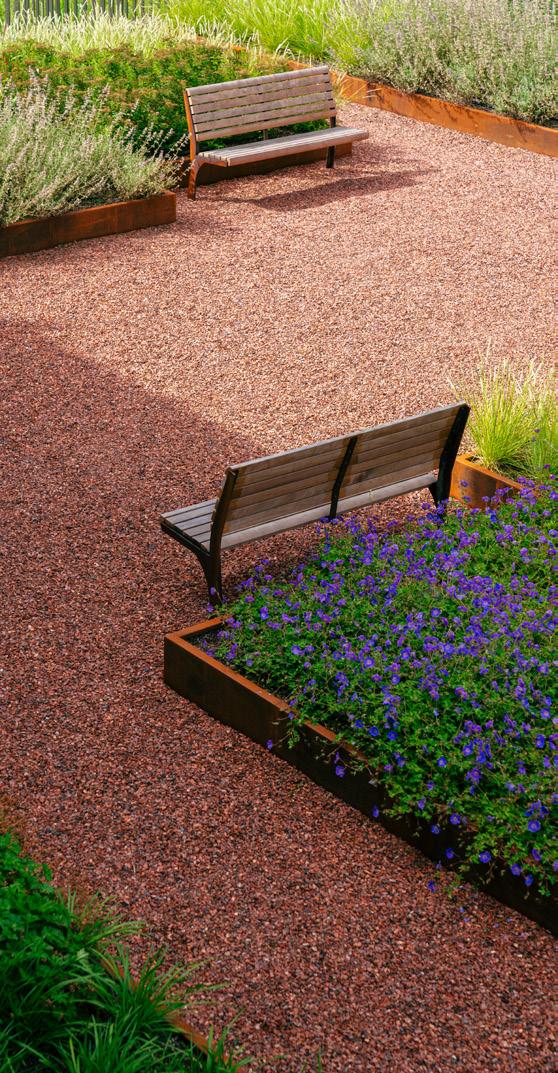

Jonkers daktuinen - De Hoef

We fully equipped the communal roof garden of the De Hoef complex, Rosmalen, situated on the first residential floor, with Corten steel and furniture. In cooperation with Jonkers Hoveniers, which was responsible for the realisation here. In the project, we created several planting beds from corten steel retaining walls in combination with planters. Between the planting beds is a semi-paved area where GRO benches have been placed. The entire roof garden was placed on a retention system for which our products are ideally suited.

- Retaining walls

- Planters

- GRO benches

- Edging USED PRODUCTS

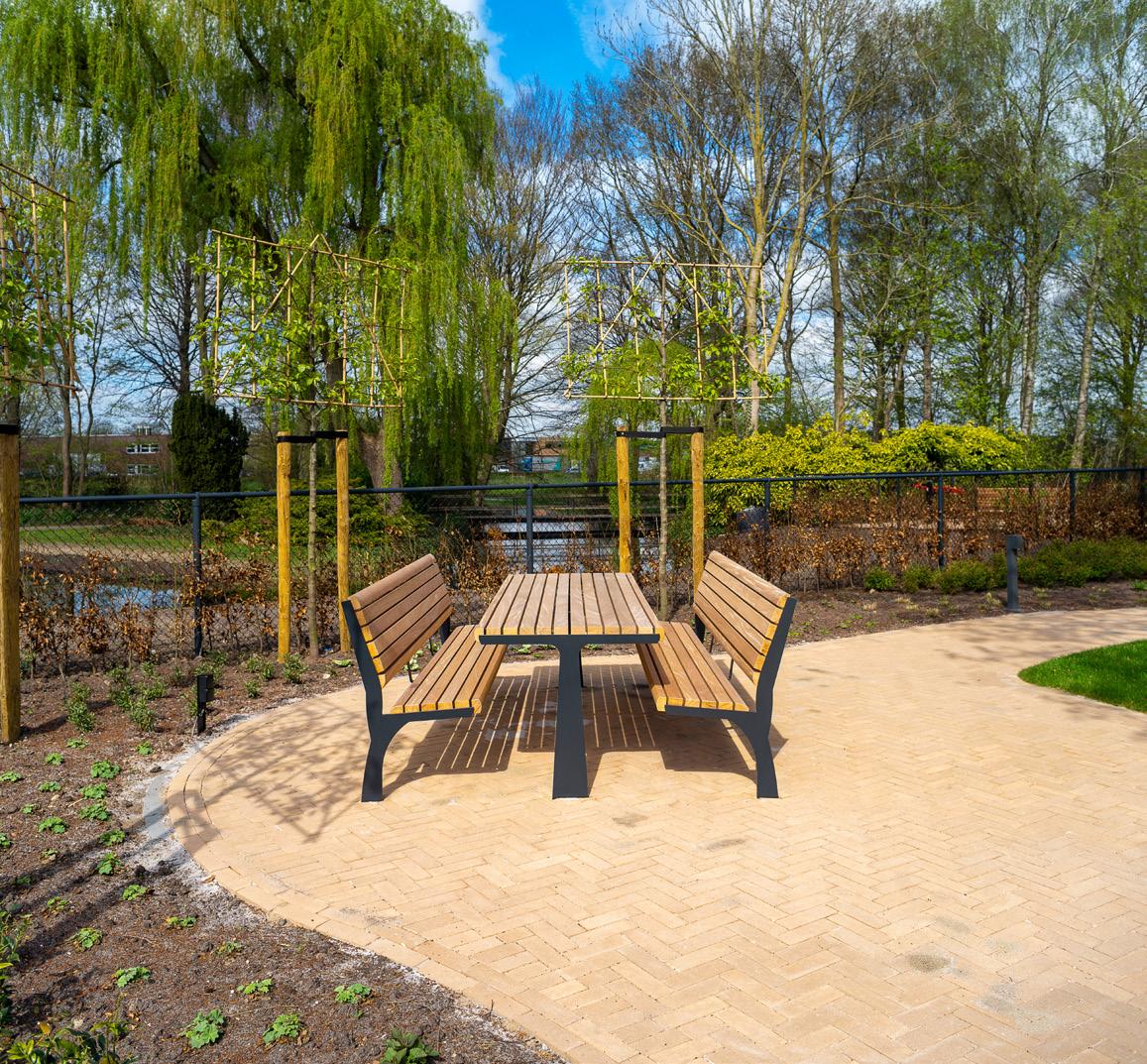

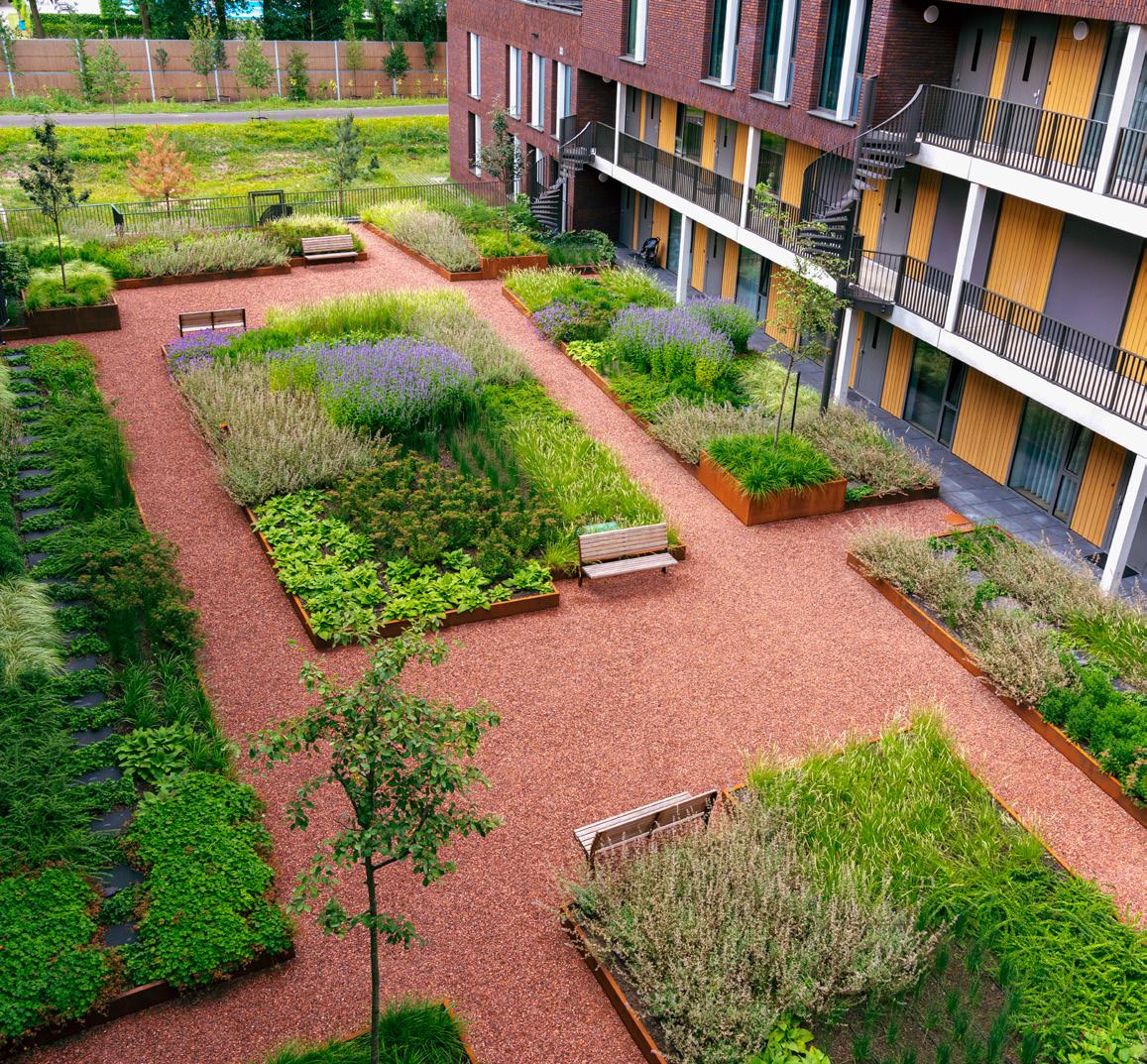

Donker Groen - Thes

In cooperation with the Donker Group, we were allowed to design the public space of THES Breda in 2022 with various elements. The THES project in Breda is a complex consisting of 119 studios and flats with a two-story car park underneath, one of which is underground.

We supplied seating elements from the BORG series here. Including several picnic sets and benches with backs. The benches are made of corten steel combined with hardwood. In addition to the furniture, we were allowed to add our STORR litter bin. A litter bin made of Corten steel combined with hardwood.

- STORR litter bins

- BORG picnic sets

- BORG bench with backrest

- Edging USED PRODUCTS

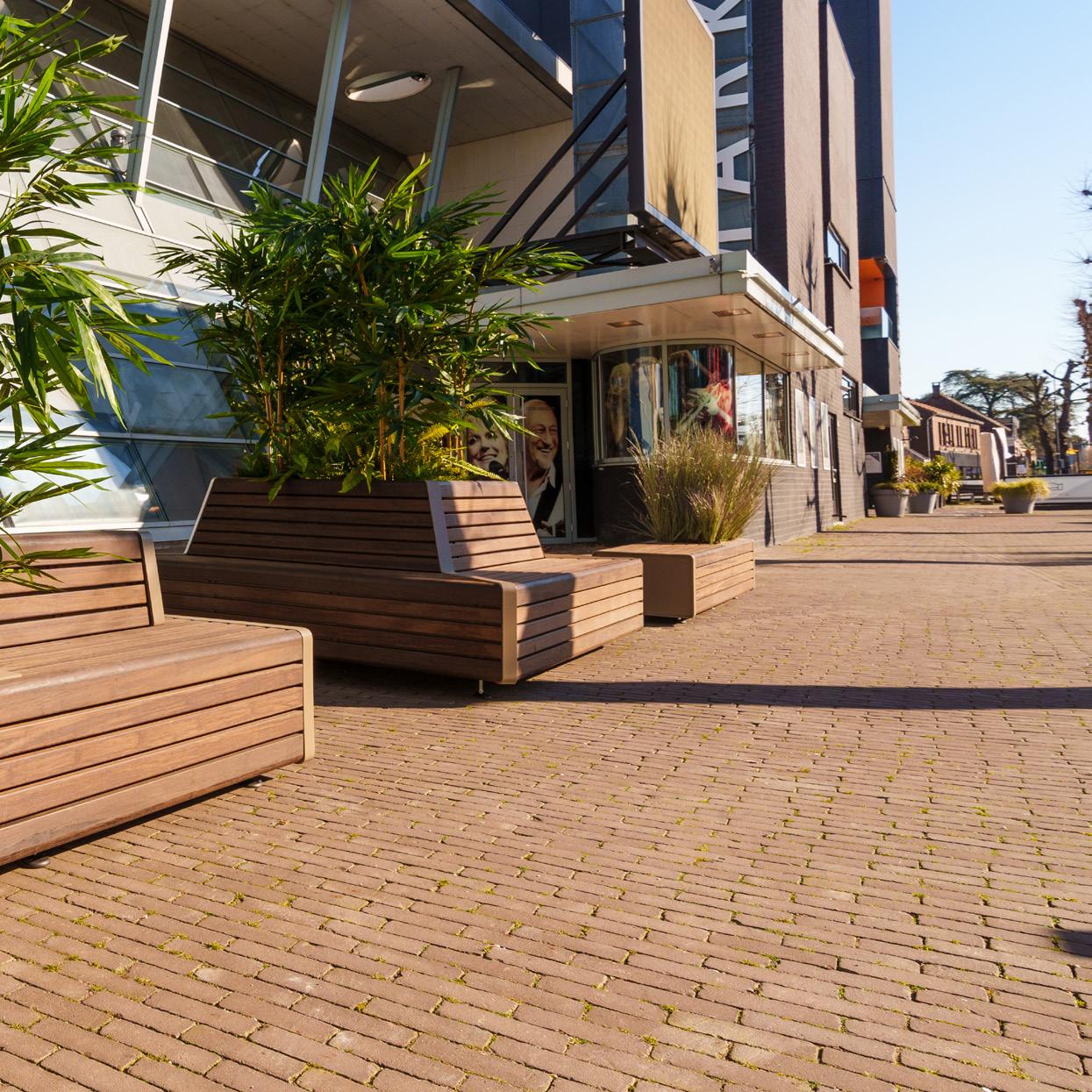

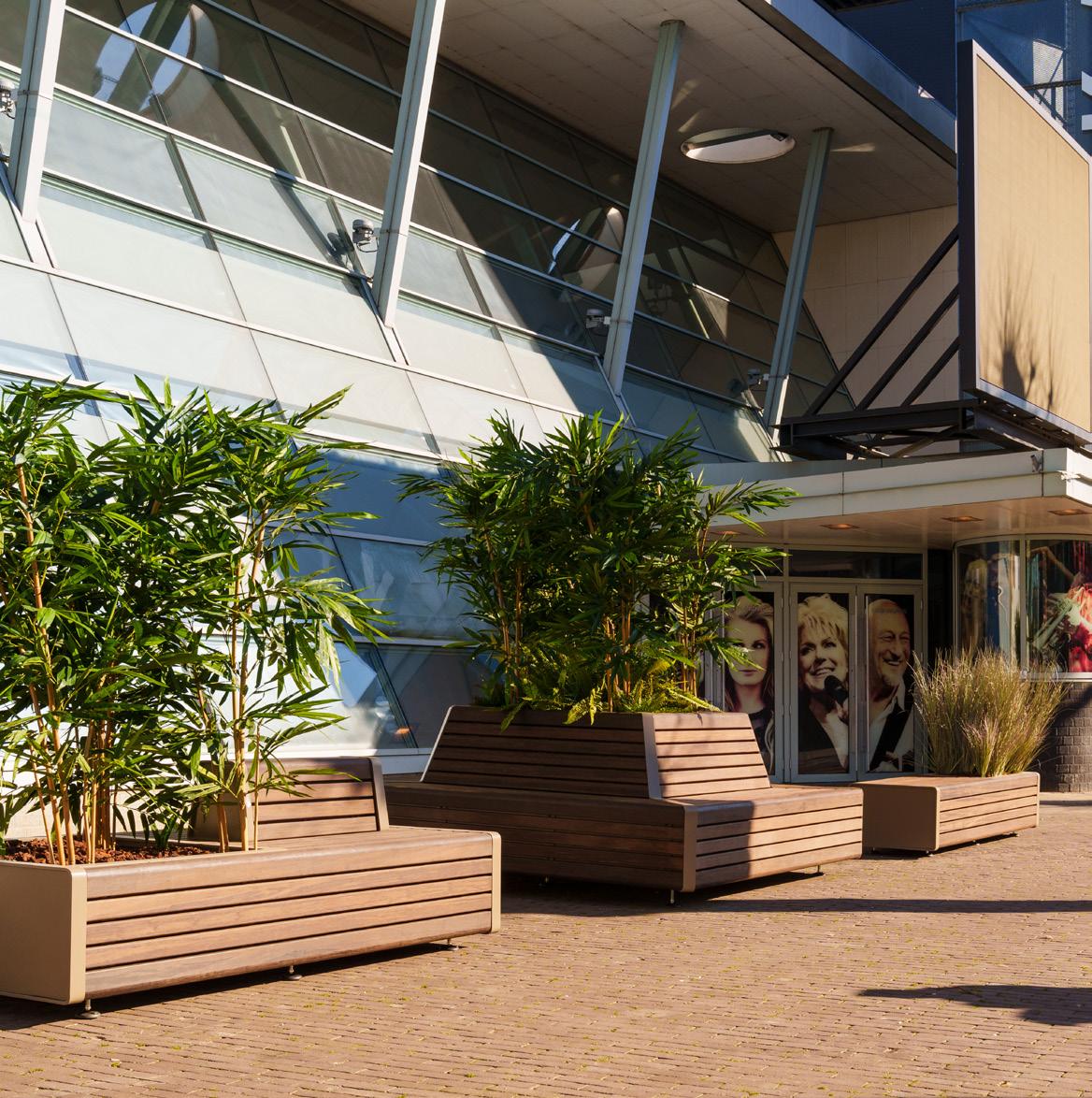

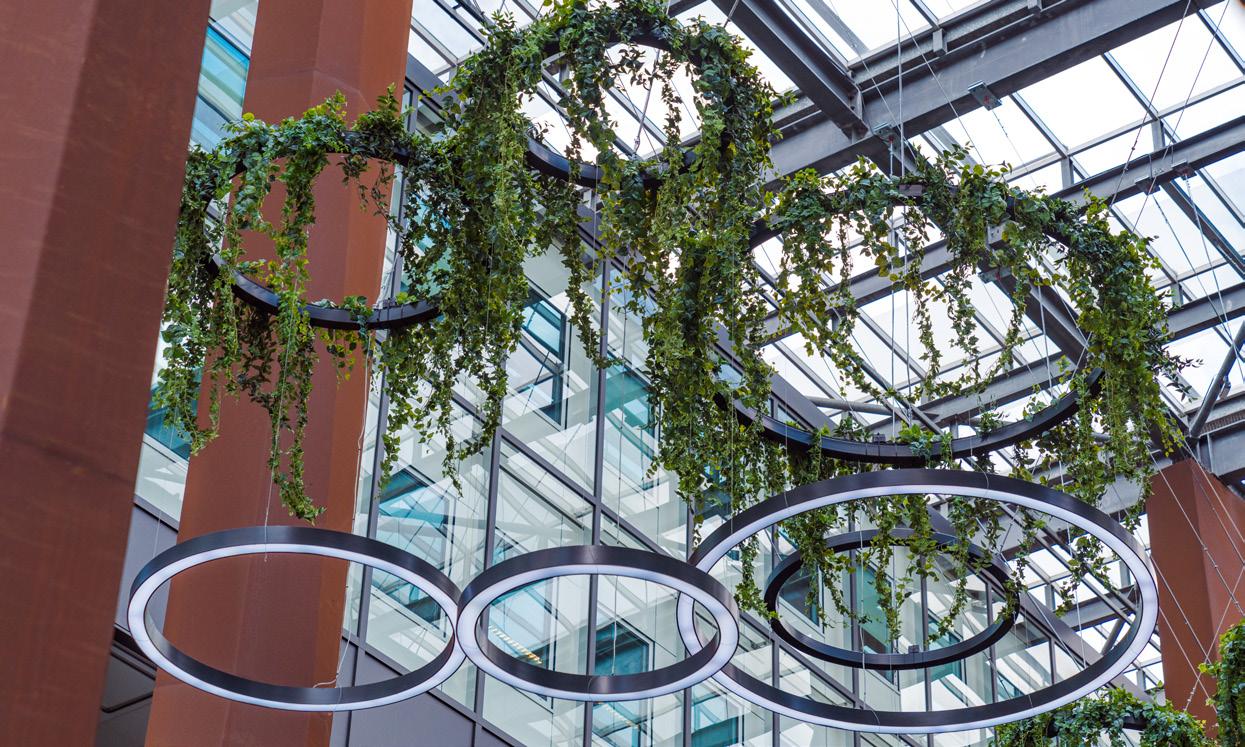

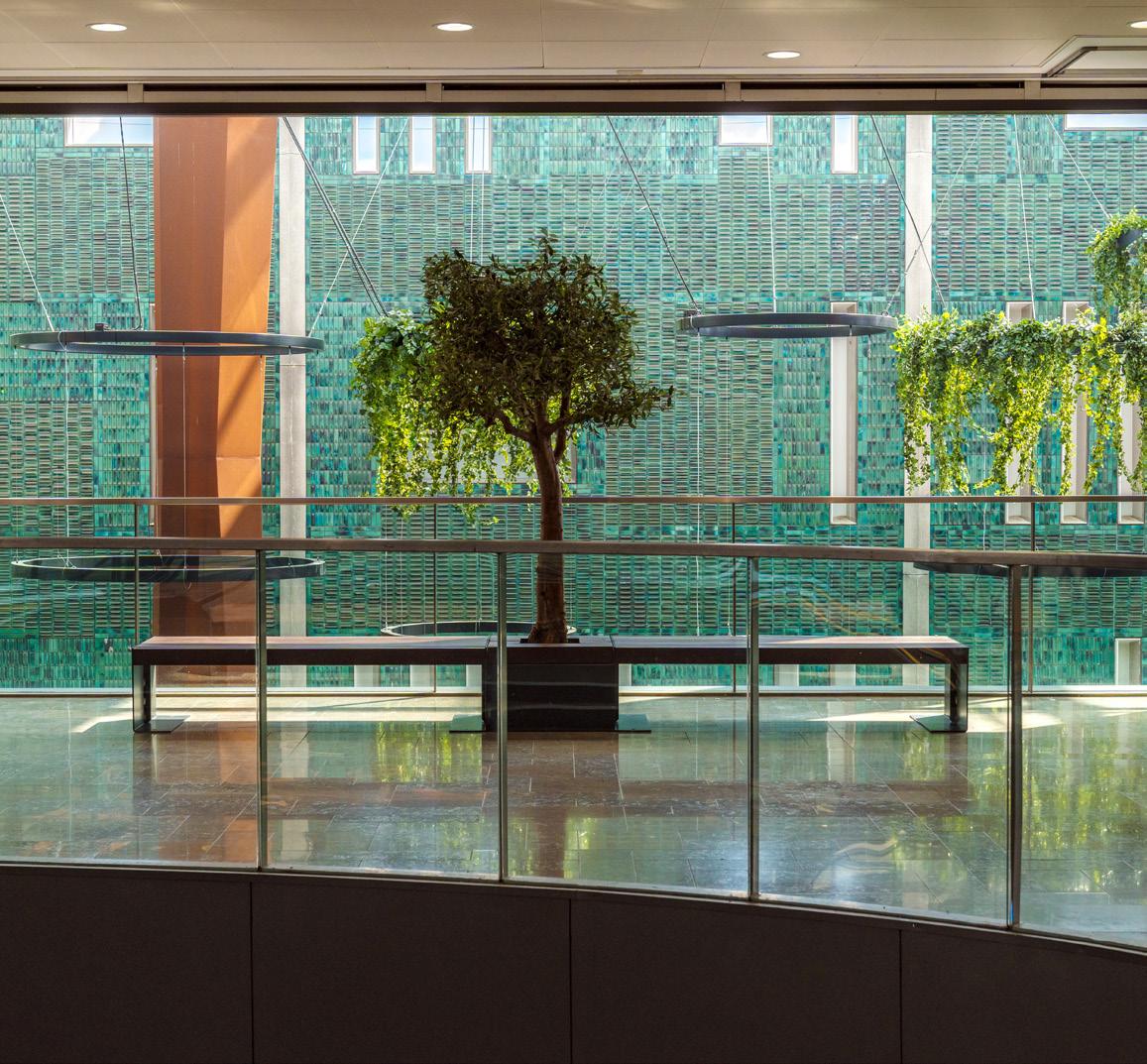

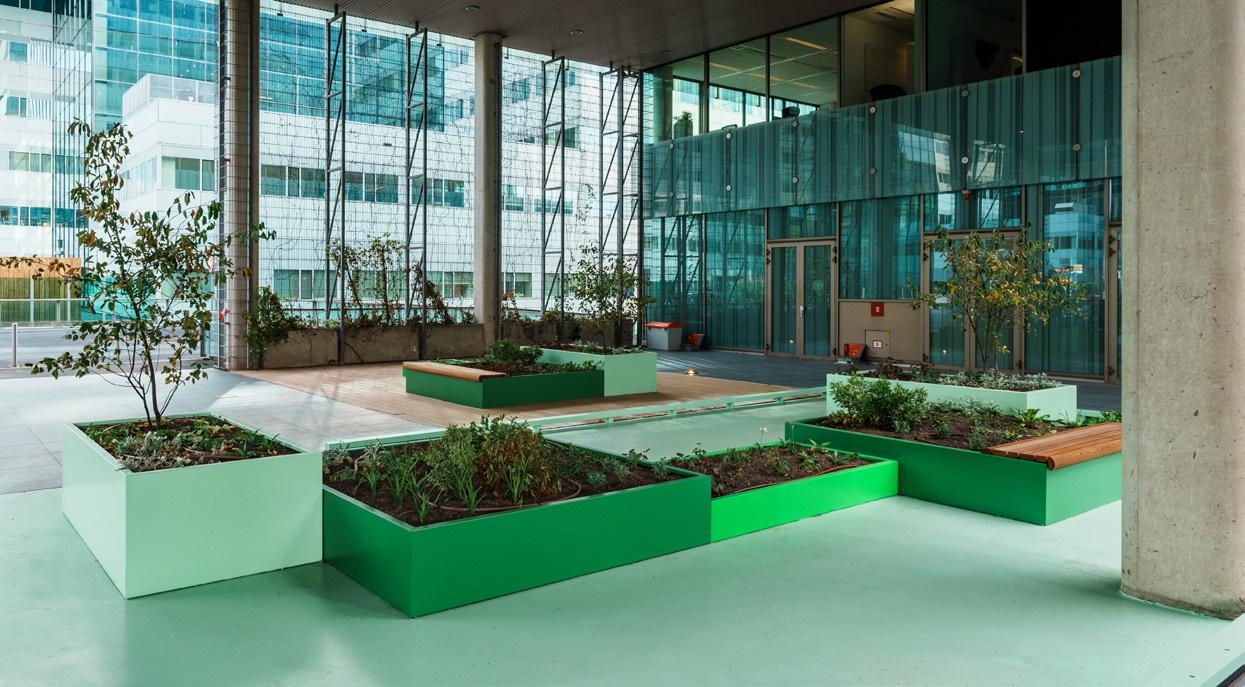

Piazza Eindhoven - Artiplant

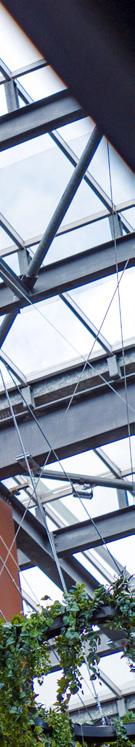

Shopping centre Piazza is one of the first objects one encounters when entering Eindhoven city centre. In the shopping centre, in cooperation with Artiplant, we completely tackled the public space with aluminium elements combined with MOSO bamboo X-treme. The project was realised in three phases. In phase one, we delivered custom-made furniture here, which was placed on the various floors, also using bamboo. In phase two, we placed hockers, round elements, also equipped with bamboo. In the final phase, we installed special plant rings hanging from the ceiling throughout the shopping centre. These closely match the light rings already hanging here. Made-tomeasure work that we as FURNS are enormously proud of.

- Hockers

- Planters

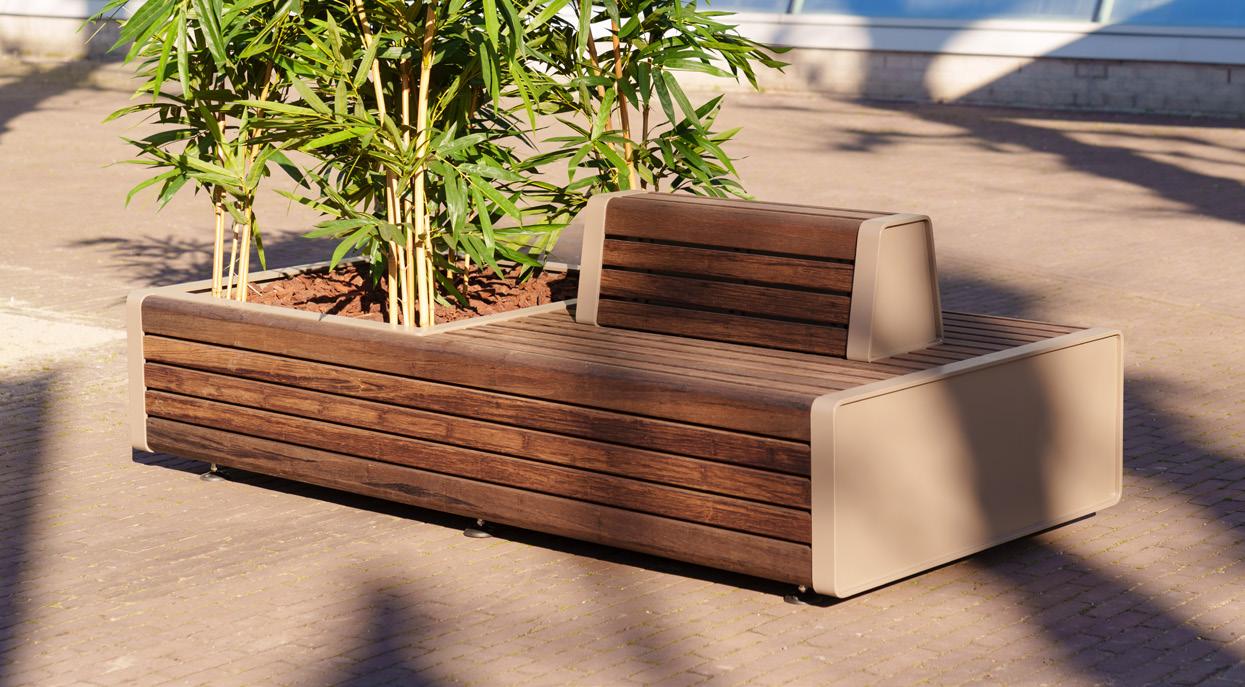

- Made-to-measure seating elements USED PRODUCTS

idverde - Anno 52

A unique realisation by Idverde NL in collaboration with FURNS & Awood. In this project, together with Awood, we played a major role in the realisation of all elements made of wood. For the Anno 52 project, we did the complete engineering and production of the furnishing elements from FURNS. Elements such as the seat pouffes were specially designed for this project. The corten steel planters also have an important function that ties in with the complete design and result of the roof garden.

- Planters

- Retaining walls

- Made-to-measure seating elements USED PRODUCTS

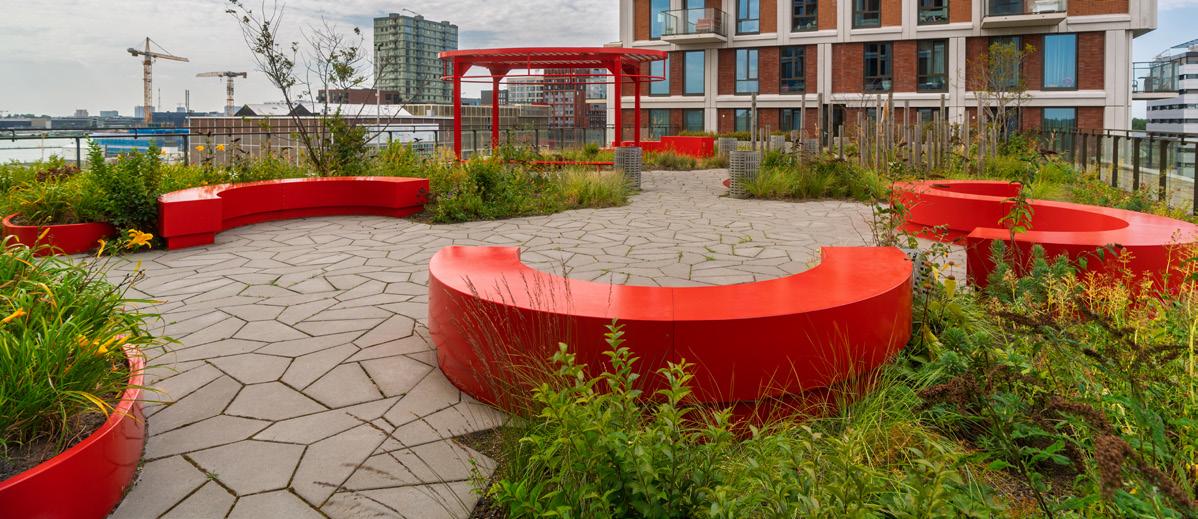

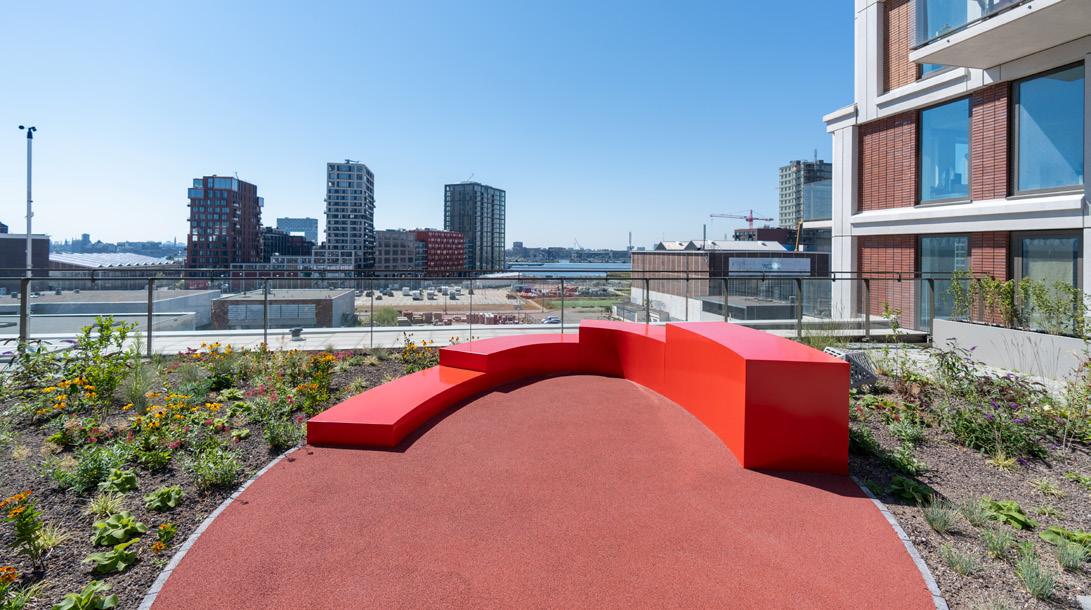

Van der Tol - Het Dok

On Het Dok in Amsterdam, there are two roof gardens accessible to all residents of the apartment complex. The roof gardens each have their own identity. In the project, we supplied several products to Van Der Tol B.V - Hoveniers en Terreininrichting. Completely customised, each element was specially designed and elaborated for the purpose of realisation. For example, aluminium elements coated in different colours are used for the purposes of sitting, playing, greenery, and hiding the air ducts. In the project, we also supplied furniture, and in close cooperation with Awood B.V., we achieved a result we are proud of. The complete result exactly matches the design vision of HOLLANDSGROEN.

- Retaining walls

- Edging

- Made-to-measure seating elements USED PRODUCTS

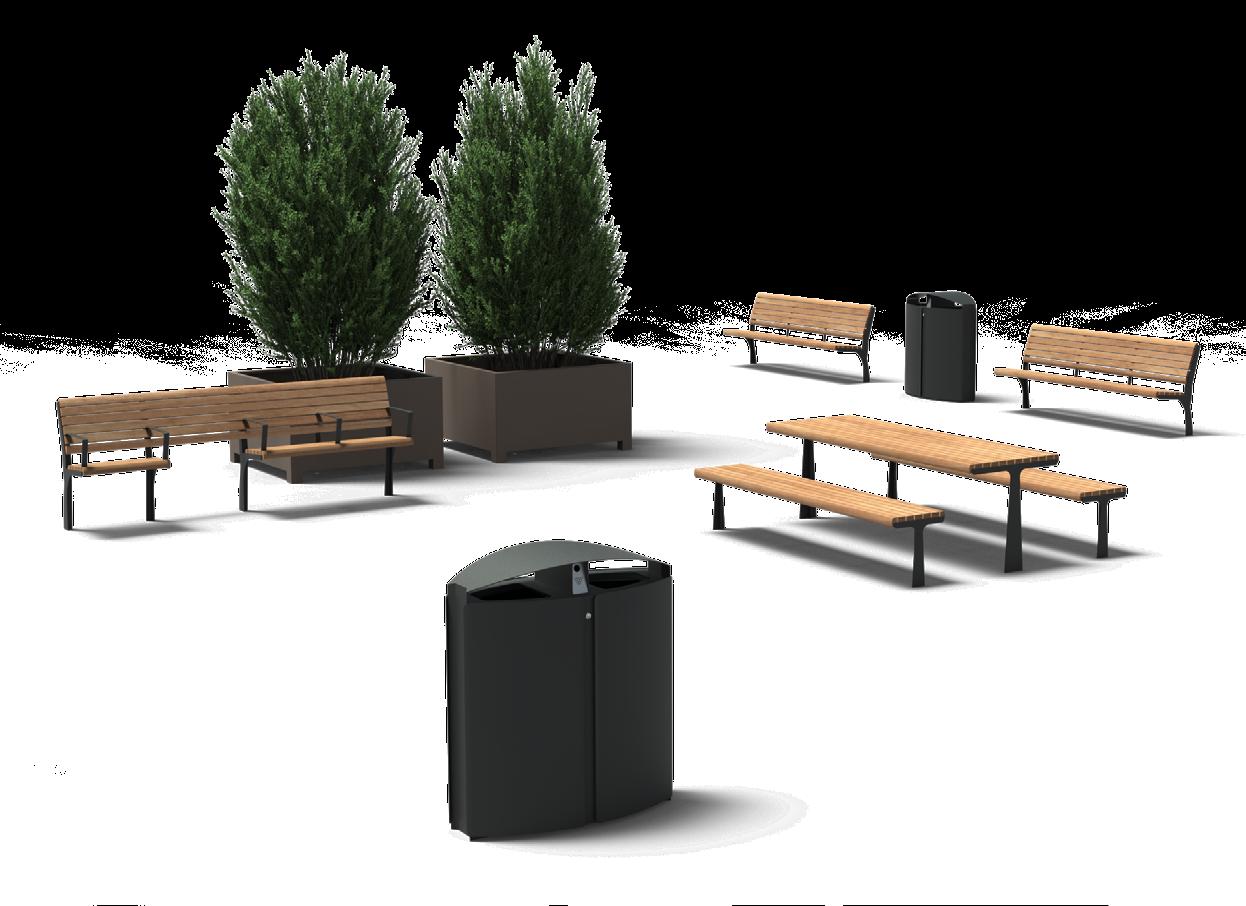

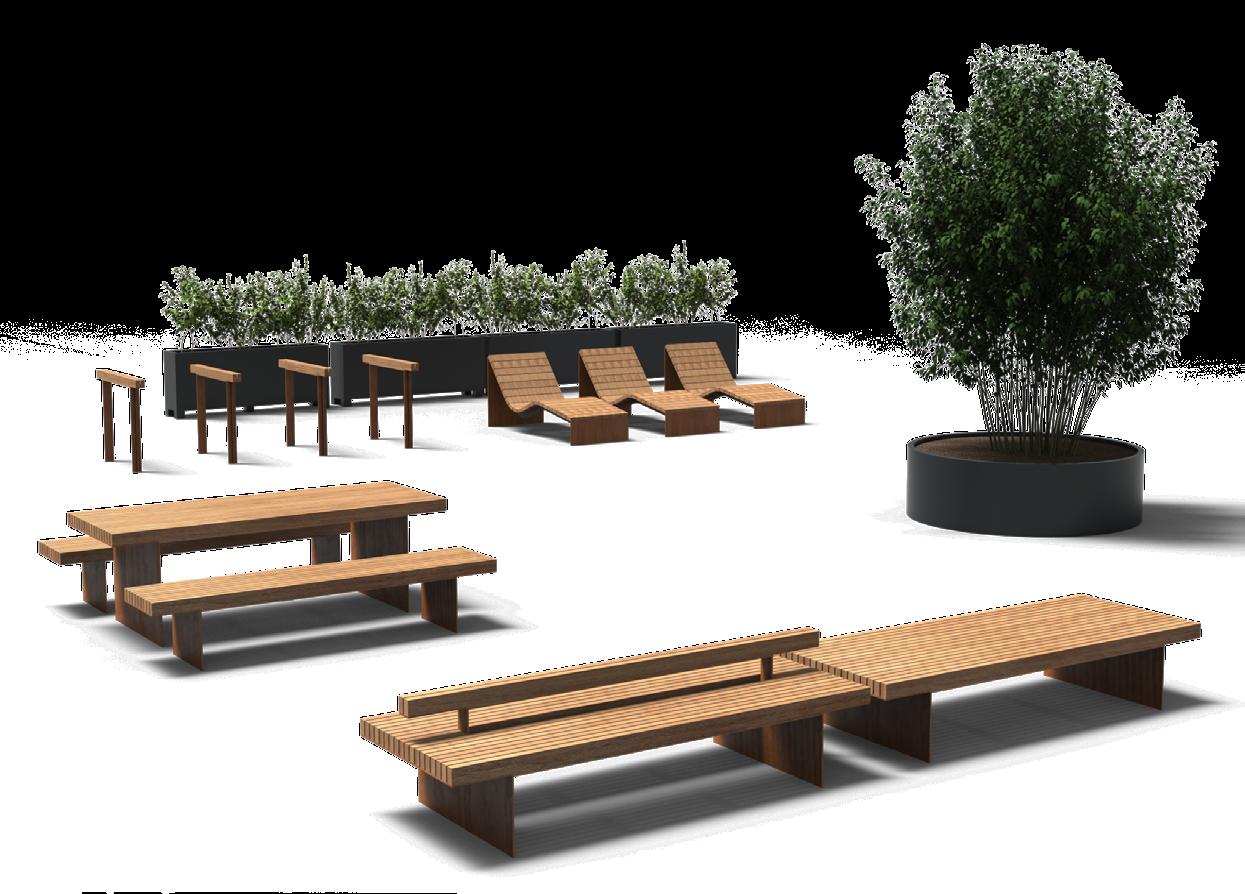

Family

Family

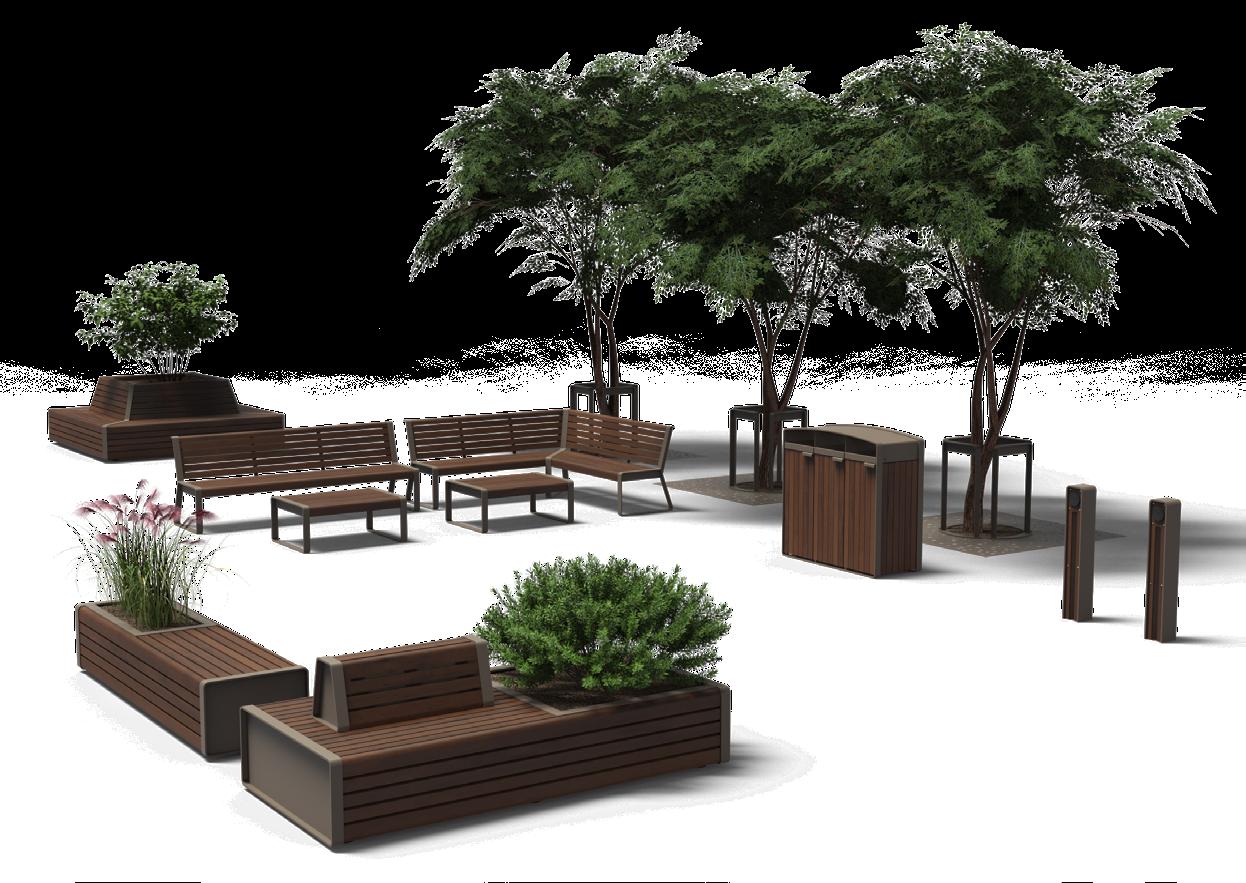

By using different design series, we make it easier to put together a complete outdoor space design. You choose a certain look that suits the project. More flowing lines or a very modern, sleek look. By using products from one series in your project, you create unity and, therefore, peace in the end result. This will make the visitor or user feel comfortable and at ease.

AROS

The AROS series has very clear shapes with no fuss. This makes these products suitable for any public space. The simplicity of the design ensures that it does not necessarily draw attention to itself but gives space to the applied greenery and the design of the square or park where it is placed.

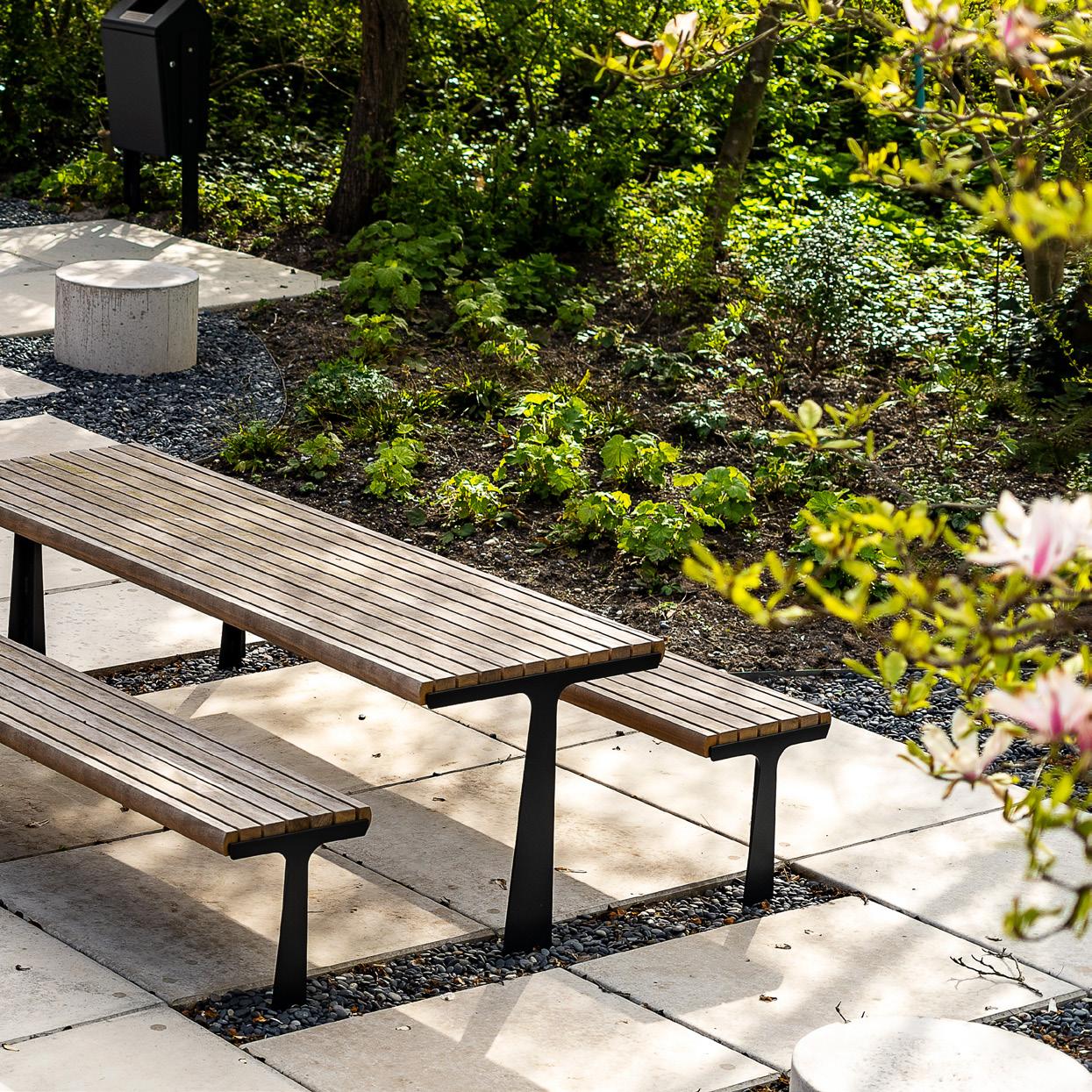

The use of robust beams, made of the very best hardwood, makes the BORG series very special. The steel construction is less prominent in the design, making the wood the eye-catcher.

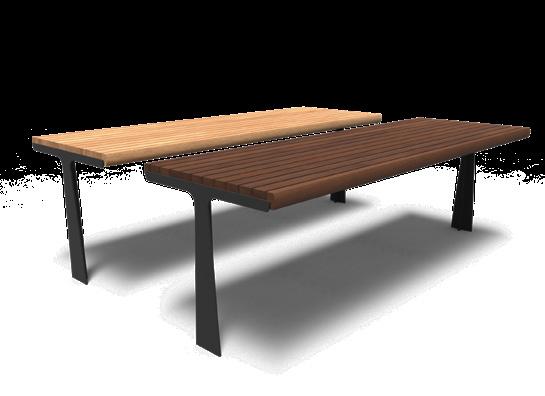

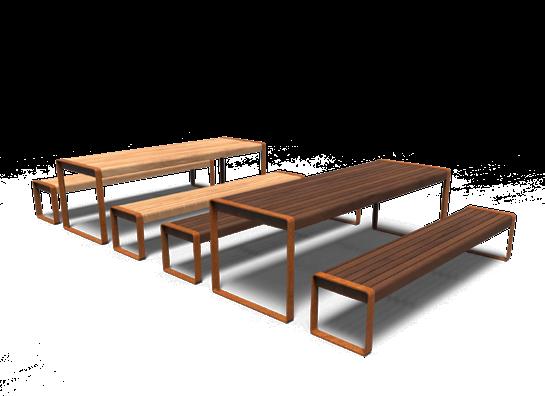

DUNC

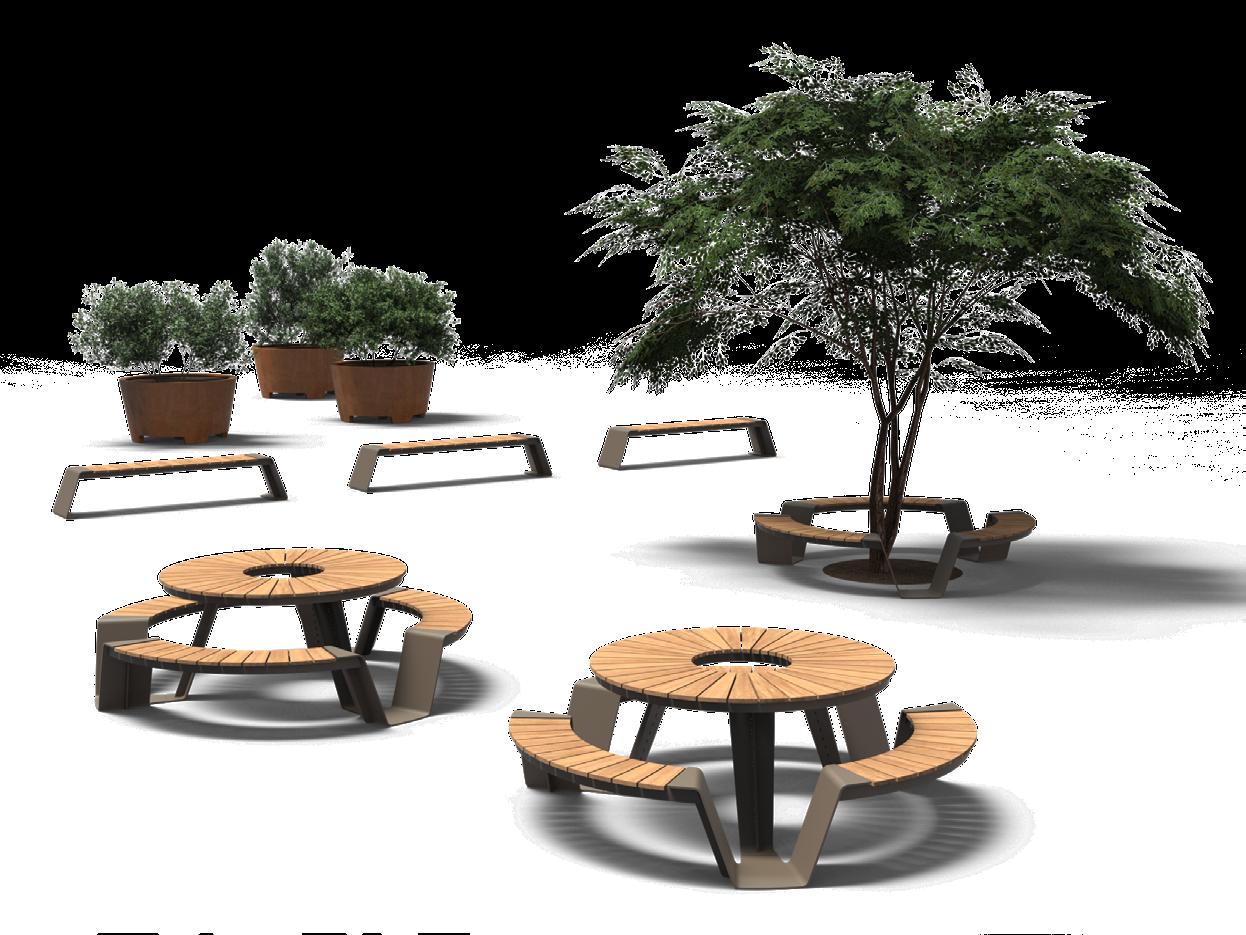

With the DUNC picnic set, the steel support structure is ‘folded’ around the table like an undulating movement. This set invites you to sit down. Besides the popular picnic set, benches are also available, making it easy to furnish an entire park with seating in the same style.

The GRO series is timeless and highly varied. Because the legs of the furniture are slightly flared, they take on an elegant appearance. The round shapes recur throughout the GRO series.

The MIO series is well suited for any roof garden, public space, or private garden. Thanks to its airy design and simplicity, it fits any design. The entire series is easy to fix at ground level. Products you will enjoy for a long time!

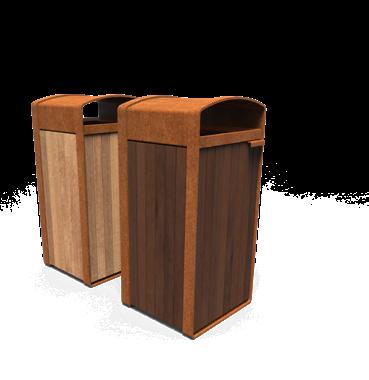

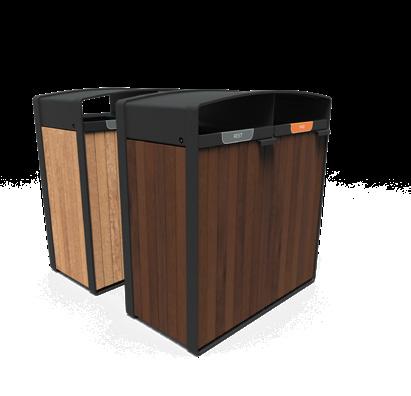

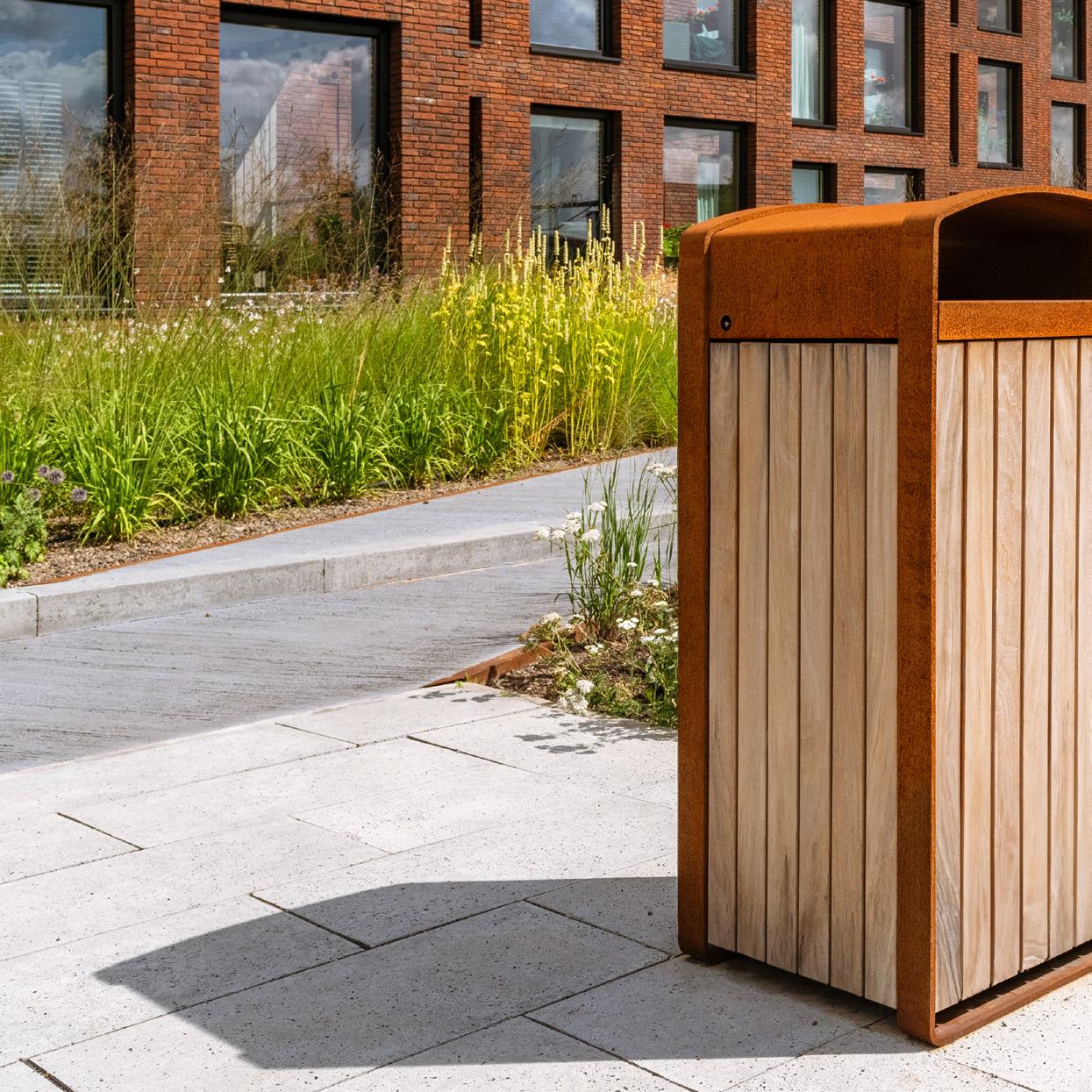

STORR

The STORR series has a very wide product range. The entire range fits well together, thanks to its light, rounded design. Whether it’s a bicycle charger, a bench, or a solution for more greenery in the city centre, the STORR series has it all.

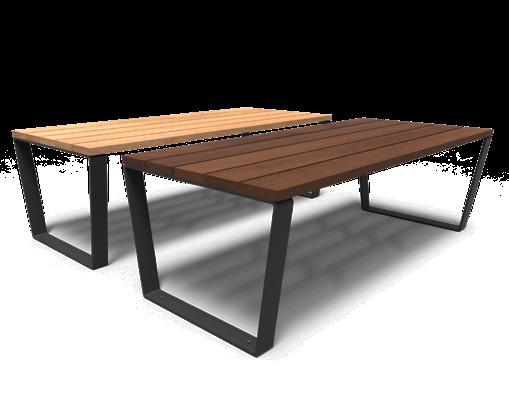

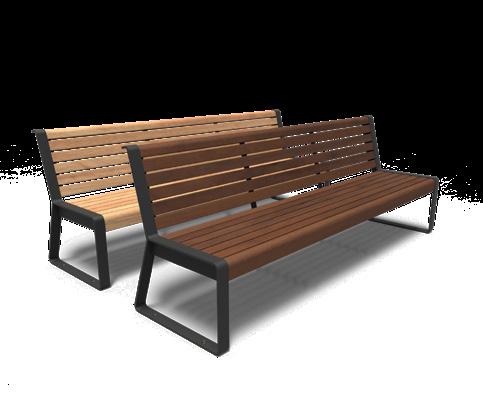

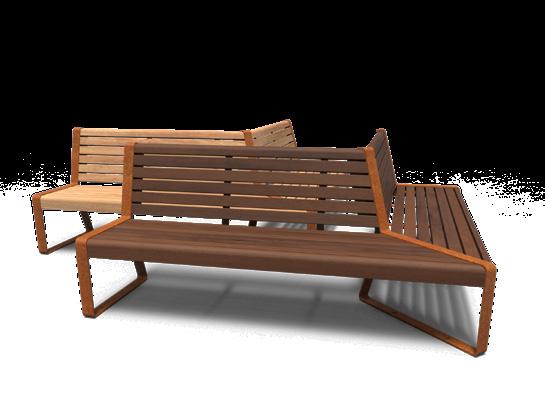

Benches and tables

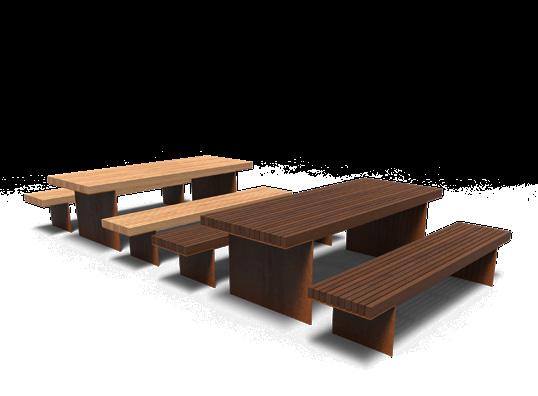

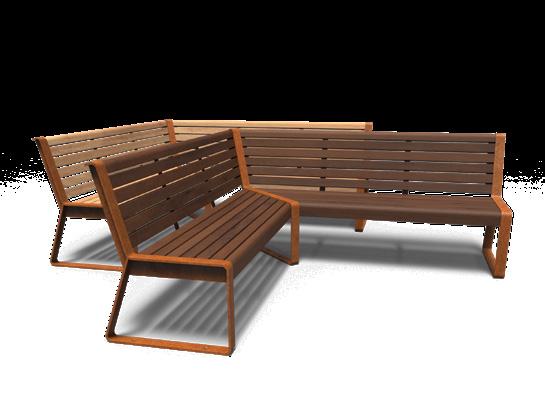

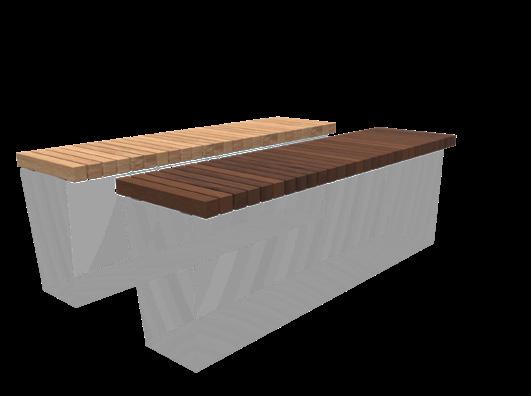

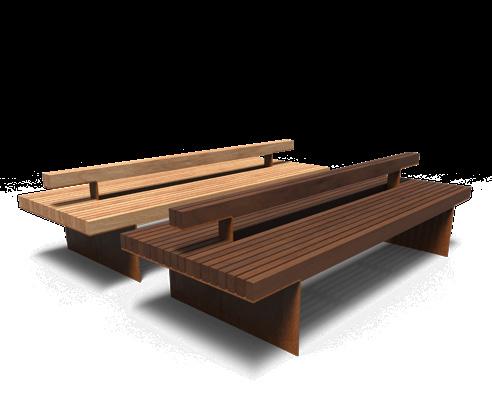

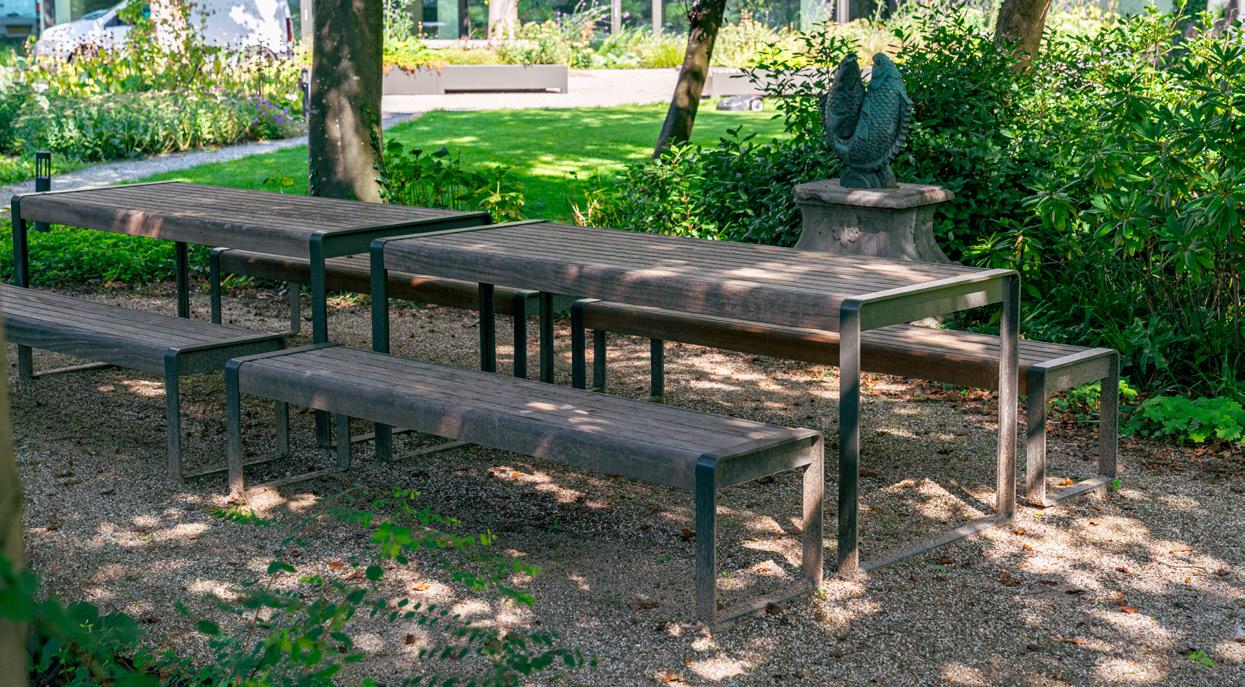

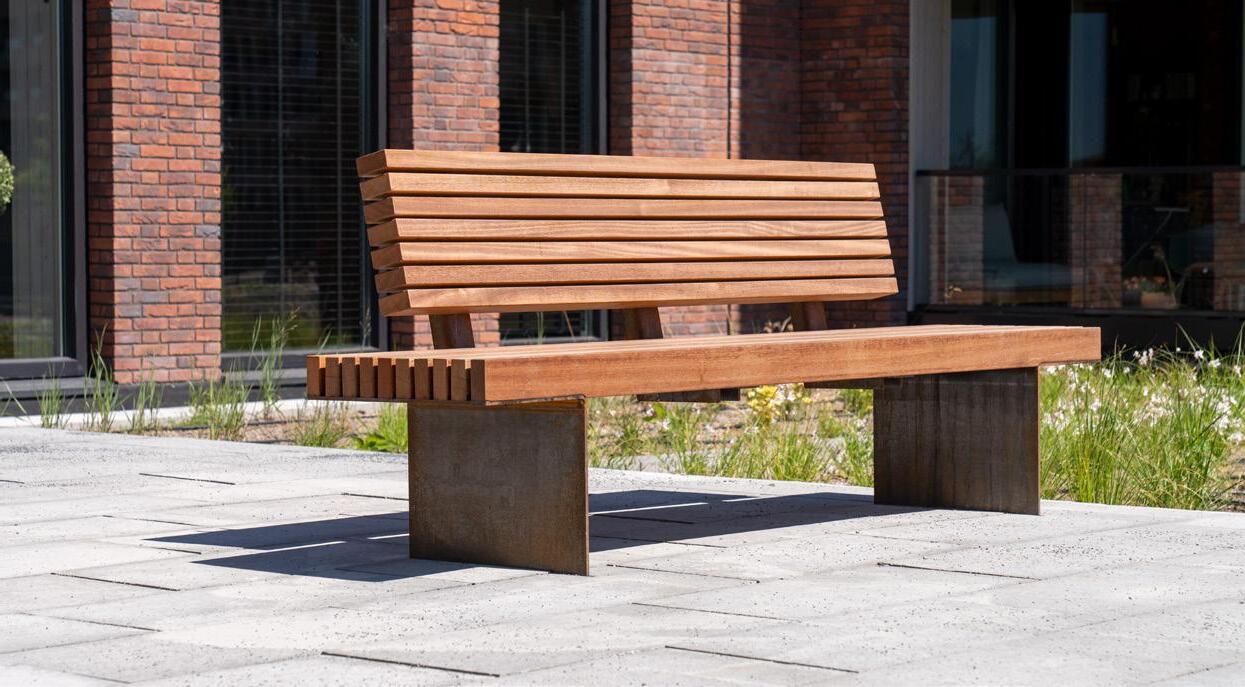

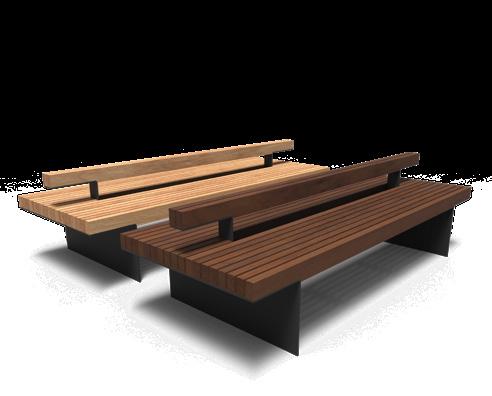

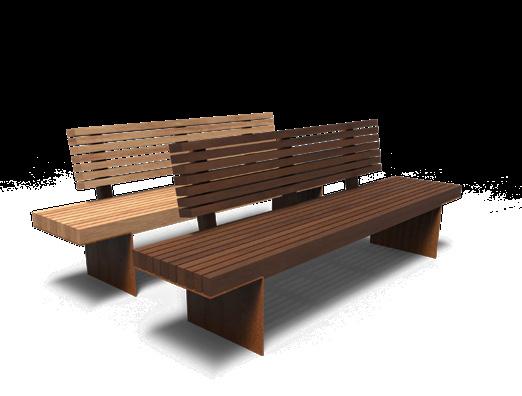

BORG

The BORG is a line with robust seating furniture. The bench can be produced with and without a backrest. You can apply it both as single and double-sided. By combining the single-sided bench with the BORG table you get a robust picnic combination.

Turn to page 37 for the complete BORG range.

OPTIONS

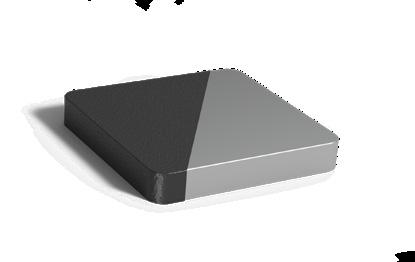

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

WITHOUT BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP600 x2

WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP600 x2

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP600 x2

BOBE.2300SB.Ct 2300 670 1023 198

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP600 x2

BOBE.2300SB.ZnRc 2300 670 1030 198

BOBE.2300SB.Ct.BX 2300 670 1023 225

BOBE.2300SB.ZnRc.BX 2300 670 1023 225

SEATER WITHOUT BACKREST CORTENSTEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x4

BOBE.2300D.Ct 2300 890 600 255

DOUBLE SEATER WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x4

BOBE.2300D.ZnRc 2300 890 600 255

BOBE.2300D.Ct.BX 2300 890 600 286

BOBE.2300D.ZnRc.BX 2300 890 600 286

SEATER WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x4

BOBE.2300DB.Ct 2300 890 800 266

SEATER WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x4

BOBE.2300DB.ZnRc 2300 890 800 266

BOBE.2300DB.Ct.BX 2300 890 800 297

BOBE.2300DB.ZnRc.BX 2300 890 800 297

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x4

2300 890 900 288

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x4

BOTA.2300.ZnRc 2300 890 900 288

2300 890 900 319

BOTA.2300.ZnRc.BX 2300 890 900 319

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x4

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x4

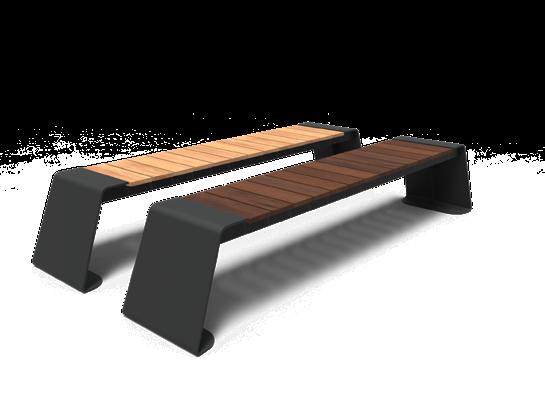

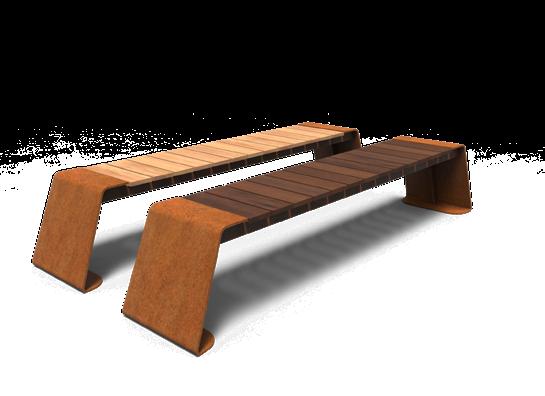

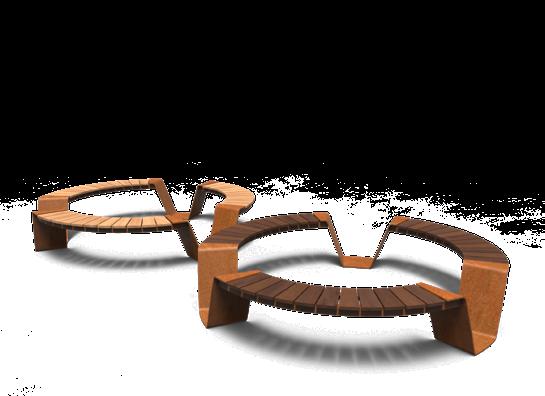

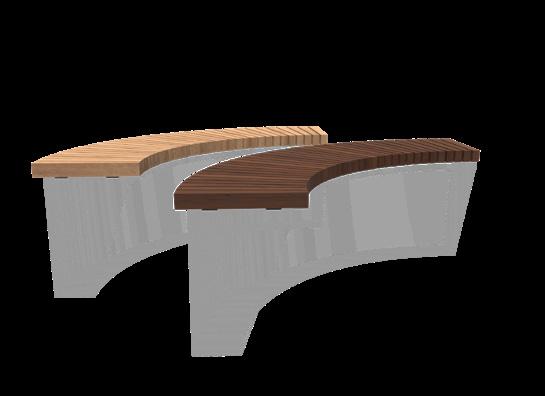

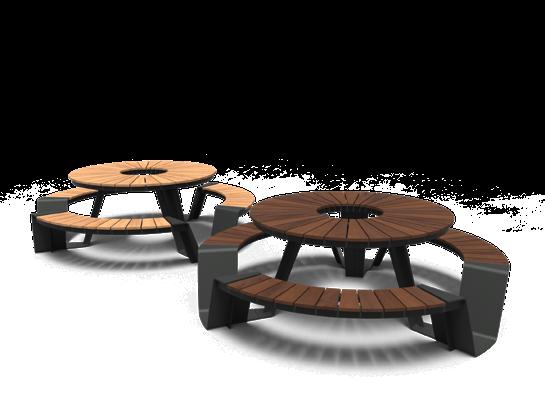

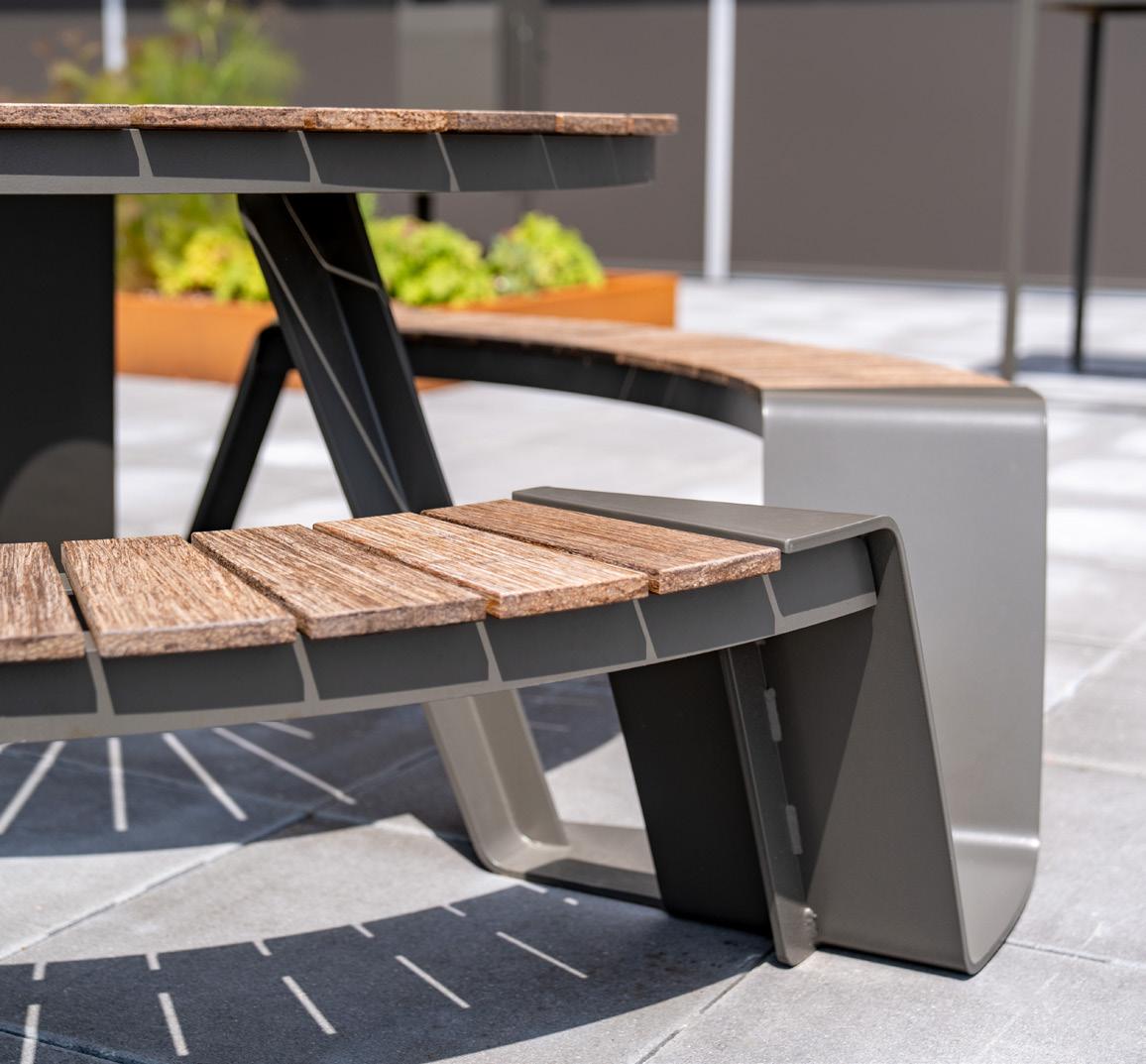

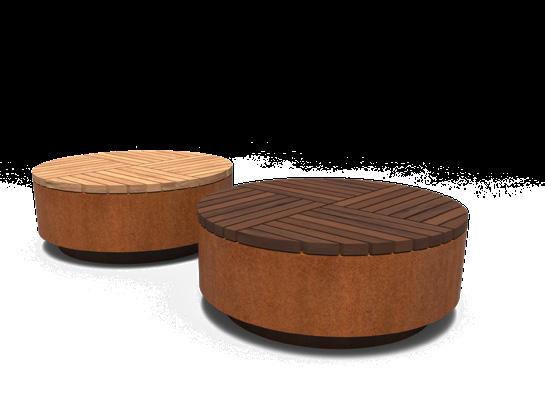

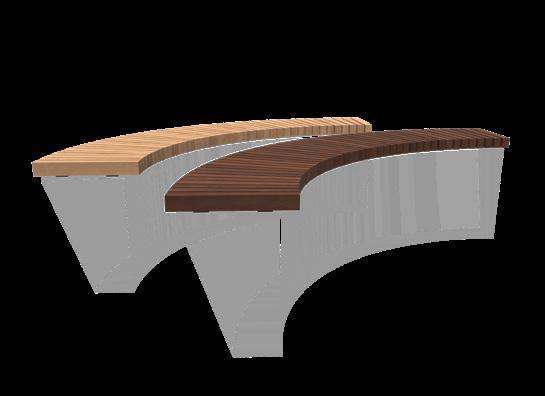

DUNC

The modern and soft appearance characterises the DUNC series. The round bench is ideal for placing around a tree. The products can easily be placed on ground level using the pre-drilled fixing holes.

Turn to page 39 for the complete DUNC range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

WITHOUT BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 120 x 20 mm

Corten steel thickness 10 mm

Concrete base ACBP250 x2

2300 450 450 91

WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 120 x 20 mm

Steel thickness 10 mm

Concrete base ACBP250 x2

DUBE.2300S.ZnRc 2300 450 450 91

DUBE.2300S.Ct.BX 2300 450 450 88

DUBE.2300S.ZnRc.BX 2300 450 450 88

DESCRIPTION STANDARD

Beam size 125 x 20 mm

Corten steel thickness 10 mm

Concrete base ACBP600 x3

2300 2300 450 173

DESCRIPTION STANDARD

Beam size 125 x 20 mm

Steel thickness 10 mm

Concrete base ACBP600 x3

DUBE.R2300S.ZnRc 2300 2300 450 173

DUBE.R2300S.Ct.BX 2300 2300 450 180

DUBE.R2300S.ZnRc.BX 2300 2300 450 180

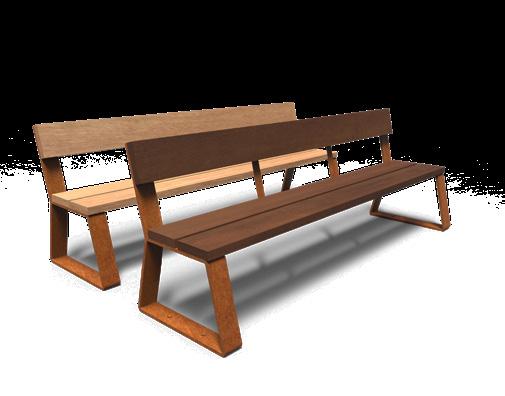

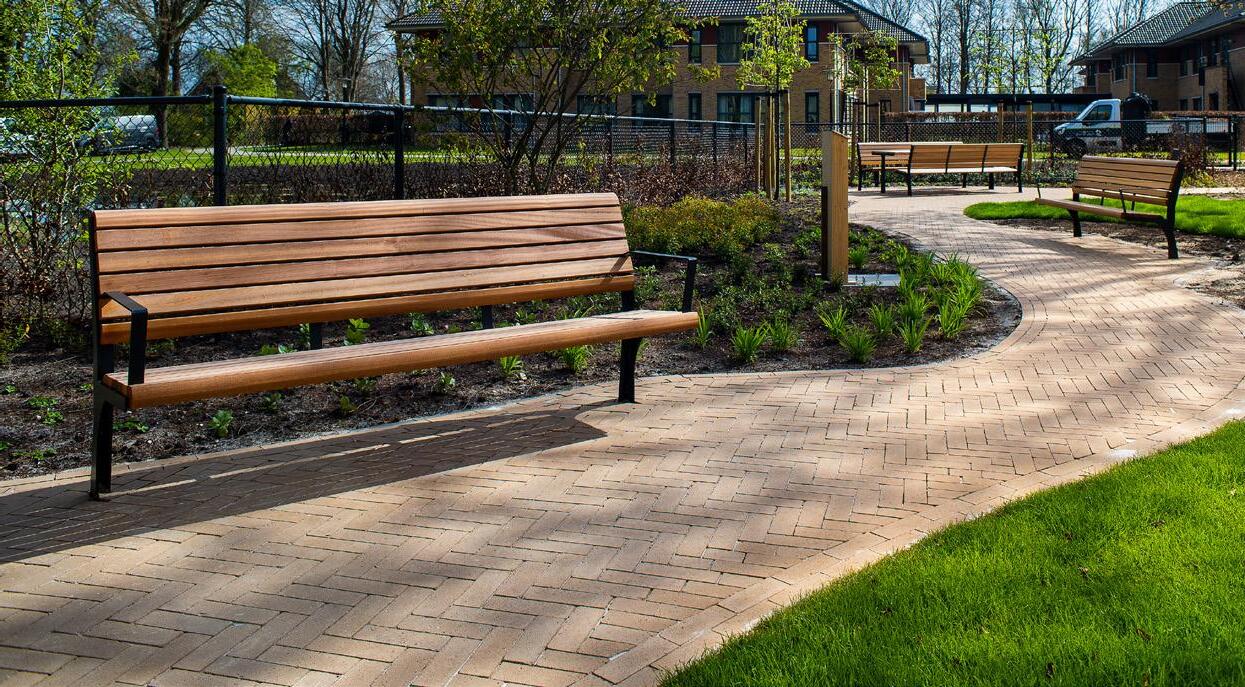

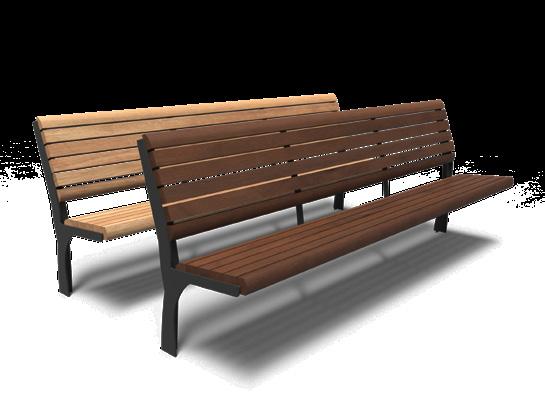

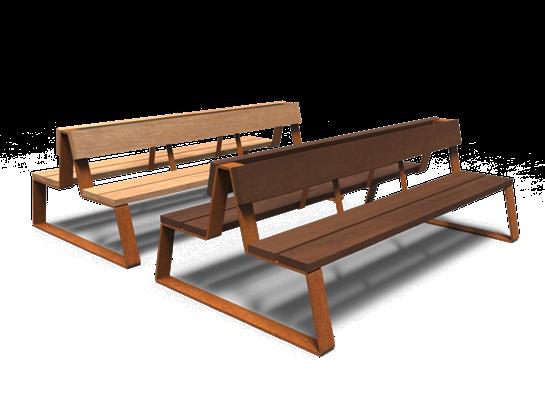

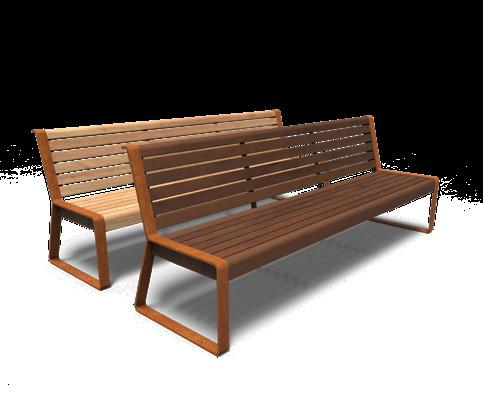

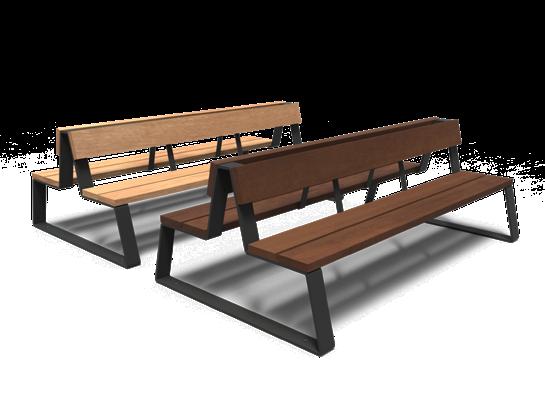

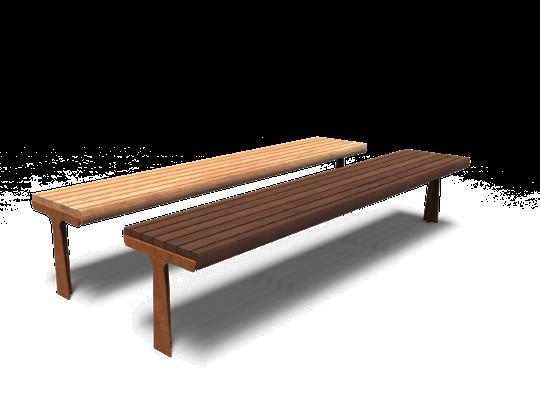

GRO

The GRO is a playful but timeless park bench. The bench can be produced with and without armrest. You can use it as a 1-seater, 2-seater and 3-seater bench.

Turn to page 41 for the complete GRO range.

OPTIONS

CUSTOMISATION CONCRETE BASE

ARMRESTS

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

WITHOUT BACKREST CORTEN STEEL WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP600 x2

2300 440 620 55

GRBE.2300S.Ct.BX 2300 440 620 64

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 10 mm

Concrete base ACBP600 x2

GRBE.2300S.ZnRc.BX 2300 440 620 64 KG KG

GRBE.2300S.ZnRc 2300 440 620 55

WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP600 x2

Armrests GRBE.AR

GRBE.500SB.Ct 500 625 1040 36

GRBE.1500SB.Ct 1500 625 1040 52

GRBE.2300SB.Ct 2300 625 1040 67

WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 8 mm

Concrete base ACBP600 x2

Armrests GRBE.AR

GRBE.500SB.Ct.BX 500 625 1040 40

GRBE.1500SB.Ct.BX 1500 625 1040 73

GRBE.2300SB.Ct.BX 2300 625 1040 100

GRBE.500SB.ZnRc 500 625 1040 36

GRBE.1500SB.ZnRc 1500 625 1040 52

GRBE.2300SB.ZnRc 2300 625 1040 67

KG

GRBE.500SB.ZnRc.BX 500 625 1040 40

GRBE.1500SB.ZnRc.BX 1500 625 1040 73

GRBE.2300SB.ZnRc.BX 2300 625 1040 100 KG

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP600 x4

GRBE.2000SAS.Ct 2000 625 1110 94

GRBE.2600SAS.Ct 2600 625 1110 111

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 8 mm

Concrete base ACBP600 x4

GRBE.2000SAS.ZnRc 2000 625 1110 94

GRBE.2600SAS.ZnRc 2600 625 1110 111

GRBE.2000SAS.Ct.BX 2000 625 1110 107

GRBE.2600SAS.Ct.BX 2600 625 1110 128

GRBE.2000SAS.ZnRc.BX 2000 625 1110 107

GRBE.2600SAS.ZnRc.BX 2600 625 1110 128

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x4

GRTA.2300.Ct 2300 790 905 92

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x4

GRTA.2300.Ct.BX 2300 790 905 108

GRTA.2300.ZnRc 2300 790 905 92

GRTA.2300.ZnRc.BX 2300 790 905 108 KG

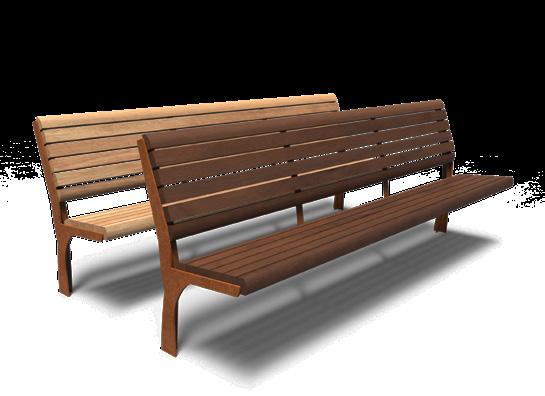

MIO

The MIO series are suitable for any roof garden, public space or even private garden. Thanks to its airy design and pure simplicity, it suits every look. The entire series can easily be attached to ground level using stainless steel countersunk bolts. The MIO series consists of a sturdy 15 mm Galvanised Steel frame with a Hardwood cladding.

Turn to page 43 for the complete MIO range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

WITHOUT BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base ACBP600 x2

MOBE.2300S.Ct 2300 575 450 76

WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base ACBP600 x2

MOBE.2300S.ZnRc 2300 575 450 76

MOBE.2300S.Ct.BX 2300 575 450 85

MOBE.2300S.ZnRc.BX 2300 575 450 85

WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base ACBP600 x2

MOBE.2300SB.Ct 2300 620 840 105

WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base ACBP600 x2

MOBE.2300SB.Ct.BX 2300 620 840 118

MOBE.2300SB.ZnRc.BX 2300 620 840 118 KG KG

MOBE.2300SB.ZnRc 2300 620 840 105

SEATER WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base ACBP250 x4

MOBE.2300DB.Ct 2300 1320 840 213

SEATER WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base ACBP250 x4

MOBE.2300DB.ZnRc 2300 1320 840 213

MOBE.2300DB.Ct.BX 2300 1320 840 222

MOBE.2300DB.ZnRc.BX 2300 1320 840 222

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base ACBP250 x4

MOTA.2300.Ct 2300 1030 760 167

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base ACBP250 x4

MOTA.2300.ZnRc 2300 1030 760 167

MOTA.2300.Ct.BX 2300 1030 760 188

MOTA.2300.ZnRc.BX 2300 1030 760 188

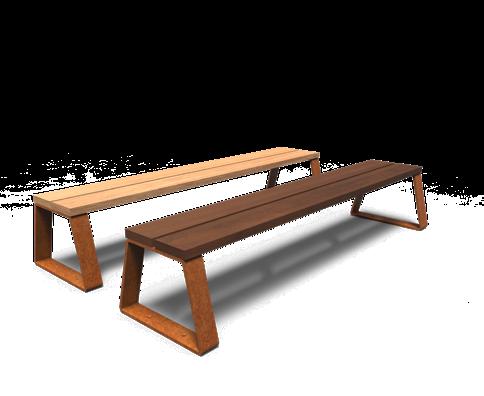

STORR

The STORR Series is attractive due to its simplicity, both visually and price-wise. The STORR table in combination with the STORR single seat makes a beautiful picnic set. Thanks to the modular leg, the bench can also be blindly connected. If the sofa is longer than the standard length, it will be provided with an extra support in the middle of the bench.

Turn to page 45 for the complete STORR range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

WITHOUT BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 10 mm

Concrete base ACBP600 x2

STBE.600.Ct 600 440 430 34

STBE.1500.Ct 1500 440 430 51

STBE.2300.Ct 2300 440 430 68

WITHOUT BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 10 mm

Concrete base ACBP600 x2

STBE.600.Ct.BX 600 440 430 37

STBE.1500.Ct.BX 1500 440 430 58

STBE.2300.Ct.BX 2300 440 430 78

STBE.600.ZnRc 600 440 430 34

STBE.1500.ZnRc 1500 440 430 51

STBE.2300.ZnRc 2300 440 430 68

STBE.600.ZnRc.BX 600 440 430 37

STBE.1500.ZnRc.BX 1500 440 430 58

STBE.2300.ZnRc.BX 2300 440 430 78 KG KG

WITH BACKREST CORTEN STEEL

DESCRIPTION

Beam size 60 x 40 mm

Corten steel thickness 10 mm

Concrete base ACBP600 x2

STBE.1500SB.Ct 1500 650 850 63

STBE.2300SB.Ct 2300 650 850 79

WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 10 mm

Concrete base ACBP600 x2

STBE.1500SB.ZnRc 1500 650 850 77

STBE.2300SB.ZnRc 2300 650 850 79

STBE.1500SB.Ct.BX 1500 650 850 89

STBE.2300SB.Ct.BX 2300 650 850 120

STBE.1500SB.ZnRc.BX 1500 650 850 89

STBE.2300SB.ZnRc.BX 2300 650 850 120

INSIDE CORNER WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 10 mm

Concrete base

INSIDE CORNER WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

OUTSIDE CORNER WITH BACKREST CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm Corten steel thickness 10 mm

OUTSIDE CORNER WITH BACKREST COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 10 mm

Concrete base ACBP250 x4

2300 790 750 123

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 10 mm

Concrete base ACBP250 x4

2300 790 750 123

2300 790 750 139

2300 790 750 139

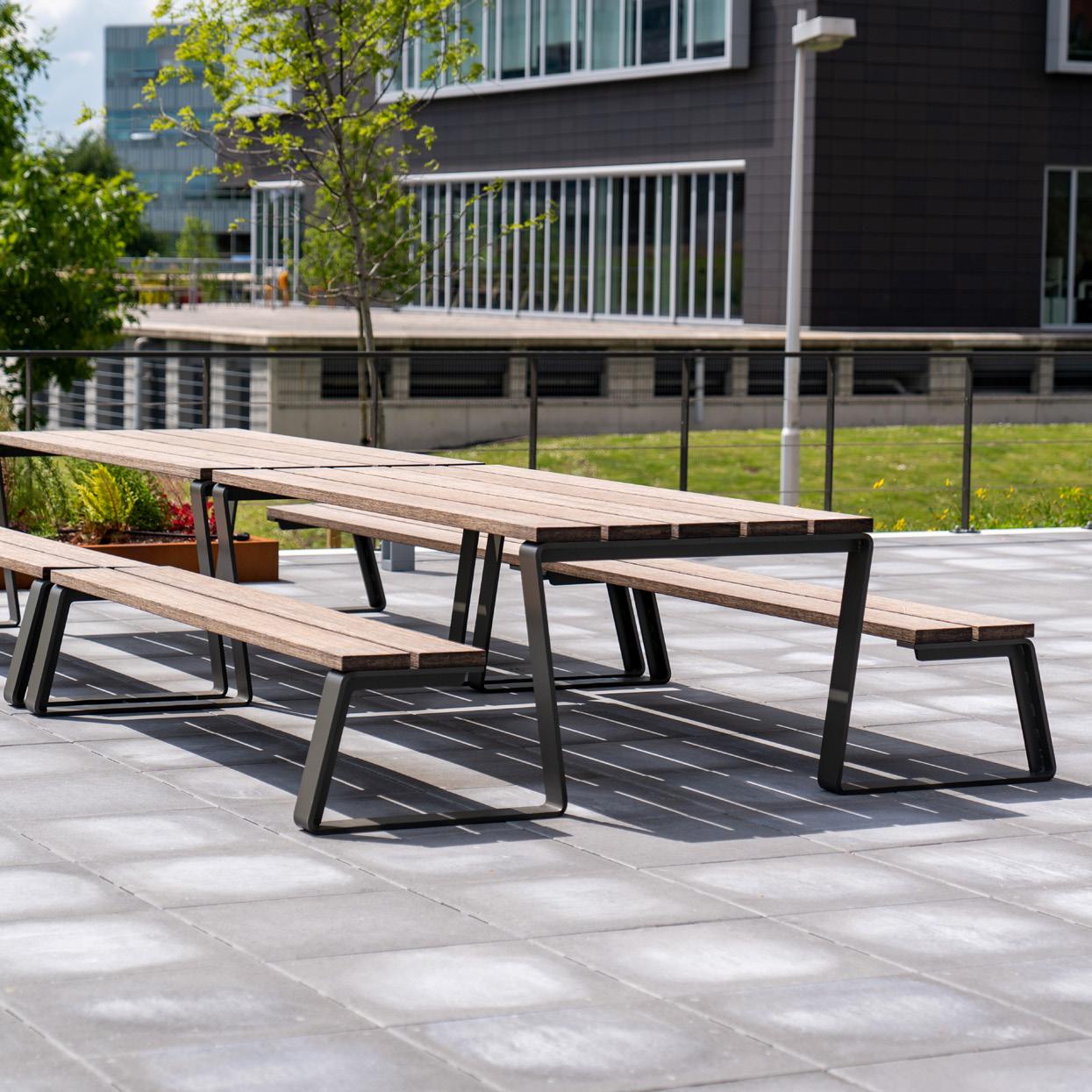

Picnic sets

BORG

The BORG picnic sets are made of the very best material: sturdy and weatherproof. The robust beams used to clad the picnic sets complete the product. Thanks to the natural look of the wood and bamboo, the picnic sets fit perfectly among the greenery in public spaces.

Turn to page 37 for the complete BORG range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

COMBINATION CORTEN STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

BOPNC.2300.Ct 2300 2270 900 562

COMBINATION COATED STEEL

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

BOPNC.2300.ZnRc 2300 2270 900 562

BOPNC.2300.Ct.BX 2300 2270 900 626

BOPNC.2300.ZnRc.BX 2300 2270 900 626

DUNC

This quirky, timeless series is characterised by its rounded transitions on clean lines. An undoubted eye-catcher is this picnic set. Its unique design, in particular, makes it very special.

Turn to page 39 for the complete DUNC range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

DESCRIPTION STANDARD

Beam size 135 x 20 mm

Diameter opening 480 mm

Corten steel thickness 10 mm

Concrete base ACBP600 x3

DUPN.R2300.Ct 2300 2300 750 272

DESCRIPTION STANDARD

Beam size 135 x 20 mm

Diameter opening 480 mm

Steel thickness 10 mm

Concrete base ACBP600 x3

DUPN.R2300.ZnRc.BX 2300 2300 750 290

DUPN.R2300.Ct.BX 2300 2300 750 290

DUPN.R2300.ZnRc 2300 2300 750 272

ACCESSORIES CORTEN STEEL

DESCRIPTION STANDARD

Diameter of the parasol opening 80 mm Corten steel thickness 4 mm

CONSOLE

DUPN.AMC.R2300.Ct

CONSOLE

DUPN.APC.R2300.Ct

ACCESSORIES COATED STEEL

DESCRIPTION STANDARD

Diameter of the parasol opening 80 mm Steel thickness 4 mm

CONSOLE

CONSOLE

GRO

Timeless and airy, GRO’s picnic sets invite you to use them. The fact that the legs of the tables and benches extend slightly gives the whole design an elegant look. The round shapes recur throughout the GRO series. Therefore, these picnic sets combine well with other products in the series.

Turn to page 41 for the complete GRO range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

COMBINATION CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 8 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

GRPNC.2300.Ct 2584 2070 905 203

COMBINATION COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 8 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

GRPNC.2300.ZnRc 2584 2070 905 203

GRPNC.2300.Ct.BX 2584 2070 905 235

GRPNC.2300.ZnRc.BX 2584 2070 905 235

MIO

Our MIO picnic sets are elegant and durable. In almost any room, this series is a beautiful addition, thanks to its calm shapes.

Turn to page 43 for the complete MIO range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

COMBINATION CORTEN STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

MOPNC.2300.Ct 2300 2405 760 318

COMBINATION COATED STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

MOPNC.2300.ZnRc 2300 2405 760 318

MOPNC.2300.Ct.BX 2300 2405 760 357

MOPNC.2300.ZnRc.BX 2300 2405 760 357

SET CORTEN STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Corten steel thickness 15 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

MOPN.2300.Ct 2300 2270 760 311

SET COATED STEEL

DESCRIPTION STANDARD

Beam size 190 x 42 mm

Steel thickness 15 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

MOPN.2300.ZnRc 2300 2270 760 311

MOPN.2300.Ct.BX 2300 2270 760 351

MOPN.2300.ZnRc.BX 2300 2270 760 351

STORR

Binnen de complete serie STORR mag ook zeker een picknickset niet ontbreken. De afgeronde vormen komen ook hier in terug. Dit zorgt voor een rustige, elegante uitstraling, die goed in iedere tuin past.

Turn to page 45 for the complete STORR range.

OPTIONS

CUSTOMISATION CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

COMBINATION CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Corten steel thickness 10 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

STPNC.2300.Ct 2300 2070 750 259

COMBINATION COATED STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm

Steel thickness 10 mm

Concrete base bench ACBP600 x4

Concrete base table ACBP250 x4

STPNC.2300.ZnRc 2300 2070 750 259

STPNC.2300.Ct.BX 2300 2070 750 294

STPNC.2300.ZnRc.BX 2300 2070 750 294

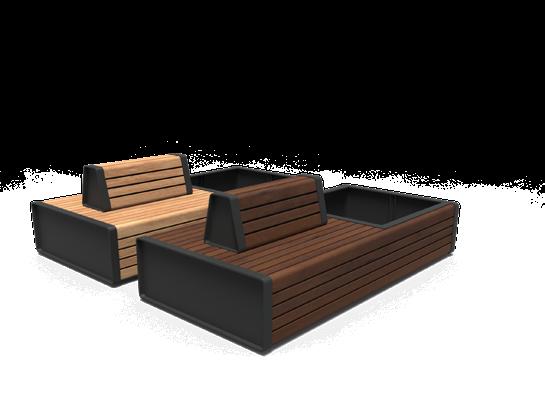

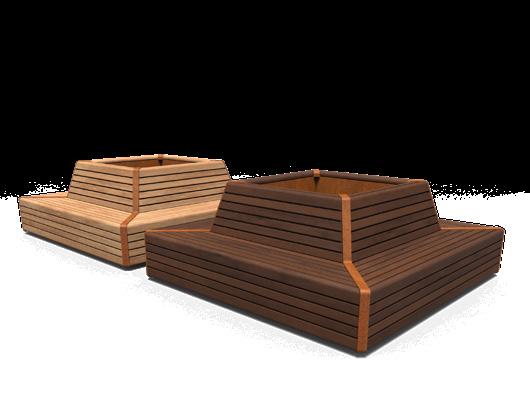

Greenpoints

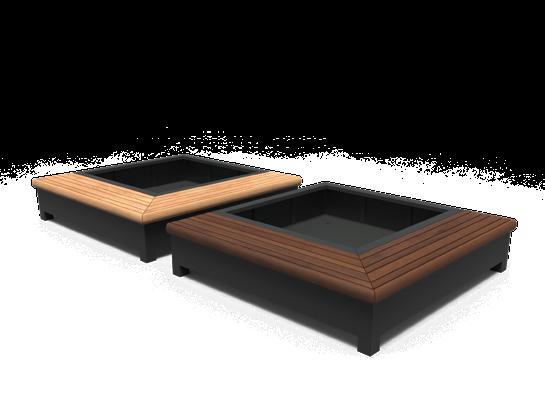

AROS

With our modular greenpoints you can furnish every square flexible. The elements are designed to connect to each other. Thanks to the raised feet the models are easily movable.

Turn to page 35 for the complete AROS range.

OPTIONS

CUSTOMISATION

TREE CARE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

SINGLE BENCH CORTEN STEEL

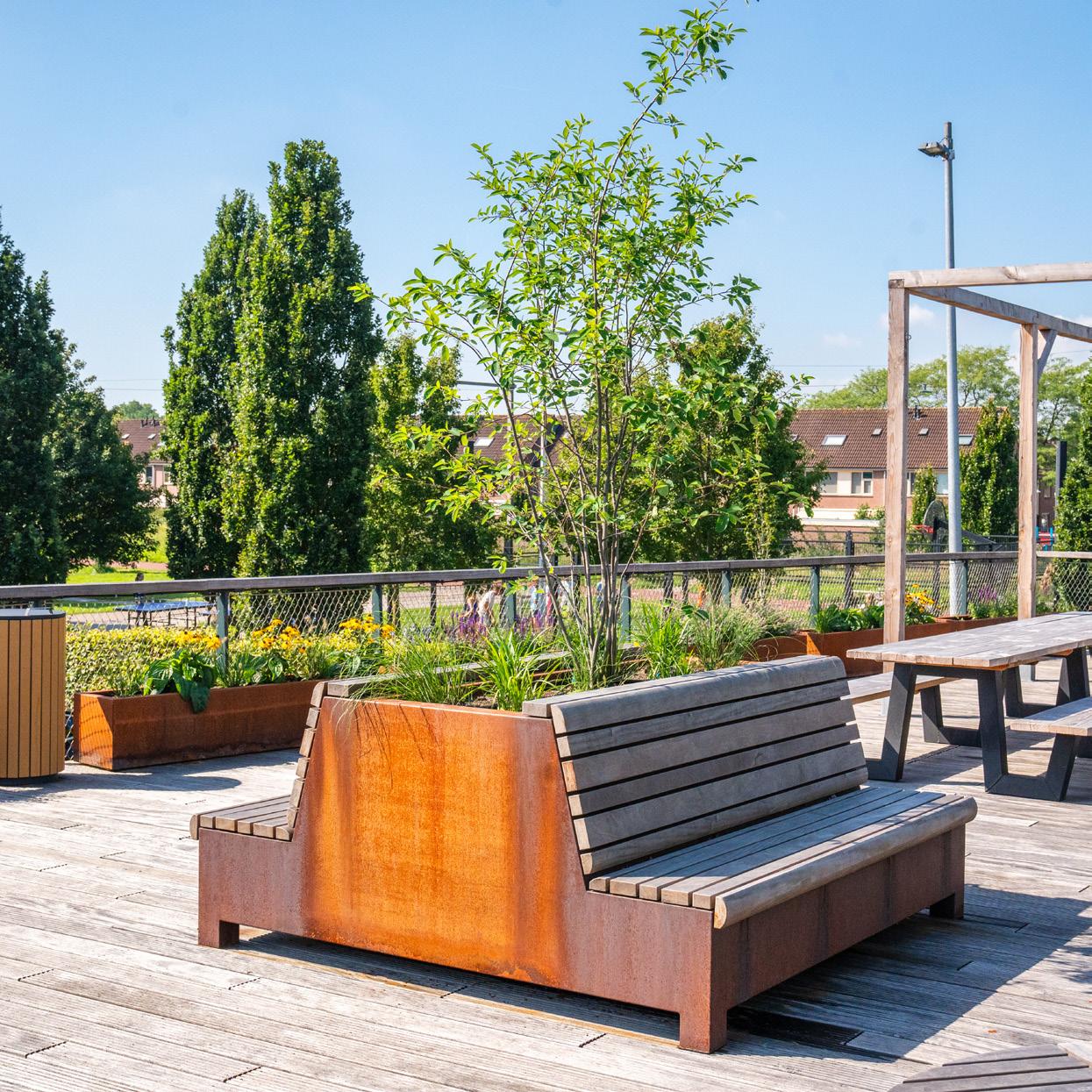

BACKREST DOUBLE BENCH CORTEN STEEL

STORR

The STORR series is attractive for its simplicity. In this series, natural curves are the standard, matching any streetscape. This can also be recognised in the STORR GREENPOINT.

Flexibility is the strength of the STORR GREENPOINTS. The movability of these eye-catching green elements creates a lively public space. Moreover, the STORR GREENPOINT is durable and stylish. They have wood-clad seats and, thanks to the different shapes of the plant and tree boxes, they are also easy to combine.

Turn to page 45 for the complete STORR range.

OPTIONS

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

STGP.2300S.Al 2300 600 440 143

STGP.2300S.Al.BX 2300 600 440 165

WITH BACKREST DOUBLE BENCH CORTEN STEEL

DESCRIPTION STANDARD

Beam size 60 x 40 mm Corten steel thickness 3 & 10 mm

STGP.2300DB.Ct 2300 1110 765 345

WITH BACKREST DOUBLE BENCH ALUMINIUM

DESCRIPTION STANDARD

Beam size 60 x 40 mm Aluminium thickness 4 & 10 mm

STGP.2300DB.Ct.BX 2300 1110 765 375

STGP.2300DB.Al.BX 2300 1110 765 246 KG KG KG KG

STGP.2300DB.Al 2300 1110 765 216

WITH BACKREST CORNER BENCH CORTEN STEEL WITH BACKREST CORNER BENCH ALUMINIUM

DESCRIPTION STANDARD Beam size 60 x 40 mm

size 60 x 40 mm

4 & 10 mm

steel thickness 3 & 10 mm DESCRIPTION STANDARD

STGP.2300QB.Ct 2300 2300 850 806

STGP.2300QB.Al 2300 2300 850 505

STGP.2300QB.Ct.BX 2300 2300 850 885

STGP.2300QB.Al.BX 2300 2300 850 584

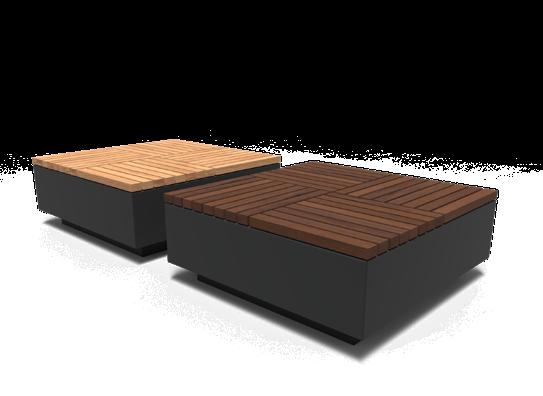

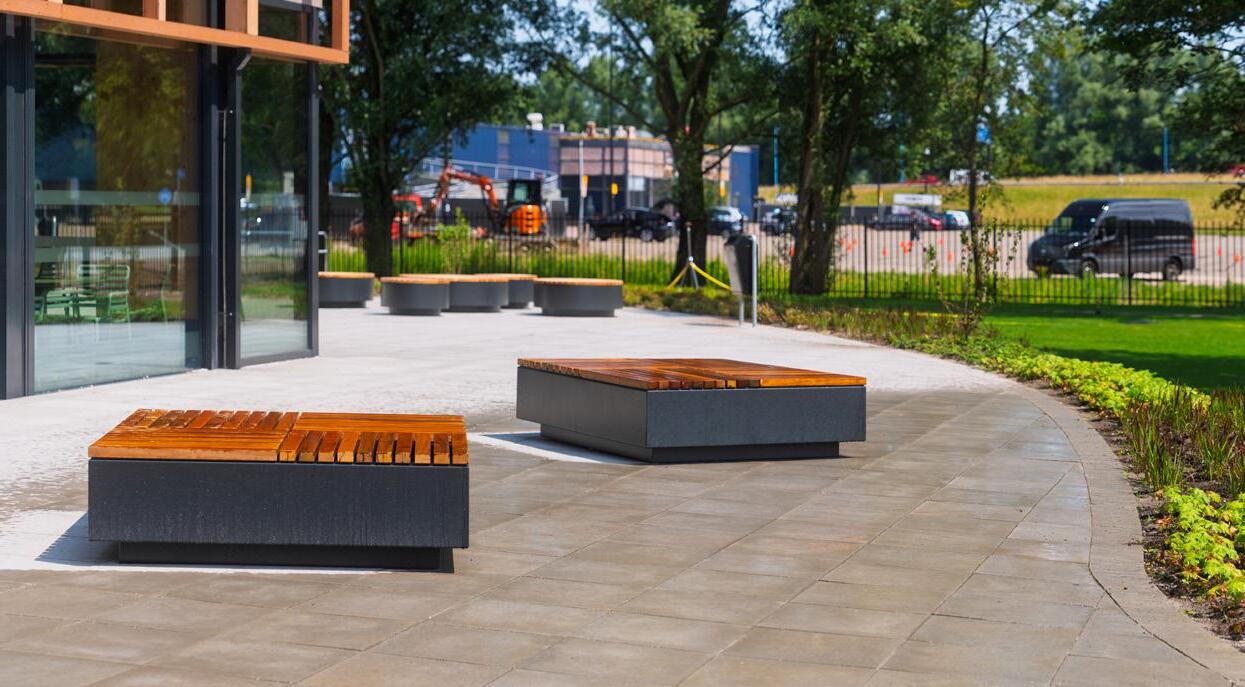

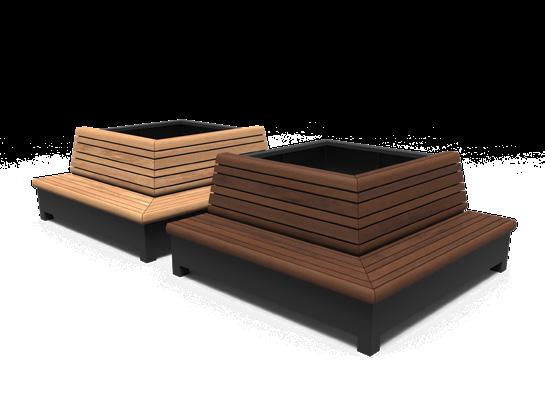

Hockers

AROS

These playful seats are an addition to every square. You can combine them mutually and they are available in 3 sizes. These seats create an elegant meeting space which suits our planters and greenpoints.

Turn to page 35 for the complete AROS range.

OPTIONS

CUSTOMISATION

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

DESCRIPTION STANDARD Beam size 90 x 40 mm

HO.S850.CT 850 850 450 77

HO.S1140.Ct 1150 1150 450 113

HO.S1430.Ct 1430 1430 450 152

HO.S850.CT.BX 850 850 450 89

HO.S1140.Ct.BX 1150 1150 450 139

HO.S1430.Ct.BX 1430 1430 450 191

HO.S850.Al 850 850 450 50

HO.S1140.Al 1150 1150 450 75

HO.S1430.Al 1430 1430 450 108

HO.S850.Al.BX 850 850 450 54

HO.S1140.Al.BX 1150 1150 450 88

HO.S1430.Al.BX 1430 1430 450 127 KG KG

DESCRIPTION STANDARD

Beam size 90 x 40 mm

Corten steel thickness 3 mm Feet 100 mm

HO.R850.CT 850 450 65

HO.R1140.Ct 1150 450 96

HO.R1430.Ct 1430 450 129

DESCRIPTION STANDARD

Beam size 90 x 40 mm Aluminium thickness 4 mm Feet 100 mm

HO.R850.Al 850 450 42

HO.R1140.Al 1150 450 68

HO.R1430.Al 1430 450 97

HO.R850.CT.BX 850 450 77

HO.R1140.Ct.BX 1150 450 114

HO.R1430.Ct.BX 1430 450 156

HO.R850.Al.BX 850 450 45

HO.R1140.Al.BX 1150 450 71

HO.R1430.Al.BX 1430 450 102

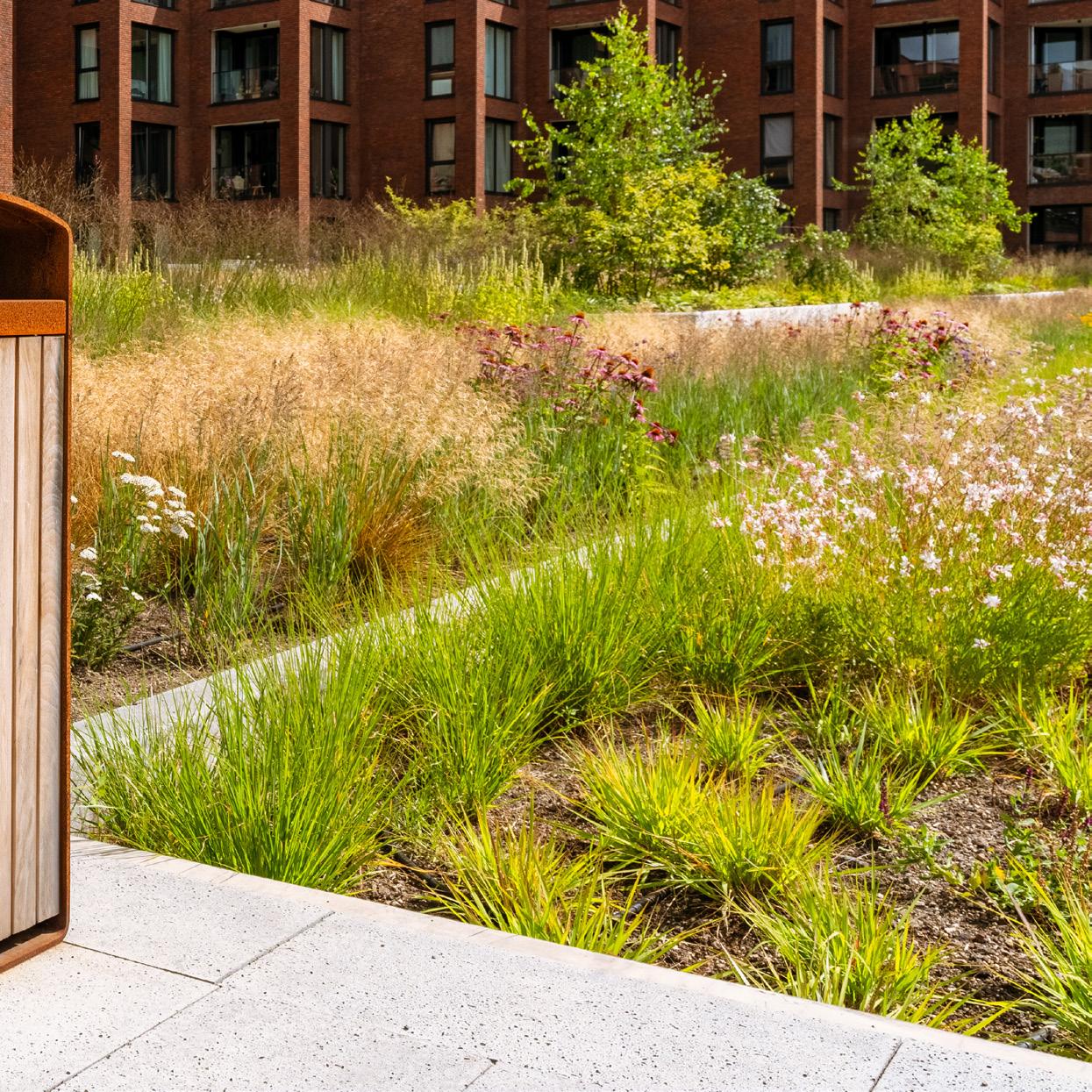

Litter bins

OPTIONS

The round shapes of GRO litter bin are playful and timeless. The litter bin is equipped with 2 inner bins of 100 litres each. Waste separation can be easily achieved using stickers.

Turn to page 41 for the complete GRO range.

2 WASTE FLOWS

DESCRIPTION STANDARD

Aluminium thickness 4 mm

Capacity 2 x 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

2 WASTE FLOWS

DESCRIPTION STANDARD

Aluminium thickness 4 mm

Capacity 2 x 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

998 497 1150 92

GRLB.100WS2.Al 998 497 1150 92 KG KG

STORR

The STORR is a versatile litter bin that is characterised by its simplicity. The model is available with or without wooden finish. Thanks to the slamlock system, no key nor additional action is required to lock the door.

Turn to page 45 for the complete STORR range.

OPTIONS

CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

1 FLOW

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Aluminium thickness 3 mm

Capacity 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

CORTEN STEEL

1 FLOW WITH WOOD UPHOLSTERY CORTEN STEEL

DESCRIPTION STANDARD

Aluminium thickness 2 mm

Capacity 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

1 FLOW WITH WOOD UPHOLSTERY ALUMINIUM

DESCRIPTION STANDARD

Aluminium thickness 3 mm

Capacity 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

HARDWOOD

STLB.100.W.Al 545 550 1150 68

2 WASTE FLOWS

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Aluminium thickness 3 mm

Capacity 2 x 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

CORTEN STEEL

STLB.100WS2.Ct 1065 550 1150 214

STLB.100.W.Al.BX 545 550 1150 77

STLB.100WS2.Al 1065 550 1150 114

2

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Capacity 2 x 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

STLB.100WS2.W.Ct 1065 550 1150 187

2

DESCRIPTION STANDARD

Aluminium thickness 3 mm

Capacity 2 x 100 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

STLB.100WS2.W.Al 1065 550 1150 113

STLB.100WS2.W.Ct.BX 1065 550 1150 200

1195 550 1150 146

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Aluminium thickness 3 mm

Capacity 3 x 70 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

STLB.70WS3.Ct

STLB.70WS3.Al

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Capacity 3 x 70 L

Emptying Galvanised

Closure Slamlock

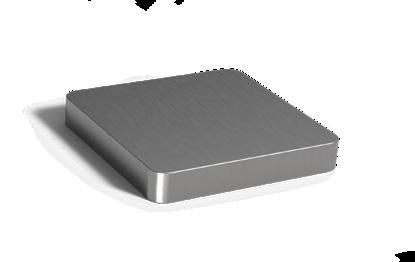

Concrete base ACBP600 x1

STLB.70WS3.W.Ct.BX

3 WASTE FLOWS WITH WOOD UPHOLSTERY ALUMINIUM

DESCRIPTION STANDARD

Aluminium thickness 3 mm

Capacity 3 x 70 L

Emptying Galvanised

Closure Slamlock

Concrete base ACBP600 x1

STLB.70WS3.W.Al 1195 550 1150 131

1065 550 1150 126

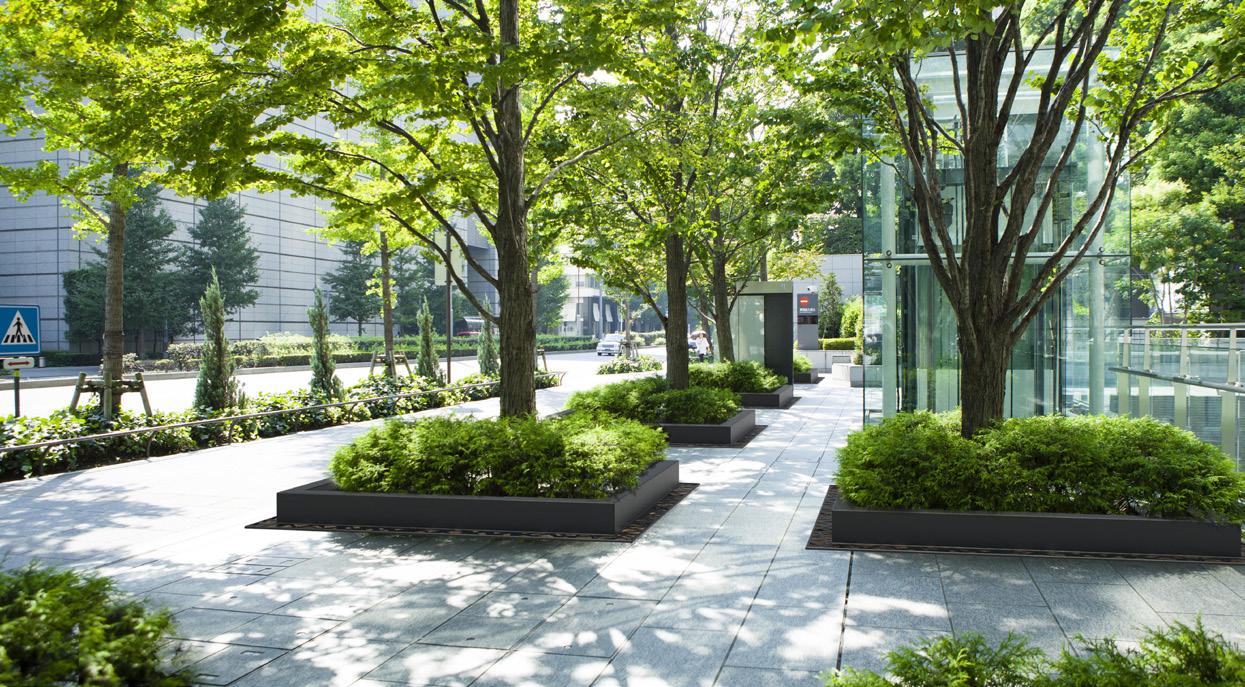

Planters

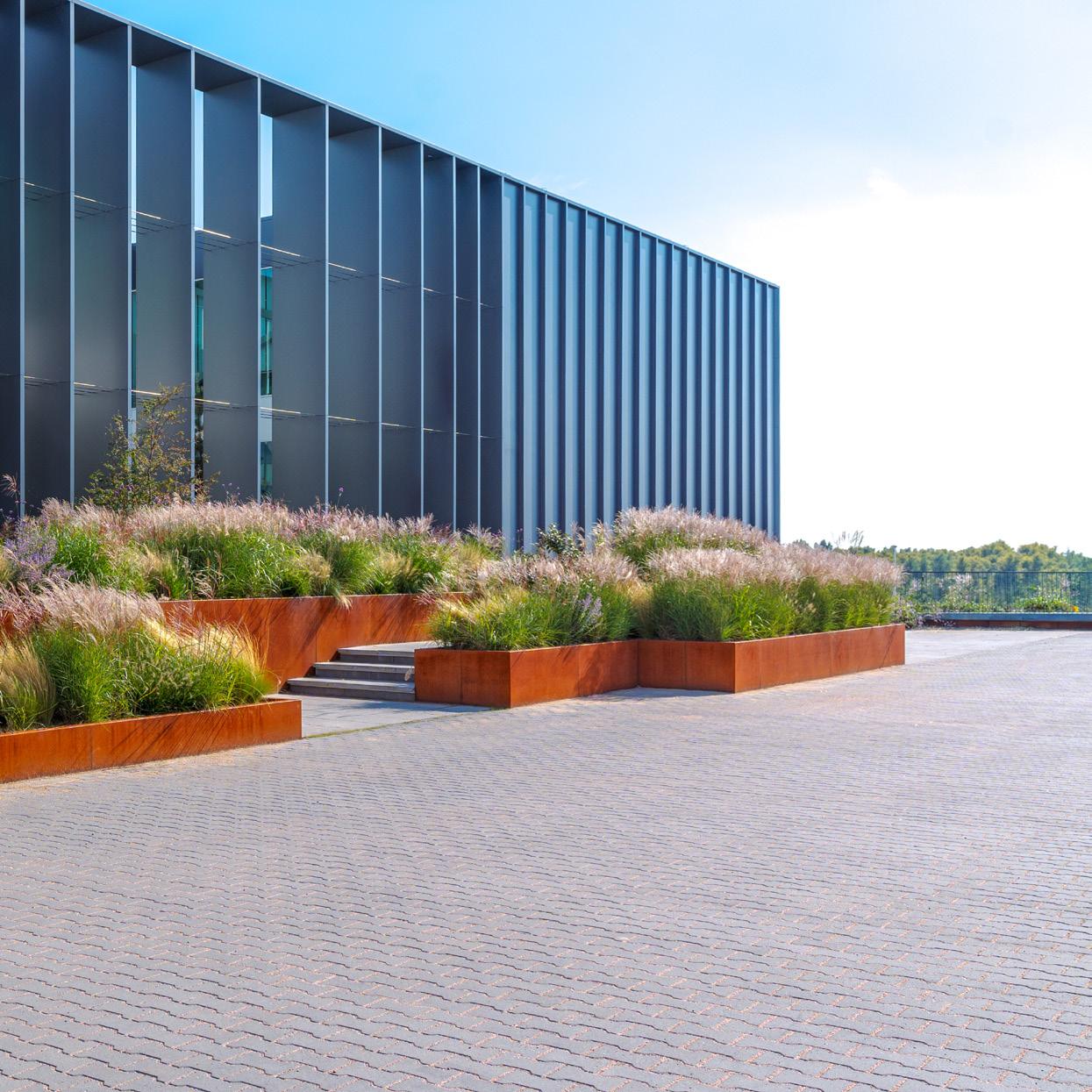

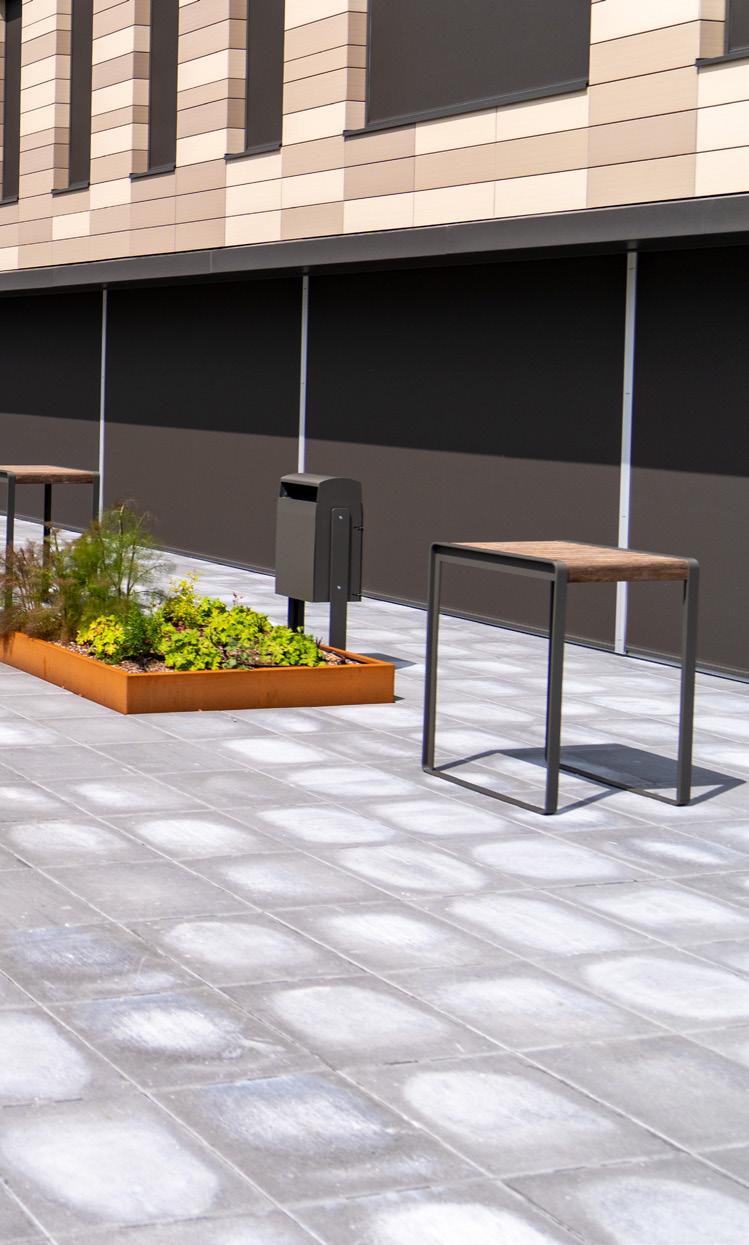

CARREZ corten steel

The CARREZ corten steel planter gives your outdoor space a powerful and warm look, thanks to the orange-brown patina on the metal. This patina is formed by a natural layer of rust. Another name for corten steel is weathering steel: weather conditions have a positive effect on this planter.

Corten steel is a metal alloy made by adding copper, phosphorus, silicon, nickel and chromium to iron. When exposed to air, the material forms a protective layer of rust. This natural coating prevents further corrosion, extending the planter’s life.

CA1.1

CAW1.1 2000 2000 800 128

CAW1.2 2000 2000 600 101

CAW1.3 2000 2000 400 72

CAW3.1 1400 1400 800 90

CAW3.2 1400 1400 600 66

CAW3.3 1400 1400 400 46

CAW3.4 1400 1400 200 29

CAW4.1 1200 1200 800 73

CAW4.2 1200 1200 600 57

CAW4.3 1200 1200 400 41

CAW4.4 1200 1200 200 24

CAW5.1 1000 1000 800 60

CAW5.2 1000 1000 600 47

CAW5.3 1000 1000 400 33

CAW5.4 1000 1000 200 19

CAW6.1 800 800 800 49

CAW6.2 800 800 600 38

CAW6.3 800 800 400 25

CAW6.4 800 800 200 15

DESCRIPTION

CARREZ aluminium

The CARREZ aluminum planter provides a timeless appearance to your terrace, park, square, or rooftop garden. The planter is corrosion resistant. By default, it is not waterproof. Aluminium is very lightweight. The aluminium planter can be left outside all year round without damage, even in freezing temperatures. That means that this you will enjoy this planter for many years.

Once constructed, the planter is given several finishing treatments. The metal is roughened to allow better adhesion of the powder coating. This powder coating is available in a variety of colours and is applied with a strong adhesive primer. Finally, the planter is finished with a hard topcoat. This ensures that the CARREZ aluminium planter is scratch resistant.

OPTIONS

AFW4.1

AFW5.1

DESCRIPTION

Top edge 50 x 25 mm

Aluminium thickness 3 mm

Feet 90 mm

Drainage holes ø 27 mm

AFP3.1

AFP5.2

AFP6.1

AFP6.2

AFP7

AFP8

DESCRIPTION STANDARD

Top edge 50 x 25 mm

Aluminium thickness 3 mm Feet 90 mm

Drainage holes ø 27 mm

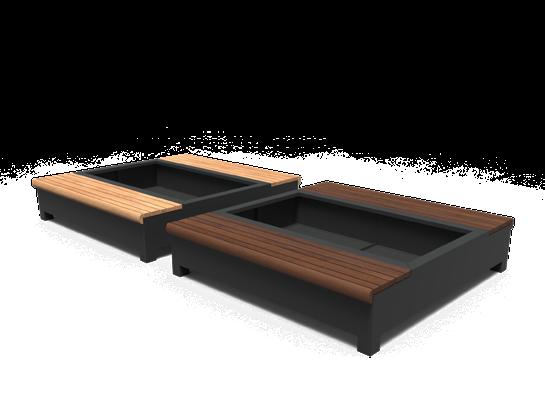

CARREZ hardwood

The CARREZ hardwood planter gives gardens, parks, and squares a sustainable and warm look. his planter is made of tropical hardwood. All our hardwood is classified as durability class 2 and will last up to 25 years. By using hardwood, we create a planter that fits perfectly among all the greenery.

Due to the high durability class of the wood, this hardwood planter needs no further treatment. The planter will turn grey over time. This colour change does not affect the quality of the planter. The planter is constructed using only high-quality stainless-steel fasteners, and the base is lined with an anti-root membrane.

CUSTOMISATION OPTIONS

HS3

HS4.1

HS5.2

HS5.3

HS6.1

HS6.2

HS6.3

CIRCUM corten steel

The CIRCUM corten steel planter provides gardens, parks, and squares with a powerful, stylish, and warm appearance, thanks to the orange-brown patina on the metal. This patina is formed by a natural layer of rust. Another name for corten steel is weathering steel: weather conditions have a positive effect on this planter.

Corten steel is a metal alloy made by adding copper, phosphorus, silicon, nickel and chromium to iron. When exposed to air, the material forms a protective layer of rust. This natural coating prevents further corrosion, extending the planter’s life.

CIRCUM WITH FEET

DESCRIPTION

CTP1.1

CTP2.1

CIRCUM aluminium

The CIRCUM aluminum planter brings an elegant touch to public spaces. The planter is corrosion resistant. By default, it is not waterproof. Aluminium is very lightweight. The aluminium planter can be left outside all year round without damage, even in freezing temperatures. That means that this you will enjoy this planter for many years.

Once constructed, the planter is given several finishing treatments. The metal is roughened to allow better adhesion of the powder coating. This powder coating is available in a variety of colours and is applied with a strong adhesive primer. Finally, the planter is finished with a hard topcoat. This ensures that the CIRCUM aluminium planter is scratch resistant.

OPTIONS

Top edge 50 x 25 mm Aluminium thickness 3 mm Hidden feet 15 mm

CIRCUM WITHOUT BASE

Drainage holes ø 27 mm DESCRIPTION

Top edge 50 x 25 mm Aluminium thickness 3 mm

16

23

CIRCUM WITH FEET

DESCRIPTION

Feet 105 mm

CONIC corten steel

The CONIC corten steel planter adds a graceful and warm ambiance to park gardens, thanks to the orange-brown patina on the metal. This patina is formed by a natural layer of rust. Another name for corten steel is weathering steel: weather conditions have a positive effect on this planter.

Corten steel is a metal alloy made by adding copper, phosphorus, silicon, nickel and chromium to iron. When exposed to air, the material forms a protective layer of rust. This natural coating prevents further corrosion, extending the planter’s life.

OPTIONS

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

DESCRIPTION STANDARD

Top edge 70 x 30 mm

Corten steel thickness 2 mm

Hidden feet 15 mm

Drainage holes ø 27 mm

CC4

CC4.1

CC4.2

CC5

CC5.1

CC5.2

CC6

1000 71

800 61

600 50

1000 56

800 48

600 39

1000 42

CC6.1 800 800 35

CC6.2 800 600 29

CC8.1 600 800 26

CC8.2 600 600 20

DESCRIPTION STANDARD

Top edge 80 x 25 mm

Corten steel thickness 3 mm

Hidden feet 105 mm

Drainage holes ø 27 mm

CCP1.1

CONIC aluminium

The CONIC aluminium planter adds a graceful and warm ambiance to park gardens. The planter is corrosion resistant. By default, it is not waterproof. Aluminium is very lightweight. The aluminium planter can be left outside all year round without damage, even in freezing temperatures. That means that this you will enjoy this planter for many years.

Once constructed, the planter is given several finishing treatments. The metal is roughened to allow better adhesion of the powder coating. This powder coating is available in a variety of colours and is applied with a strong adhesive primer. Finally, the planter is finished with a hard topcoat. This ensures that the CONIC aluminium planter is scratch resistant.

OPTIONS

CONIC CONIC WITH FEET

DESCRIPTION

Top edge 70 x 30 mm

Aluminium thickness 3 mm

Hidden feet 15 mm

Drainage holes ø 27 mm

AC4

AC4.1

AC4.2

AC5

AC5.1

1000 37

800 31

600 26

1000 29

800 25

AC5.2 1000 600 20

AC6 800 1000 22

AC6.1 800 800 18

AC6.2 800 600 15

AC8.1 600 800 12

AC8.2 600 600 10

DESCRIPTION

Top edge 70 x 25 mm

Aluminium thickness 4 mm

Hidden feet 105 mm

Drainage holes ø 27 mm

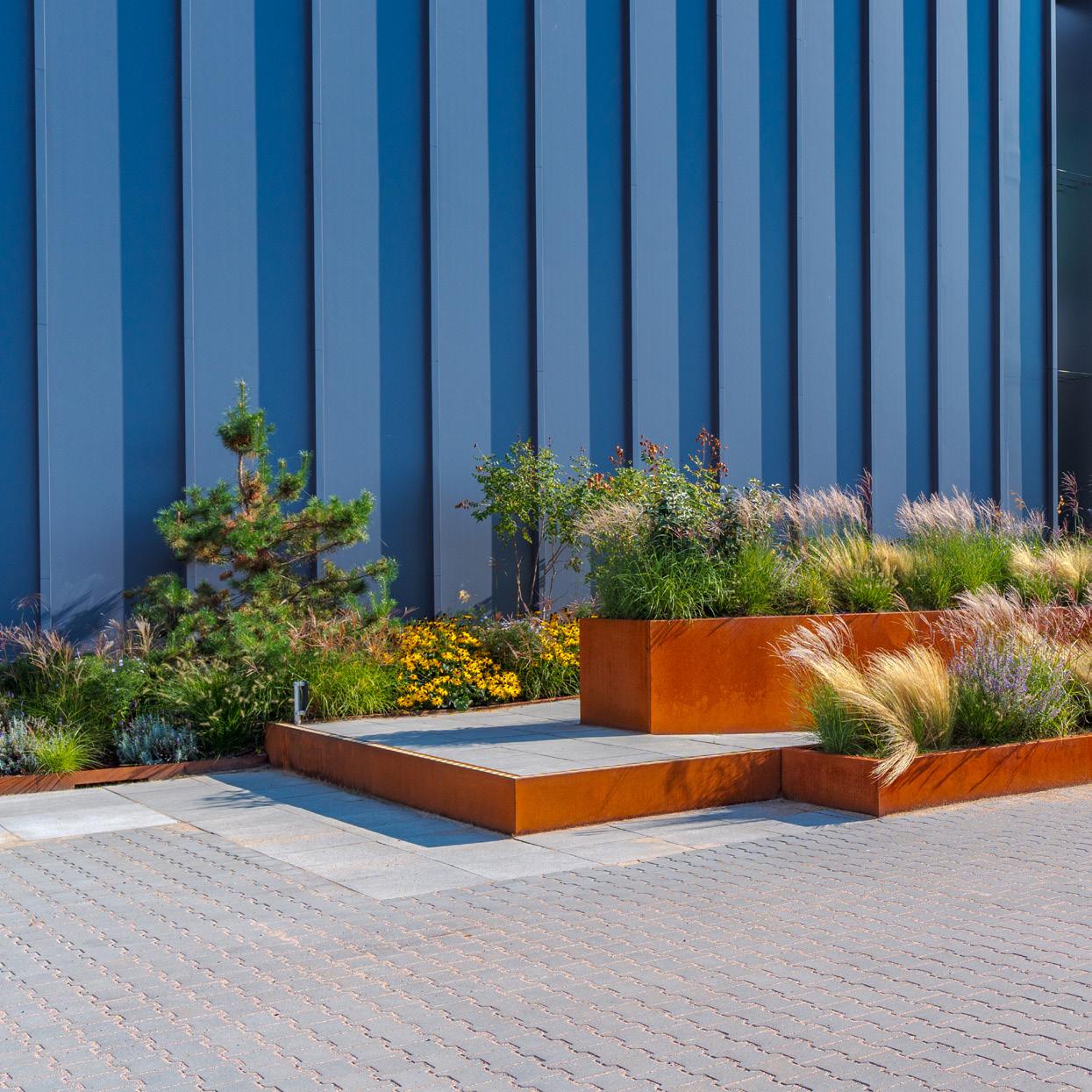

Retaining walls

Retaining walls

Our retaining walls are the perfect solution for separating lawns, borders and paths. They can also be used as planters. Retaining walls create a strong structural impact in gardens and outdoor spaces.

OPTIONS

CUSTOMISATION

CRSN2.200.500

CRSN2.200.1000

CRSN2.300.500

CRSN2.300.1000

CRSN3.400.500

CRSN3.400.1000

CRSN3.500.500

CRSN3.500.1000

CRSN3.600.500

6

11

9

16

400 16

500 20

CRS2.200.1000

CRS2.200.1500

CRS2.300.1000

CRS2.300.1500

CRS2.300.2000

CRS3.400.1000

CRS3.400.1500

CRS3.400.2000 2000 400 34

CRS3.500.1000 1000 500 21

CRS3.500.1500 1500 500 32

CRS3.500.2000 2000 500 41

CRS3.600.1000

CRS3.600.1500

CRS3.600.2000

CRSO2.300.1000

CRSO3.400.500

CRSO3.400.1000

CRSO3.500.500

CRSO3.500.1000

CRSO3.600.500

16

35

CRSO3.600.1000 1000 600 42

CRCN2.200.500 500 200 5

CRCN2.200.1000 1000 200 9

CRCN2.200.1500 1500 200 13

CRCN2.200.2000 2000 200 17

CRCN2.300.500 500 300 7

CRCN2.300.1000 1000 300 13

CRCN2.300.1500 1500 300 19

CRCN2.300.2000 2000 300 25

CRCN3.400.500 500 400 13

CRCN3.400.1000 1000 400 24

CRCN3.400.1500 1500 400 36

CRCN3.400.2000 2000 400 47

CRCN3.500.500 500 500 16

CRCN3.500.1000 1000 500 30

CRCN3.500.1500 1500 500 44

CRCN3.500.2000 2000 500 57

CRCN3.600.500 500 600 20

CRCN3.600.1000 1000 600 37

CRCN3.600.1500 1500 600 54

CRCN3.600.2000 2000 600 70

CRCO2.200.500 500 200 4

CRCO2.200.1000 1000 200 9

CRCO2.200.1500 1500 200 13

CRCO2.200.2000 2000 200 17

CRCO2.300.500 500 300 6

CRCO2.300.1000 1000 300 13

CRCO2.300.1500 1500 300 19

CRCO2.300.2000 2000 300 24

CRCO3.400.500 500 400 12

CRCO3.400.1000 1000 400 23

CRCO3.400.1500 1500 400 35

CRCO3.400.2000 2000 400 46

CRCO3.500.500 500 500 15

CRCO3.500.1000 1000 500 29

CRCO3.500.1500 1500 500 43

CRCO3.500.2000 2000 500 56

CRCO3.600.500 500 600 18

CRCO3.600.1000 1000 600 35

CRCO3.600.1500 1500 600 52 KG KG INSIDE CURVE OUTSIDE CURVE THE RETAINING WALLS CONTINUE HERE

RETAINING WALLS WIDE TOP EDGE

DESCRIPTION STANDARD

Top edge 400 x 40 mm

Corten steel thickness 3 mm

STRAIGHT

CRCO3.600.2000 2000 600 68

CRS3.400.1000.400 1000 400 29

CRS3.400.1500.400 1500 400 43

CRS3.400.2000.400 2000 400 57

CRS3.500.1000.400 1000 500 35

CRS3.500.1500.400 1500 500 51

CRS3.500.2000.400 2000 500 67

CRS3.600.1000.400 1000 600 40

CRS3.600.1500.400 1500 600 60

INSIDE CORNER

CRS3.600.2000.400 2000 600 81

CRSN3.400.500.400 500 400 37

CRSN3.400.1000.400 1000 400 65

CRSN3.500.500.400 500 500 41

CRSN3.500.1000.400 1000 500 72

OUTSIDE CORNER

CRSN3.600.1000.400 1000 600 84

CRSO3.400.500.400 500 400 26

CRSO3.400.1000.400 1000 400 50

CRSO3.500.500.400 500 500 31

CRSO3.500.1000.400 1000 500 57

INSIDE CURVE

CRSO3.600.1000.400 1000 600 65

CRCN3.400.1000.400 1000 400 49

CRCN3.400.1500.400 1500 400 71

CRCN3.400.2000.400 2000 400 90

CRCN3.500.1000.400 1000 500 54

CRCN3.500.1500.400 1500 500 79

CRCN3.500.2000.400 2000 500 100

CRCN3.600.1000.400 1000 600 61

CRCN3.600.1500.400 1500 600 91

OUTSIDE CURVE

CRCN3.600.2000.400 2000 600 122

CRCO3.400.1000.400 1000 400 40

CRCO3.400.1500.400 1500 400 61

CRCO3.400.2000.400 2000 400 81

CRCO3.500.1000.400 1000 500 46

CRCO3.500.1500.400 1500 500 69

CRCO3.500.2000.400 2000 500 91

CRCO3.600.1000.400 1000 600 53

REVERT RETAINING WALLS

DESCRIPTION STANDARD

Top Edge 450 x 40 mm

Material thickness 3 mm

STRAIGHT

CRCO3.600.1500.400 1500 600 79

CRCO3.600.2000.400 2000 600 114

INSIDE CORNER

INSIDE CURVE

CRSO3.500.500.450.R 500 500 28

CRSO3.500.1000.450.R 1000 500 64

CRCN3.500.1000.450.R 1000 500 70

OUTSIDE CURVE

CRS3.500.1000.450.R 1000 500 37 KG KG KG

CRS3.500.1500.450.R 1500 500 56

CRS3.500.2000.450.R 2000 500 75

OUTSIDE CORNER

CRSN3.500.500.450.R 500 500 52

CRSN3.500.1000.450.R 1000 500 90

CRCN3.500.1500.450.R 1500 500 97

CRCN3.500.2000.450.R 2000 500 120

CRCO3.500.1000.450.R 1000 500 51

RETAINING WALLS

DESCRIPTION STANDARD

Top edge 50 x 25 mm

Aluminium dikte 2-3 mm

STRAIGHT

CRCO3.500.1500.450.R

CRCO3.500.2000.450.R

ARS3.200.1000

ARS3.200.1500

ARS3.200.2000

ARS3.300.1000

ARS3.300.1500 1500 300 7

ARS3.300.2000 2000 300 9

ARS4.400.1000 1000 400 8

ARS4.400.1500 1500 400 12

ARS4.400.2000 2000 400 15

ARS4.500.1000 1000 500 10

ARS4.500.1500

ARS4.500.2000

ARS4.600.1000

ARS4.600.1500

ARS4.600.2000

ARSN3.200.500

ARSN3.200.1000

ARSN3.300.500

ARSN3.300.1000

ARSN4.400.500

ARSN4.400.1000

ARSN4.500.500

ARSN4.500.1000

OUTSIDE CORNER INSIDE CORNER

ARSN4.600.500

ARSN4.600.1000

ARSO3.200.500

ARSO3.200.1000

ARSO3.300.500

ARSO3.300.1000

ARSO4.400.500

ARSO4.400.1000

ARSO4.500.500

ARSO4.500.1000

18

23

3

6

300 4

300 8

7

400 14

17

11

4

8

7

13

9

500 17

THE RETAINING WALLS CONTINUE HERE

INSIDE CURVE

ARSO4.600.500

ARSO4.600.1000

ARCN3.200.500

ARCN3.200.1000

ARCN3.200.1500

600 10

600 19

200 2

200 5

200 7

ARCN3.200.2000 3000 200 9

ARCN3.300.500 500 300 3

ARCN3.300.1000 1000 300 7

ARCN3.300.1500

ARCN3.300.2000

ARCN4.400.500

ARCN4.400.1000

ARCN4.400.1500

ARCN4.400.2000

ARCN4.500.500

ARCN4.500.1000

ARCN4.500.1500

ARCN4.500.2000

300 10

300 13

400 6

400 11

400 17

22

500 7

500 14

500 21

500 27

ARCN4.600.500 500 600 9

ARCN4.600.1000

600 17

OUTSIDE CURVE

ARCN4.600.1500

ARCN4.600.2000

ARCO3.200.500

ARCO3.200.1000

ARCO3.200.1500

ARCO3.200.2000

ARCO3.300.500

ARCO3.300.1000

25

2

7

9

300 3

300 6

ARCO3.300.1500 1500 300 10

ARCO3.300.2000 2000 300 13

ARCO4.400.500 500 400 5

ARCO4.400.1000 1000 400 11

ARCO4.400.1500 1500 400 16

ARCO4.400.2000

ARCO4.500.500

ARCO4.500.1000

ARCO4.500.1500

ARCO4.500.2000

ARCO4.600.500

ARCO4.600.1000

400 21

500 7

500 13

500 20

500 26

600 8

600 16 KG KG

RETAINING WALLS WIDE TOP EDGE

DESCRIPTION STANDARD

Top edge 400 x 40 mm

Aluminium thickness 4 mm

ARCO4.600.1500

ARCO4.600.2000

ARS4.400.1000.400

ARS4.400.1500.400

ARS4.400.2000.400

ARS4.500.1000.400

ARS4.500.1500.400

ARS4.500.2000.400

ARS4.600.1000.400

14

ARS4.600.1500.400

ARS4.600.2000.400

ARSN4.400.1000.400

ARSN4.500.500.400

24

32

OUTSIDE CORNER INSIDE CURVE OUTSIDE CURVE

ARSN4.500.1000.400

ARSN4.600.1000.400

ARSO4.400.500.400

ARSO4.400.1000.400

ARSO4.500.500.400

ARSO4.600.1000.400

ARCN4.400.1000.400

ARCN4.400.1500.400

ARCN4.400.2000.400

ARCN4.500.1000.400

ARCN4.500.1500.400

ARCN4.500.2000.400

ARCN4.600.1000.400

ARCN4.600.1500.400

ARCO4.400.1500.400

ARCO4.400.2000.400

ARCO4.600.1000.400

400 12

500 14

REVERT RETAINING WALLS

DESCRIPTION STANDARD

Top Edge 450 x 40 mm

Material thickness 4 mm

STRAIGHT

INSIDE CURVE

KG

ARCO4.600.1500.400 1500 600 35

ARCO4.600.2000.400 2000 600 49

ARS4.500.1000.450.R 1000 500 17

INSIDE CORNER

ARS4.500.1500.450.R 1500 500 26

ARS4.500.2000.450.R 2000 500 34

OUTSIDE CORNER

ARSN4.500.500.450.R 500 500 24

ARSN4.500.1000.450.R 1000 500 41

ARSO4.500.500.450.R 500 500 13

ARSO4.500.1000.450.R 1000 500 29

ARCN4.500.1000.450.R 1000 500 32

OUTSIDE CURVE

ARCN4.500.1500.450.R 1500 500 45

ARCN4.500.2000.450.R 2000 500 55

ARCO4.500.1000.450.R 1000 500 24

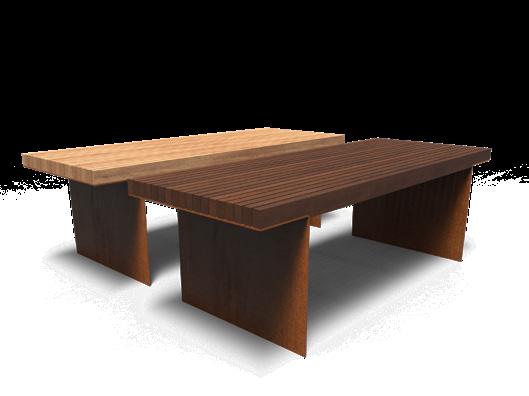

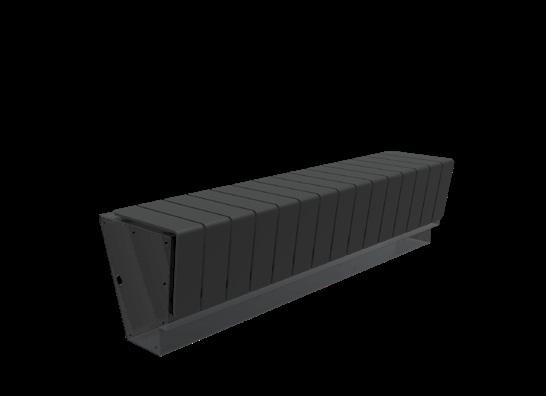

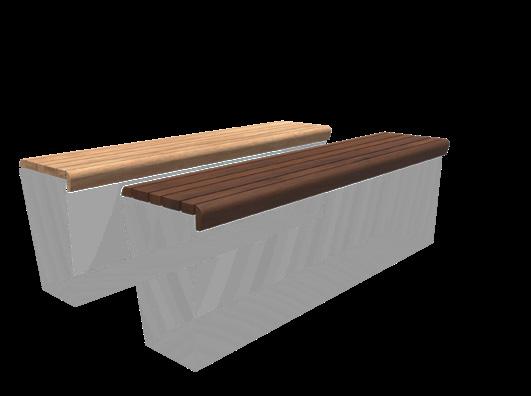

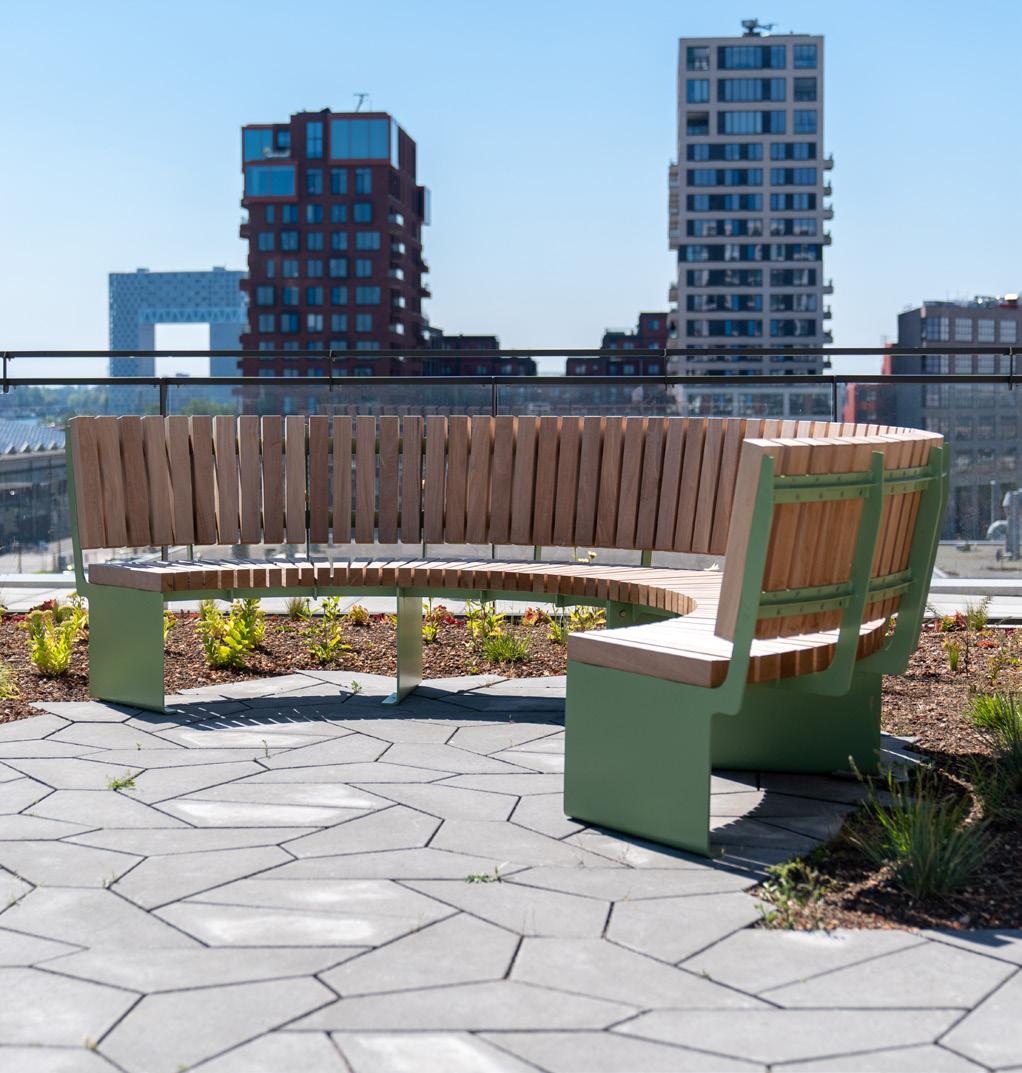

Retaining wall seat

Easily transform your retaining wall into a seating area with our hardwood seat. Our retaining walls are the perfect solution for separating lawns, borders and paths. They can also be used as planters and, of course, as additional seating.

OPTIONS

CUSTOMISATION

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

SEATING IN LENGTH

DESCRIPTION STANDARD

Beam size 40 x 60 mm - 40 x 90 mm

Fixing strip Galvanized steel

SEATING PERPENDICULAR

Accessories Stainless steel DESCRIPTION

Beam size 65 x 65 mm

Fixing strip Galvanized steel

Accessories Stainless steel

ARCO4.500.1500.450.R 1500 500 34

ARCO4.500.2000.450.R 2000 500 49

RS.BL.500 500 500 46 10

RS.BL.1000 1000 500 46 18

RS.BL.1500.BX 1488 460 90 35

RS.BL.2000.BX 1988 460 90 46

RS.BS.500 450 500 72 13

RS.BS.1000 1000 500 72 29

RS.BL.1500 1500 500 46 28

RS.BL.2000 2000 500 46 37

RS.BL.500.BX 488 460 90 13

RS.BL.1000.BX 988 460 90 24

RS.BS.1500 1500 500 72 43

RS.BS.2000 2000 500 72 59

RS.BS.500.BX 492 500 66 17

RS.BS.1000.BX 996 500 66 35

DESCRIPTION STANDARD

Beam size 65 x 65 mm

Fixing strip Galvanized steel

Accessories Stainless steel

RS.BS.1500.BX 1500 500 66 51

RS.BS.2000.BX 2004 500 66 68

RS.BS.CN1000 1400 1400 72 49

DESCRIPTION STANDARD

Beam size 65 x 65 mm

Fixing strip Galvanized steel

Accessories Stainless steel

RS.BS.CN1500.BX 2749 901 66 87 RS.BS.CN2000.BX 3457 1047 66 116

RS.BS.CO1000 1000 1000 72 36

RS.BS.CN1500 1900 1900 72 80

RS.BS.CN2000

RS.BS.CN1000.BX

REVERT SEAT

DESCRIPTION STANDARD

Material thickness 10 mm

Seating Aluminium

Fixing strip Aluminium

Accessories Stainless steel

RS.BS.CO1500.BX 2184 786 66 67

RS.BS.CO2000.BX 2890 930 66 92

RS.R.BS.500.Al 516 423 353 11

RS.R.BS.1000.Al 1044 423 353 23

REVERT SEAT INSIDE CURVE

DESCRIPTION STANDARD

Material thickness 10 mm

Seating Aluminium

Fixing strip Aluminium

Accessories Stainless steel

RS.R.BS.1500.Al 1440 423 353 31

RS.R.BS.2000.Al

RS.R.BS.CN1000.Al

REVERT SEAT OUTSIDE CURVE

DESCRIPTION STANDARD

Material thickness 10 mm

Seating Aluminium

Fixing strip Aluminium

Accessories Stainless steel

RS.R.BS.CN1500.Al 2587 827 353 52

RS.R.BS.CN2000.Al 3298 974 353 69

RS.R.BS.CO1000.Al 1433 504 353 29 KG

Tree grates

Tree grates

By applying Tree Grates you first ensure safety. The ground level around the trees remains the same therefor no dangerous situations arise. The trees themselves are also protected. The Tree Grates do not damage the trunk and roots of trees. Tree Grates also ensure that water and oxygen can reach the roots easily. The underlying frame prevents strain and damage to roots. Thick Corten steel (10mm) is perfect for producing tree grates. You can choose from an extensive number of patterns but through our own production we can quickly realise your wishes in consultation with you. We can produce your own graphic patterns and specific dimensions (you will need to provide an DXF file with the required pattern).

OPTIONS

DESCRIPTION

Corten steel thickness 10 mm

STEEL

RS.R.BS.CO1500.Al 2149 630 353 46

RS.R.BS.CO2000.Al 2861 837 353 63

TGGR.S980.1.Ct 980 980 10 46

TGGR.S1200.1.Ct 1200 1200 10 72

TGGR.S1490.1.Ct 1490 1490 10 106

COATED STEEL

TGGR.S1800.1.Ct 1800 1800 10 153

TGGR.S1950.1.Ct 1950 1950 10 196

TGGR.S980.1.ZnRc 980 980 10 46

TGGR.S1200.1.ZnRc 1200 1200 10 72

TGGR.S1490.1.ZnRc 1490 1490 10 106

GALVANIZED STEEL

TGGR.S1800.1.ZnRc 1800 1800 10 153

TGGR.S1950.1.ZnRc 1950 1950 10 196

TGFR.S980 980 980 50 15

TGFR.S1200 1200 1200 50 19

TGFR.S1490 1490 1490 50 24

ROUND ROUND FRAME

DESCRIPTION

Corten steel thickness 10 mm Aluminium thickness 10 mm

CORTEN STEEL

TGFR.S1800 1800 1800 50 29

TGFR.S1950 1950 1950 50 38

TGGR.R980.1.Ct 980 10 35

TGGR.R1200.1.Ct 1200 10 55

TGGR.R1490.1.Ct 1490 10 80

COATED STEEL

TGGR.R1800.1.Ct 1800 10 120

TGGR.R1950.1.Ct 1950 10 144

TGGR.R980.1.ZnRc 980 10 35

TGGR.R1200.1.ZnRc 1200 10 55

TGGR.R1490.1.ZnRc 1490 10 80

GALVANIZED STEEL

TGGR.R1800.1.ZnRc 1800 10 120

TGGR.R1950.1.ZnRc 1950 10 144

TGFR.R980 980 980 50 12

TGFR.R1200 1200 1200 50 15

TGFR.R1490 1490 1490 50 19

Tree guards

AROS

Due to the simplicity of its design, this tree stand fits into any public space. Produced in sturdy, weather-resistant materials: corten steel and coated steel. Within the AROS tree brackets, you can choose between round shapes or a more austere look with straight shapes.

Turn to page 35 for the complete AROS range.

OPTIONS

ROUND

DESCRIPTION STANDARD

Corten steel thickness 4 mm

Steel thickness 4 mm

Frame TGGR + TGFR

CORTEN STEEL

TGFR.R1800 1800 1800 50 23

COATED STEEL

TGFR.R1950 1950 1950 50 28

STRAIGHT

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Steel thickness 2 mm Frame TGGR + TGFR

STEEL

ARTG.R700.Ct 826 337 850 15

COATED STEEL

ARTG.R700.ZnRc 826 337 850 15

STORR

STORR tree brackets have a lightweight design, making them fit perfectly into any streetscape. The tree brackets are made of a weather-resistant and very sturdy material. This makes the STORR tree brackets last for a long time.

Turn to page 45 for the complete STORR range.

OPTIONS

DESCRIPTION

Corten steel thickness 10 mm

Steel thickness 10 mm

CORTEN STEEL

DESCRIPTION

Corten steel thickness 10 mm

thickness 10 mm

CORTEN STEEL

COATED STEEL

ARTG.S700.ZnRc 545 160 850 8 STTG.R700.Ct

COATED STEEL

STTG.R700.ZnRc 806 332 850 24

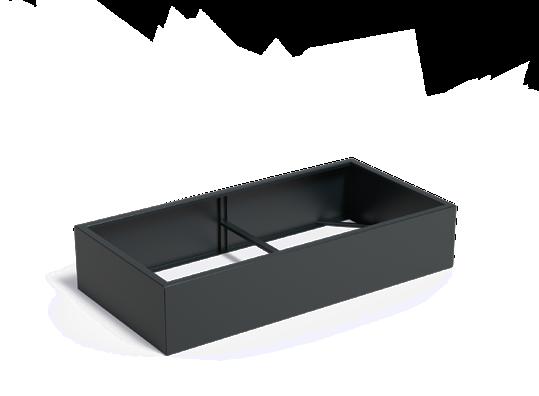

Tree pits

Tree pits

Because of the global warming we have more and more heavy rainstorms. Our sewer systems are not made for these heavy storms, with the result of streets flooded. By buffering the water in the tree pits, the sewers get relieved and the trees are able to endure longer without water.

Trees have a lot to bear in urban spaces. Besides the drainage and the esthetic feature, our tree pits unburden trees. By giving the tree a wellearned platform, you ease the tree of outer burdens as root pressure.

OPTIONS

CUSTOMISATION

DESCRIPTION STANDARD

Top edge 100 x 40 mm

Corten steel thickness 3 mm

Aluminium thickness 4 mm

Patterns 7

STTG.S700.Ct 545 160 850 16

STTG.S700.ZnRc 545 160 850 16

TWE.S980.P1.Ct 1440 1440 250 67

TWE.S1200.P1.Ct 1660 1660 250 77

TWE.S1490.P1.Ct 1940 1940 250 90

DESCRIPTION STANDARD

Top edge 100 x 40 mm

Corten steel thickness 3 mm

Aluminium thickness 4 mm

Patterns 6

TWE.S1800.P1.Al 2260 2260 250 49

TWE.S1950.P1.Al 2410 2410 250 52

TWE.R980.P1.Ct 1430 250 51

TWE.R1200.P1.Ct 1660 250 59

TWE.R1490.P1.Ct 1940 250 67

TWE.S1800.P1.Ct 2260 2260 250 103

TWE.S1950.P1.Ct 2410 2410 250 111

TWE.S980.P1.Al 1430 1430 250 30

TWE.S1200.P1.Al 1660 1660 250 36

TWE.S1490.P1.Al 1940 1940 250 42

TWE.R1800.P1.Ct 2260 250 77

TWE.R1950.P1.Ct 2410 250 82

TWE.R980.P1.Al 1430 250 23

TWE.R1200.P1.Al 1660 250 27

TWE.R1490.P1.Al 1940 250 31

Bicycle racks

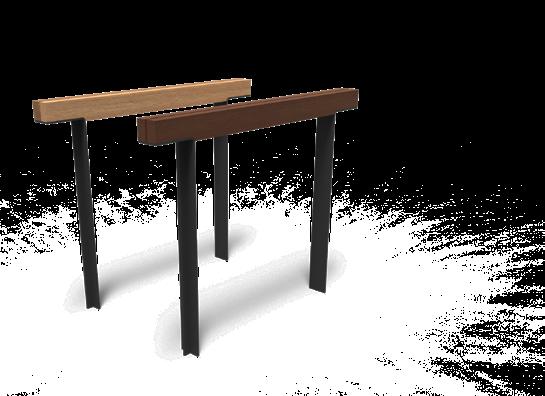

AROS

The AROS is a budget-friendly but also elegant bicycle rack. The racks can be produced with and without a tilt bar.

Turn to page 35 for the complete AROS range.

OPTIONS

CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

STANDARD WITH DUMMY ROD

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Steel thickness 2 mm

Concrete base ACBP250 x2

CORTEN STEEL

TWE.R1800.P1.Al 2260 250 36

TWE.R1950.P1.Al 2410 250 38

AR1BS.600.Ct 750 150 1070 10

GALVANIZED STEEL

AR1BS.900.Ct 1050 150 1070 11

AR1BS.1200.Ct 1350 150 1070 11

AR1BS.600.Zn 750 150 1070 10

COATED STEEL

AR1BS.900.Zn 1050 150 1070 11

AR1BS.1200.Zn 1350 150 1070 11

AR1BS.600.ZnRc 750 150 1070 10

DESCRIPTION STANDARD

Corten steel thickness 2 mm

Steel thickness 2 mm

Concrete base ACBP250 x2

CORTEN STEEL

AR1BS.900.ZnRc 1050 150 1070 11

AR1BS.1200.ZnRc 1350 150 1070 11

AR1BS.600S.Ct 750 150 1070 11

GALVANIZED STEEL

AR1BS.900S.Ct 1050 150 1070 13

AR1BS.1200S.Ct 1350 150 1070 15

AR1BS.600S.Zn 750 150 1070 11

COATED STEEL

AR1BS.900S.Zn 1050 150 1070 13

AR1BS.1200S.Zn 1350 150 1070 15

AR1BS.600S.ZnRc 750 150 1070 11

AR1BS.900S.ZnRc 1050 150 1070 13

AR1BS.1200S.ZnRc 1350 150 1070 15

ROUNDED CORNER

DESCRIPTION STANDARD

Stainless steel thickness 2 mm

Steel thickness 2 mm

Concrete base ACBP250 x2

STAINLESS STEEL

AR1BS.600S.Ba 750 150 1070 11

AR1BS.900S.Ba 1050 150 1070 13

AR2BS.600.AISI 750 150 1070 7

GALVANIZED STEEL

AR2BS.900.AISI 1050 150 1070 8

AR2BS.1200.AISI 1350 150 1070 9

AR2BS.600.Zn 750 150 1070 7

COATED STEEL

AR2BS.900.Zn 1050 150 1070 7

AR2BS.1200.Zn 1350 150 1070 8

AR2BS.600.ZnRc 750 150 1070 7

ROUNDED CORNER WITH DUMMY ROD

DESCRIPTION STANDARD

Stainless steel thickness 2 mm

Steel thickness 2 mm

Concrete base ACBP250 x2

STAINLESS STEEL

AR2BS.900.ZnRc 1050 150 1070 7

AR2BS.1200.ZnRc 1350 150 1070 8

AR2BS.600S.AISI 750 150 1070 8

GALVANIZED STEEL

AR2BS.900S.AISI 1050 150 1070 10

AR2BS.1200S.AISI 1350 150 1070 11

AR2BS.600S.Zn 750 150 1070 8

COATED STEEL

AR2BS.900S.Zn 1050 150 1070 9

AR2BS.1200S.Zn 1350 150 1070 10

AR2BS.600S.ZnRc 750 150 1070 8

BORG

The BORG is a robust bicycle rack. The racks are available in the single and double placement variant

Turn to page 37 for the complete BORG range.

OPTIONS

CONCRETE BASE

AVAILABLE IN 6 DIFFERENT TYPES OF WOOD

Standard version in Garapa. Now available in six different sustainable wood types. See page 9 for more information.

STANDARD CORTEN STEEL

DESCRIPTION

Beam size 90 x 40 mm

Corten steel thickness 8 mm

Concrete base ACBP250 x2

AR2BS.900S.ZnRc 1050 150 1070 9

AR2BS.1200S.ZnRc 1350 150 1070 10

STANDARD COATED STEEL

DESCRIPTION

Beam size 90 x 40 mm

Steel thickness 8 mm

Concrete base ACBP250 x2

BOBS.900.Ct.BX 1200 150 1084 28

BOBS.600.Ct 900 150 1084 24

BOBS.900.Ct 1200 150 1084 26

BOBS.600.ZnRc 900 150 1084 24

BOBS.900.ZnRc

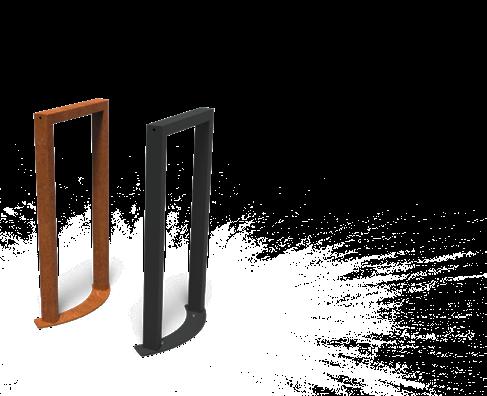

STORR

The strength of the STORR bicycle stands is simplicity, partly due to the use of material with a thickness of 10mm.

Turn to page 45 for the complete STORR range.

OPTIONS

STANDARDV

DESCRIPTION STANDARD

Corten steel thickness 10 mm

Steel thickness 10 mm

Concrete base ACBP250 x2

CORTEN STEEL

BOBS.600.ZnRc.BX 900 150 1084 26

BOBS.900.ZnRc.BX 1200 150 1084 28

COATED STEEL

STBS.600.Ct 740 150 1056 19

STBS.900.Ct 1040 150 1056 22

E-BIKE CHARGER

Corten steel

Aluminium

DESCRIPTION STANDARD

Type of wood Bamboo

Corten steel thickness 10 mm

Aluminium thickness 10 mm

Concrete base ACBP250 x1

SINGLE SOCKET

STBS.600.ZnRc 740 150 1056 19

STBS.900.ZnRc

DOUBLE SOCKET

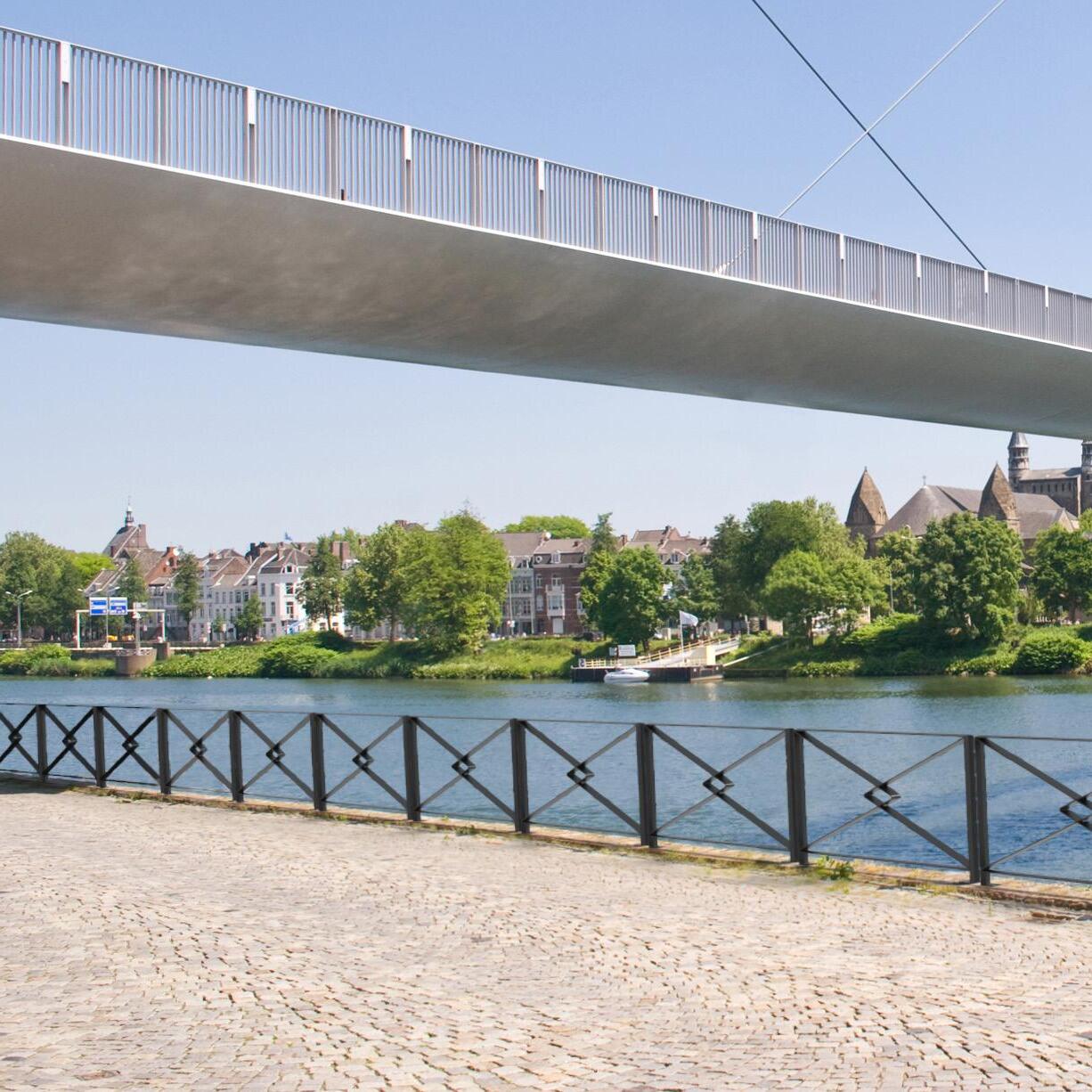

Barriers

The ROMB barrier is a guided fence that is characterised by its simplicity. By applying separation barriers, you ensure safety and create visual walking/driving lanes.

1

DESCRIPTION

STBS.E150D.Ct 150 150 1135 41

STBS.E150D.Al 150 150 1135 16

RO1BA1000.Ct 1000 80 1000 35

COATED STEEL

RO1BA1490.Ct 1490 80 1000 45

RO1BA2000.Ct 2000 80 1000 55

RO1BA1000.ZnRc 1000 80 1000 35

2

RO1BA1490.ZnRc

COATED STEEL

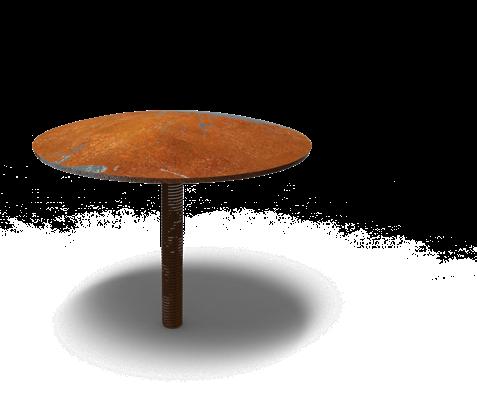

Road studs

Road studs

Indicate a route or boundary in a safe and clear way, that is possible with road studs. In addition to a visual separation for pedestrians, for example, they also provide tactile feedback for drivers. Simplicity makes our road surfaces functional and robust. The right construction and materials make the road studs extremely suitable for public spaces. This solution offers a flexible, fast and timeless solution for infinite applications.

OPTIONS

ROAD STUDS

Corten steel thickness 8 mm Chemical anchor ACCA1 1/30ST

Stainless steel thickness 3 mm

anchor ACCA1 1/30ST

CORTEN STEEL STAINLESS STEEL

RO2BA1490.ZnRc 1490 80 1000 45

RO2BA2000.ZnRc 2000 80 1000 55

RS50.Ct(10PCS) 50 60 0

RS70.Ct(10PCS) 70 60 0

RS105.Ct(10PCS)

RS150.Ct(10PCS)

RS50.SS(10PCS)

RS70.SS(10PCS)

60 0

120 1

Vertuss

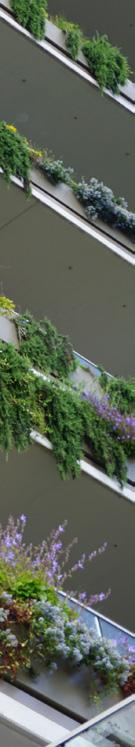

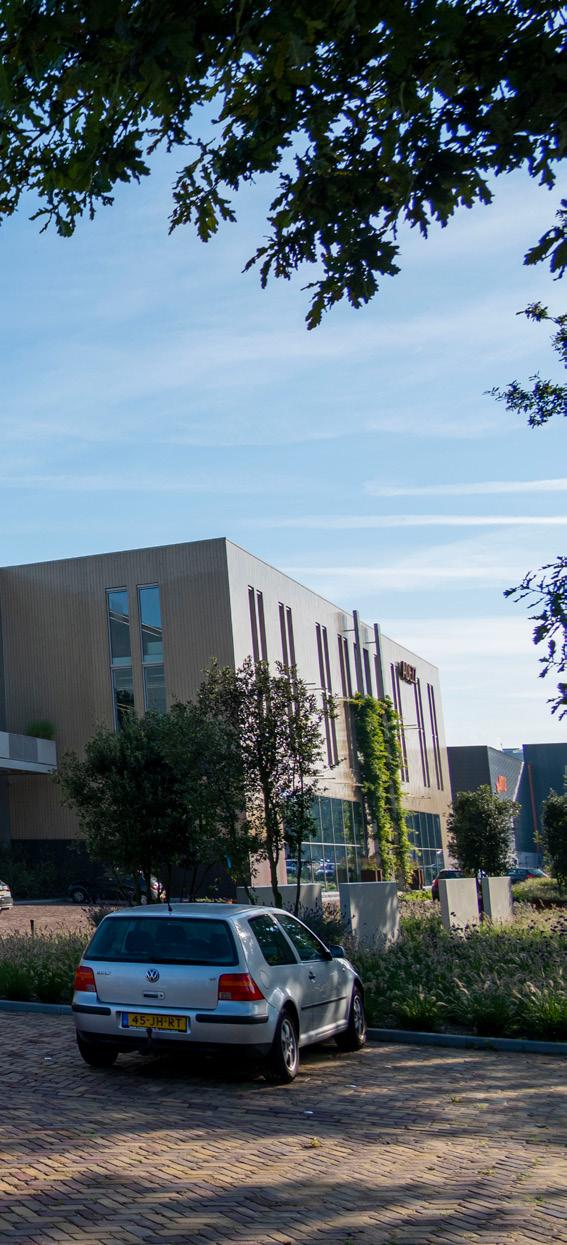

VERTIWALL

The Vertiwall system is a completely finished and modular system for creating vertical gardens. Vertiwall is the only complete soil (substrate) supported system available on the market. Because of this we are the only one who can offer an expected durability of 20 years. Looking at the requirements in construction in which 20 year of depreciation is used as standard, Vertiwall is the most advantageous system available.

In addition to purchase value, the substrate-based system also makes the monthly costs much cheaper. Because the system only needs to run for 5 minutes a day at 8 l / h per meter of drip hose, water consumption is extremely low. Namely a 10 liter / m2 per week. A few moisture sensors are sufficient to assess whether more or less water is required.

10 liters / m2 per week standard drip hose.

2. NO FERTILIZERS IN THE FIRST 5 YEARS

Thanks to special substrate.

Plants can be pre-cultivated in the standard boxes.

4. SOUND ABSORBING UP TO 12 DB

Thanks to multi-layer construction.

Due to the ground-based system it is switched off in winter.

6. PLUG & PLAY CONSTRUCTION

Easy to assemble by a green/construction professional.

7. CAN BE USED INDOORS AND OUTDOORS

Optimal ventilation behind system.

8. 20 YEAR LIFESPAN

10-year warranty on the materials.

9. CAN BE PLACED FLOATING AS WELL AS STANDING

Thanks to the modular system.

1. First the boxes are provided with an envelope with the specially designed non-woven filter cloth.

2. This is then supplemented with the previously described substrate, after which the envelope can be closed.

3. When the boxes have been supplemented, holes can be made for the plants.

Depending on the situation, the pillars are fixed on a foundation or hanging against the facade. These are set with the correct spacing so that hanging the boxes runs smoothly.

The boxes are hung per layer in the pillars. For each layer of boxes, the drip hose of the irrigation system must be pulled through the boxes. For this, the boxes are provided with a hole on the side of the box. If the Vertiwall is hanging, a water collection gutter can be placed under it.

3.

After the boxes and drip hoses have been connected, the covers can be mounted on the pillars and boxes.

VERTITRELLIS

Vertitrellis is the most natural system that promotes the growth of climbing plants. For multiple centuries, climbing plants have been used to create a green facade. The Vertitrellis system has been specially developed for this growth at all heights possible. By putting the growing area of the plants on height, many more plant species are possible for creating green facades.

The Vertitrellis system consists of an Aluminum tray in which the plants are placed. Furthermore, the system consists of a welded wire mesh, spacers and covers around the growing space to delineate. With the Vertitrellis system it is possible to use a water tank under the substrate, this is possible thanks to our polyurea inner coating.

1. COVERS For staking growing space plants.

2. CLIMB-SAFE GRID:

Mesh: 50 x 200 mm.

Thickness: 6 x 5 x 6 mm.

3. 20 year lifespan 10 year warranty on the construction frost resistant.

4. FLOATING PLANTER: Blind Blindly attached to the facade

Optional waterproof.

1. TRELLIS

Welded wire mesh.

Mesh: 50 x 200 mm.

Thickness: 6 x 5 x 6 mm.

2. COVERS

Optionally, the covers are mounted.

3. SPACERS

Distance of 100 mm.

5 mm Aluminum.

The spacers are mounted in the same way against the facade, so that the trellis can be hung up. The top spacers are mounted upside down to make sure the trellis is completely secure.

4. PLANTER

5 mm Aluminum.

Anchor points must be drilled in the facade for the planter. The planter can then be blind mounted on the inside of the planter.

VERTAPLANTER

The Vertaplanter system is an answer to greening residential towers and apartments. The planter has been specially developed to place planted planters at height. This form of greening is an ever-increasing trend which begins to take shape. Vertuss is involved from the start and responded to questions from the market.

The Vertaplanters are suitable to be lifted to a certain height when it is completely filled. The Vertaplanter can be prepared on the ground floor or already in the greenhouse so that it is only hoisted and optionally needs to be fixed. We have developed special profiles for said fixation that are still accessible after it is placed. In addition, these provide a installation height with a view to pipework to or from the bin.

1. BALUSTRADE

There is often only a limited space available on balconies. The space is also including the balustrade. In the past, planters were hung over this. Thanks to it blind fixation system, the planters can immediately be used as a balustrade itself. By including the plants in the balustrade, you create a calm image and save space and costs.

2. GREEN UPON DELIVERY

Plants to be grown in planter. Planters are filled on ground level and possibly provided with a drip-hose with excess length. The planters are placed using strops. Any pipeline work will be plugged in underneath.

3. CONTENT

To be provided with an irrigation system or made waterproof for water buffer

4. DRAINAGE

Provided with holes as standard. Optional pipe to be connected.

5. FIXING PROFILES

The anchor holes for fixing profiles are included in construction. They can be incorporated in the fabrication of the concrete or in the steel construction. The fixing profiles are bolted to the construction.

6. FIXATION STRIP

The fixation strip is slid between the profiles and fixed with the bolt.
