The ACURA Group Unbraced Cantilever Bracket Tech Data Sheet.
OVERVIEW

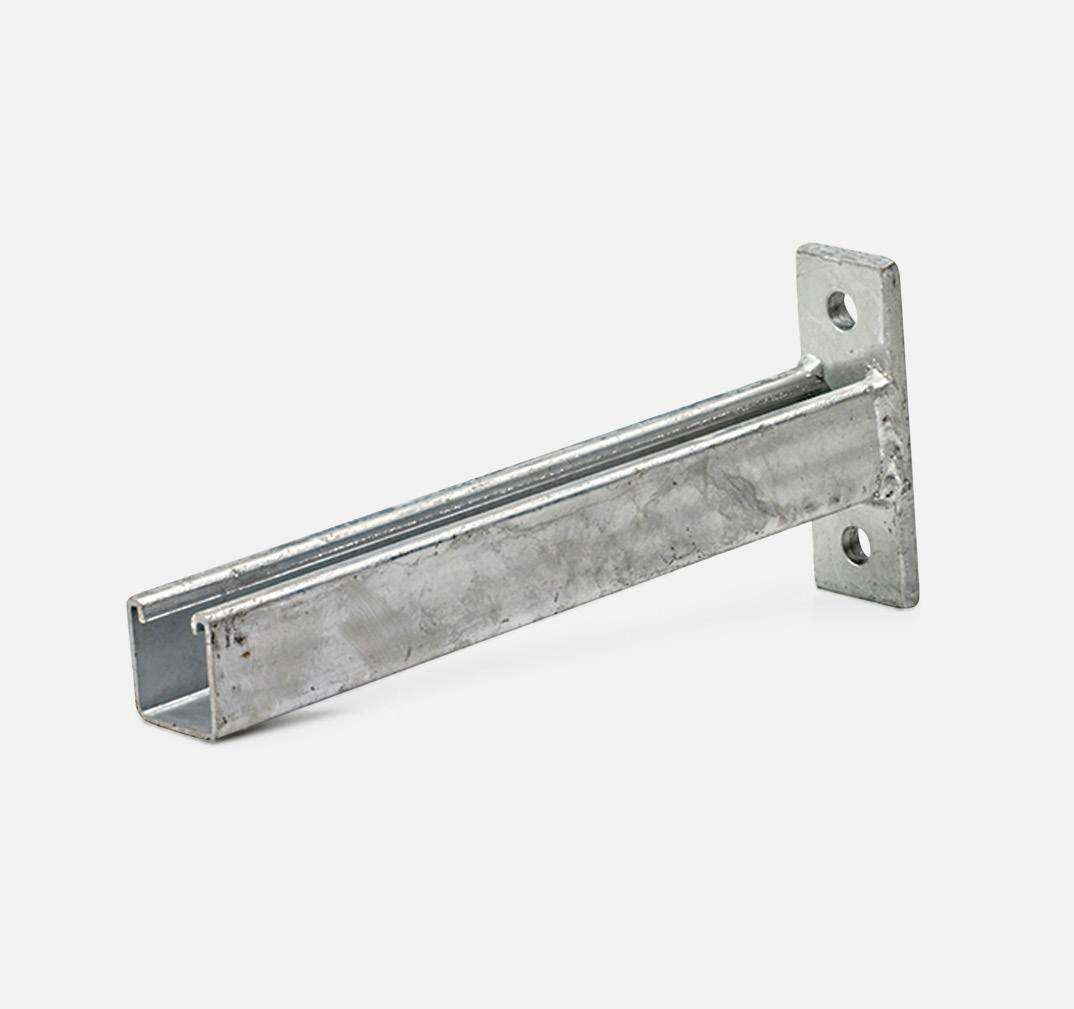

UNBRACED CANTILEVER BRACKET
Used for the installation of building services for supporting anything from pipe work, duct work, equipment, and cable tray. This model is unbraced for compact applications and can be used in multiple directions.
KEY SYSTEM ADVANTAGES • • • • • • TECHNICAL DATA MATERIAL
MATERIAL TYPE
FINISH
Mild Steel
225 Mpa
HDG or Plain
•
Adjustable & Modular Design: Allows easy on-site configuration and alignment without welding, ideal for modular construction. Versatile Application: Compatible with multiple brackets, fittings, and service supports for various orientations and load conditions. Corrosion Resistant: Available in hot-dip galvanized or stainless-steel finish for enhanced durability in harsh environments. Lightweight & Strong: High load capacity with reduced structural weight, ensuring easier handling and transport. Low Maintenance: Components can be replaced or adjusted easily without specialized tools. Cost-Effective Solution: Minimizes fabrication and rework, providing an efficient alternative to rigid welded systems. Independent tested and verified by third-party organisations.
laycomm Point Load
Free End Fixed End
SECTION PROPERTIES
Uniform Distributed Load (UDL)
Free End
Fixed End
X-X AXIS
Y-Y AXIS
WEIGHT
AREA OF SECTION (A)
MOMENT OF INERTIA (I)
SECTION MODULUS (Z)
MOMENT OF INERTIA (I)
SECTION MODULUS (Z)
Kg/m
mm2
I 10^6 mm4
Z 10^3 mm3
I 10^6 mm4
Z 10^3 mm3
2.6
332
0.071
3.090
0.092
4.431
PART N°
SPAN (L)
ALLOWABLE POINT LOAD (Kg)
ALLOWABLE UDL (Kg)
19KH150
150
315.0
630.0
19KH300
320
151.4
302.9
19KH450
470
105.0
210.0
19KH600
635
78.7
157.5
19KH700
780
67.5
135.0
Safety Factor of 1.5 has been applied. Note: The allowable point load is determined at the end of the Cantilever Bracket. Actual load capacity may vary depending on the post position, support conditions, and application. For project-specific verification or engineering guidance, please contact Acura Group. All load data is applied with appropriate safety factors and verified in accordance with relevant AS/NZS engineering standards. The M12 concrete anchor to be selected to satisfy the Cantilever Bracket allowable loading.
