The ACURA Group Slotted Angle Tech Data Sheet.
OVERVIEW
14GA5050SL6 •
Size: 50x50x6mm
•

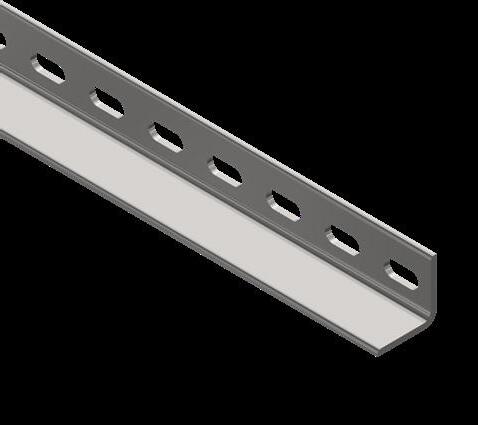

Used for the installation of building services with punched slots to facilitate suspending with threaded rod.
SECTION PROPERTIES
•
Commonly used for supporting duct work.
•
Finish: Zinc Plated
X-X AXIS
Y-Y AXIS
AREA OF SECTION (A)
MOMENT OF INERTIA (I)
SECTION MODULUS (Z)
Kg/m
mm2
10^6 mm4
10^3 mm3
10^6 mm4
mm3
4.43
450.8
0.098525
3.941
0.1652432
6.609728
WEIGHT
DEFLECTION (mm)
MOMENT OF INERTIA (I)
ALLOWABLE POINT LOAD (mm)
SECTION MODULUS (Z)
BEAM SPAN (mm)
ALLOWABLE ADDITIONAL UDL (kg)
DEFL
250
1734.82
0.17
867.41
0.13
500
866.41
0.67
433.21
0.54
750
576.50
1.51
288.25
1.22
1000
431.21
2.69
215.61
2.17
1250
343.77
4.21
171.89
3.42
1500
285.26
6.08
142.63
4.98
1750
243.28
8.31
121.64
6.85
2000
211.62
10.89
105.81
9.06
2250
186.85
13.84
93.43
11.63
2500
166.90
17.17
83.45
14.59
2750
150.46
20.88
75.23
17.96
3000
136.65
24.99
68.32
21.77
Minimum yield strength: Fy = 235 MPa Allowable loads derived from ultimate loads divided by 1.5. Beam load are applied to simply supported span. Beam self weight is considered for deflection, mentioned load is addition load that may be applied. Deflection has been determined using standard formulas corresponding to the maximum allowable stress.
