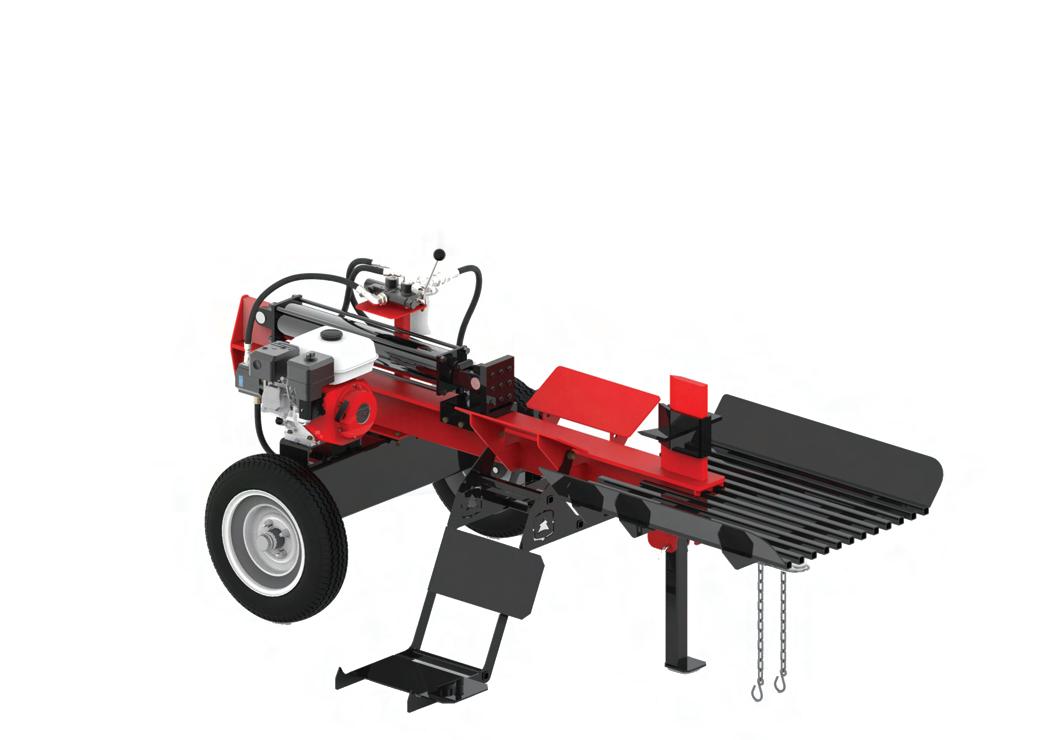

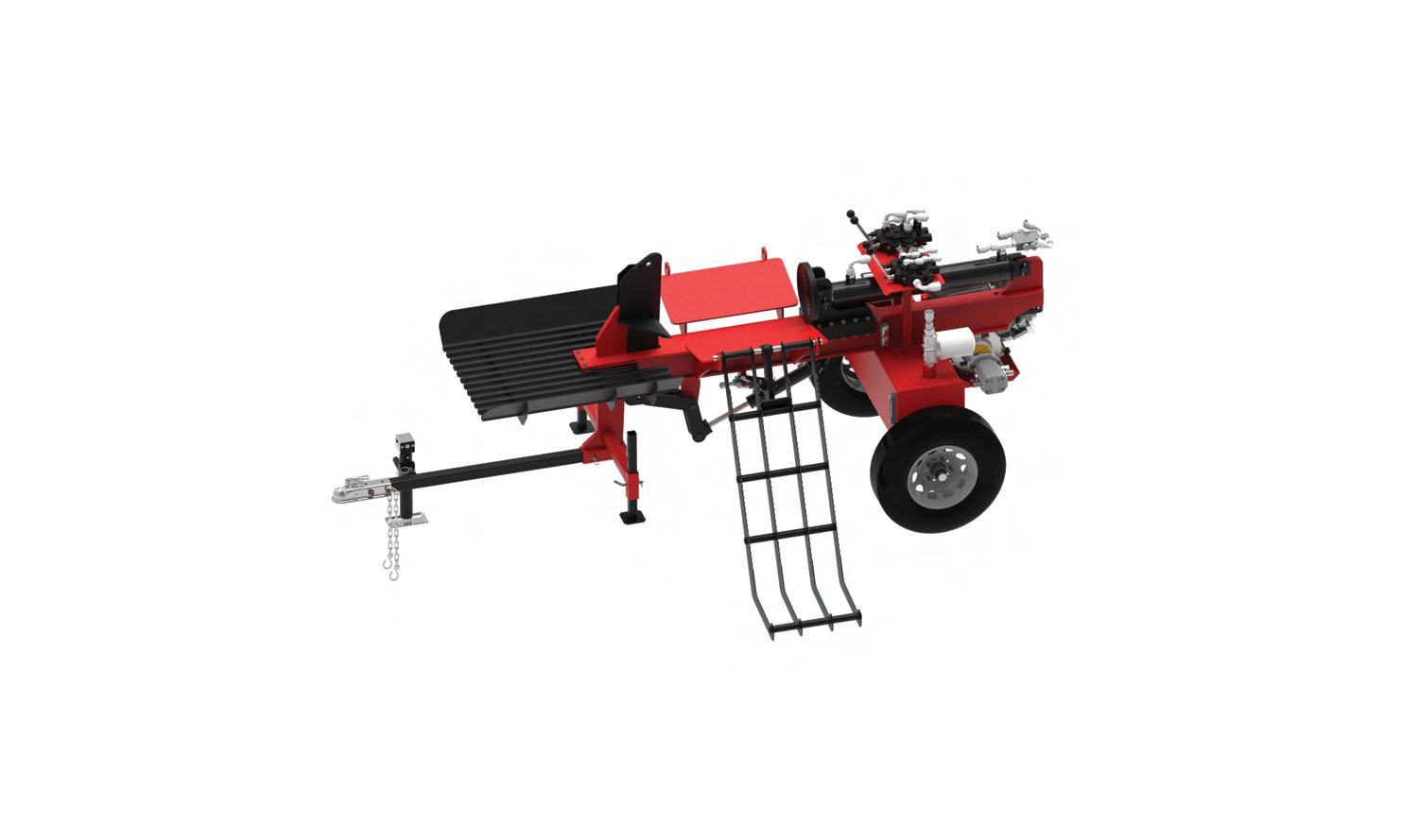

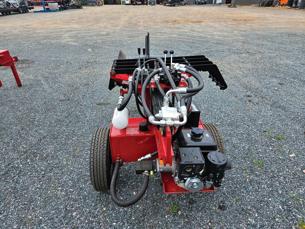

TW-2
•The TW-2 log splitter is made to be a simple and reliable entry-level log splitter that operates at the level of a top-of-the-line commerical wood splitter.
• Powered by an efficient 8.5HP engine, this splitter is an affordable option capable of producing up to 1 cord of quality firewood per hour.
• Standard with a hydraulic log lift, table grate, and 4-Way wedge, the TW-2 enables a single-person operation to split large blocks quickly and easily to increase production and profit.
•Standard with 8.5HP Honda GX270 engine
• Fuel-efficient and quiet
•High power output, low emissions
• Electric start option Power
• Equipped with hydraulic log lift rated to 250 lbs
• Oversized hydraulic tank for all day splitting
• Heavy duty hoses Hydraulics
Features
•Table grate (32” x 34”)
•Self-entering splitting chamber for easy oneperson operation
• Integrated hitch, extremely portable
SPECIFICATIONS
Engine Power (HP) 8.5
Pump Flow (GPM) 16
Cylinder Bore (in) 4
Stroke (in) 26
Splitting Force (lbs) 37,700
Cycle Time (sec) 9
Avg Output (cord/hr) 1
Weight (lbs) 1,000
• 4” hydraulic cylinder, 26” stroke
• 16GPM pump flow •Integrated step wedge
• 4-Way wedge Components
The TW-2 allows operators to increase firewood production and profitability without a large investment.

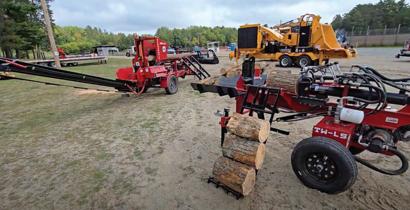

TW-LS
• A compact, economical option suitable for homeowners and hobbyists to commercial firewood producers, the TW-LS is built to withstand daily firewood production without skipping a beat.
• The splitter comes standard with hydraulic wedge/log lift, table grate, and center mounted controls for ease of use.
• This fuel-efficient splitter is equipped with a 12HP engine and 4” hydraulic cylinder.
• The TW-LS produces excellent firewood without the hefty start-up price tag; and standard Autocycle brings your firewood production to the next level.
•Standard with 11.7HP Honda GX390 engine
•Features high power output, low oil consumption, and excellent exhaust emissions performance Power
Hydraulics
• Equipped with hydraulic wedge/log lift
• Oversized hydraulic tank for all day splitting
• Heavy duty hoses
• 22GPM pump flow
Features
•Table grate (32” x 34”)
•Self-entering splitting chamber for easy oneperson operation
• Integrated hitch, extremely portable
•4” hydraulic cylinder, 26” stroke
• Autocycle
•37,700 pounds of splitting force
• Adjustable 4-Way wedge
• Add-On 6-Way Wedge Components
Standard Autocycle increases production speed and efficiency, making the TW-LS a great choice for any firewood operation.
SPECIFICATIONS
Engine Power (HP) 11.7
Pump Flow (GPM) 22
Cylinder Bore (in) 4
Stroke (in) 26
Splitting Force (lbs) 37,700
Cycle Time (sec) 4.5
Avg Output (cord/hr) 1.5
Weight (lbs) 1,390

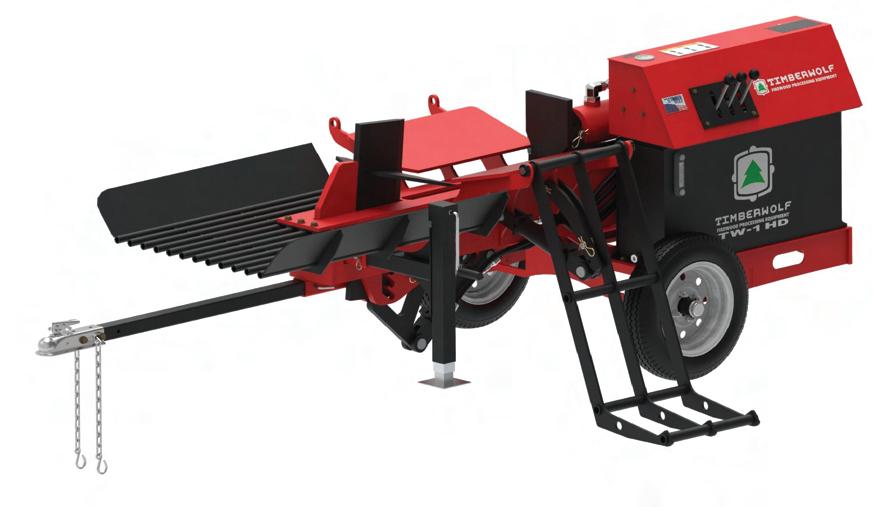

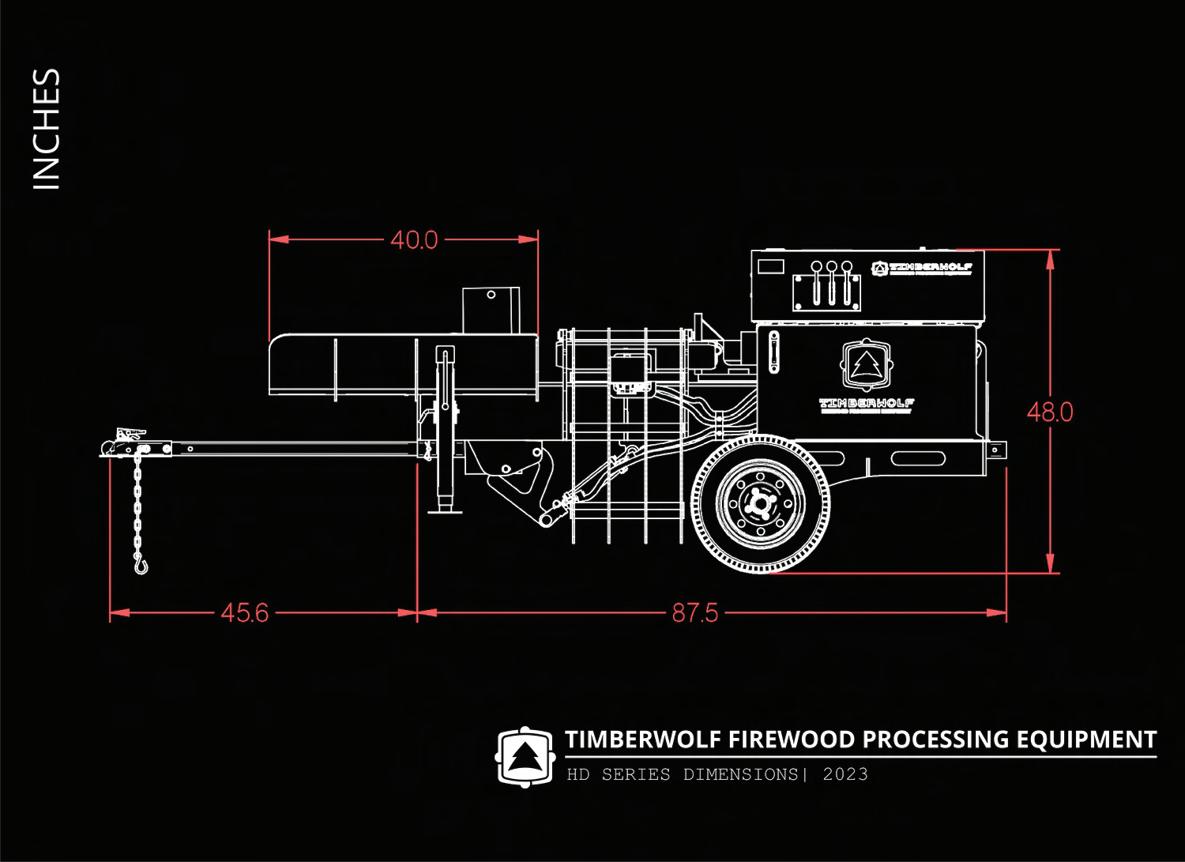

TW-HD
•The HD Series mid-sized log splitters feature a hydraulic wedge and log lift, engine and cylinder options for maxmium splitting force and quick cycle times, and the ability to output up to 1.5 cords per hour.
These splitters are built tough to work as hard as you do, and are capable of withstanding the elements for years of rigorous use.
Equipped with integrated valve cover, table grate, and new spring suspension, TW-HD log splitters are portable, ergonomic machines capable of high production and efficiency.
Additional wedges allow for custom firewood production.
Power
• TW-2 HD: fuel-efficient
8.5 HP Honda GX270
•TW-5 HD: 11.7HP Honda
GX390 gas engine
•High power output, low oil consumption
Hydraulics
• 25 gallon hydraulic tank, oversized to maintain cool, filtered fluid
• Log lift with 500 pound loading capacity
•Wedge lift for seamless splitting adjustments
Features
•Table grate (32” x 34”)
•Self-entering splitting chamber for easy oneperson operation
• Adjustable 4-Way wedge
•37,700/58,905 pounds of splitting force
•Choose 4” or 5” hydraulic cylinder, 26” stroke
•Engine upgrade
• 2-Way and 6-Way wedge options Options
The TW-HD’s ergonomic operator platform is 36” off the ground, ensuring a comfortable position for all-day splitting.
SPECIFICATIONS
Engine Power (HP) 8.5/11.7
Pump Flow (GPM) 16
Cylinder Bore (in) 4/5
Stroke (in) 26
Splitting Force (lbs) 37,700/ 58,905
Cycle Time (sec) 7/8
Avg Output (cord/hr) 1.5
Weight (lbs) 1,750

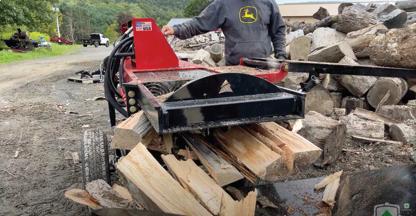

AUTOSPLIT
• One of our most popular machines, the AutoSplit is a commercial box wedge log splitter capable of outputting up 2 cords of uniform firewood per hour.
• With a 22.1HP engine and 28GPM pump flow, this machine boosts firewood production for efficient splitting all day long.
• With a fully protected hydraulic system designed to function in the toughest evironments without skipping a beat, spring suspension for excellent towing ability, and standard large hydraulic tank, oil cooler, and regeneration manifold, the AutoSplit is built to burn through blocks day in and day out.
• Integrated table grate funnels split firewood onto the next step in production.
Power
•22.1HP Honda GX700
• 28 GPM pump flow to power through the toughest logs
• 4” or 5” hydraulic cylinder
Hydraulics
• Integrated hydraulics cover to extend life
• Log lift with 500 pound loading capacity
•Regeneration manifold allows rod to extend more rapidly, for faster splits
Features
• Floating auto-retract arm eliminates need for manual resplitting •Spring suspension
•37,700/58,905 pounds of splitting force
Options
•4.5” box wedge for cord wood
•3.5” box wedge for packaged firewood
•2.5” box wedge for cooking wood
With lengthened trailer hitch and excellent towing ability, the AutoSplit is simple to bring to the jobsite and easily produces uniform-sized, premium firewood.
SPECIFICATIONS
Engine Power (HP) 22.1
Pump Flow (GPM) 28
Cylinder Bore (in) 4/5
Stroke (in) 26
Splitting Force (lbs)
37,700/ 58,905
Cycle Time (sec) 7/10
Avg Output (cord/hr) 2
Weight (lbs) 2,550

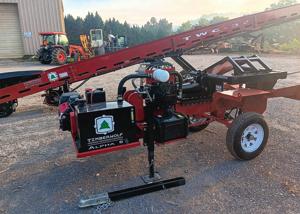

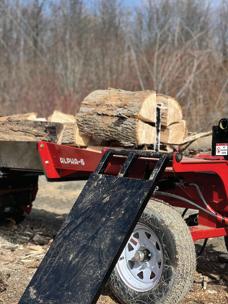

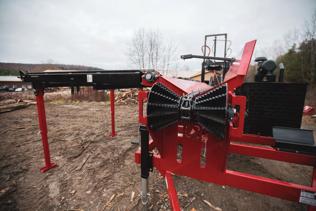

AlPHA SERIES
• Timberwolf’s top-of-the-line commercial box wedge splitter, the Alpha Series is capable of outputting up to 2 cords of uniform-sized wood per hour.
• Powered by a 22.1HP engine or upgraded 24.5HP diesel, the Alpha offers 58,905 pounds of splitting force along with quick cycle times.
• The Alpha 6 is equipped with hydraulic log and wedge lift, table grate, dual jacks for increased stability during operation, new torsion axle suspension, and regeneration manifold for faster splitting.
• The splitter comes standard with 4-Way wedge, add a box wedge with floating auto-retract arm to create uniform splits with no need for manual resplitting.
Power
•22.1HP Honda GX700
•24.5HP Diesel upgrade
• 28/30GPM pump flow to power through the toughest logs
•Standard with 5” hydraulic cylinder
Hydraulics
• Log lift with 500 pound loading capacity, install on either side of machine
•Wedge lift with 5.5” travel
•Regeneration manifold allows rod to extend more rapidly, for faster splits
Features
•40” x 36” table grate
• Floating auto-retract arm eliminates need for manual resplitting
• Adjustable 4-Way wedge
•58,905 pounds of splitting force
Options
• 2-Way and 6-Way wedges
•4.5” box wedge for cord wood
•3.5” box wedge for packaged firewood
•2.5” box wedge for cooking wood
The Alpha’s box wedge option with auto-retract arm pulls the unsplit portion of the log back into the splitting chamber, allowing operators to burn through the largest blocks without rehandling.
SPECIFICATIONS
Engine Power (HP) 22.1/24.5
Pump Flow (GPM) 28/30
Cylinder Bore (in) 5
Stroke (in) 26
Splitting Force (lbs) 58,905
Cycle Time (sec) 5/7
Avg Output (cord/hr) 2
Weight (lbs) 2,600

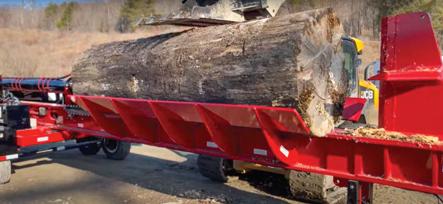

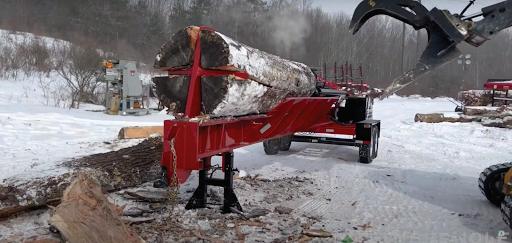

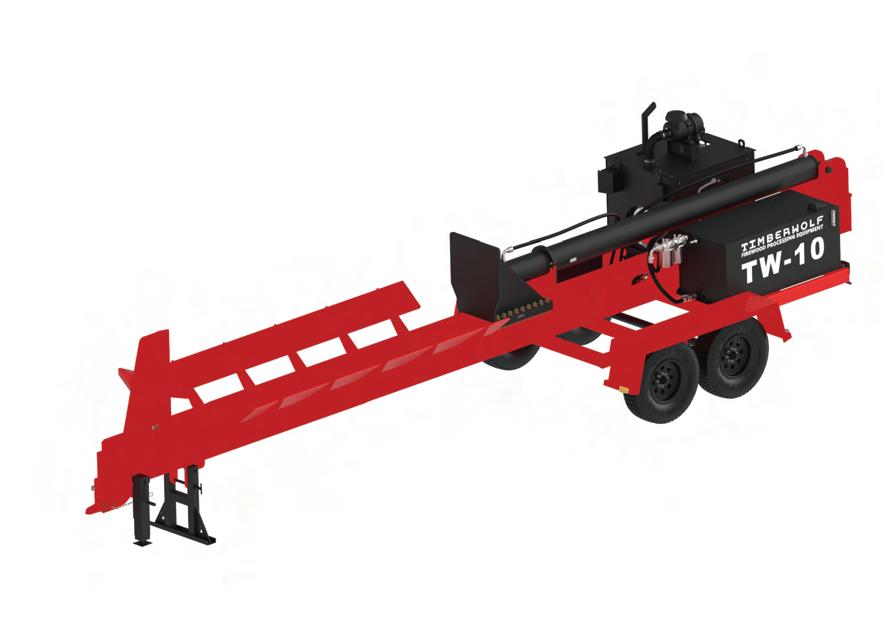

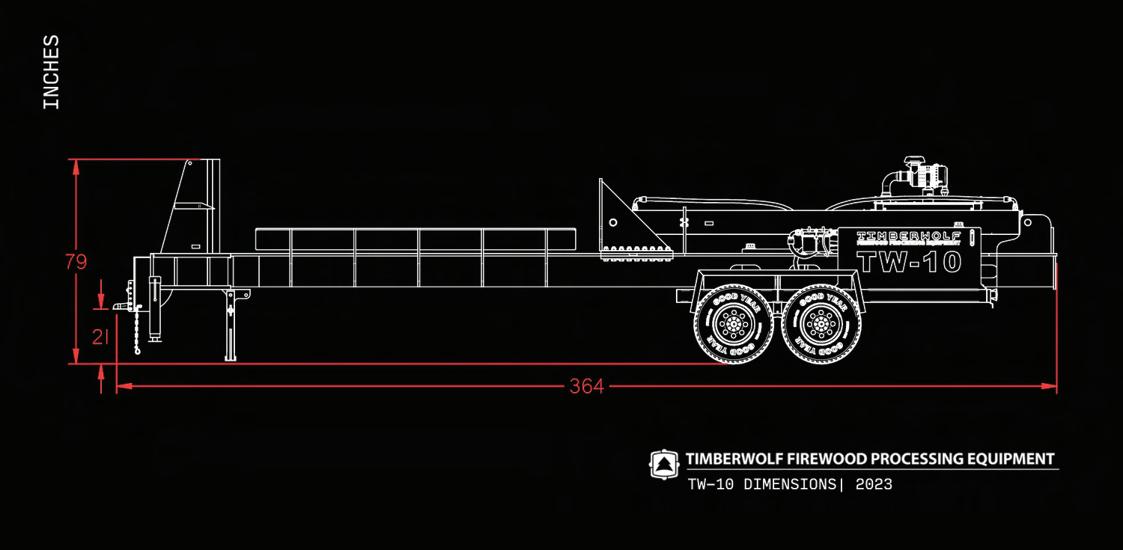

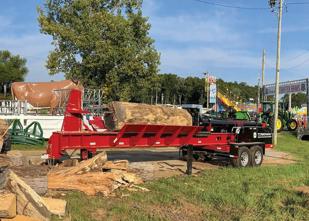

TW-10
• The TW-10 is an extra-large log splitter capable of splitting logs as long as 12’ and up to 5’ in diameter, into quarters, so they can be fed into a firewood processor or wood chipper.
• This heavy-duty built splitter has a 30’ long frame made of 3” thick American steel, and is powered by a 74HP diesel engine.
• The TW-10’s impressive power comes from the huge 8” hydraulic cylinder that offers 150,000 pounds of splitting force.
•Timberwolf’s biggest log splitter is operated via remote control, so operators can split the largest logs from the comfort and safety of their truck.
Power
•74HP Hatz diesel engine
•Designed for maximum power and efficiency with little fuel consumption
Hydraulics
• Massive 8” hydraulic cylinder, built in the USA
Features
•Dual 7000 pound axles
• Autocycle
• Drives the push block with 150,000 pounds of splitting force
• 110 gallon hydraulic tank
• Huge 4-Way wedge
• 54 second cycle time
• Remote control operated
Tow-Ready
•Bring the splitter to the worksite!
• Equipped with ball coupler and full braking system
• Removable jack
• Highway tires
The TW-10 is built for maximum power: good luck finding a log this machine cannot split!
SPECIFICATIONS
Engine Power (HP) 74
Pump Flow (GPM) 33
Cylinder Bore (in) 8
Stroke (in) 12
Splitting Force (lbs) 150,000
Cycle Time (sec) 54
Weight (lbs) 13,640

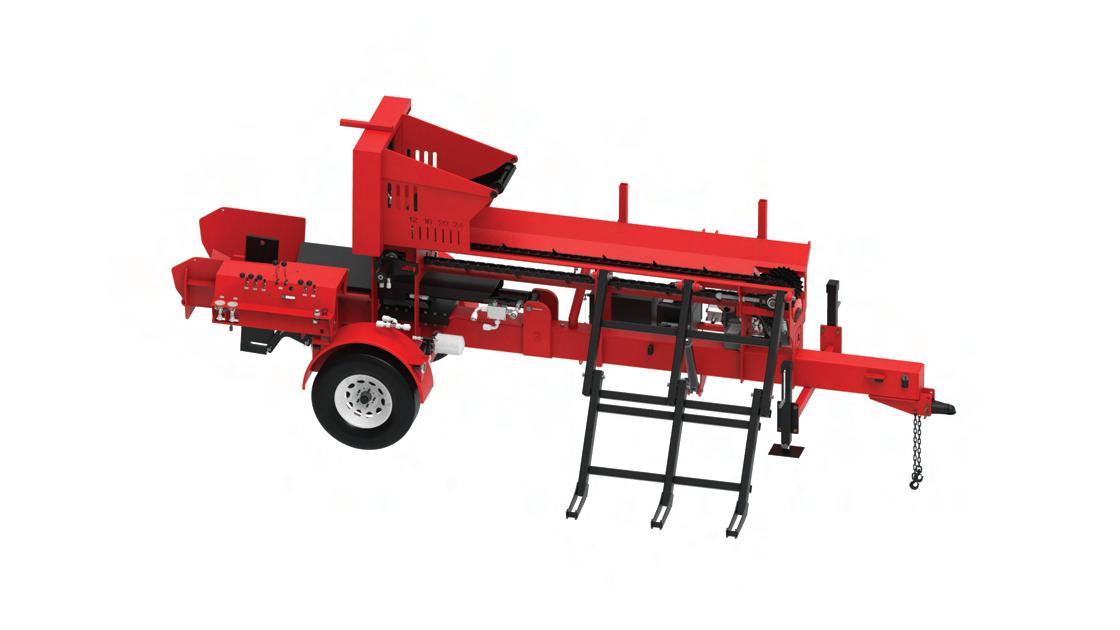

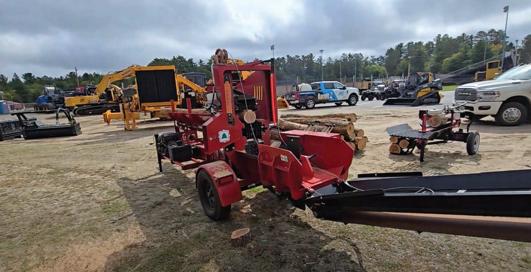

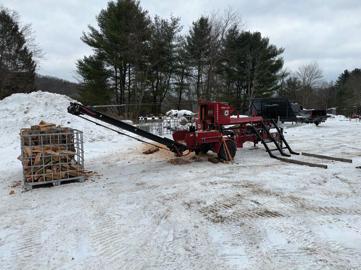

PRO-LP
• Timberwolf’s newest processor, the Pro-LP, is made to streamline your firewood operation with a low start-up cost, perfect for businesses upgrading from a log splitter.
•Capable of handling logs wide as 16” and in excess of 12’ in length, the Pro-LP is equipped with manual autocycle, regen valve, hydraulic log/ wedge lifts, log measuring grid, and a piston saw motor.
• This full-frame mobile processor has superior ergonomics, is incredibly heavy-duty built, and is capable of outputting more than 1 cord of quality firewood per hour.
• Optional 10’ integrated conveyor available to move cut firewood onto a waiting truck or trailer, making the firewood splitting an easy, one-man operation.
•22.1HP Honda GX700
• 18GPM pump flow
• 4” cylinder that handles the toughest logs with ease Power
Features
• Manual autocycle
• Easily portable
• 28 gallon hydraulic tank
• Heavy-duty hoses and hydraulic components
• Saw: 18” cut/.404 chain
• 4’ wide hydraulic log lift
•Doubles as a rest for logs waiting to be split
• Allows operator to pick up logs directly from the ground, eliminating need for additional machinery
• 10’ integrated conveyor (adds 360 lbs to total machine weight)
• 4/6-Way wedges Options
The Pro-LP is an entry-level firewood processor that operates on the level of a full-frame commercial processor, and is capable of outputting more than 1 cord per hour without a hefty start-up cost.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
Cylinder Bore (in) 4
Trough Length (ft) 9
Max Log Length (ft) 12
Cycle Time (sec) 5
Avg Output (cord/hr) 1
Weight (lbs) 3,500
Log Lift
PRO-LP XL/DIESEL
• Timberwolf’s newest firewood processor models,the Pro-LP XL and LP XL Diesel are compact, portable, and extremely efficient machines suitable for homeowners, small firewood businesses, mobile processing, and rental fleets.
• Equipped with a 25HP gas or diesel engine and 4” hydraulic cylinder, these processors feature an extended frame, live deck, and hydraulic down pressure top roll clamping system to handle logs wide as 16” and in excess of 24’ long.
• With a 10’ integrated conveyor, these machines streamline the splitting process so a single-person operation is capable of outputting over 1 cord of firewood per hour.
Power
• LP XL: 24.9HP Honda GX-800 engine
• LP Diesel: 24.9HP Hatz 3 cylinder diesel engine
• Exceptionally fuel-efficient, electronic fuel injected, with a high power output
Components
• 4” American-made hydraulic cylinder, 3” rod, 26” stroke
• 10’ integrated conveyor
• 4-Way/6-Way Wedges
• Hydraulic wedge lift
Features
• Hydraulic down pressure top roll clamping system •12’ feed trough
• Saw: 18” cut/.404 chain
• Live deck
• Extremely portable
Hydraulics
• 22GPM Hi/Lo splitter pump •18GPM saw pump
• 28 gallon hydraulic tank, ensuring consistently cool and filtered fluid
• Heavy duty hoses
The Pro-LP XL and XL Diesel upgrade to a 24.9HP engine, an extended frame, and live deck, enabling operators to streamline their firewood production and process trees up to 24’ long.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
Cylinder Bore (in) 4
Trough Length (ft) 12
Max Log Length (ft) 24
Cycle Time (sec) 5
Avg Output (cord/hr) 1
Weight (lbs) 3,500

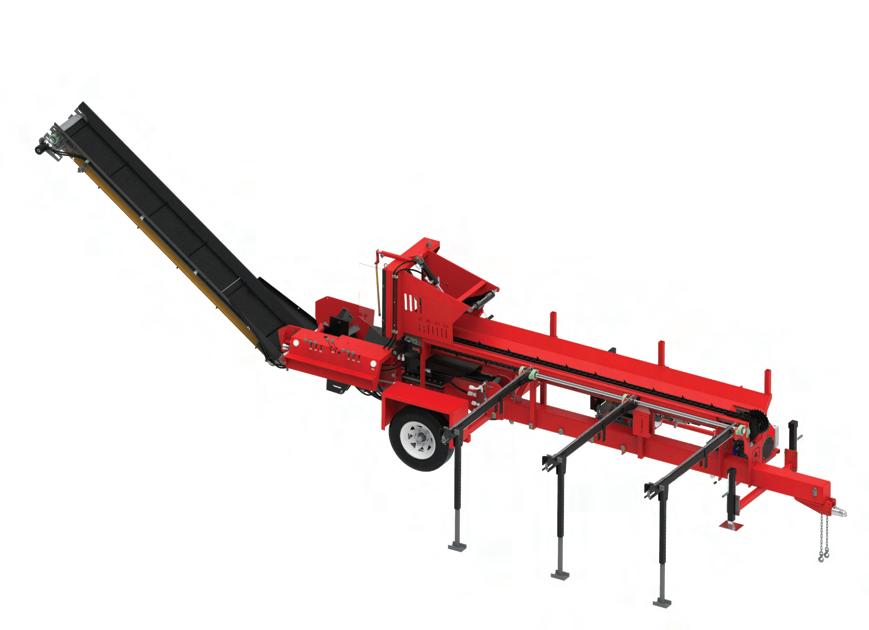

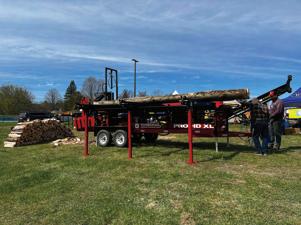

PRO-MP XL/DIESEL
• A mid-sized processor capable of outputting up to 2 cords per hour, the Pro-MP XL and MP XL Diesel offer commercial-grade power and speed at an affordable price.
• Standard with driven top roll clamp and back roller that enables the processor to handle logs long as 32’ and wide as 24” in diameter.
• Highly accessible and ergonomic frame for easy feed trough adjustments and resplits, standard wedge lift, and equipped with 4-strand hydraulic live deck.
• 10’/18’ integrated conveyor options to easily load cut firewood into a truck of trailer.
Power
• MP XL: 38HP fuel-injected Kohler gas engine with integrated oil cooler
• 22-19-9 pump flow •MP Diesel: 56HP Hatz diesel engine
• 22-16-14 pump flow
Hydraulics
• Hydraulic wedge lift
• Heavy duty hoses
• Dual 30 gallon hydraulic tanks, ensuring consistently cool and filtered fluid
• Manual autocycle
Features
• Top roll clamping system
• Hourglass-shaped back roller to handle longer logs
• Saw: 25” cut/.404 chain
• Extremely portable
• 4-strand live deck
Options
• 4” or 5” American-made hydraulic cylinder
• 10’ integrated conveyor
• 18’ integrated conveyor
• Upgraded 36” stroke
• 4-Way/6-Way Wedges
Easily portable, with cylinder, engine, and wedge options, Pro-MP Series firewood processors will output up to 2 cords of firewood per hour and are the best commercial processors for the money.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
38/56
22-19-9/ 22-16-14
Cylinder Bore (in) 4/5
Trough Length (ft) 16
Max Log Length (ft) 32
Cycle Time (sec) 5/7
Avg Output (cord/hr) 2
Weight (lbs) 7,500

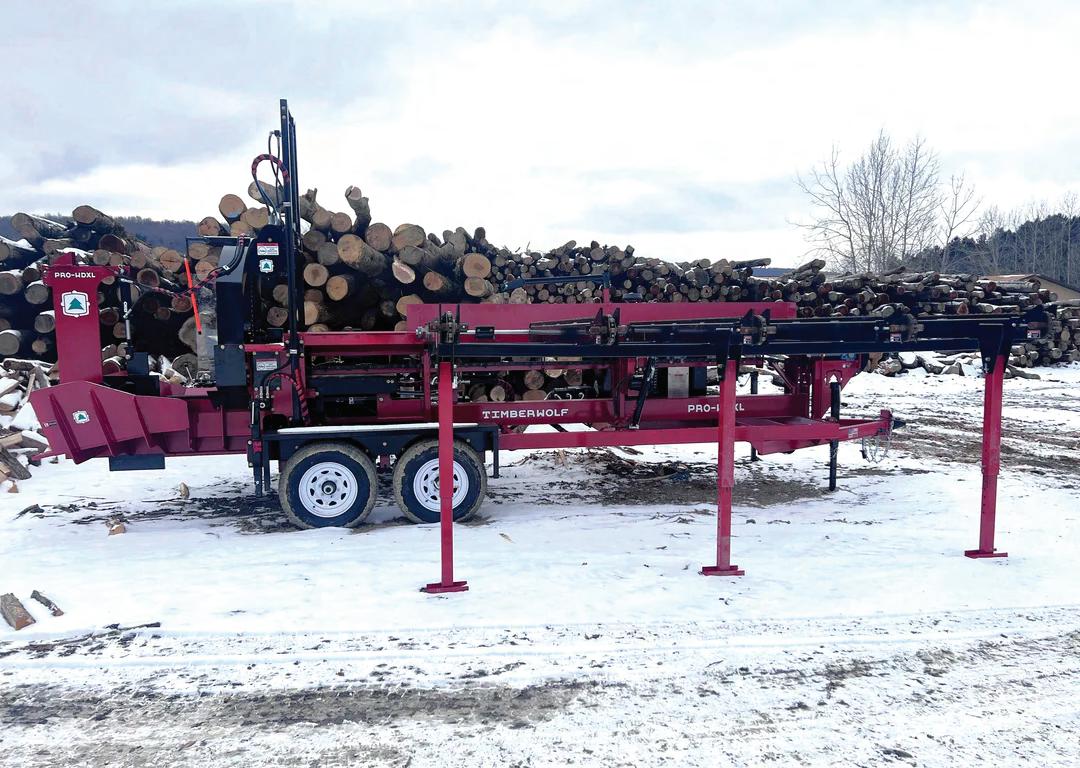

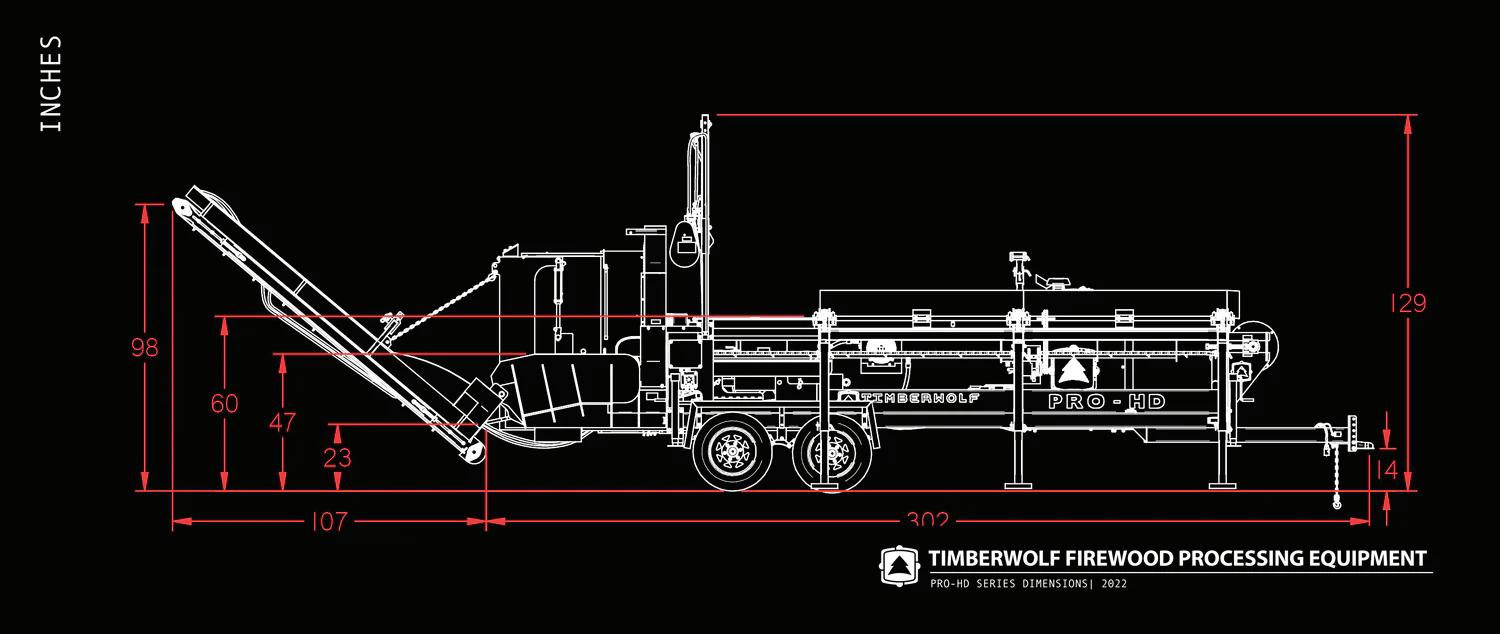

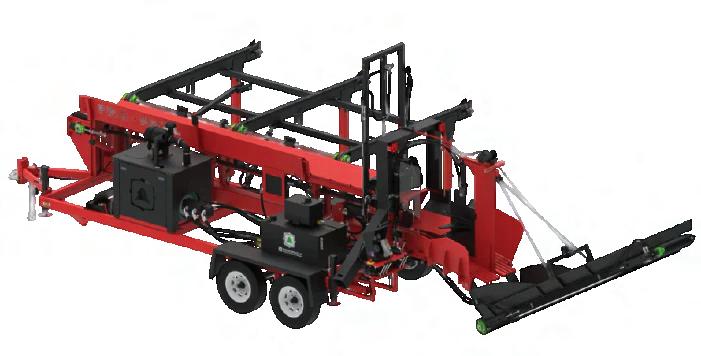

PRO-HD Xl
• The Pro-HD XL is a heavy-duty, dual axle commercial firewood processor powered by a 74HP engine and 3-stage gear pump, capable of outputting up to 5 cords of firewood per hour.
• Standard with driven top roll clamp and back roller that enables the processor to handle logs long as 32’ and wide as 24” in diameter.
• Equipped with regeneration manifold and new Bent Axis Piston Saw Motor to dramatically improve splitting performance, the new Pro-HD XL cuts up to 3x faster than older models.
• Optional integrated conveyor available to move cut firewood onto a waiting truck or trailer.
Power
•74HP Hatz diesel engine
• Unrivaled power, efficiency, and performance
•33GPM splitting pump provides 3000 PSI of splitting pressure
• 5” hydraulic cylinder
Hydraulics
• 3-stage Permco gear pump
•Splitter: 33 GPM
•Saw: 22 GPM
• Auxiliary functions: 14 GPM
• 70 gallon hydraulic tank with internal baffles
Features
• Electric autocycle
•Regeneration manifold
• Top roll clamping system
• Hourglass-shaped back roller to handle longer logs
• 4-Strand live deck
• Saw: 25” cut/.404 chain
Options
• 12’ integrated conveyor
• 18’ integrated conveyor •Cab with heat
• 36” cylinder stroke
• 4, 6, 8, and/or 12-Way wedges available
The Pro-HD XL is designed to be the ultimate firewood processor: heavy-duty built with incredible power, unsurpassed speed, and tough enough to handle even the gnarliest logs.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
33-22-14
Cylinder Bore (in) 5
Trough Length (ft) 16
Max Log Length (ft) 32
Cycle Time (sec) 4.5
Avg Output (cord/hr) 5
Weight (lbs) 9,900

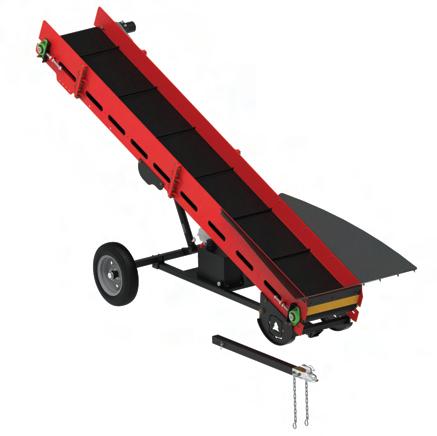

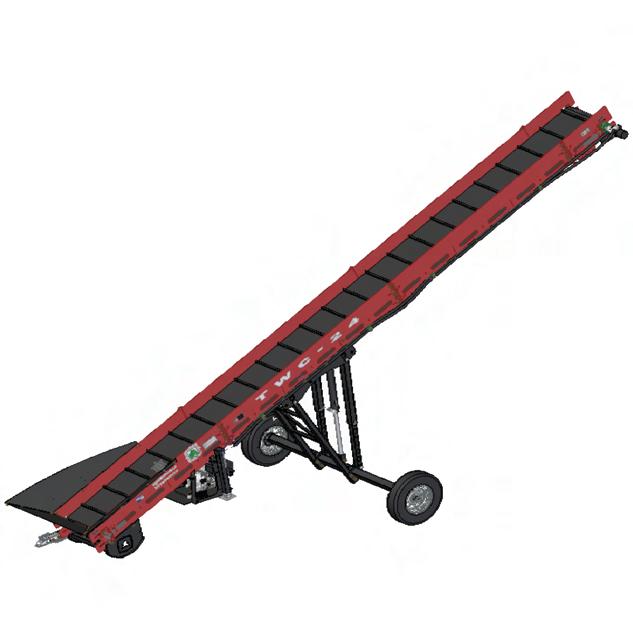

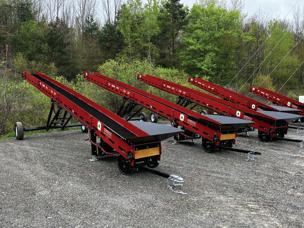

TWC CONVEYORS
• Timberwolf customers often recommend investing in a conveyor prior to upgrading their log splitter as they have an incredible ability to boost production and profit.
•Available in sizes ranging from 12’ to 32‘ in length, all TWC conveyors can be transported in tow and have at least 3’ of vertical range.
• Standard with hydraulic lift cylinders, telescoping axle arms, tapered rollers for self-adjusting belt tracking and 4.9HP engine to power hardy paddle belt.
• Easily manuverable with manual and driven oscillating axle options.
• Fuel-efficient, quiet, and extremely reliable 4.9HP Honda engine Power

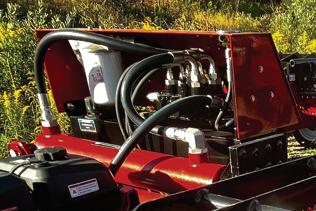

• Hydraulic lift cylinder controlled by 2-spool valve
• Ground skid, maintains contact with the ground during operation for maximum stability •20” wide paddle belt Features
• Rubber belt fines deflector located below modular hopper
• Reduces debris build-up

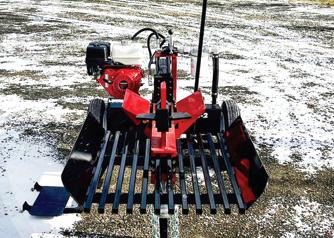

• Add bolt-on Grizzly Bars to your TWC-16, TWC-24, or TWC-32
• Easily move your TWC-24 or TWC-32 with a driven or manual oscillating axle option •Axle allows for lateral movement, streamlining biomass processing Axle Options
With a TWC Conveyor, stability issues, belt misalignment, and manuverability problems are a thing of the past.

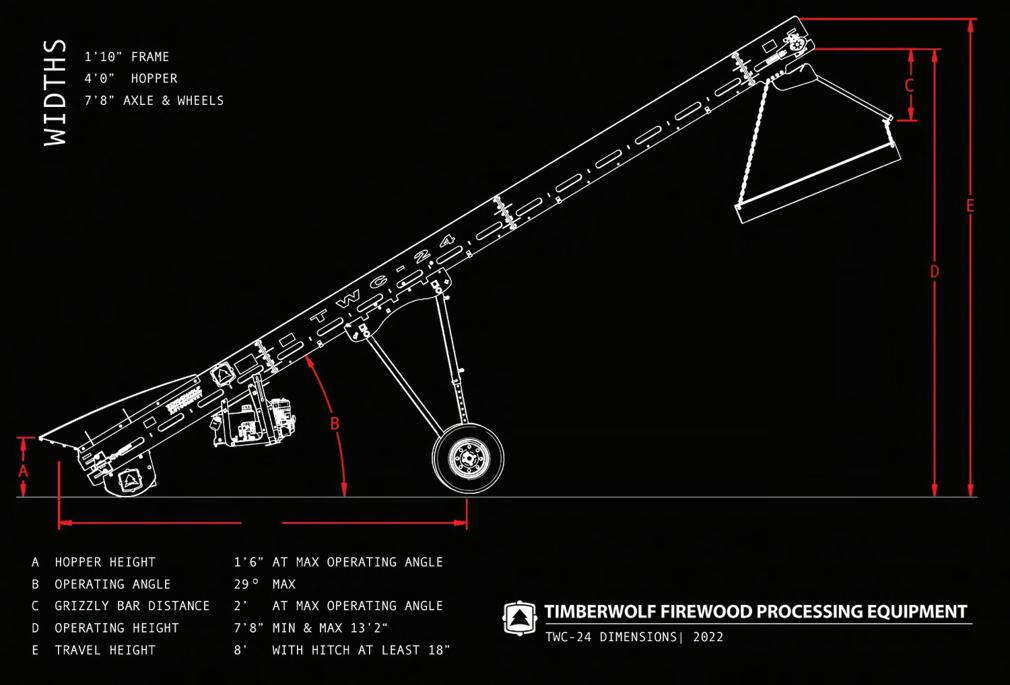

SPECIFICATIONS
Fines Deflector

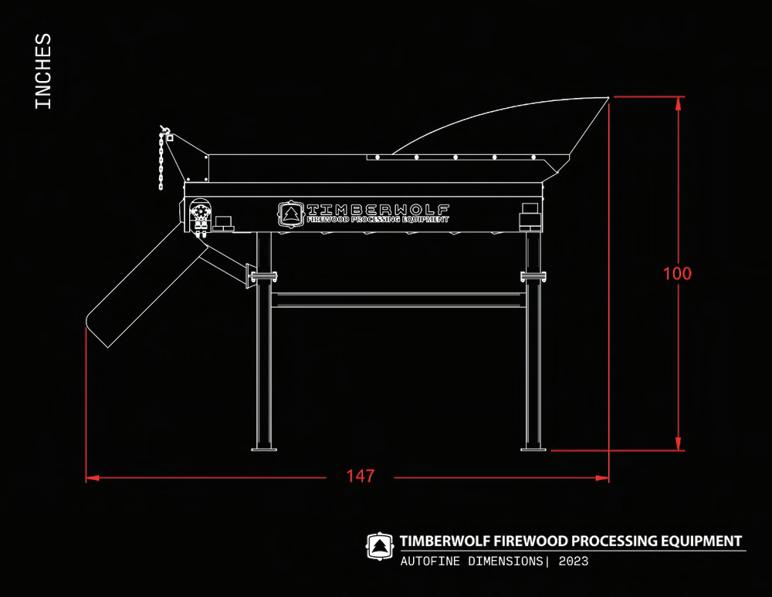

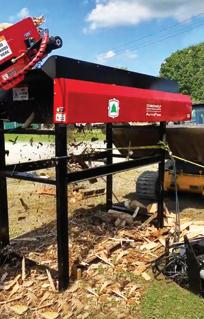

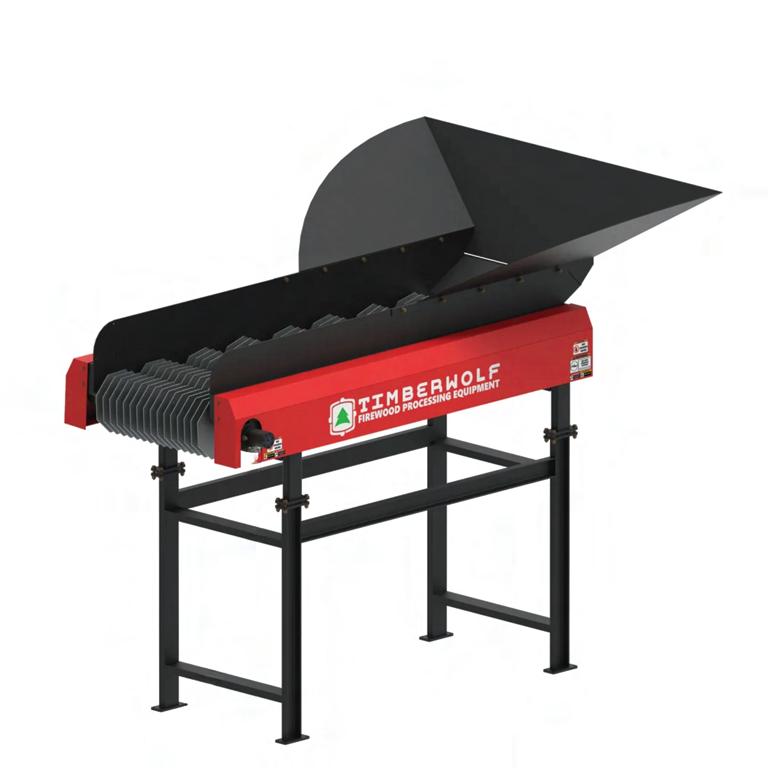

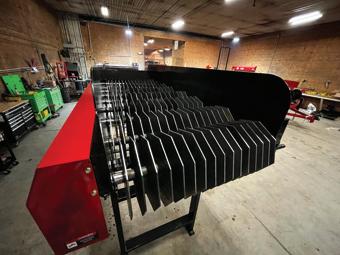

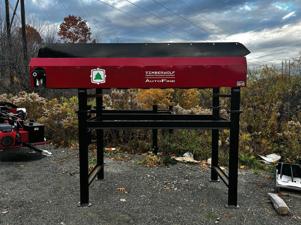

AUTOFINE
• Affordable and heavy-duty disc screener that can be powered by power pack or connected to any firewood processor via integrated auxiliary port.

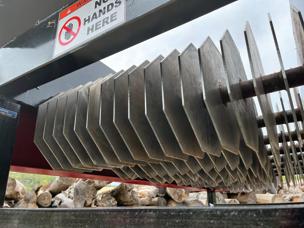

• Integral hex discs constructed from 3/16” steel and intentionally spaced to allow debris and fines to fall through.
• Chute creates a smooth transition for clean wood being loaded and offloaded, streamlining your firewood operation.
• Optional bolt-on hopper can be installed for easier loading of materials onto deck, also serves as a funnel.
Power
• Power pack with economical 4.9HP Honda engine
• Optional power pack can be moved separately from machine for safety
• Processor power auxiliary port
Features

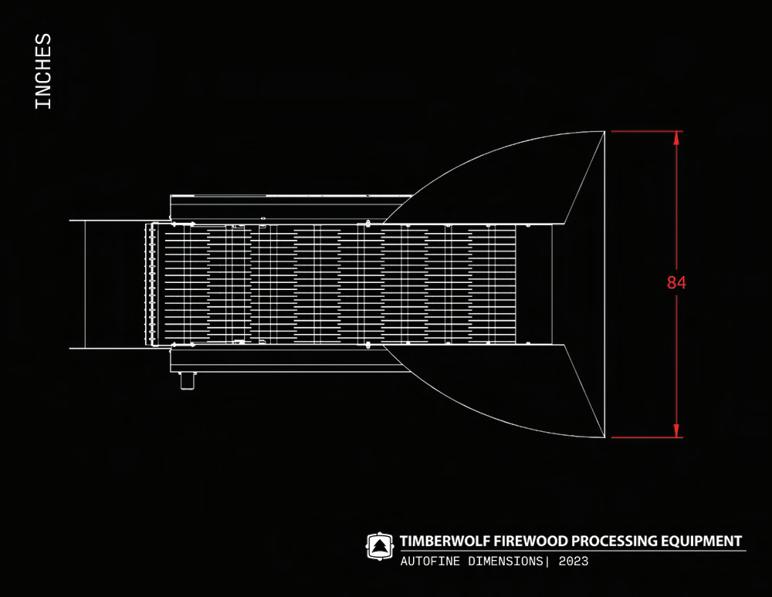

• 4’ by 10’ frame
• Sturdy spinning hex discs
• Integrated chute
• Updates include new bolt-on axle, front jacks, and hitch for easy towing
Options
• Power pack •Bolt-on hopper
•Vital for serious businesses, the AutoFine allows you to deliver a superior product without sawdust, dirt, or other fines
Bring your firewood business to the next level with the AutoFine, a hopper and chute add even more efficiency.
Clean Wood, Larger Profit
Sales Representative:
