BRECKENRIDGE, ASCOT

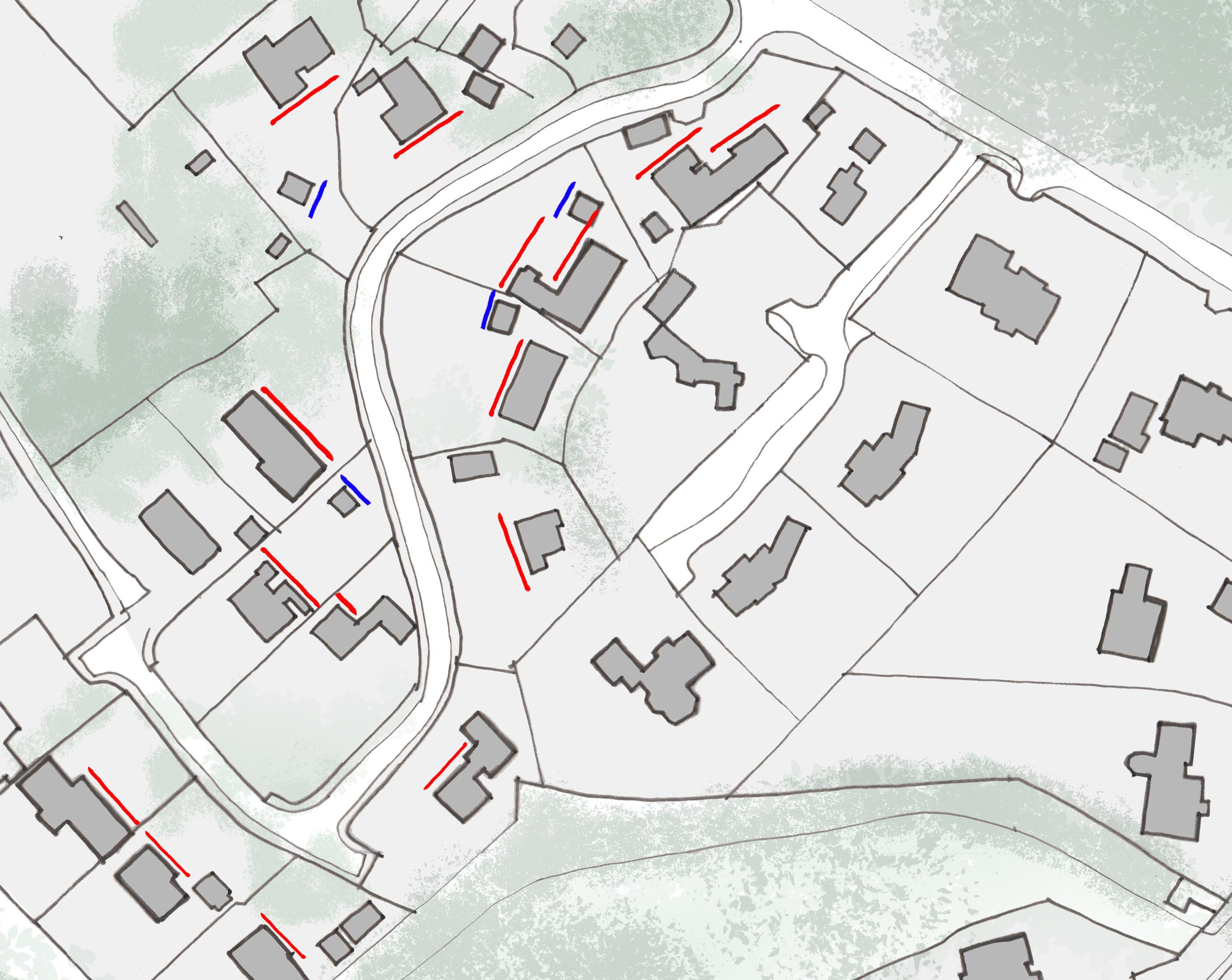

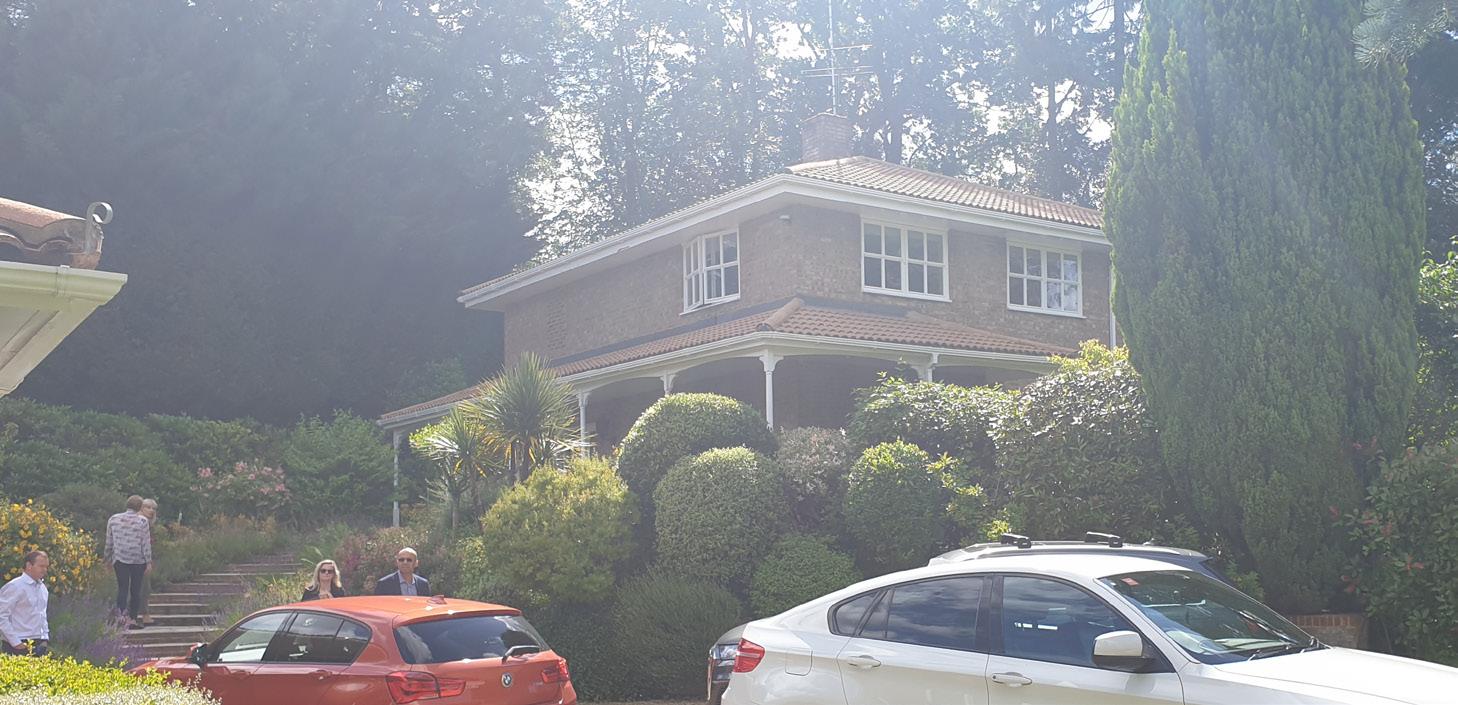

This site is located in the Royal Borough of Windsor and Maidenhead, within a TPO zone. Neighboring properties adhere to a traditional architectural style, which is why it was submitted for pre-planning.
I held sole responsibility for the design and presented numerous ideas to address the challenges posed by the clients’ varied aims and desires. The initial brief was a £700,000 refurbishment and development project with future sale prospects, but it evolved into a larger, new-build family home.
Once the scheme receives positive feedback from the planners, the design may undergo adjustments to accommodate the flexibility of a new build, as many of the design decisions where based on the existing footprint. All I produced all graphics and CGIs within this document.

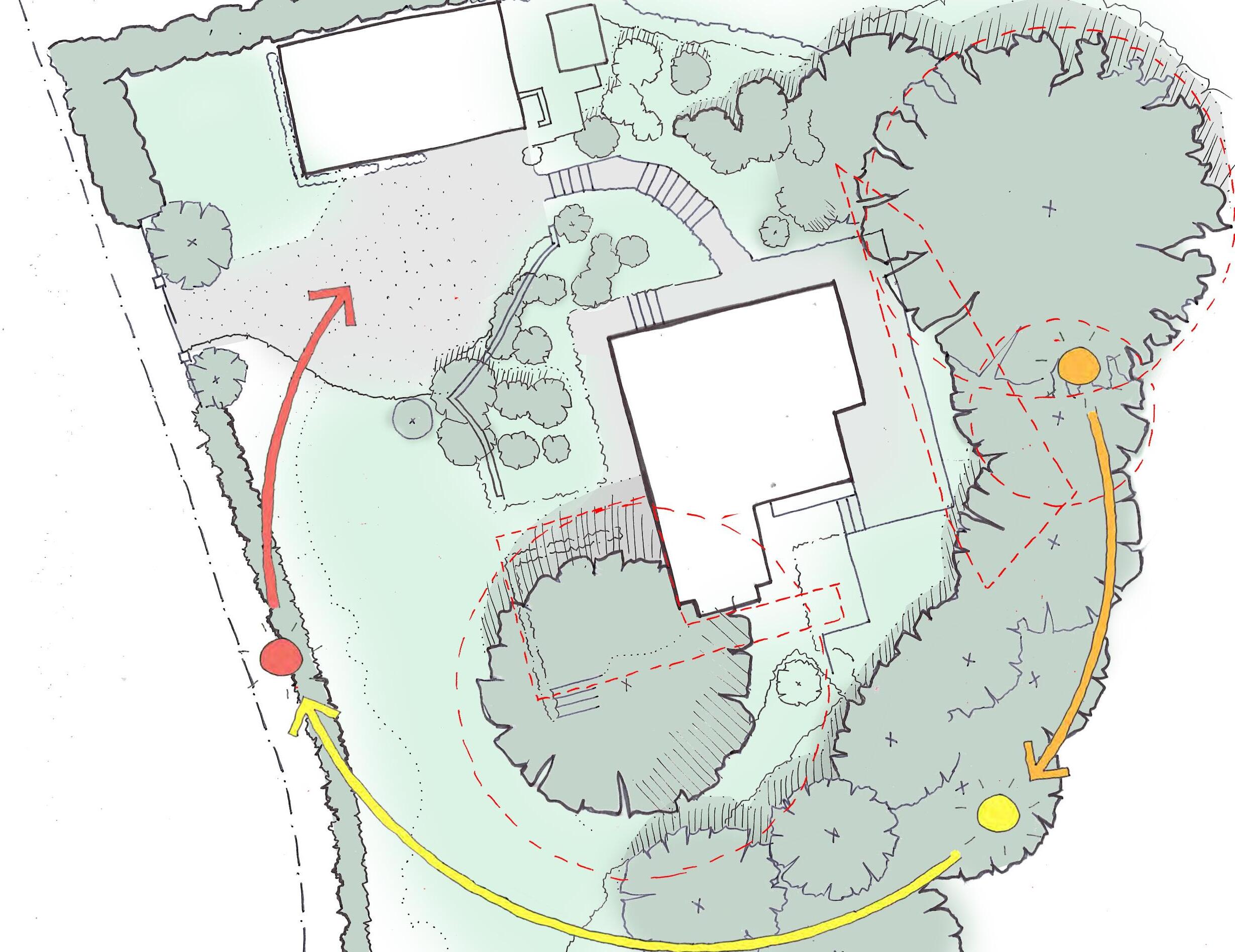

Beech tree, RPR 9.6m

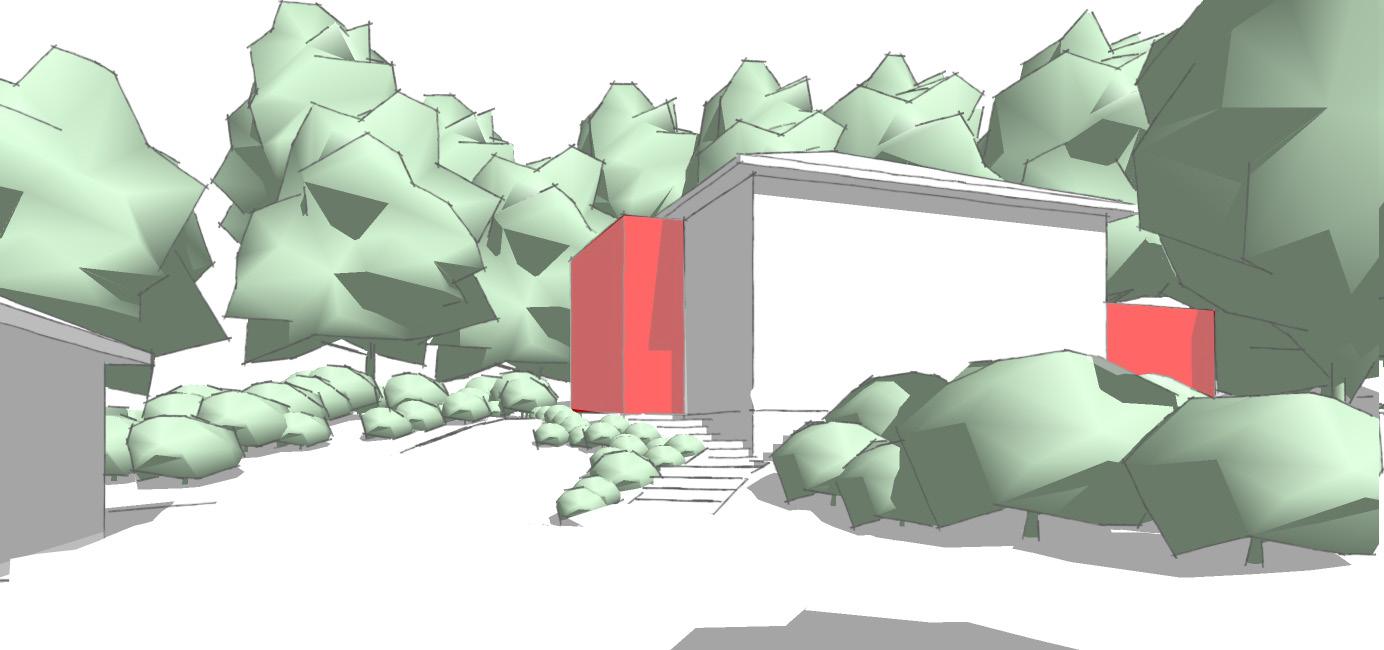

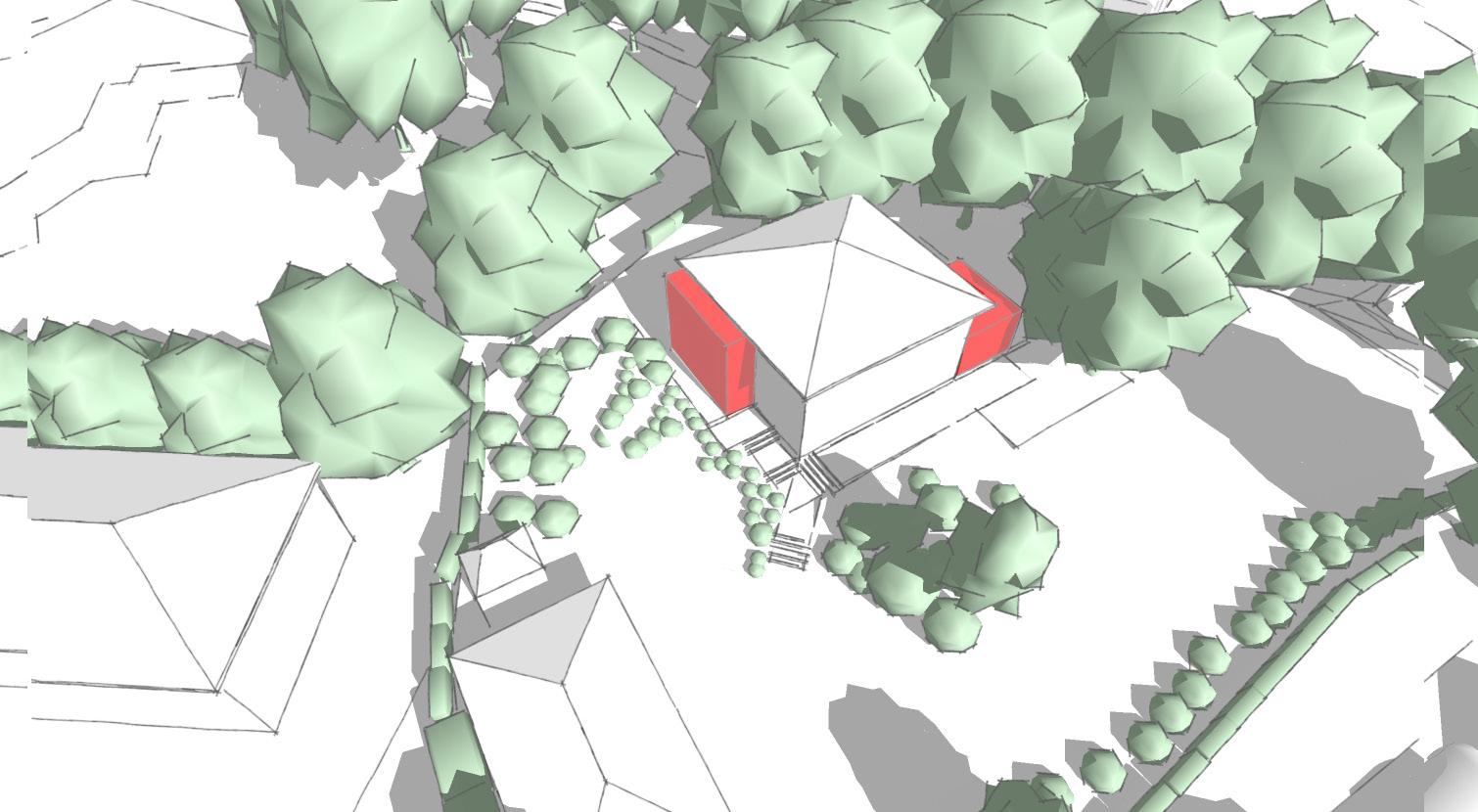

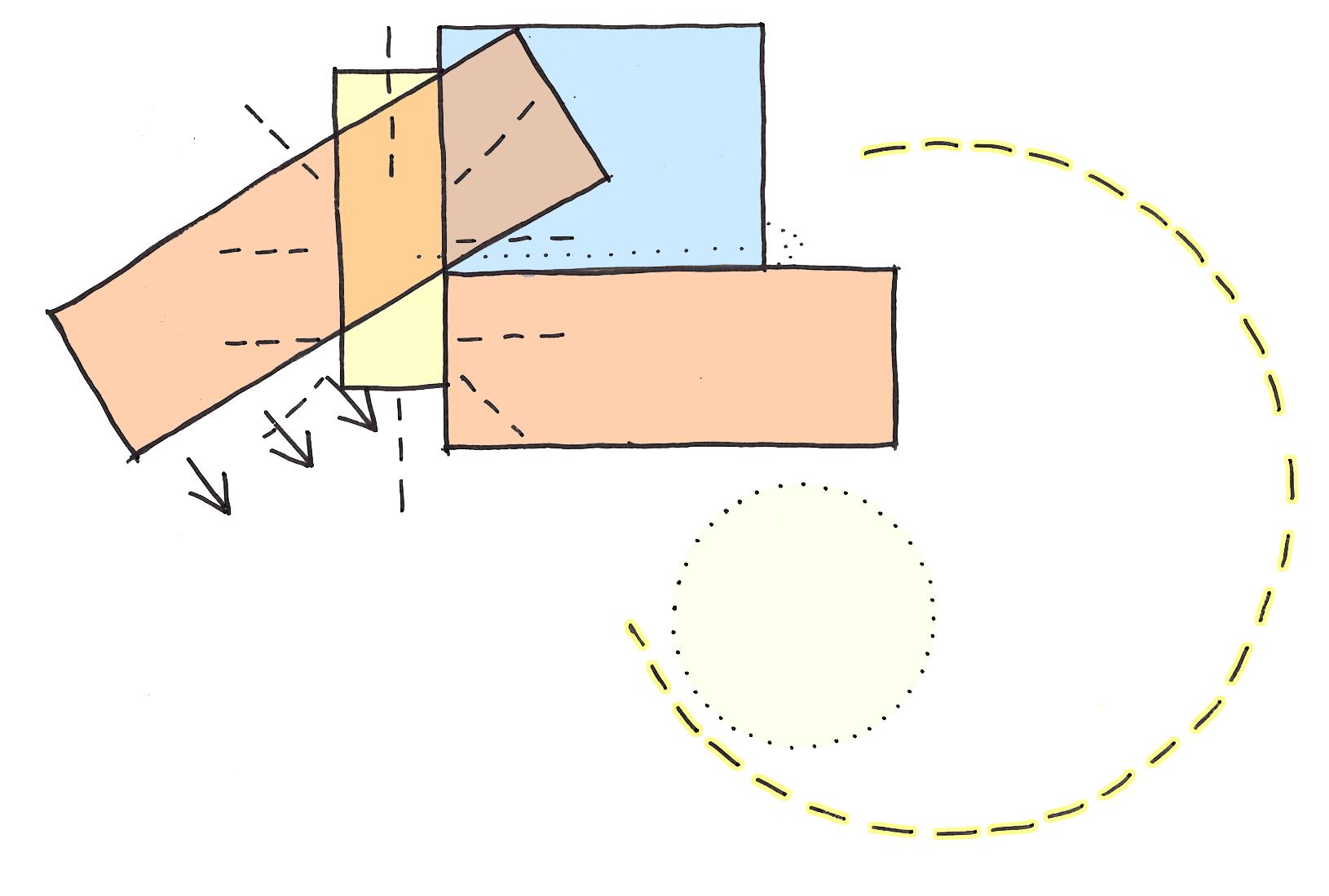

Concept diagram, Diagrammatic space planning
Development in this area will have to be above ground using a piled scheme
Sycamore tree RPR 4.8m
Existing seated area with good sunlight/views
Ideally external area to be retained, with development maximised elsewhere on site
Any development in this area will have to be above ground using a piled scheme
New strip foundations could be used along the existing footprint

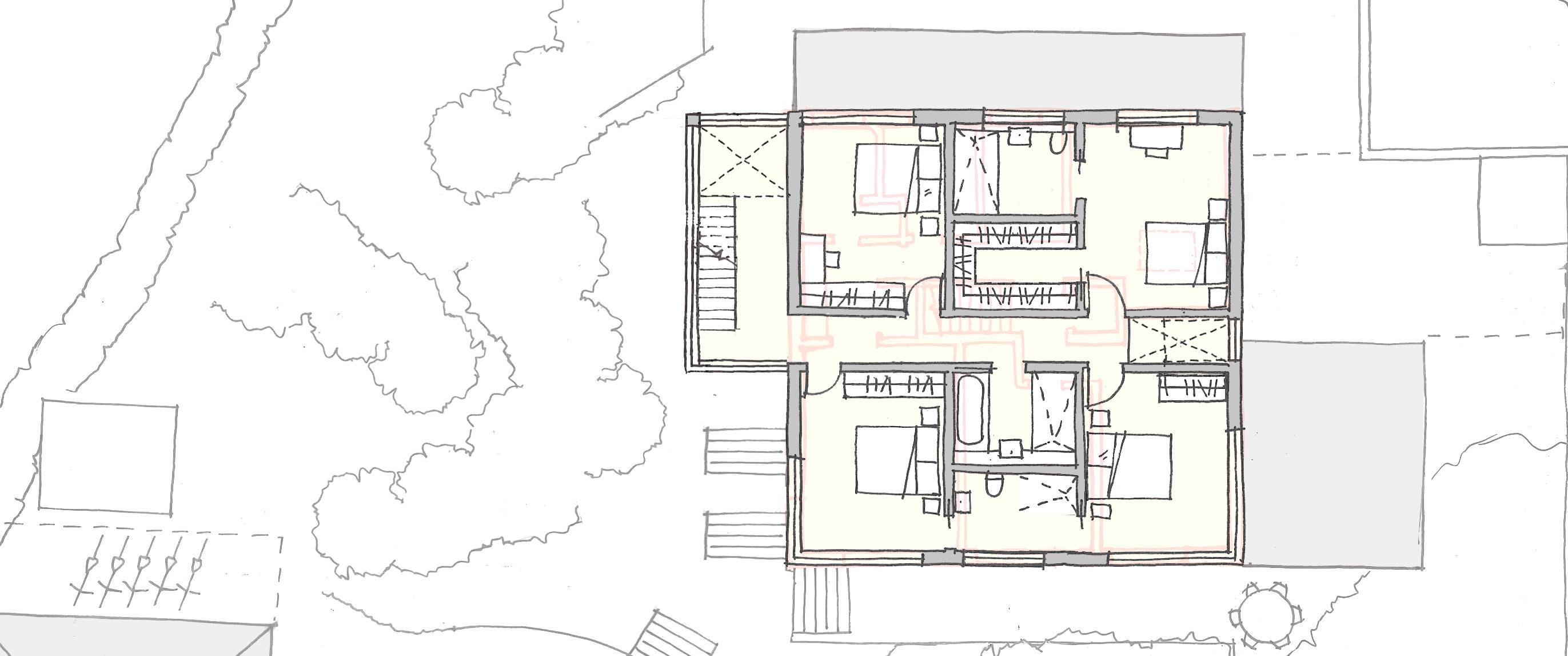

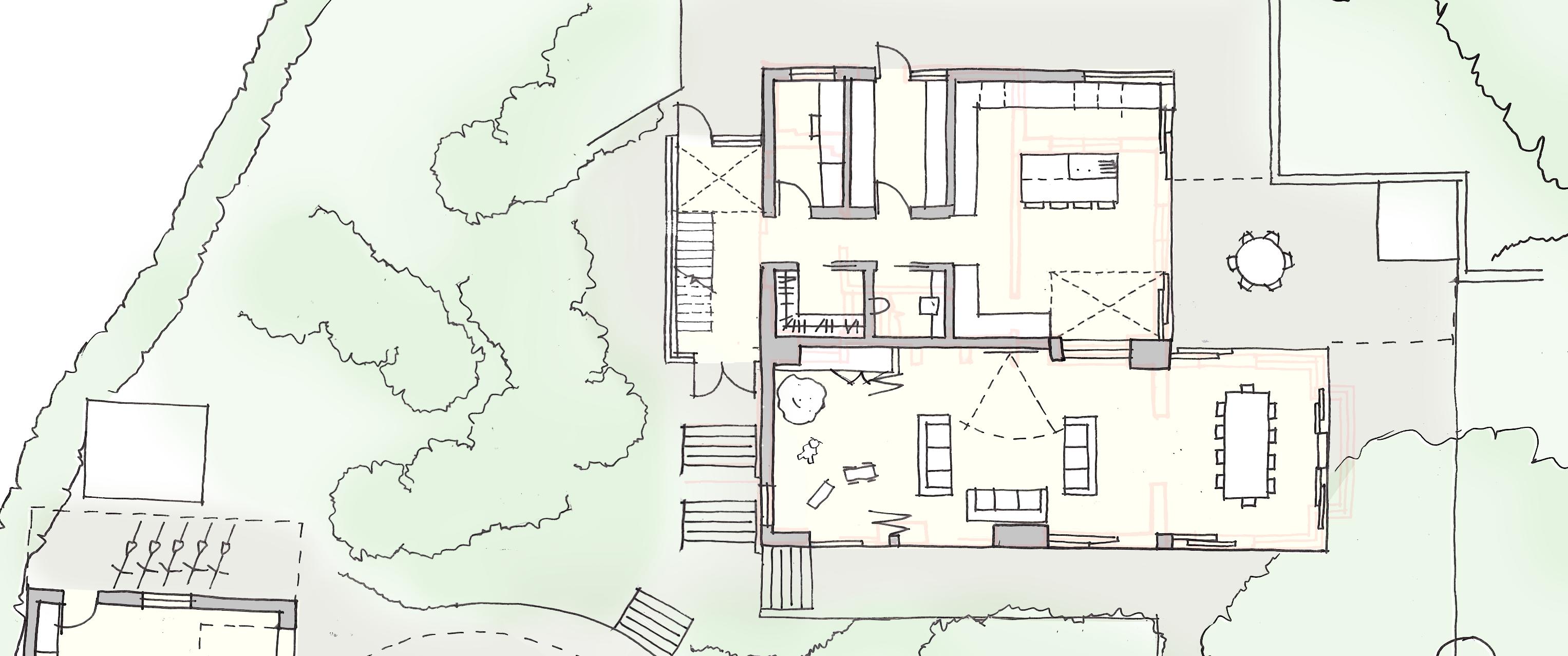

STUDY PANTRY

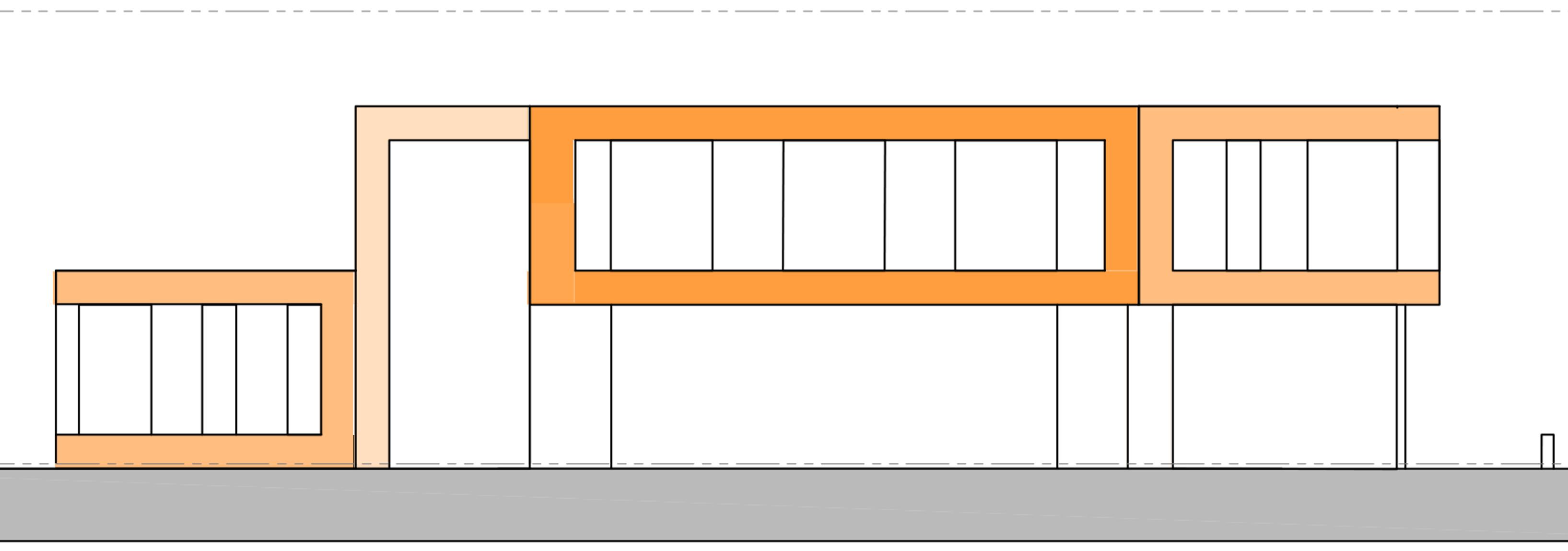

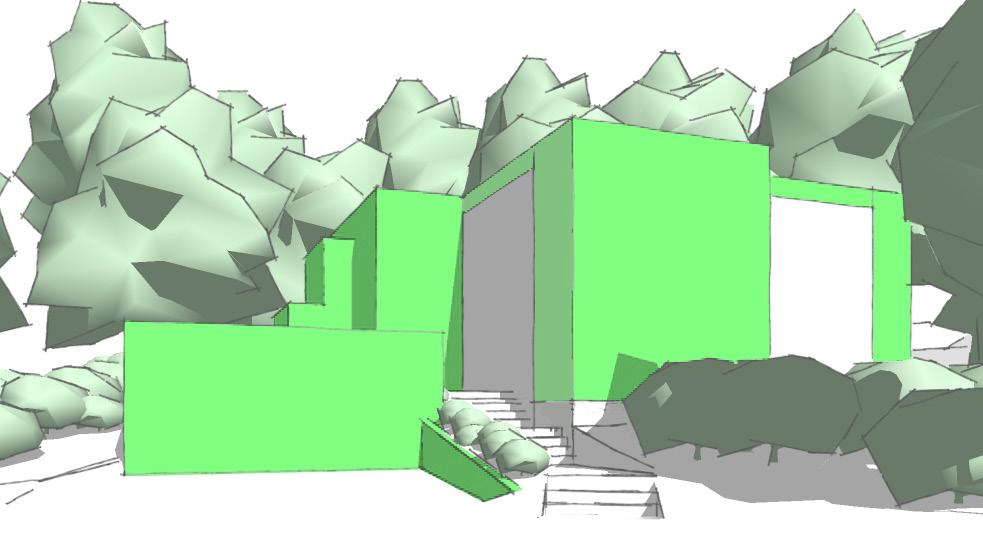

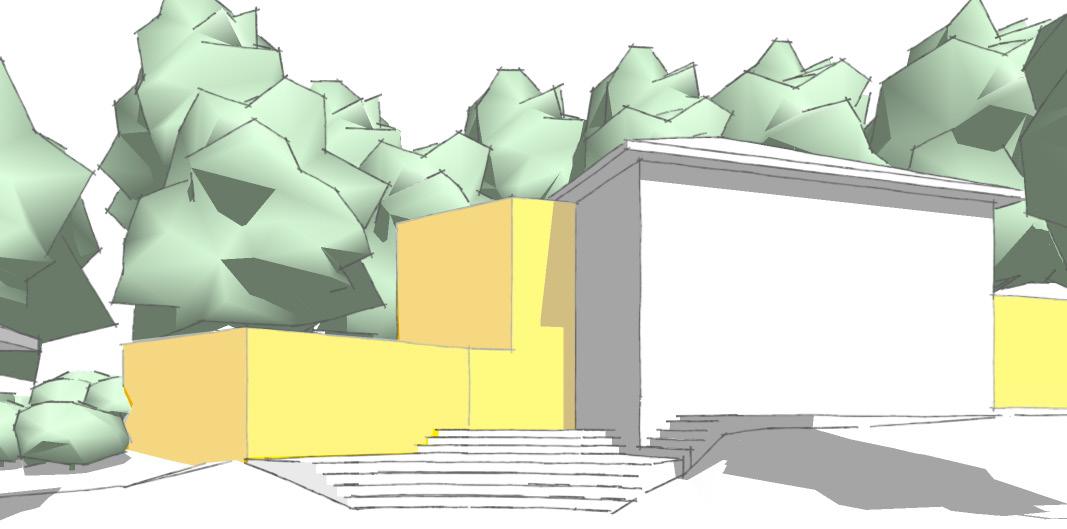

- Main house is prominent with new areas subservient, whilst remaining unified
