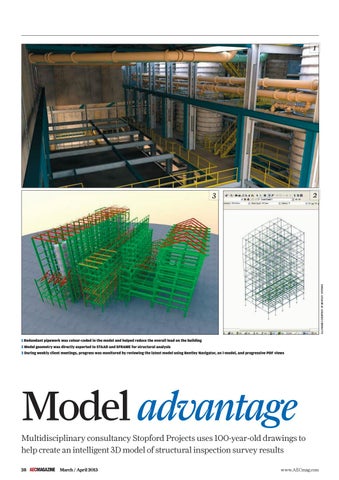

1 Redundant pipework was colour-coded in the model and helped reduce the overall load on the building 2 Model geometry was directly exported to STAAD and SFRAME for structural analysis 3 During weekly client meetings, progress was monitored by reviewing the latest model using Bentley Navigator, an i-model, and progressive PDF views
Model advantage Multidisciplinary consultancy Stopford Projects uses 100-year-old drawings to help create an intelligent 3D model of structural inspection survey results 28
