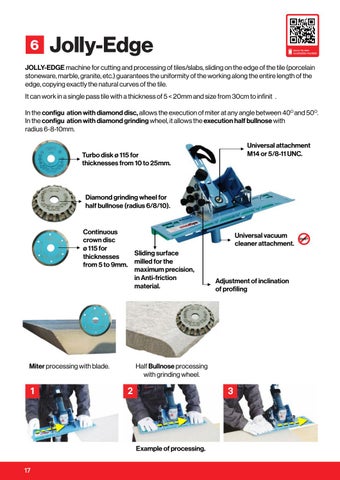

Jolly-Edge
scan to see available models
JOLLY-EDGE machine for cutting and processing of tiles/slabs, sliding on the edge of the tile (porcelain stoneware, marble, granite, etc.) guarantees the uniformity of the working along the entire length of the edge, copying exactly the natural curves of the tile. It can work in a single pass tile with a thickness of 5 < 20mm and size from 30cm to infinit . In the configu ation with diamond disc, allows the execution of miter at any angle between 40O and 50O. In the configu ation with diamond grinding wheel, it allows the execution half bullnose with radius 6-8-10mm.
Turbo disk ø 115 for thicknesses from 10 to 25mm.
Universal attachment M14 or 5/8-11 UNC.
Diamond grinding wheel for half bullnose (radius 6/8/10).
Continuous crown disc ø 115 for Sliding surface thicknesses from 5 to 9mm. milled for the maximum precision, in Anti-friction material.
Miter processing with blade.
Half Bullnose processing with grinding wheel.
Example of processing. 17
Universal vacuum cleaner attachment.
Adjustment of inclination of profiling
