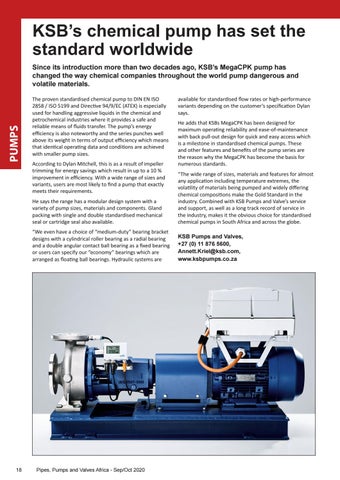

KSB’s chemical pump has set the standard worldwide
PUMPS
Since its introduction more than two decades ago, KSB’s MegaCPK pump has changed the way chemical companies throughout the world pump dangerous and volatile materials.
18
The proven standardised chemical pump to DIN EN ISO 2858 / ISO 5199 and Directive 94/9/EC (ATEX) is especially used for handling aggressive liquids in the chemical and petrochemical industries where it provides a safe and reliable means of fluids transfer. The pump’s energy efficiency is also noteworthy and the series punches well above its weight in terms of output efficiency which means that identical operating data and conditions are achieved with smaller pump sizes. According to Dylan Mitchell, this is as a result of impeller trimming for energy savings which result in up to a 10 % improvement in efficiency. With a wide range of sizes and variants, users are most likely to find a pump that exactly meets their requirements.
available for standardised flow rates or high-performance variants depending on the customer’s specification Dylan says. He adds that KSBs MegaCPK has been designed for maximum operating reliability and ease-of-maintenance with back pull-out design for quick and easy access which is a milestone in standardised chemical pumps. These and other features and benefits of the pump series are the reason why the MegaCPK has become the basis for numerous standards.
He says the range has a modular design system with a variety of pump sizes, materials and components. Gland packing with single and double standardised mechanical seal or cartridge seal also available.
“The wide range of sizes, materials and features for almost any application including temperature extremes, the volatility of materials being pumped and widely differing chemical compositions make the Gold Standard in the industry. Combined with KSB Pumps and Valve’s service and support, as well as a long track record of service in the industry, makes it the obvious choice for standardised chemical pumps in South Africa and across the globe.
“We even have a choice of “medium-duty” bearing bracket designs with a cylindrical roller bearing as a radial bearing and a double angular contact ball bearing as a fixed bearing or users can specify our “economy” bearings which are arranged as floating ball bearings. Hydraulic systems are
KSB Pumps and Valves, +27 (0) 11 876 5600, Annett.Kriel@ksb.com, www.ksbpumps.co.za
