The optional CroSStab enhances vertical lifting power and the possibility to work in tight spaces. “The EFFER 1000 was designed to fulfil the challenging requirements of the construction industry and rental and service business. The CroSStab stabilization system allows EFFER 1000 customers to use the crane for complex lifting scenarios in metropolitan areas or in tight town environments, as well as increasing the crane’s vertical application capabilities,” says Giampaolo Chiffi, Global Product Manager, Super Heavy, Hiab. The CroSStab stabilization system is composed of two front opening angled stabilizers. The left stabilizer can swivel to the needed opening angle up to 123°, which
allows the system to increase the stabilization area in the front part of the truck. When used in the perpendicular traditional position, the left stabilizer offers an increased stability performance due to its longer length of 4.5 meters. This is particularly beneficial in lifting scenarios where a long horizontal reach is necessary. CroSStab also enables operators to lift loads in front of the truck and makes front stabilizers redundant, saving weight and cost of this add-on.
The crane only weighs 9,500 kg but delivers the performance of bigger cranes, which reduces emissions and the cost of ownership. Customers can reduce costs and the weight of their vehicle with CroSStab stabilizer that can replace additional front stabilizers.
Launched in 2021, the EFFER 1000 was the first 90 tons meter loader crane to offer a nine section boom structure with six JIB extensions.
Hiab, +27 (0) 11 865 1425, sales@hiup.co.za, www.hiup.co.za
The CroSStab has been available for EFFER crane models 955 and 1405 since 2010. It will become available as an option to order for EFFER 1000 starting from July 2022.
Lifting Africa - May/Jun 2022
39
TOWER CRANE

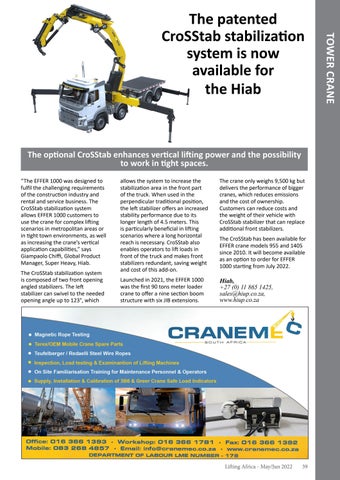

The patented CroSStab stabilization system is now available for the Hiab
