Sustainable Traffic Management and Signal Time Optimization at Basaveshwara Circle, Raichur
from Sustainable Traffic Management and Signal Time Optimization at Basaveshwara Circle, Raichur
by IJRASET
Hariprsad G1, Megha Yadav2, SantoshKumar3, Nagesh Sugandhi4
1PG Student, 2, 3, 4Assistant Professor
Advertisement
1, 2Department of Civil Engineering, Bheema Institute of Technology and Science, Kurnool, Andra Pradesh, India
3, 4Department of Civil Engineering, Navodaya Institute of Technology, Raichur, Karnataka, India
Abstract: Traffic analysis is basically the process of intercepting and examining the number of vehicles on the road and deducing the pattern of traffic movement. A traffic survey on Basaveshwara Circle, Chandra mouleshwara circle and Osman Gunj Circle Intersection of Raichur city has been carried out which includes calculation of present traffic density and analysis of traffic volume by adopting the manual method of counting PCU estimations are made and appropriate design by Webster method and corrections are suggested for highway geometry. For the proposed design geometry, the signal time is optimized.
Keywords: Signal Optimization, Traffic Volume Count, PCU Estimation and Geometric Design.
I. INTRODUCTION
Transport Planning or Transportation is a fundamental element for functioning of any society, region or state and also an important place in modern life and contributes to the Economic, Industrial, Social and Cultural development of any country. The Ability to move people and goods from one location to another is the primary function of a transport of a system. The capabilities of modern transport technology have not been fully exploited to a large extent in Indian cities due to the limitations imposed by uncontrolled urban growth and rapid industrialization.
From the definition of transportation planning we find that “Transportation planning is the field involve with the siting of Transportation facilities (generally street, highways, sidewalks, bike lanes and public transport lines). Traffic capacity of any road is an important part of planning.
It influences the traffic flow in a city. Traffic capacity is expressed as the maximum number of vehicles a lane that can pass a specified point in unit time usually an hour. The volume of traffic repeats not only the number of people requiring to be moved but also their affluences. The volume of transport between two urban centres depends upon the quantity of highways and availability of various transportation modes between these urban centres. The volume also depends upon the interaction between these urban centres.
II. NEED FOR THE STUDY
The selected intersection which is having a much traffic flow due to the less width of the roads and the maximum people will travel in this intersection. Such that due to this problem it will lead to accidents, traffic congestions and delay in travel time. To solve these problems, the study of the present traffic volume and analysis should be made with regard to road geometry like increasing the road width and signal time. By addressing these two issues, the traffic problem can be solved to little extent.
III. OBJECTIVE OF THE STUDY
Theextensive literaturereview paved thewayfor defining thefollowing objectives for this study:
1) To achieve smooth and easyflow of the traffic atintersection
2) To develop methods for improvement in generaland solving specific problem in particular.
3) Tohavesafe, convenient, rapid and economic transport of persons and goods.
4) To improve the speed of vehicle.
5) To provide a basis for future studies of road expansion.
6) Toremove the traffic congestion.
7) To reduce the chances of road accidents to aminimum.
ISSN: 2321-9653; IC Value: 45.98; SJ Impact Factor: 7.538
Volume 11 Issue III Mar 2023- Available at www.ijraset.com
IV. STUDY AREA
Raichur District is a district in the state of Karnataka. The district is bounded by the Krishna River on the north and the Tungabhadra River on the south. The general slope of the district is from the north-west towards the south-east, its average height above the Mean Sea-Level being just 1,311 feet. Among the type of vehicles plying on Raichur roads, two wheelers constitute majority share with 28% of the total vehicles. Public transport i.e. Buses, contributes only 3%of traffic to Raichur roads whereas share of intermediate transport i.e. auto-rickshaw and maxi-cabs, is about 16% of the total vehicular traffic. However, the nonmotorized mode of transport i.e. cycles, constitutes a substantial share of the total traffic (about 24%).

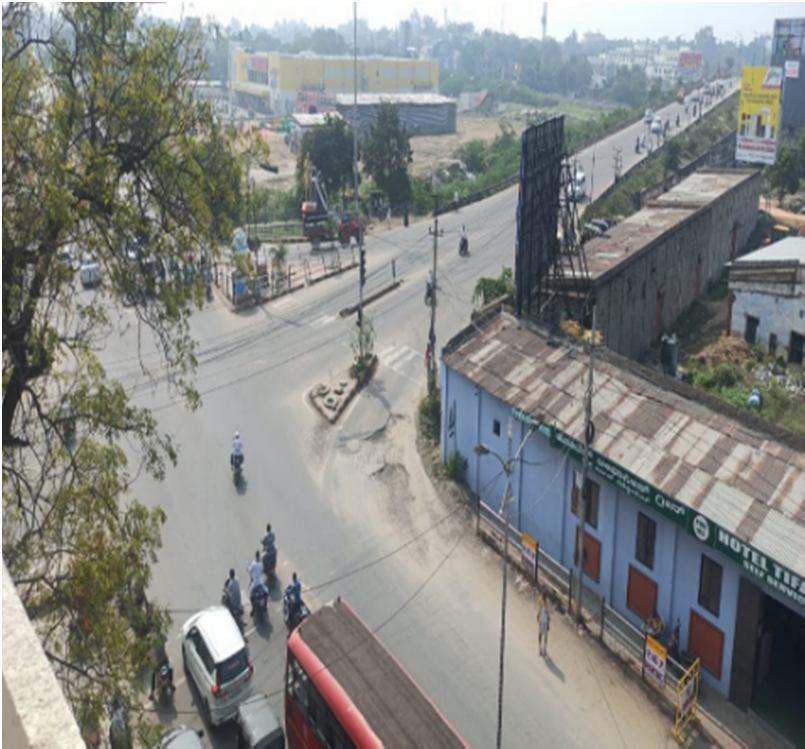

The study area is selected at Basaveshawara Circle Intersection in Raichur.
V. METHODOLOGY
In the present study, traffic volume studies are studied at an intersection for a period of 4 months for a period of 8 hours along the different movement at a intersection. General observations were made for a period of two months for Raichur city roads and Sindhanur- Gadwal road stretch is selected because of the more traffic flow in this road section Intersection at Basaveshwara Circle with traffic signal is identified located near the railway crossing in thecity. Traffic volume count analysis methods were studied and formats for traffic volume count were prepared. Traffic volume studies are conducted to determine the type of vehicles and movements at a given location. These data can help identify critical flow time periods, determine the influence of large vehicles orpedestrians or on vehicular traffic flow or document traffic volume trends.
The length of the sampling period depends on thetype of count being taken andtheintended use ofthe datarecorded. For example, an intersection count may be conducted during the peak flow period. If so, manual count with 15- minute intervals could be used to obtain the traffic volume data.
Manual counts are typically used to gather data for determination of vehicle classification, turningmovements, direction of travel, pedestrian movements, or vehicle Occupancy. In the present study, manual count method is adopted for studying the type and traffic volume composition at Basaveshwara Circle Intersection.
The following Table 1 represent the format adopted for traffic volume count for morning peak andevening peaks. Traffic counts during a Monday morning rush hour and a Friday evening rush hour mayshow exceptionally high volumes and are not normally used in analysis; therefore, counts are usually conducted on a Tuesday, Wednesday Thursday. Analysis of results will be made using plots and graphs.
The results analysis made using bar chart and pie chart can be used to analyze the result.Appropriate geometric designs are made based on the volume of traffic.
In the second phase of the work, existing signal time was recorded for the Aruna Circle Intersection. Using trial cycle method, the traffic signal time is optimised.
