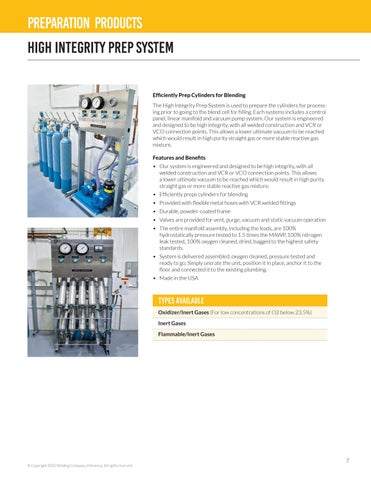

Preparation Products HIGH INTEGRITY PREP SYSTEM Efficiently Prep Cylinders for Blending The High Integrity Prep System is used to prepare the cylinders for processing prior to going to the blend cell for filling. Each systems includes a control panel, linear manifold and vacuum pump system. Our system is engineered and designed to be high integrity, with all welded construction and VCR or VCO connection points. This allows a lower ultimate vacuum to be reached which would result in high purity straight gas or more stable reactive gas mixture. Features and Benefits • Our system is engineered and designed to be high integrity, with all welded construction and VCR or VCO connection points. This allows a lower ultimate vacuum to be reached which would result in high purity straight gas or more stable reactive gas mixture. • Efficiently preps cylinders for blending • Provided with flexible metal hoses with VCR welded fittings • Durable, powder-coated frame • Valves are provided for vent, purge, vacuum and static vacuum operation • The entire manifold assembly, including the leads, are 100% hydrostatically pressure tested to 1.5 times the MAWP, 100% nitrogen leak tested, 100% oxygen cleaned, dried, bagged to the highest safety standards. • System is delivered assembled, oxygen cleaned, pressure tested and ready to go. Simply uncrate the unit, position it in place, anchor it to the floor and connected it to the existing plumbing. • Made in the USA
Types Available Oxidizer/Inert Gases (For low concentrations of O2 below 23.5%) Inert Gases Flammable/Inert Gases
