Motors, Starters & Pumps
EXpLOSiOn-pROOF ELEcTRic mOTORS
1 PHASE Rigid Base 1725 RPM
RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EMS-1 1 143T 5/8” 115/230 14.0 7.0 EMS-1.5 1.5 184 7/8” 115/230 19.0 9.5 EMS-2 2 182T 1 1/8” 115/230 22.0 11.0 EMS-3 3 215 1 1/8” 115/230 30.0 15.0 EMS-5 5 215 1 1/8” 115/230 26.0
1 PHASE - C FACE 1725 RPM RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EMC-1 1 56C 5/8” 115/230 11.2 5.6 EMC-1.5 1.5 56C 5/8” 115/230 12 6 EMC-2 2 184C 7/8” 115-208/230 22 11.6 EMC-3 3 215C 1 1/8” 115/230 30 15 EMC-5 5 215C 1 1/8” 230 21
3 PHASE - C FACE 1725 RPM RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EMCT-1 1 56C 5/8” 208-230/460 3.6 1.8 EMCT-1.5 1.5 56C 5/8” 208-230/460 4.6 2.3 EMCT-2 2 56C 5/8” 230/460 6 3 EMCT-3 3 182TC 1 1/8” 230/460 8.2 4.1 EMCT-5 5 184TC 1 1/8” 230/460 13.6 6.8 EMCT-7.5 7.5 213TC 1 3/8” 230/460 20.2 10 EMCT-10 10 215TC 1 3/8” 230/460 26 13
C FACE 3600 RPM for Corken C Model Pumps
RMI Part No. HP Frame Size Phase Voltage Amp Rating 115v 230v 2556 1 C10/C12 1 115-208/230 12 6 4261 2 C12/C13 1 115-208/230 20 10 2557 3 C14 3 230/460 4 8
1 PHASE Rigid Base 3450 RPM
RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EMSF-1 1 56 5/8” 115/230 12 6 EMSF-2 2 145T 7/8” 115-208/230 23 11.5 EMSF-3 3 184T 1 1/8” 115/230 29 14.5 EMSF-5 5 184T 1 1/8” 230 28
3 PHASE Rigid Base 1725 RPM
RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EM-1 1 56 5/8” 208-230/460 3.6 1.8 EM-1.5 1.5 145T 7/8” 230/460 4.4 2.2 EM-2 2 145T 7/8” 230/460 5.8 2.9 EM-3 3 182T 1 1/8” 230/460 8.4 4.2 EM-5 5 184T 1 1/8” 230/460 13.4 6.7 EM-7.5 7.5 213T 1 3/8” 230/460 17.2 8.6 EM-10 10 215T 1 3/8” 230/460 24 12 EM-15 15 254T 1 5/8” 230/460 36 18 EM-20 20 256T 1 5/8” 230/460 48 24 EM-25 25 284T 1 7/8” 230/460 61 30.5 EM-30 30 286T 1 7/8” 230/460 72 36
3 PHASE Rigid Base 3600 RPM
RMI Part No. HP Frame Size Shaft Voltage Amp Rating 115v 230v EMF-1 1 56 5/8” 208-230/460 3.6 1.8 EMF-2 2 145T 7/8” 230/460 4.8 2.4 EMF-3 3 145T 7/8” 230/460 7.2 3.6 EMF-5 5 184T 1 1/8” 230/460 11.8 5.9 EMF-7.5 7.5 184T 1 1/8” 230/460 16.8 8.4 EMF-10 10 215T 1 3/8” 230/460 23.6 11.8
STARTERS
SWITcheS aND STaRTeRS F SWITCHES & STARTERS FOR EXPLOSION PROOF AREASoR exPLoTIoN PRooF aRea cLaSS I gRouP D FoR PRo CLASS I GROUP D FOR PROPANE PaNe INSTaLLaTIoNS INSTALLATIONS SINGLE PHASE SERVICE THREE PHASE SERVICE
• Standard on-off switch with explosion proof box for motors with low ampere electric service (does not provide over-load protection).
• manual starter provides overload starter protection, explosion proof enclosure with lever lock and pad lock feature. Economical control for medium ampere electrical • service range. magnetic starter provides starter protection, explosion proof enclosure, and magnetic circuit contacts. Excellent control for larger motor installations. © Ray Murray Inc. Edition 11
Motor HP Switch, On-Off Manual Starter Magnetic Starter Motor HP
Switch, On-Off Manual Starte 115V 230V 115V 230V 115V 230V 230V 460V 230V 460V 230V 460V
1 XS-52C XS-52C 609-AHX 609-AHX 509-AHXD 509-AHXA 1-1.5 XS-58CXS-58C -- -- -- -1.5 -- -- 609-BHX 609-AHX 509-BHXD 509-AHXA 2 -- -- 609-AH 2 -- -- 609-BHX 609-AHX 509-BHXD 509-AHXA 3 -- -- 609-AH 3 -- -- 609-XHX 609-BHX 509-XHXD 509-BHXA 5 -- -- 609-BH 5 -- -- -- 6SWITCHES & STARTERS FOR EXPLOSION PROOF AREAS CLASS I GROUP D FOR PROPANE INSTALLATIONS 09-XHX -- 509-XHXA 7.5 -- -- 609-BHW609-BH 10 -- -- -SINGLE PHASE SERVICE THREE PHASE SERVICE 15 -- -- -- --
Motor HP
Switch, On-Off Manual Starter Magnetic Starter Motor HP
Switch, On-Off Manual Starter Magnetic Starter 115V 230V 115V 230V 115V 230V 230V 460V 230V 460V 230V 460V
1 XS-52C XS-52C 609-AHX 609-AHX 509-AHXD 509-AHXA 1-1.5 XS-58CXS-58C -- -- -- -1.5 -- -- 609-BHX 609-AHX 509-BHXD 509-AHXA 2 -- -- 609-AHW609-AHW 509-AHA 509-AHB 2 -- -- 609-BHX 609-AHX 509-BHXD 509-AHXA 3 -- -- 609-AHW609-AHW 509-AHA 509-AHB 3 -- -- 609-XHX 609-BHX 509-XHXD 509-BHXA 5 -- -- 609-BHW609-AHW 509-BHA 509-AHB 5 -- -- -- 609-XHX -- 509-XHXA 7.5 -- -- 609-BHW609-BHW 509-BHA 509-BHB 10 -- -- -- 609-BHW 509-CHA 509-BHB 15 -- -- -- -- 509-CHA 509-CHB
Corken Cylinder Filling Pumps
Regenerative turbine pumps. Ductile iron casing, balance type mechanical seal, and free floating bronze impeller provide years of service and quiet operation.
C Series
F Series
*must Specify motor When Ordering
cORO-FLO cYLindER FiLLinG pUmpS
• C10 ideal for the one scale bottle filling operation. Fills 20# cylinders in 30 seconds.
Fills 100# cylinders in 2.5 minutes, and fuels through a meter at 7 GPM. • C12 for those who want to do it faster. Especially recommended for motor fueling and “batch” fork lift filling. Fills 20# cylinders in 15 seconds, 100# cylinders in 2 minutes. Perfect for motor fueling through a meter at 15 GPM.
C MODEL CLOSE COUPLED SERIES RMI PART NO. Capacity GPM 50 PSID Capacity GPM 75 PSID
Pump, Starter Inlet Outlet Max PSID & By Pass Pump & Starter
H.P. Rating Motor Phase
C10JD-SM-B C10JD-SM 6.5 2.5 11/4" 1" 75 1 1.0 C12JD-SM-B C12JD-SM 15 11 11/2" 1" 85 1 1.0 C13JD-SM-B C13JD-SM 22 17 11/2" 1" 100 2.0 1 C14HD (Starter included) not 32 25 11/2" 1" 100 3.0 3

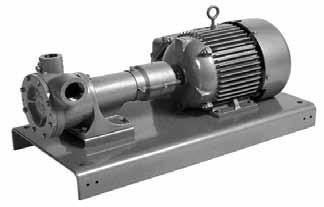

F SERIES CORO-FLO CYLINDER FILLING PUMP RMI Part No. Frame Mount Capacity - GPM
Pump, Baseplate & Coupling Pump
Only 50 PSID 75 PSID Inlet Outlet Max PSID
F9CD-101 F9CD 4.5 w/ 1HP 2.25 W/ 1 HP 11/4" 1" 100 F10CD-101 F10CD 6.5 W/ 1HP 2.5 W/ 1HP 11/4" 1" 90 F12CD-101 F12CD 15 w/ 2HP 11 w/ 2HP 11/2" 1" 115 F14CD-101 F14CD 31 w/ 3 HP 25 w/ 3 HP 11/2" 1" 125
AUTOGAS pUmp
The Corken Autogas pump achieves new levels of performance with higher flows at high differential pressures, non-pulsating and quiet transfer longer pump life and a design that is easy to repair. The pump is also versatile enough to be used in applications such as cylinder filling, vaporizer feeding, or bulk transfer.
© Ray Murray Inc. Edition 11
RMI Part No. GPM Diff. Pressure
Motor Pump on Base Pump Only HP
FF060CD6A-101-184T FF060CD6A 8.5 145 5 FF075CD6A-101-215T FF075CD6A 22.5 145 7.5 FF150CD6A-101-215T FF150CD6A 33.8 145* 10
*200psig maximum differential pressure with 20HP motor
Prepackaged pump assemblies with motor and bypass valve
Variable frequency drives allow the use of 3 phase motors on single phase electric service. Can also be used instead of a starter with 3 phase service.
High Differential Pressure Packages
RMI Part No. Description
HDPFF060-3P53 Pump, Base Plate, Bypass and 5HP 3PH motor HDPFF075-3P75 Pump, Base Plate, Bypass and 7.5HP 3PH motor HDPFF150-3P10 Pump, Base Plate, Bypass and 10HP 3PH motor
RMI Part No.
Options Description
4204-1 10hp Variable Frequency Drive for use with 5HP motors 4204 15hp Variable Frequency Drive for use with 7.5HP motors 4204-2 20hp Variable Frequency Drive for use with 10HP motors FF150 Base Mounted
• Ideal for dual hose dispensers and multiple dispensers • ANSI Flanges 1 1/2” inlet X 1” outlet • Continuous Duty Capability • Self-aligning, free-floating impeller
105
Corken Bulk Plant and Truck Pumps
Z200-103
cORO-VAnE BULK FiLL pUmpS
• Sliding vane design with internal safety relief valve. • Large diameter non-metalic pins are not speed sensitive to allow for higher
RPM operation • High Tech materials used on cam and blades to extend life of pump
• Easy maintenance
Z4500 pump with reducer
RMI Part No.
Pump & Base Pump Only Inlet/Outlet Capacity @ 50 PSID GPM @ 640 RPM GPM @ 780 RPM
Z2000-103 Z2000 2” NPT 69 82 Z3500-103 Z3500* 3” NPT 143 177 Z4500-103 Z4500 4” x 3” FLNG 309 382
*Easy retrofit with 1021 or other 3” pumps.
Z4200 • Reversible side plates • Anti-cavitation cam • Low impact high strength drivers • Needle roller bearings rated for up to 4,000 lbs.
Z3200
RMI Part No. Inlet Outlet Capacity @ 50 PSID GPM @ 640 RPM GPM @ 780 RPM
Z3200 3" Flange 2" NPT 95 112 Z4200 4" Flange Dual 2" 278 369
cORO-VAnE BASE mOUnTEd TRUcK pUmpS
RMI Part No. Inlet Outlet Capacity Z2000 2" NPT Flange 2" 40-85 GPM
Z2000
RMI Part No. RMI Part No. Pump Model Inlet Outlet Capacity
4496-X1 Z3200 Z2000 2" NPT Flange 2" 40-85 GPM 4496-1X1 Z4500
Hydraulic motor mounting adapters
• RMI part number 4496-X1
RMI Part No. Pump Model
4496-X1 Z3200 4496-1X1 Z4500
dRY cYLindER cOmpRESSORS
• Designed for liquid transfer and residual vapor recovery. • Contamination-free, oil-free delivery. • Fully engineered design. • Double Shaft Extension for LH or RH PTO • Hydraulically Actuated Blades
M3FBA Series
RMI Part No.
Capacity Motor HP RPM Standard
Complete Pipe Size
Bulk Plant Transfer Unit* Compressor & Fly Wheel Only GPM CFM Vapor Liquid
91M3FBA-107 91M3FBA 50 8.3 5 600 1" 11/4 " 291M3FBA-107 291M3FBA 88 16 7.5 780 11/4" 2" 491M3FBA-107 491M3FBA 198 36 15.0 825 2" 3" 691M3FBA-107 691M3FBA 330 60 25.0 822 3" 4" *Transfer Unit includes compressor, gauges, base, piping, strainer, 4-way valve, liquid trap, belt guards and sliding base. Motor is not included. © Ray Murray Inc. Edition 11
