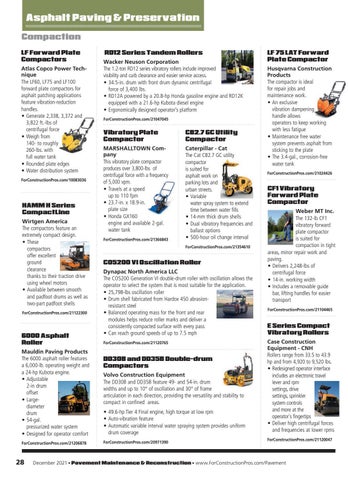

Asphalt Paving & Preservation Compaction LF Forward Plate Compactors Atlas Copco Power Technique The LF60, LF75 and LF100 forward plate compactors for asphalt patching applications feature vibration-reduction handles. • Generate 2,338, 3,372 and 3,822 ft.-lbs of centrifugal force • Weigh from 140- to roughly 260-lbs. with full water tank • Rounded plate edges • Water distribution system ForConstructionPros.com/10083036
HAMM H Series CompactLine Wirtgen America The compactors feature an extremely compact design. • These compactors offer excellent ground clearance thanks to their traction drive using wheel motors • Available between smooth and padfoot drums as well as two-part padfoot shells ForConstructionPros.com/21122300
6000 Asphalt Roller Mauldin Paving Products The 6000 asphalt roller features a 6,000-lb. operating weight and a 24-hp Kubota engine. • Adjustable 2-in drum offset • Largediameter drum • 54-gal. pressurized water system • Designed for operator comfort ForConstructionPros.com/21206878
28
RD12 Series Tandem Rollers Wacker Neuson Corporation The 1.2-ton RD12 series vibratory rollers include improved visibility and curb clearance and easier service access. • 34.5-in. drum with front drum dynamic centrifugal force of 3,400 lbs. • RD12A powered by a 20.8-hp Honda gasoline engine and RD12K equipped with a 21.6-hp Kubota diesel engine • Ergonomically designed operator’s platform ForConstructionPros.com/21047045
Vibratory Plate Compactor
CB2.7 GC Utility Compactor
MARSHALLTOWN Company This vibratory plate compactor produces over 3,800-lbs of centrifugal force with a frequency of 5,000 vpm. • Travels at a speed up to 110 fpm • 23.7-in. x 18.9-in. plate size • Honda GX160 engine and available 2-gal. water tank
Caterpillar - Cat The Cat CB2.7 GC utility compactor is suited for asphalt work on parking lots and urban streets. • Variable water spray system to extend time between water fills • 14-mm thick drum shells • Dual vibratory frequencies and ballast options • 500-hour oil change interval
ForConstructionPros.com/21366843
ForConstructionPros.com/21354610
CO5200 VI Oscillation Roller Dynapac North America LLC The CO5200 Generation VI double-drum roller with oscillation allows the operator to select the system that is most suitable for the application. • 25,798-lbs oscillation roller • Drum shell fabricated from Hardox 450 abrasionresistant steel • Balanced operating mass for the front and rear modules helps reduce roller marks and deliver a consistently compacted surface with every pass • Can reach ground speeds of up to 7.5 mph ForConstructionPros.com/21120765
DD30B and DD35B Double-drum Compactors Volvo Construction Equipment The DD30B and DD35B feature 49- and 54-in. drum widths and up to 10° of oscillation and 30° of frame articulation in each direction, providing the versatility and stability to compact in confined areas. • 49.6-hp Tier 4 Final engine, high torque at low rpm • Auto-vibration feature • Automatic variable interval water spraying system provides uniform drum coverage ForConstructionPros.com/20971390
LF 75 LAT Forward Plate Compactor Husqvarna Construction Products The compactor is ideal for repair jobs and maintenance work. • An exclusive vibration dampening handle allows operators to keep working with less fatigue • Maintenance free water system prevents asphalt from sticking to the plate • The 3.4-gal., corrosion-free water tank ForConstructionPros.com/21024426
CF1 Vibratory Forward Plate Compactor Weber MT Inc. The 132-lb CF1 vibratory forward plate compactor is suited for compaction in tight areas, minor repair work and paving. • Delivers 2,248-lbs of centrifugal force • 14-in. working width • Includes a removable guide bar, lifting handles for easier transport ForConstructionPros.com/21104465
E Series Compact Vibratory Rollers Case Construction Equipment - CNH Rollers range from 33.5 to 43.9 hp and from 4,920 to 9,520 lbs. • Redesigned operator interface includes an electronic travel lever and rpm settings, drive settings, sprinkler system controls and more at the operator's fingertips • Deliver high centrifugal forces and frequencies at lower rpms ForConstructionPros.com/21120047
