Technical information

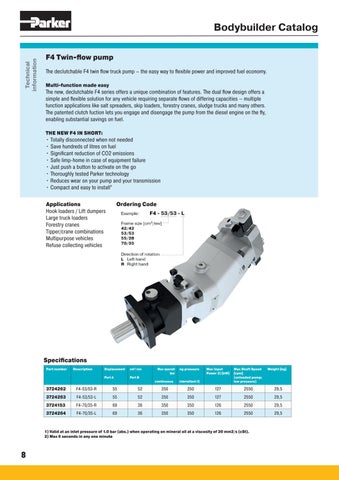

Bodybuilder Catalog F4 Twin-flow pump The declutchable F4 twin flow truck pump – the easy way to flexible power and improved fuel economy. Multi-function made easy
The new, declutchable F4 series offers a unique combination of features. The dual flow design offers a simple and flexible solution for any vehicle requiring separate flows of differing capacities — multiple function applications like salt spreaders, skip loaders, forestry cranes, sludge trucks and many others. The patented clutch fuction lets you engage and disengage the pump from the diesel engine on the fly, enabling substantial savings on fuel. THE NEW F4 IN SHORT:
• Totally disconnected when not needed • Save hundreds of litres on fuel • Significant reduction of CO2 emissions • Safe limp-home in case of equipment failure • Just push a button to activate on the go • Thoroughly tested Parker technology • Reduces wear on your pump and your transmission • Compact and easy to install” Applications Hook loaders / Lift dumpers Large truck loaders Forestry cranes Tipper/crane combinations Multipurpose vehicles Refuse collecting vehicles
Ordering Code
Bodybuilder Catalog Specifications Part number
2022
Description
Displacement
cm³/rev
Port A
Port B
Max operati bar continuous
ng pressure
Max Input Power 2) [kW]
intermittent 3)
Max Shaft Speed [rpm] (unloaded pump; low pressure)
3724262
F4-53/53-R
55
52
350
350
127
2550
29,5
3724263
F4-53/53-L
55
52
350
350
127
2550
29,5
3724153
F4-70/35-R
69
36
350
350
126
2550
29,5
3724264
F4-70/35-L
69
36
350
350
126
2550
29,5
1) Valid at an inlet pressure of 1.0 bar (abs.) when operating on mineral oil at a viscosity of 30 mm2/s (cSt). 2) Max 6 seconds in any one minute
8
Weight [kg]
